Plan 51849HZ
3 Bed Contemporary Craftsman with 3 Car Garage
Heated S.F.
2,002
Beds
3-4
Baths
2
Stories
1
Cars
3
Tour
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

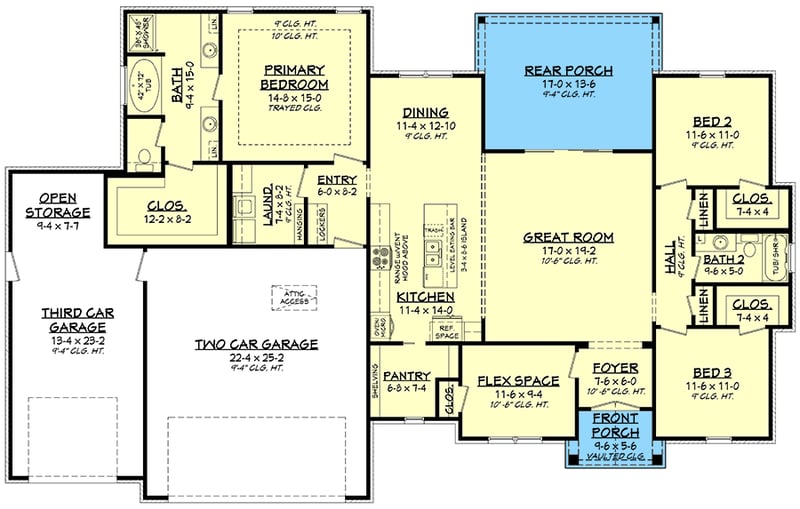

3 Bed Contemporary Craftsman with 3 Car Garage - 51849HZ floor plan - Main Level
Basement Stair Location
Reverse Floor Plan

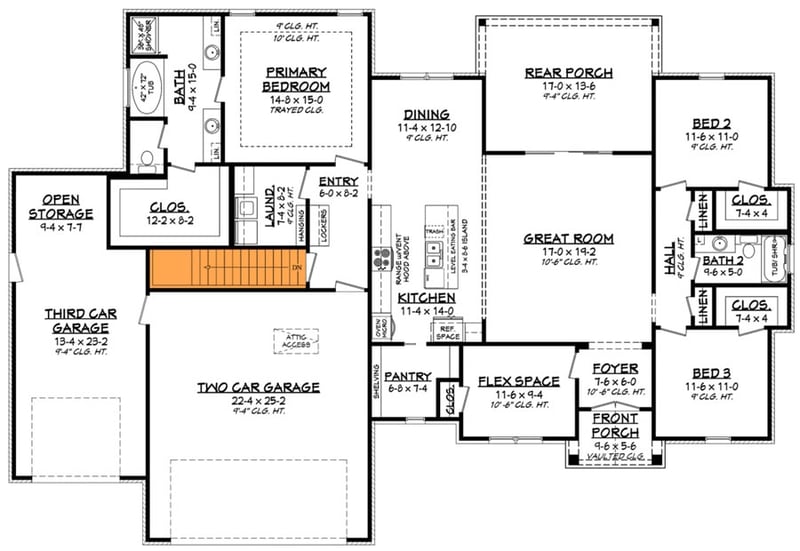

3 Bed Contemporary Craftsman with 3 Car Garage - 51849HZ floor plan - Basement Stair Location
Plan Details
  • This contemporary Craftsman house plan offers three bedrooms with a private master suite including a spa-like bath with a 3'6" by 4' shower and generous master closet with convenient access to the laundry room.
  • The exposed truss and beams on the front porch and the arbor at the garage add to the curb appeal.
  • Ten foot ceilings throughout the main living areas create impressive spaces, and the gourmet kitchen with butler's pantry is every home cook's dream.
  • The covered back porch provides additional space for entertaining.
  • Related Plans: Get a 2-car version with house plan 51755HZ and get an alternate version with a 2-car side-entry garage with house plan 51843HZ.
  • Note: Please note that orders including special options may result in a delay. Call us for details.
What's Included
This house plan set has 12 pages as follows:

Page 1  Cover Sheet with abbreviations, rendering, sheet index and design data
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan(includes window sizes, ceiling joist size and directions, beam sizes and plumbing fixture locations, etc.)
Page 4  Front and rear exterior views with additional details
Page 5  Right and left exterior views with additional details
Page 6  Cross Sections, roof plan and cornice details
Page 7  Kitchen cabinet views
Page 8  Electrical plan
Page N1 Code Information
Page N2 Code Information
Page N3 Code Information
Page N4 Energy Code Information

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed Contemporary Craftsman with 3 Car Garage

  • 2,002

    Heated s.f.

  • 3-4

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total: 2,002 sq. ft.
  • 1st Floor: 2,002 sq. ft.

Dimensions

  • Width: 79' 6"
  • Depth: 49' 8"
  • Max ridge height: 22' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 969 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
