Plan 42371DB

3 Bed Cottage House Plan

3 Bed Cottage House Plan

Plan 42371DB

  • 2,326

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3 bed cottage house plan has a charming dormer and a front accented by stone and shakes.
  • Added perks include a long foyer hall with an elegant tray ceiling and signature space near the laundry room that makes a great home office or homework area.
  • A key design element is the open floor plan that unites the kitchen with the family room and dining area so you can keep tabs on the family while cooking.
  • The owner's suite is way in the back away from street noise.
  • Notice the handy pocket door in the master closet that takes you right into the laundry room.
  • NOTE: Please allow 10-20 business days for delivery.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Floor Plan

Plan details



3 Bed Cottage House Plan

  • 2,326

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $665
  • PDF - single-use $1,015
  • 5 Sets $1,140
  • 5 Sets PLUS $1,185
  • 8 Sets $1,210
  • PDF - multi-use $1,515
  • CAD $1,776
  • CAD - multi-use $2,276
  • View all purchase option online

About This Plan

  • This 3 bed cottage house plan has a charming dormer and a front accented by stone and shakes.
  • Added perks include a long foyer hall with an elegant tray ceiling and signature space near the laundry room that makes a great home office or homework area.
  • A key design element is the open floor plan that unites the kitchen with the family room and dining area so you can keep tabs on the family while cooking.
  • The owner's suite is way in the back away from street noise.
  • Notice the handy pocket door in the master closet that takes you right into the laundry room.
  • NOTE: Please allow 10-20 business days for delivery.

Floor Plans

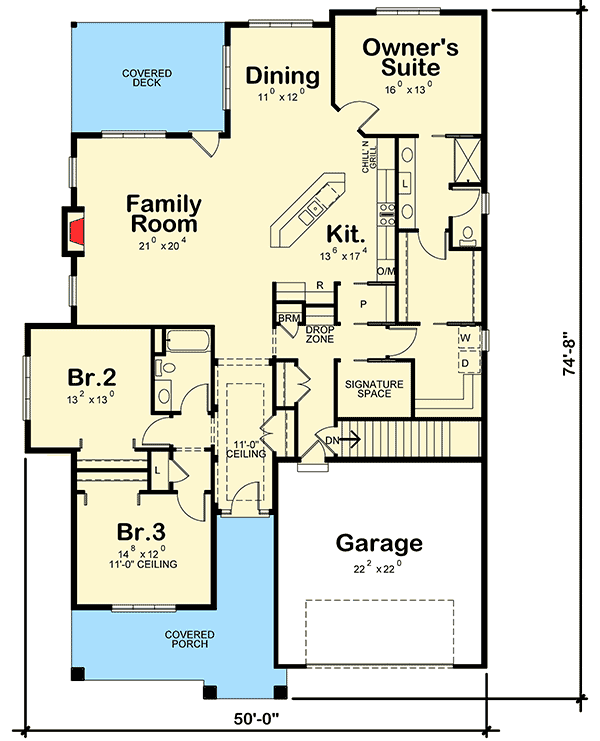

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,326 sq. ft.
  • 1st Floor: 2,326 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 74' 8"
  • Max ridge height: 30' 4"

Garage

  • Type: Attached
  • Area: 512 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
