3-Bed Cottage House Plan with Spacious Interior

Plan 72960DA

  • 2,262

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Stories

  • 2

    Cars

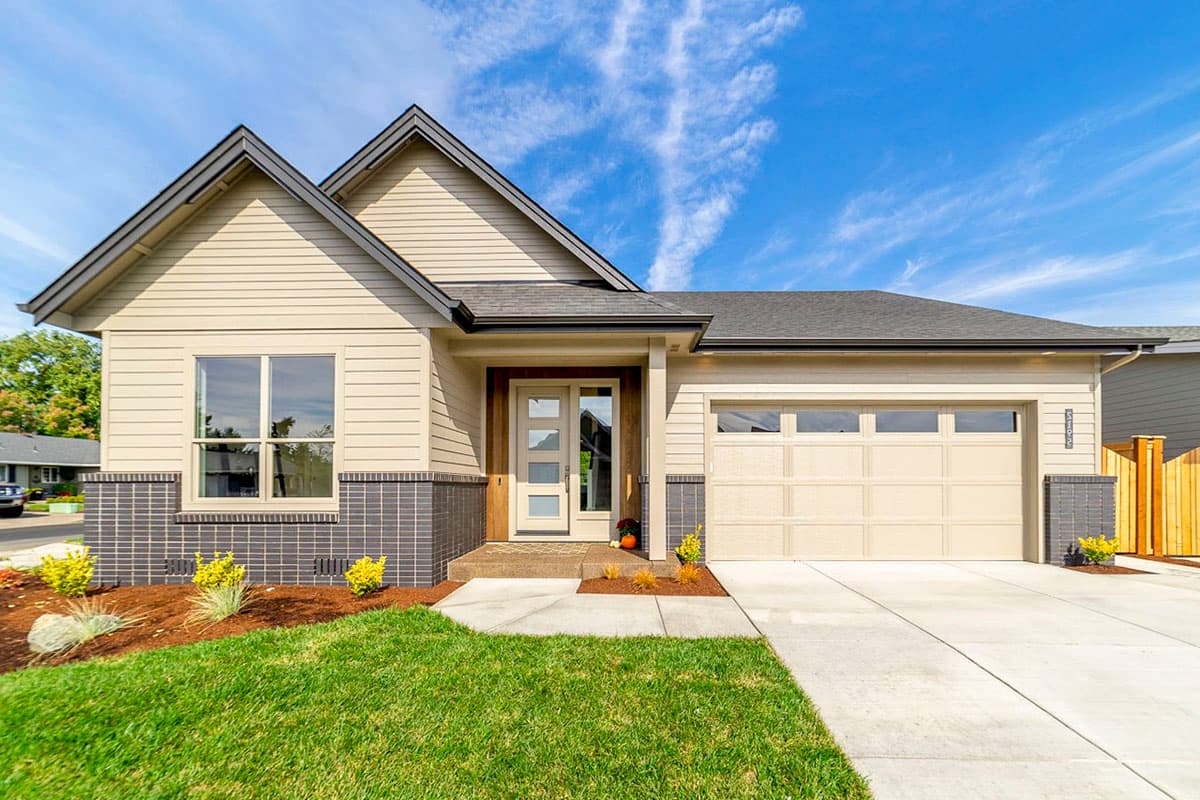

  • This house plan has a traditional, minimalistic exterior with stone accents and a spacious interior that uses every square foot efficiently .

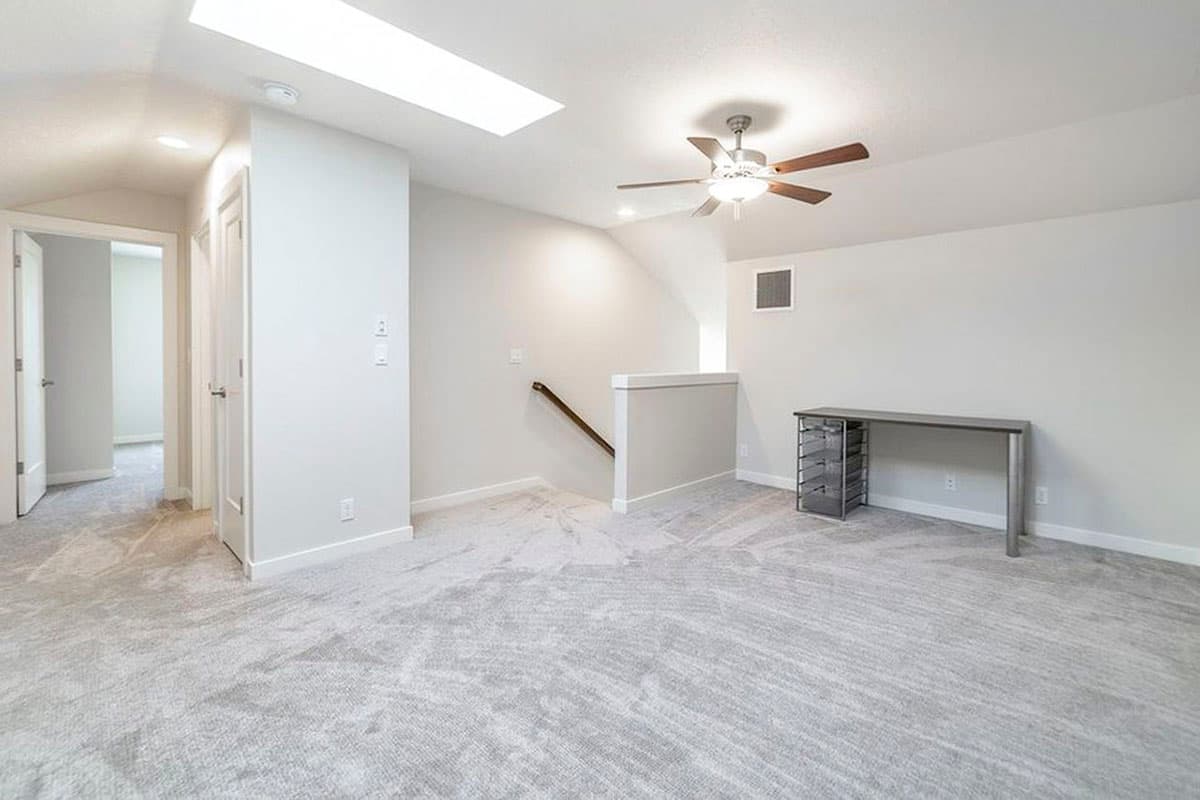

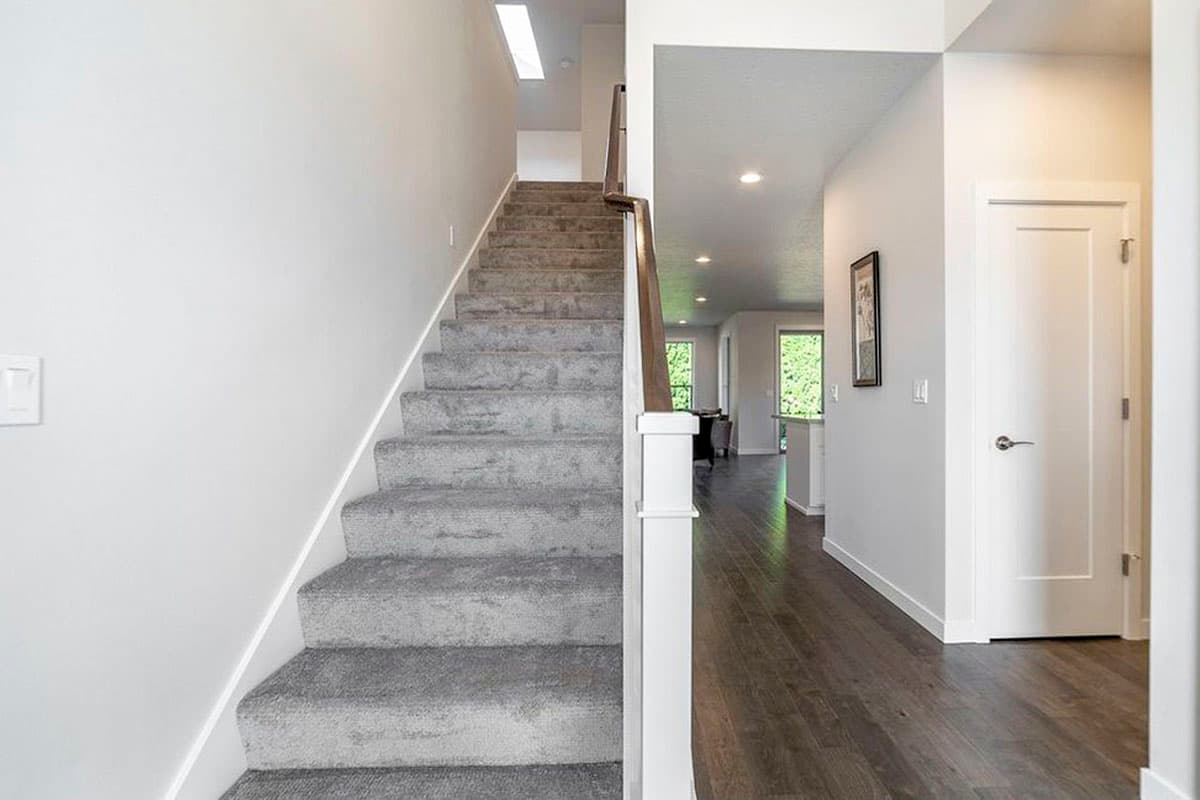

  • Just through the entry and to the left is a den, designed to be flexible in its use either as a home office or guest bedroom. To the right, stairs lead up to two bedrooms which are separated by a large loft which would make an excellent study space, library, or game room.

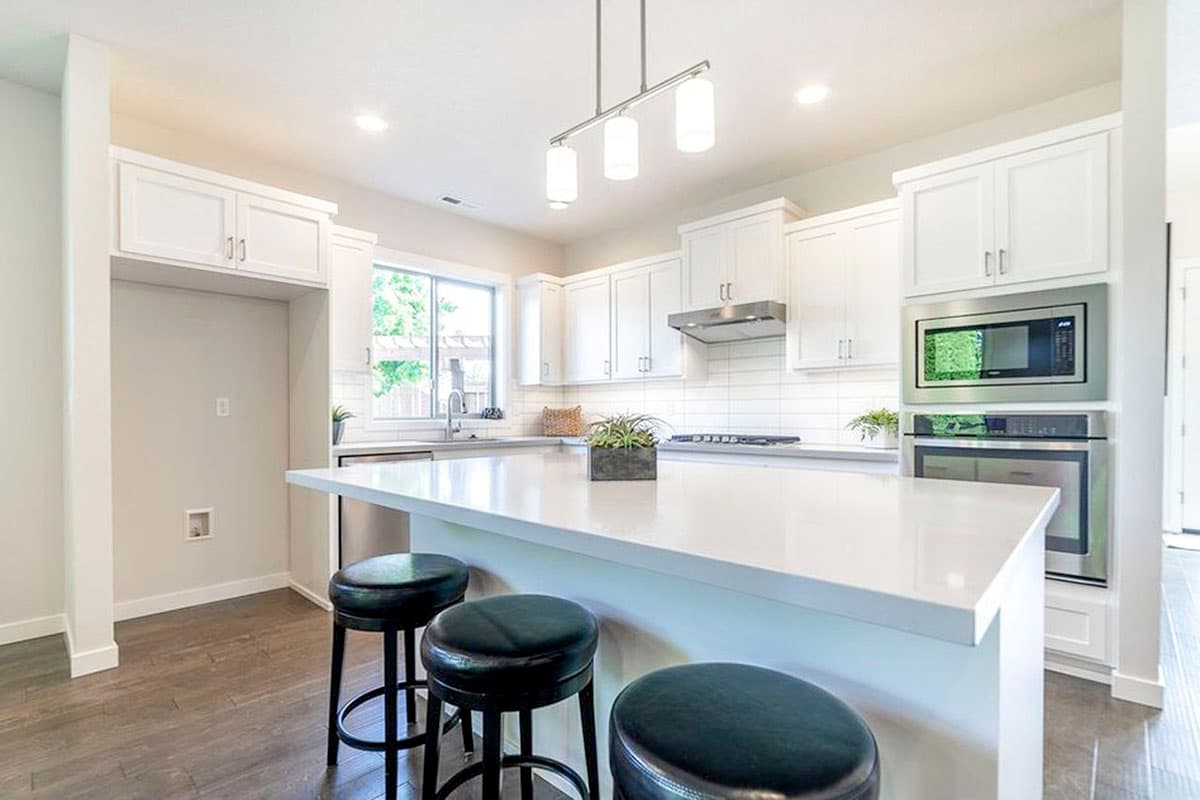

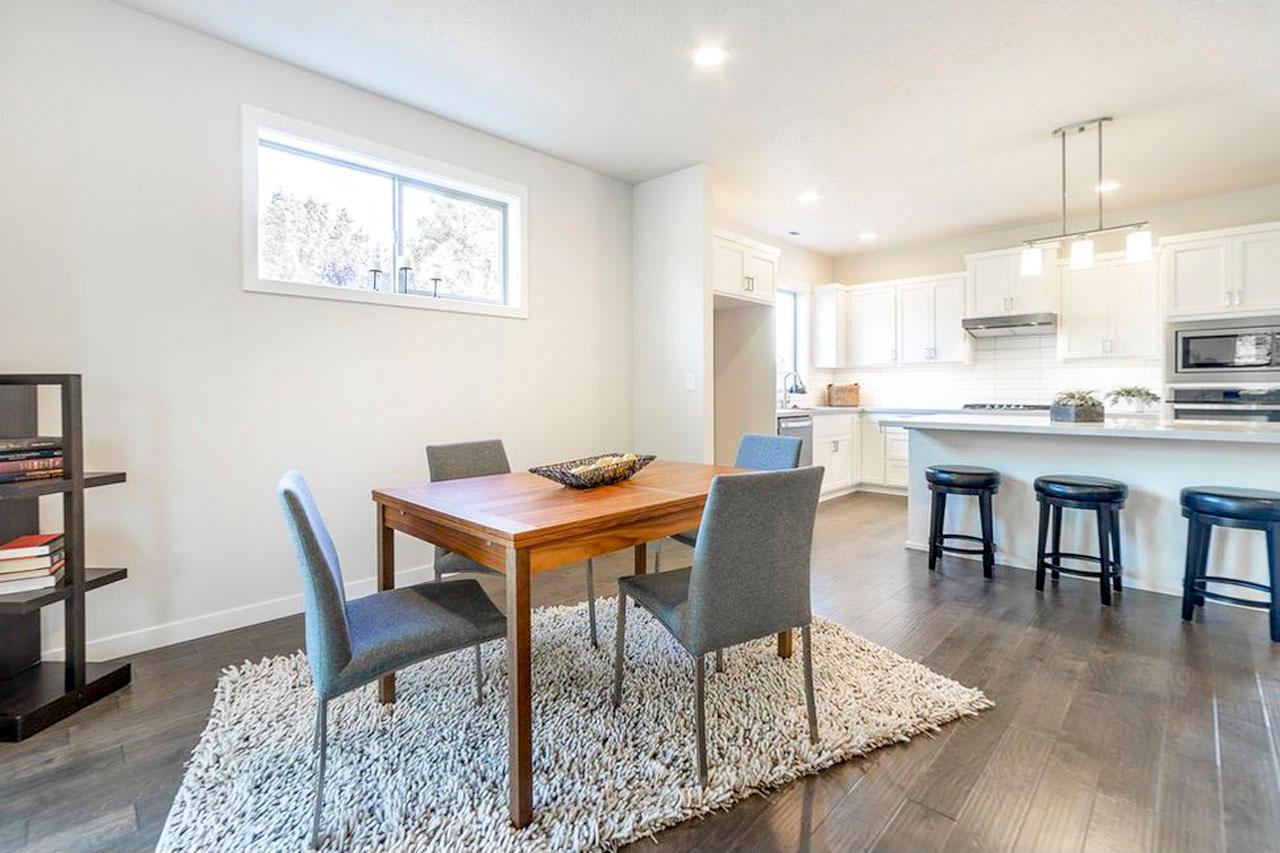

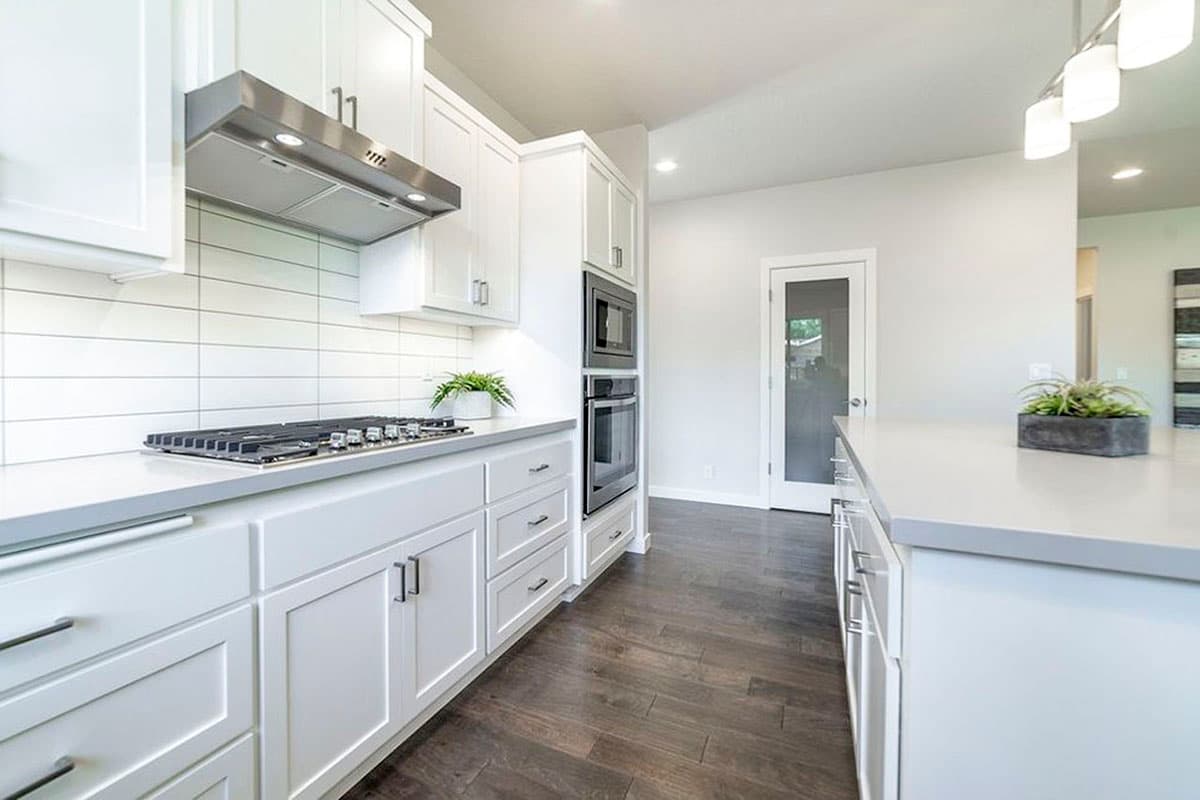

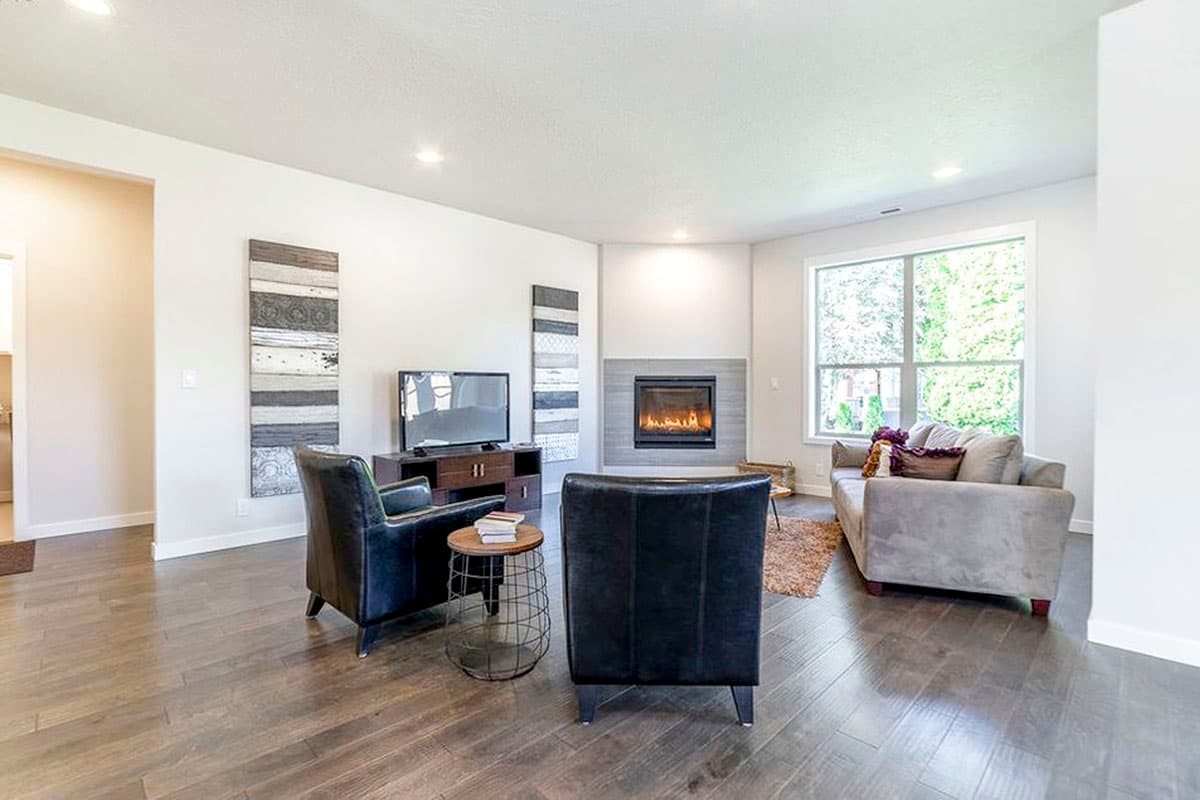

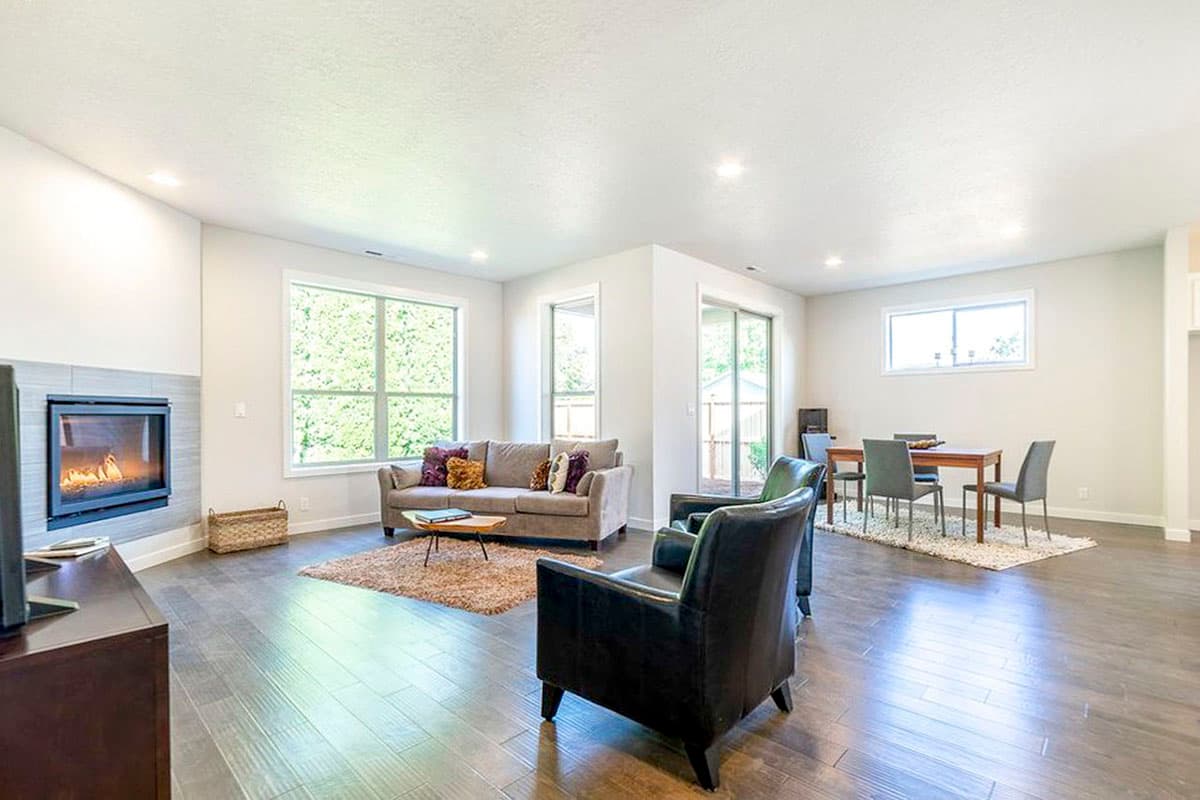

  • The home opens up to a casual, open living space. The kitchen features a large island for additional work space and roomy pantry under the stairs. Through the kitchen, you walk through the dining area and into the great room which has a cozy fireplace tucked into the corner. The owners' suite features a large walk-in closet and private bath.
  • Off the great room, you'll find the entry to the 2-car garage, large utility room, and the doorway into the private owners' suite.
  • Related Plan: Get a smaller 2-bed version with house plan 72957DA.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

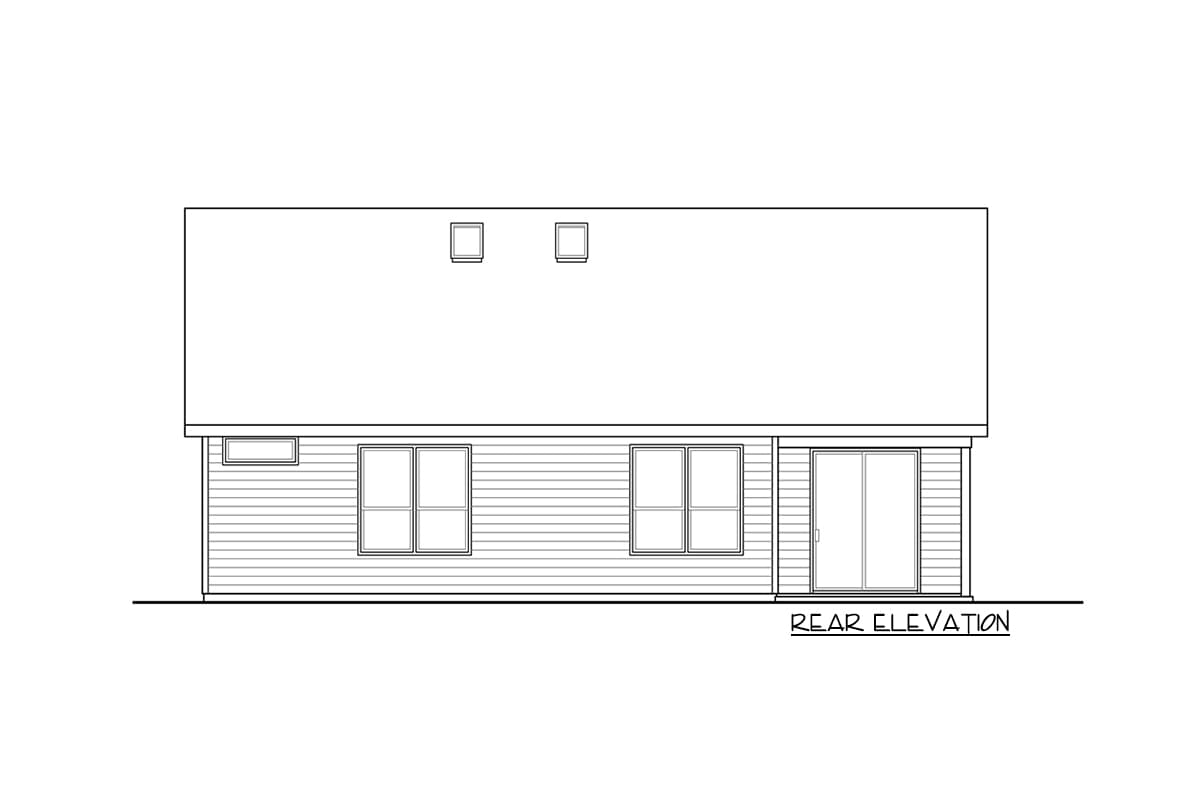

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

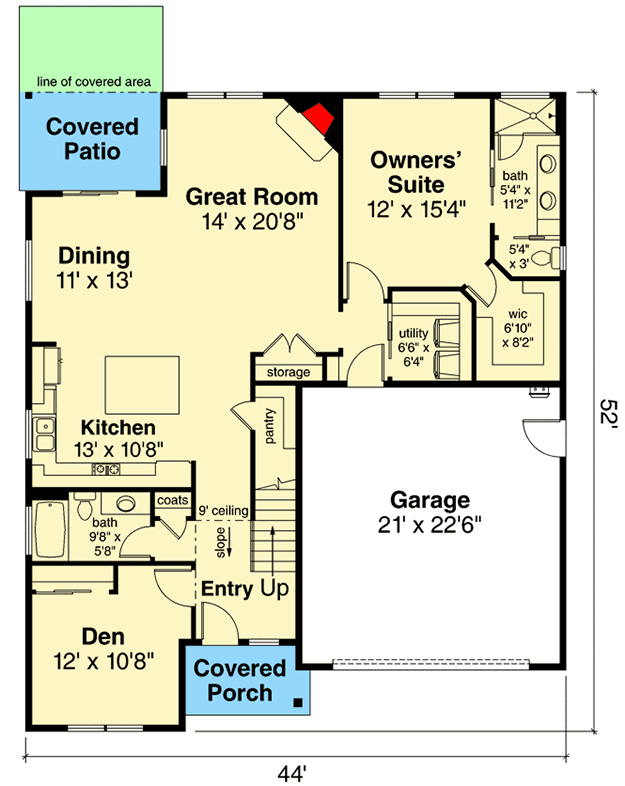

3-Bed Cottage House Plan with Spacious Interior - 72960DA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

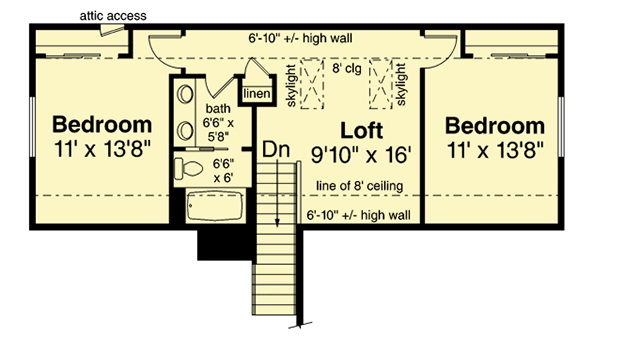

3-Bed Cottage House Plan with Spacious Interior - 72960DA floor plan - 2nd Floor

3-Bed Cottage House Plan with Spacious Interior

  • 2,262

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,262 sq. ft.
  • 1st Floor: 1,532 sq. ft.
  • 2nd Floor: 730 sq. ft.

Dimensions

  • Width: 44' 0"
  • Depth: 52' 0"
  • Max ridge height: 22' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 495 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
