Plan 64330BT

3-Bed Cottage House Plan with Study and Covered Lanai - 1923 Sq Ft

Heated S.F.
1,923
Beds
3
Baths
2
Stories
1
Cars
2

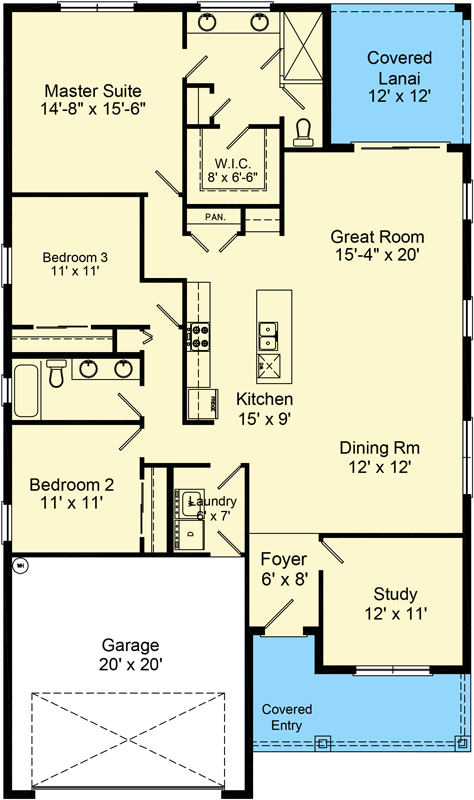

Floor Plan

Plan 64330BT

Main Level
Main Level

Plan 64330BT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 64330BT: 3-Bed Cottage House Plan with Study and Covered Lanai - 1923 Sq Ft - Floor Plan - Main Level - Cottage, Country, New American, Ranch, Southern, Traditional

Plan Details

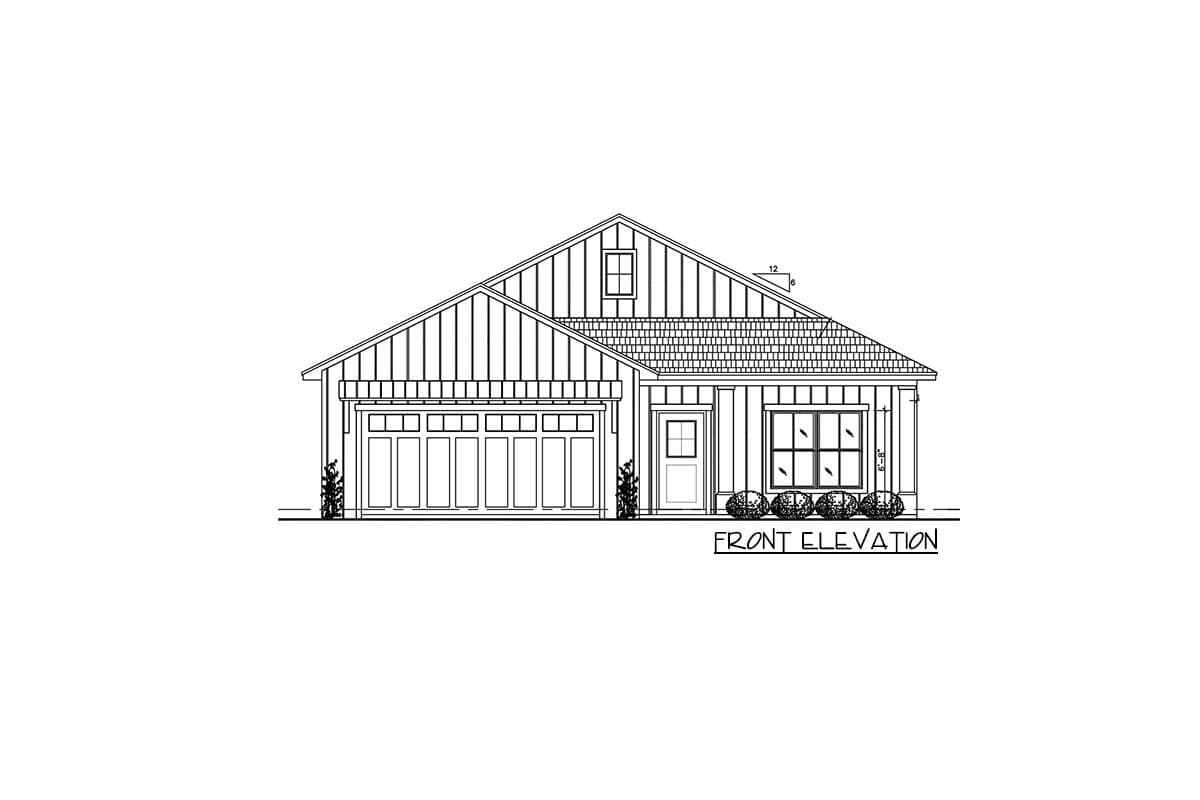

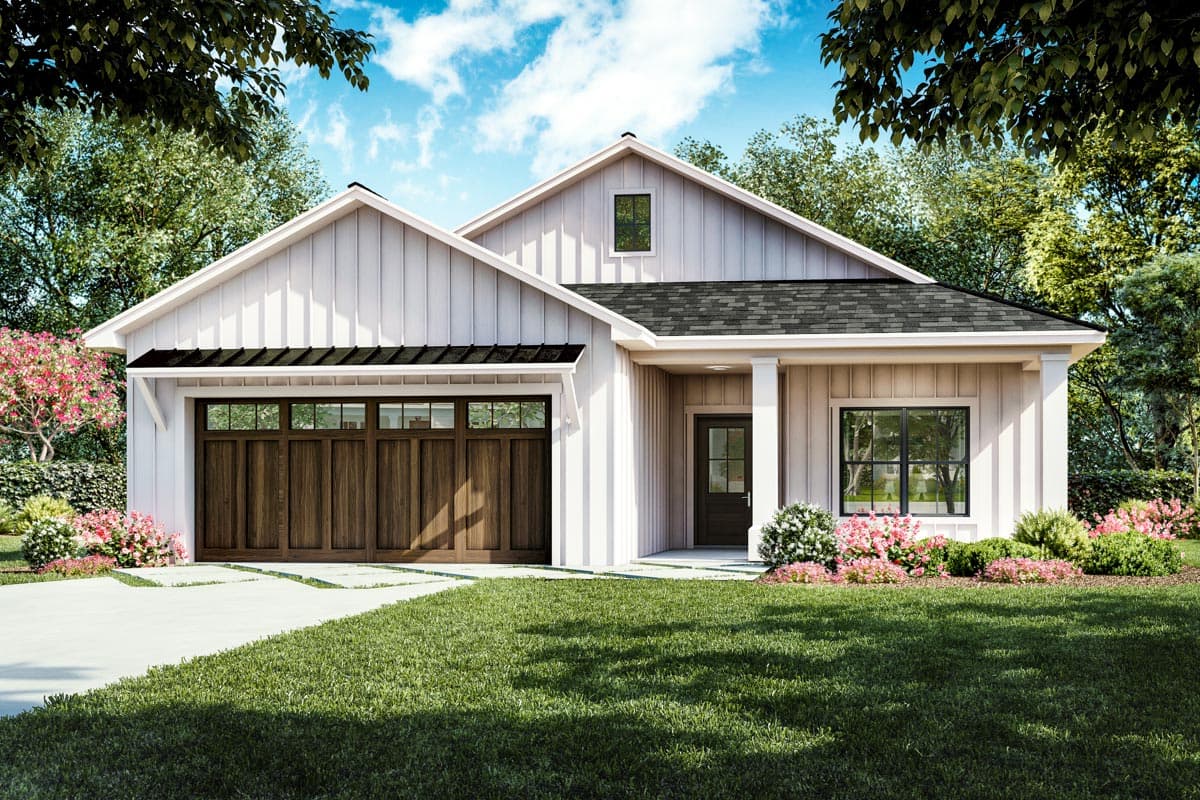

  • Board and batten siding runs vertically to meet the gabled peaks on the front exterior of this 3-bedroom Cottage House Plan.
  • A front porch welcomes you inside to find a quiet study to the right of the foyer. A few steps further, and the open-concept living space is revealed.
  • The kitchen island anchors the communal spaces, while glass sliders invite you onto the 12' by 12' covered lanai.
  • Tucked towards the rear, discover the master suite with a double-sink vanity walk-in closet in the attached bathroom.
  • The double garage offers a front entrance and opens into the laundry / mudroom combo.

What's Included

  • Cover Sheet
  • Sections and Plan Details
  • Foundation Plan and Details
  • Floor Plan
  • Exterior Elevations
  • Electrical Plan
  • Roof Plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,923 sq. ft.

1st Floor

1,923 sq. ft.

Porch, Front

142 sq. ft.

Lanai

144 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

40' 0"

Depth

68' 0"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

436 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

New American

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

1,923 sq. ft.

1st Floor

1,923 sq. ft.

Porch, Front

142 sq. ft.

Lanai

144 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

40' 0"

Depth

68' 0"

Max Ridge Height

20' 0"

Garage

Type

Attached

Area

436 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Cottage

Country

New American

Ranch

Southern

Traditional

Special Features

Bedrooms - Clustered

Den

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
