Plan 17817LV

3-Bed Cottage With Narrow Footprint

Heated S.F.
1,851
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 17817LV

Main Level
Main Level
2nd Floor
2nd Floor

Plan 17817LV

M-F 9am-5pm EST |

1-203-761-8500

Main Level

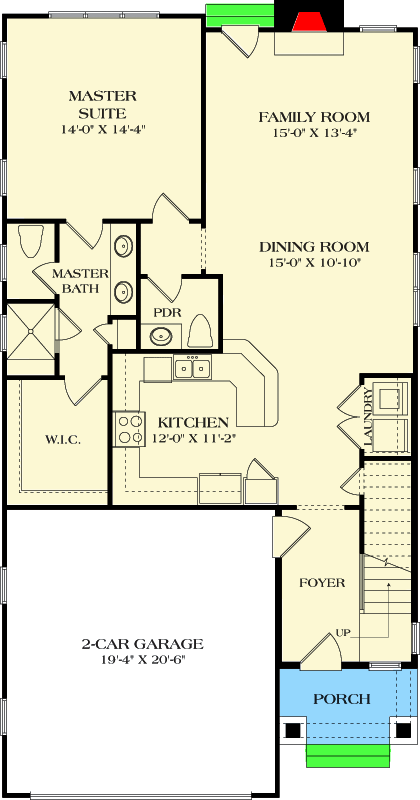

Plan 17817LV: 3-Bed Cottage With Narrow Footprint - Floor Plan - Main Level - Cottage, Country, Craftsman

2nd Floor

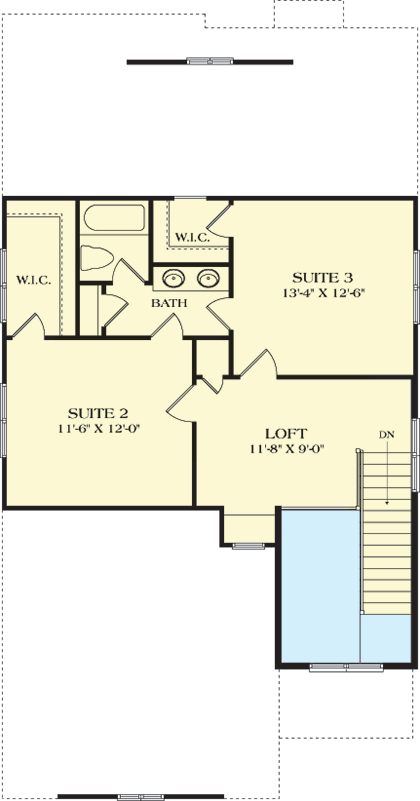

Plan 17817LV: 3-Bed Cottage With Narrow Footprint - Floor Plan - 2nd Floor - Cottage, Country, Craftsman

Plan Details

  • Designed for a narrow footprint, this 3-bed cottage has a shingle and clapboard exterior and stone accents at the base of the front porch supports.
  • The master suite is on the main floor. The rest of the floor is an open space front to back.
  • Upstairs you'll find two more bedrooms and a loft.

What's Included

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans

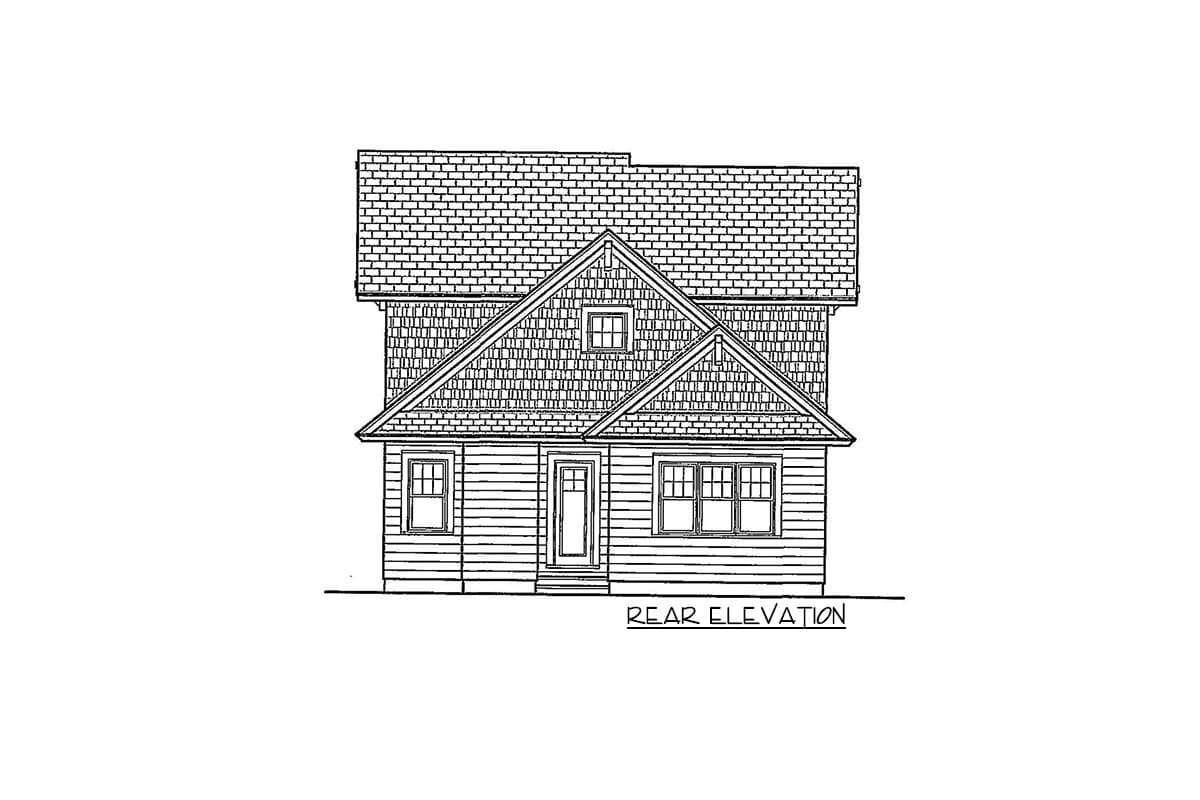

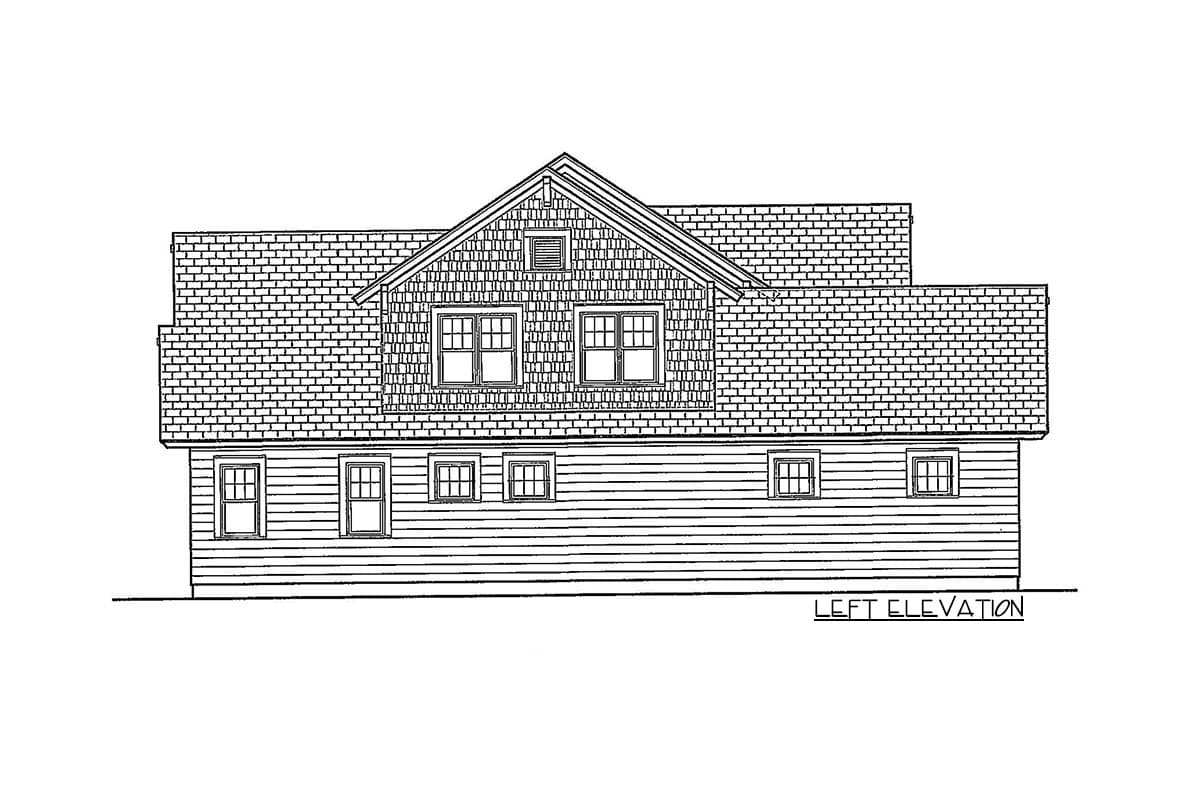

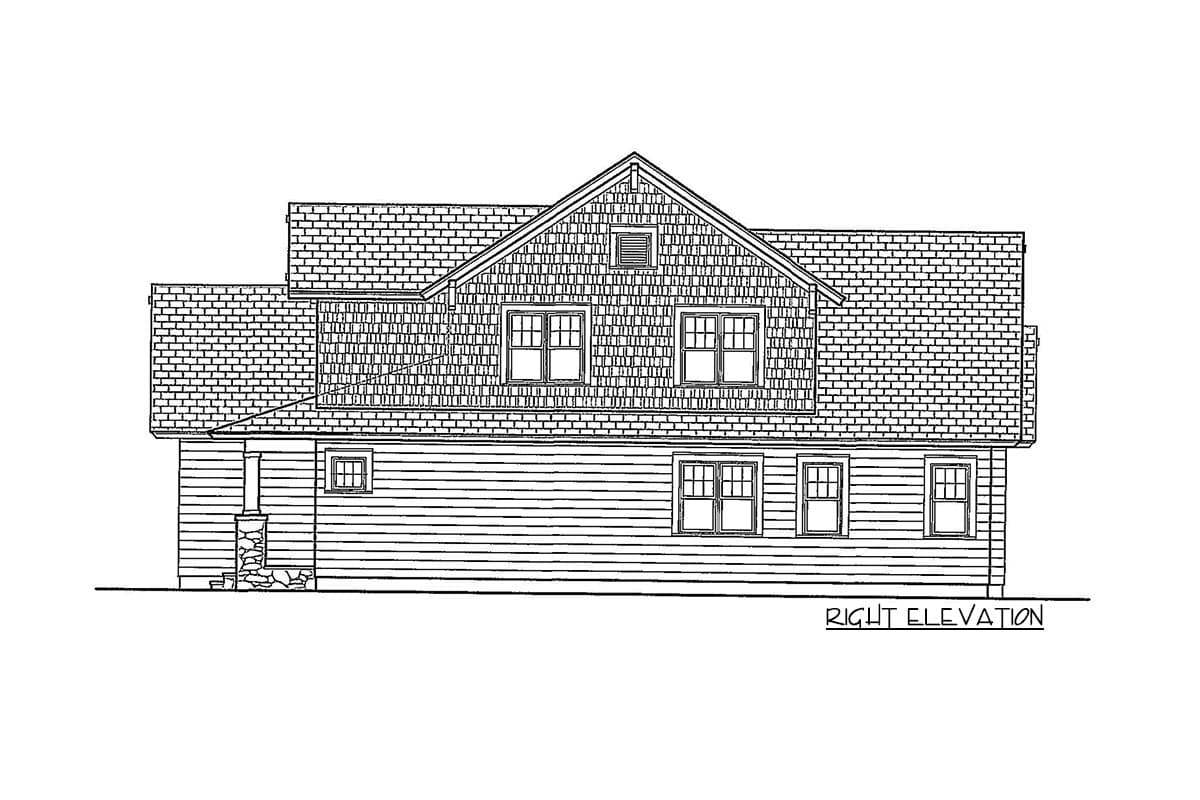

  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,851 sq. ft.

1st Floor

1,178 sq. ft.

2nd Floor

673 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

30' 0"

Depth

57' 8"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

413 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Cottage

Country

Craftsman

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,851 sq. ft.

1st Floor

1,178 sq. ft.

2nd Floor

673 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

30' 0"

Depth

57' 8"

Max Ridge Height

28' 5"

Garage

Type

Attached

Area

413 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Cottage

Country

Craftsman

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor
