Plan 62823DJ 3-Bed Cottage with Old-World Character and Modern Insides

2,031 3 2.5 2 1-2
Print
Compare
...

3-Bed Cottage with Old-World Character and Modern Insides

Plan 62823DJ

  • 2,031

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 1-2

    Cars

  • This charming Cottage-style house plan takes you back to a time when houses were built with uniqueness and character. The high-pitched roof and stucco exterior give this plan an old-world look. Inside, you'll enjoy the modern amenities.
  • As you step into the home, you'll find yourself in an excellent entryway that includes a coat closet and a bench. Just off the entryway is a convenient office that is a great place to get some work done at home.
  • The living room is warmed by a fireplace and flows seamlessly to the kitchen and dining room. The kitchen has a wonderful walk-in pantry and an island with a snack bar.
  • Upstairs, you will find the home's bedrooms. The master suite is situated above the garage and includes a built-in bench and a walk-in closet. Bedrooms 2 and 3 share a centrally located hall bathroom.
  • The 1-car garage accesses the home through a convenient mudroom with a bench and lockers. Select the 2-car garage option and get 607 sq. ft. of garage space.
  • NOTE: Expect a 3 to 5 day delay if selecting the 2-car garage option

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

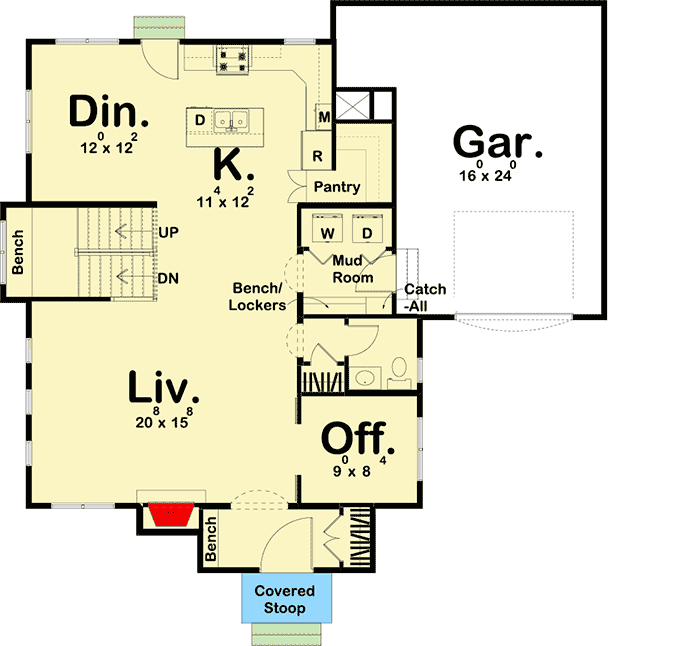

3-Bed Cottage with Old-World Character and Modern Insides - 62823DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

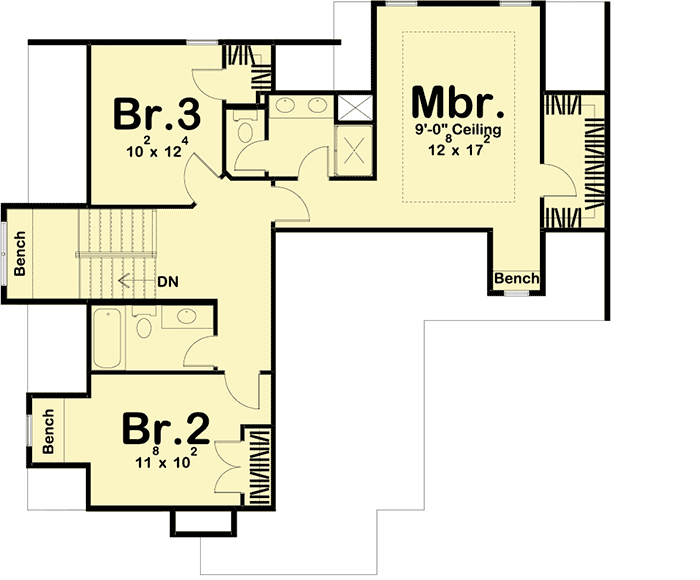

3-Bed Cottage with Old-World Character and Modern Insides - 62823DJ floor plan - 2nd Floor

2-Car Garage Option

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

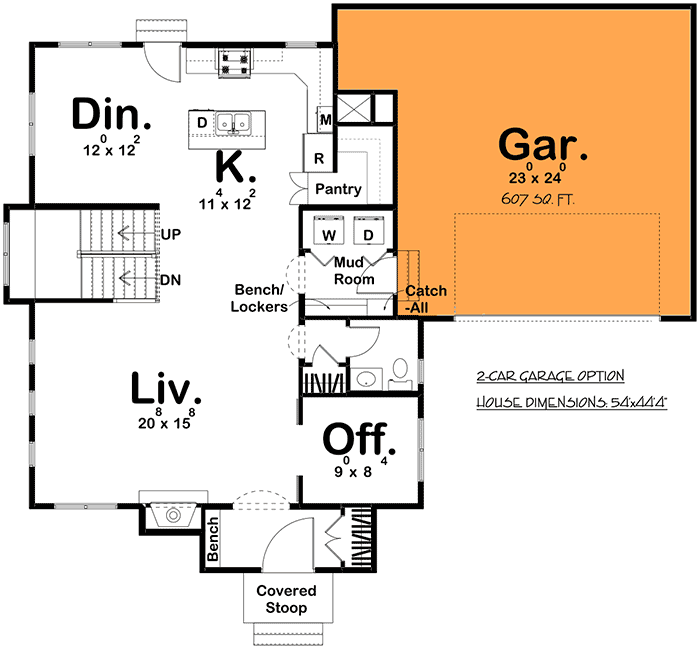

3-Bed Cottage with Old-World Character and Modern Insides - 62823DJ floor plan - 2-Car Garage Option

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,031 sq. ft.
  • 1st Floor: 1,125 sq. ft.
  • 2nd Floor: 906 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 47' 0"
  • Depth: 45' 0"

Garage

  • Type: Attached
  • Area: 435 sq. ft.
  • Count: 1 or 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 16 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections



3-Bed Cottage with Old-World Character and Modern Insides

  • 2,031

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 1 - 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,200
  • 5 Sets + PDF $1,450
  • PDF - Unlimited Build $1,700
  • CAD - Single-Build $1,700
  • CAD - Unlimited Build $2,200
  • View all purchase option online

About This Plan

  • This charming Cottage-style house plan takes you back to a time when houses were built with uniqueness and character. The high-pitched roof and stucco exterior give this plan an old-world look. Inside, you'll enjoy the modern amenities.
  • As you step into the home, you'll find yourself in an excellent entryway that includes a coat closet and a bench. Just off the entryway is a convenient office that is a great place to get some work done at home.
  • The living room is warmed by a fireplace and flows seamlessly to the kitchen and dining room. The kitchen has a wonderful walk-in pantry and an island with a snack bar.
  • Upstairs, you will find the home's bedrooms. The master suite is situated above the garage and includes a built-in bench and a walk-in closet. Bedrooms 2 and 3 share a centrally located hall bathroom.
  • The 1-car garage accesses the home through a convenient mudroom with a bench and lockers. Select the 2-car garage option and get 607 sq. ft. of garage space.
  • NOTE: Expect a 3 to 5 day delay if selecting the 2-car garage option

Floor Plans

  • Main Level

  • 2nd Floor

  • 2-Car Garage Option

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,031 sq. ft.
  • 1st Floor: 1,125 sq. ft.
  • 2nd Floor: 906 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 47' 0"
  • Depth: 45' 0"

Garage

  • Type: Attached
  • Area: 435 sq. ft.
  • Count: 1 or 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 16 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

Plan 62823DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62823DJ
|
Need Help? 800-854-7852
|
Plan 62823DJ
