3-Bed Country Craftsman Ranch House Plan with Split-bed Layout - 2225 Sq Ft

Heated S.F.
2,225
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 580033DFT

Main Level
Main Level

Plan 580033DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

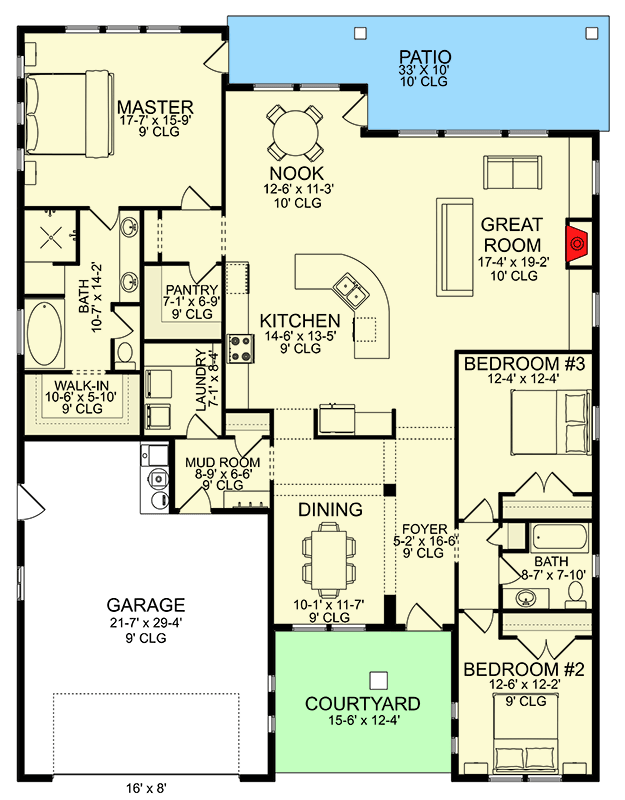

Plan 580033DFT: 3-Bed Country Craftsman Ranch House Plan with Split-bed Layout - 2225 Sq Ft - Floor Plan - Main Level - Cottage, Country, Craftsman, New American, Ranch

Plan Details

  • Craftsman details adorn the exterior of this Country Ranch house plan, complete with a stone trim.
  • A formal dining room can be found to the left of the foyer, while the open living spaces provide some distance between the master suite and secondary bedrooms.
  • A curved island anchors the kitchen and a neighboring 7'1" by 6'9" pantry lends plenty of storage space. Easy access to the double garage by way of the mudroom helps when unloading groceries.
  • The master suite connects to the rear patio and includes a 5-fixture bathroom with a dual-sink vanity and walk-in closet.
  • Bedrooms 2 and 3 are nearly identical in size and share a full bathroom.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

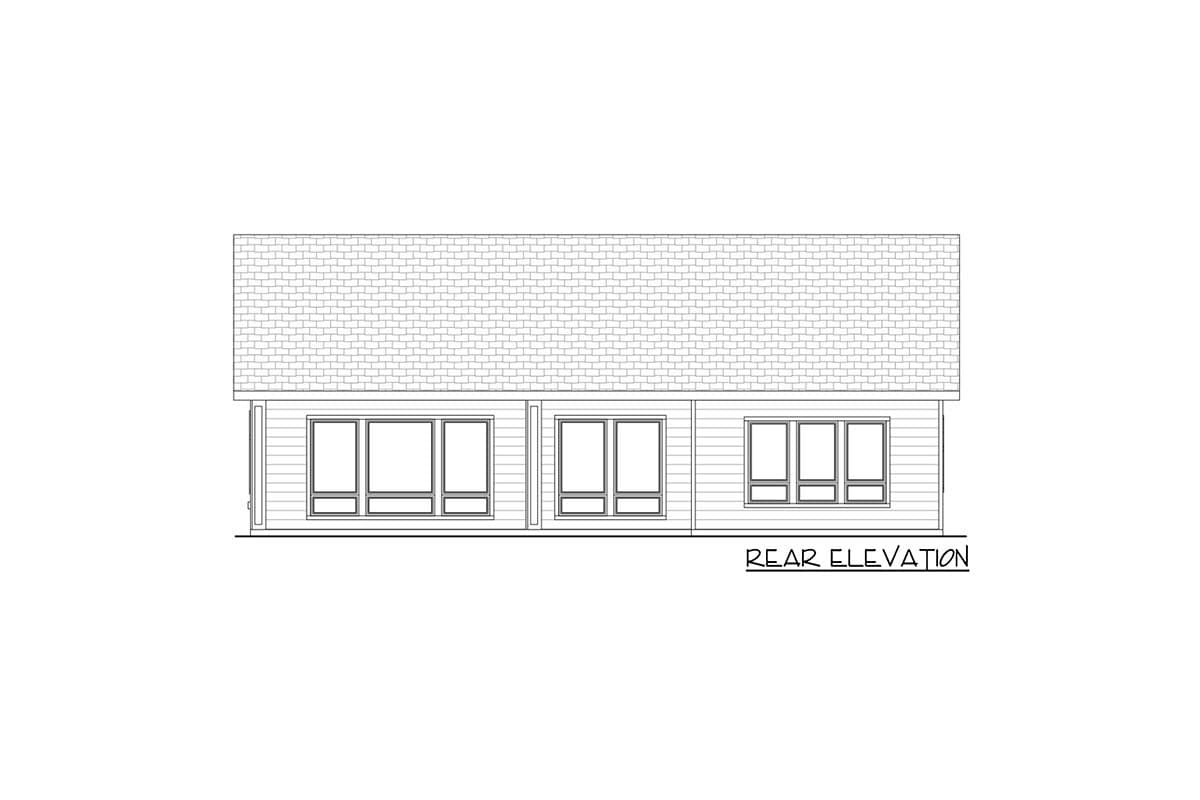

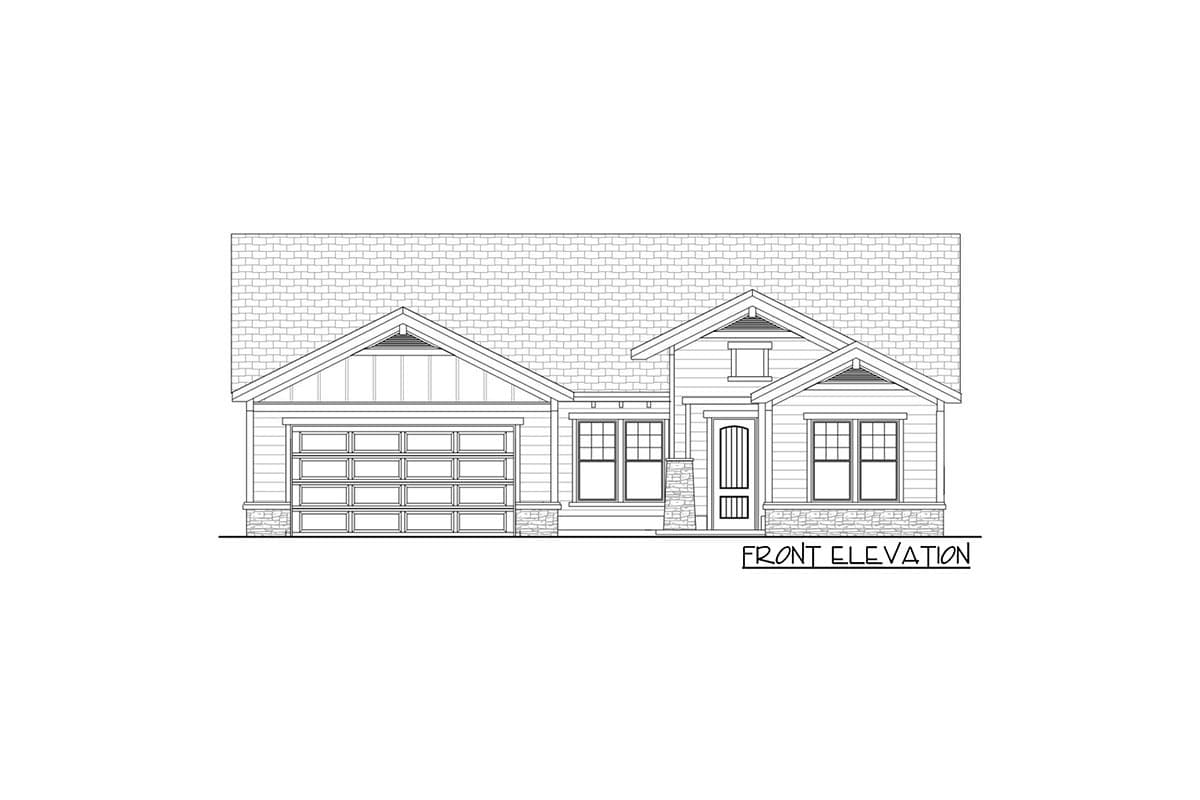

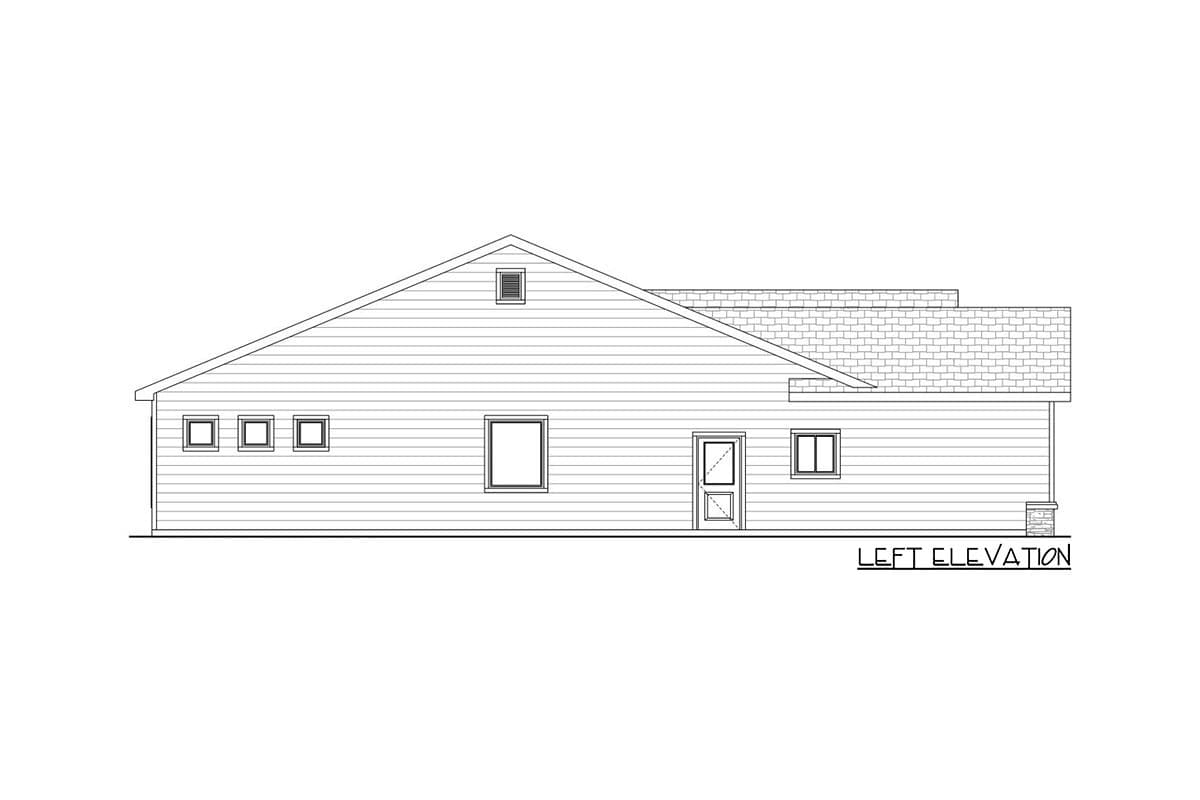

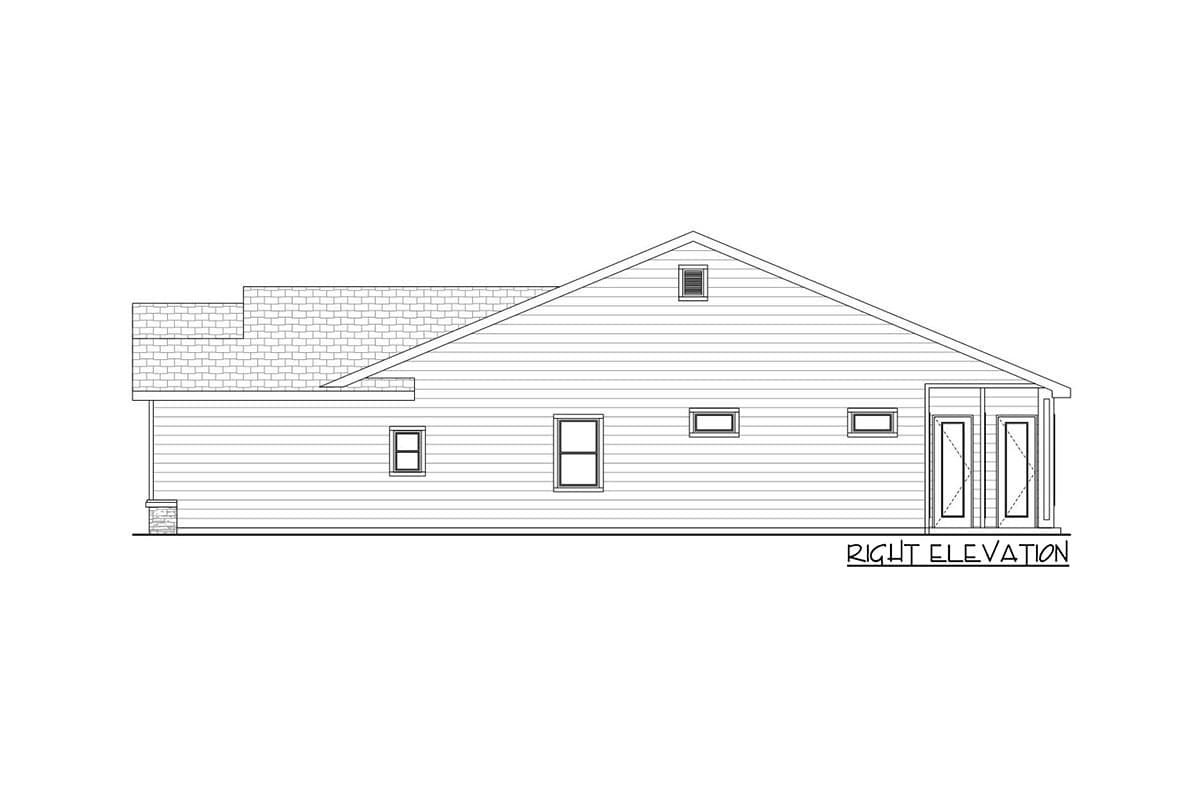

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,225 sq. ft.

1st Floor

2,225 sq. ft.

Porch, Front

37 sq. ft.

Covered Patio

128 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

65' 0"

Garage

Type

Attached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Courtyard

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Workshop

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,225 sq. ft.

1st Floor

2,225 sq. ft.

Porch, Front

37 sq. ft.

Covered Patio

128 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

65' 0"

Garage

Type

Attached

Area

583 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Cottage

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Courtyard

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Workshop

Plan Collections

Exclusive
