3 Bed Country Ranch for a Sloping Lot

Plan 72837DA

  • 2,460

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3 bed country ranch home plan is designed for construction on a slope. Standing on the railed, partially covered and vaulted deck at the rear, you’ll be elevated above ground level. Columns highlight the covered porch and walkway that wraps across much of the front. Skylights brighten the porch, the foyer, and the kitchen’s eating nook, which can also be accessed from the front porch via a set of French doors.
  • In the foyer, double doors on the left open into a study. An opening on the right leads into the nook and kitchen.
  • Straight ahead, the foyer spills into the richly windowed dining room and vaulted great room, which are partially separated by a two-sided fireplace. An eating bar rims the work island that bounds the kitchen. Another work island sits at the center of the kitchen, and a roomy walk-in pantry fills one corner.
  • The vaulted owners’ suite is well isolated from secondary bedrooms.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

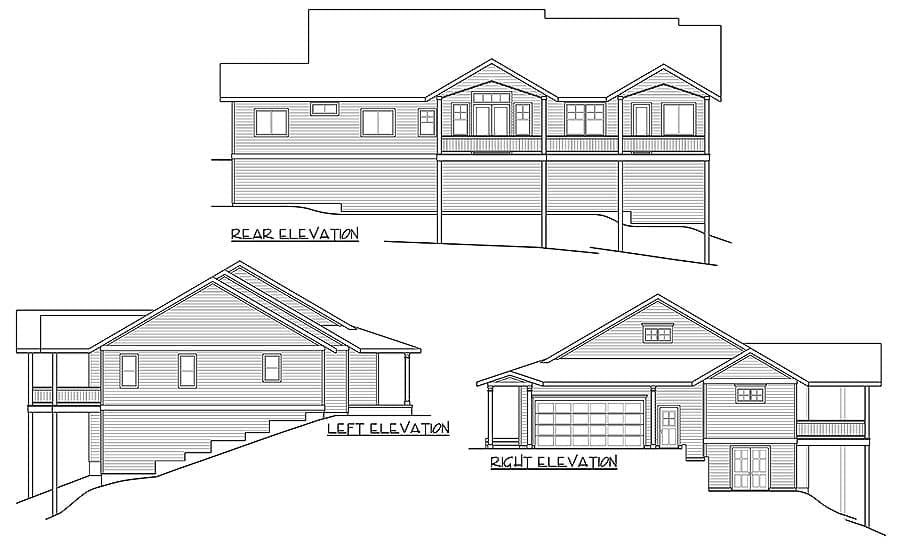

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

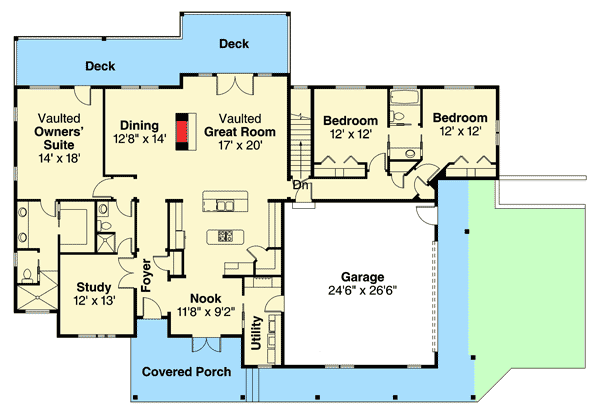

3 Bed Country Ranch for a Sloping Lot - 72837DA floor plan - Main Level

3 Bed Country Ranch for a Sloping Lot

  • 2,460

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,460 sq. ft.
  • 1st Floor: 2,460 sq. ft.

Dimensions

  • Width: 79' 0"
  • Depth: 63' 0"
  • Max ridge height: 25' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 675 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Roof

  • Primary Pitch: 7 on 12
