Plan 72763DA

3-Bed Country Ranch House Plan

Pageloader

3-Bed Country Ranch House Plan

Plan 72763DA

  • 2,086

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 4

    Cars

  • Three columns draw your eyes to the façade of this 3-bed ranch-style home plan.
  • In the entry, a row of coat hooks spans the wall above a bench. A roomy coat closet fills another wall.
  • Windows wrap around three sides of the nook, creating a naturally bright environment. More light washes into the kitchen through skylights.
  • A small, conveniently located bathroom sits at the juncture of the kitchen, the bedroom wing, and a pass-through mudroom/laundry room that links with the backyard and two-car garage.
  • Counters, cupboards and appliances line two sides of the kitchen. A walk-in pantry fills one rear corner, and more storage space is tucked beneath the work island. Standing at the kitchen sink, you face into the vaulted great room across a raised eating bar.
  • Open the double doors in the great room and nearly double the available living space. Meals are easy to move out onto the vaulted patio.
  • Bedrooms are at the opposite end of the home. The owners’ suite boasts a deep walk-in closet, and a bathroom with a double vanity, oversized shower, and totally private toilet. Two more bedrooms, another bathroom and a large study are across the hall.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

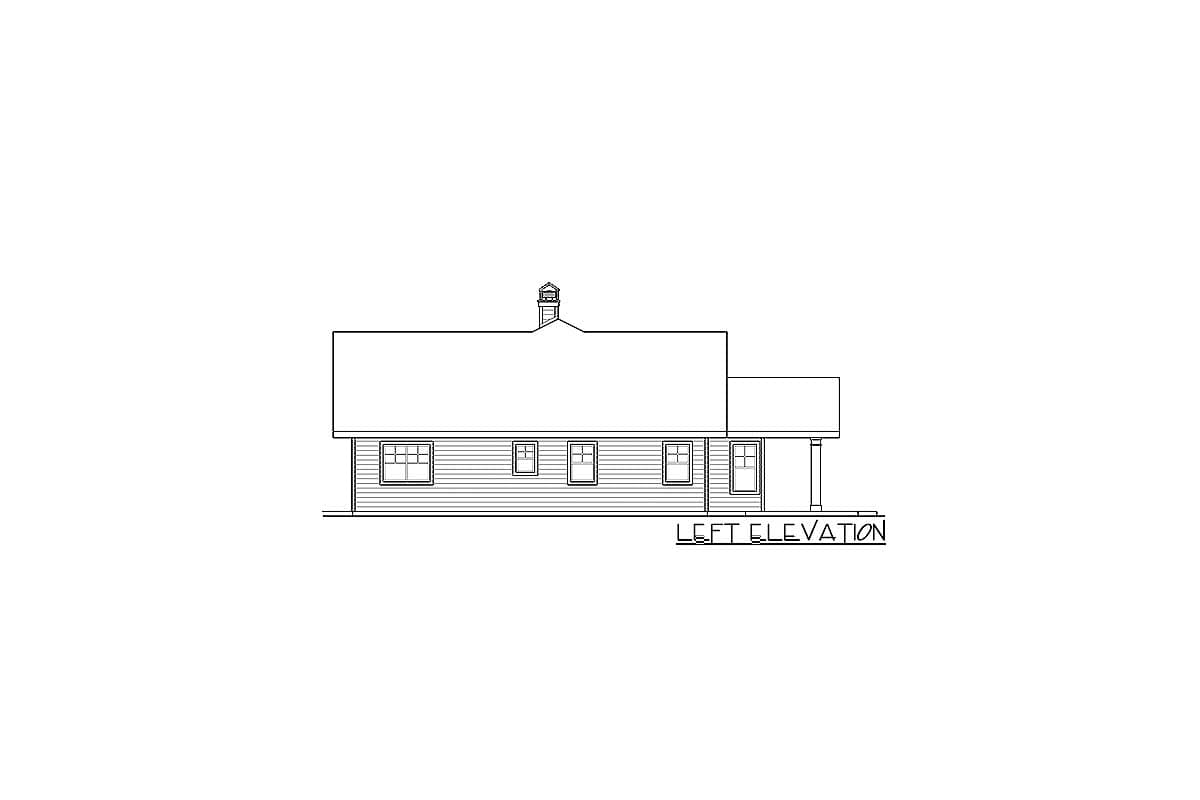

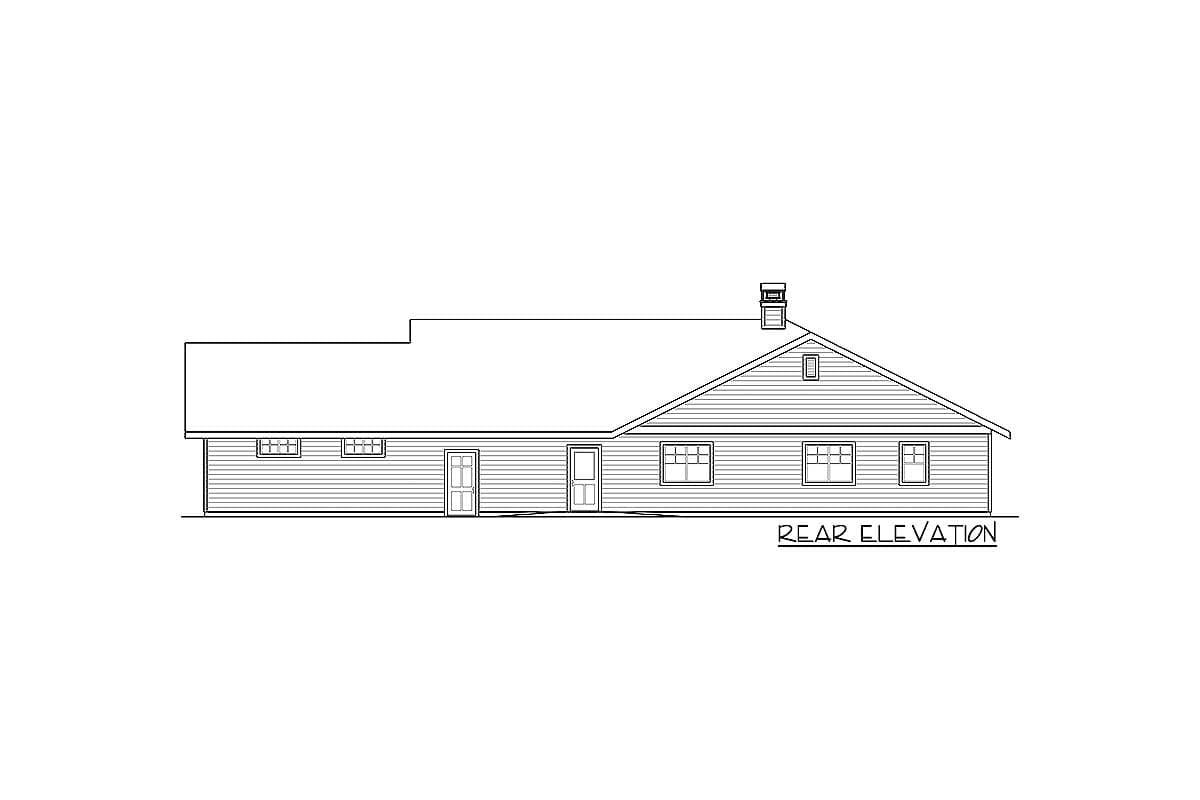

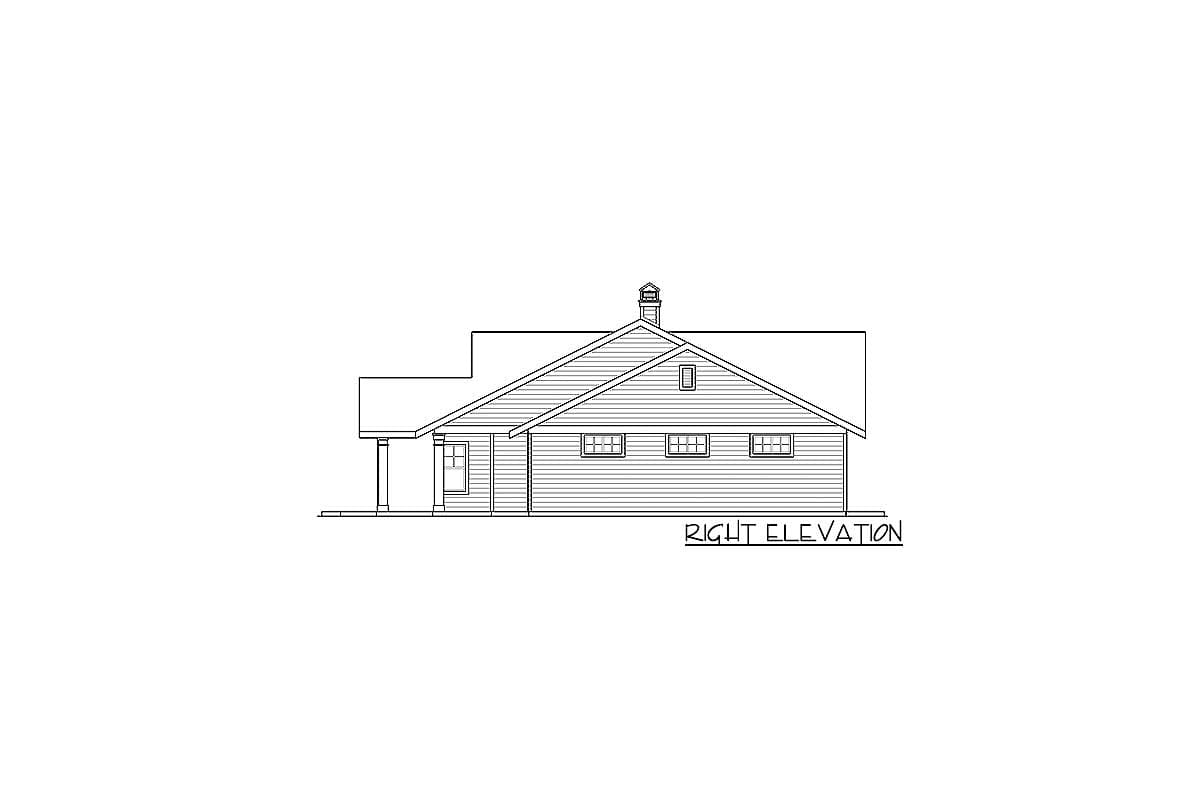

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

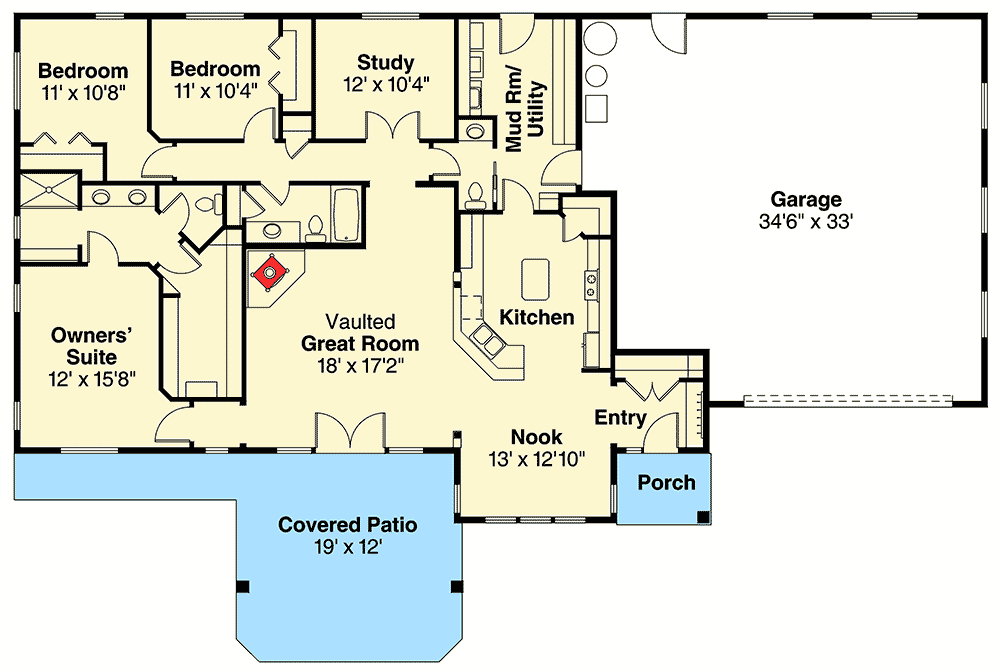

Floor Plan

Plan details



3-Bed Country Ranch House Plan

  • 2,086

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 4

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 5 Sets PLUS $1,085
  • 8 Sets $1,140
  • PDF - single-use $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • Three columns draw your eyes to the façade of this 3-bed ranch-style home plan.
  • In the entry, a row of coat hooks spans the wall above a bench. A roomy coat closet fills another wall.
  • Windows wrap around three sides of the nook, creating a naturally bright environment. More light washes into the kitchen through skylights.
  • A small, conveniently located bathroom sits at the juncture of the kitchen, the bedroom wing, and a pass-through mudroom/laundry room that links with the backyard and two-car garage.
  • Counters, cupboards and appliances line two sides of the kitchen. A walk-in pantry fills one rear corner, and more storage space is tucked beneath the work island. Standing at the kitchen sink, you face into the vaulted great room across a raised eating bar.
  • Open the double doors in the great room and nearly double the available living space. Meals are easy to move out onto the vaulted patio.
  • Bedrooms are at the opposite end of the home. The owners’ suite boasts a deep walk-in closet, and a bathroom with a double vanity, oversized shower, and totally private toilet. Two more bedrooms, another bathroom and a large study are across the hall.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,086 sq. ft.
  • 1st Floor: 2,086 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 84' 0"
  • Depth: 50' 0"
  • Max ridge height: 21' 1"

Garage

  • Type: Attached
  • Area: 1094 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 6 on 12
