3-Bed Country Ranch House Plan with Extended Rear Porch and Deck - 2004 Sq Ft

Name: Plan 55237BR: 3-Bed Country Ranch House Plan with Extended Rear Porch and Deck - 2004 Sq Ft
Brand: Architectural Designs
SKU: 55237BR
Price: 1100.0 USD
Availability: InStock

Heated S.F.

2,004

Beds

Baths

Stories

Cars

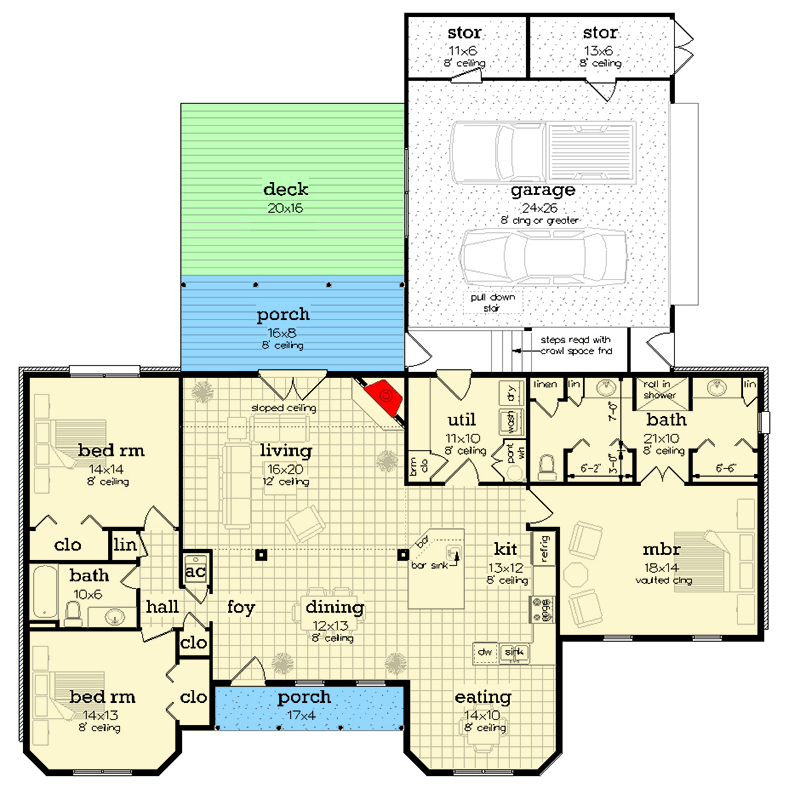

Floor Plan

Main Level

Plan Details

The living room, with its 12-foot ceilings and stone corner fireplace, creates a stunning focal point.
Inside, the dining room, kitchen, and eating area are seamlessly connected. The kitchen boasts an island with a wrap-around bar and a bar sink, with large double windows offering a front yard view. The utility room, near the kitchen and master bedroom, includes broom closets, ample counter space, and a pantry.
The master suite features dual closets, vanities, and bath appliance closets. The bath has a large roll-in shower and a private toilet area with a linen closet.
Two secondary bedrooms share a central bath, each with large closets.
The rear covered porch and deck extend the living space, perfect for outdoor gatherings.
NOTE: Please allow 15 to 20 business days for optional foundation delivery.
Related Plan: Get an alternate version with house plan 5502BR (1,865 sq. ft.).

What's Included

Cover Sheet - with general information
Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
Foundation Footing - details
Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
Elevations - which call out exterior finish materials
Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
Construction Details - schedules for the interior finish, exterior finish, electrical schedule

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
