3-Bed Country Ranch House Plan with Master Suite Sitting Area and 2-Car Side Garage

Plan 680198VR

  • 2,705

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This house plan gives you 2,705 square feet of heating living space with 3 beds, 2 baths and 2-car side garage (493 sq. ft.).
  • Stepping past your 10'-deep front porch lands you in the foyer of the home with sliding doors to your right revealing the library.
  • Further ahead, you can find your family room, open to the kitchen and dining area. A hallway just before the family room fireplace leads you into the master suite which stretches across the depth of the home including not only a private bath, walk-in closet and sitting area, but access to the laundry room as well.
  • The right side of the home has the remaining bedrooms beside a hallway that doubles as a mudroom leading you to the 2-car garage.
  • A 12'-deep rear porch rounds out the home giving you even more outdoor living space.
  • Related Plan: Get a 2500 square foot version with house plan 68516VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

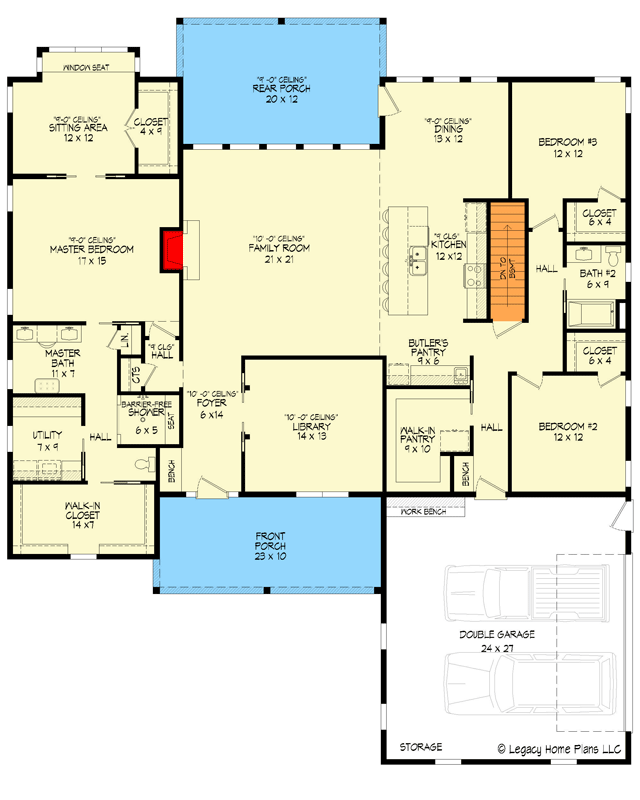

3-Bed Country Ranch House Plan with Master Suite Sitting Area and 2-Car Side Garage - 680198VR floor plan - Main Level

Basement Foundation

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Country Ranch House Plan with Master Suite Sitting Area and 2-Car Side Garage - 680198VR floor plan - Basement Foundation

3-Bed Country Ranch House Plan with Master Suite Sitting Area and 2-Car Side Garage

  • 2,705

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Basement Foundation

Plan Details

Square Footage Breakdown

  • Total: 2,705 sq. ft.
  • 1st Floor: 2,705 sq. ft.

Dimensions

  • Width: 63' 5"
  • Depth: 76' 0"
  • Max ridge height: 21' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 493 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Basement
    • Optional Foundations: Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Stick
