3-Bed Country Ranch Starter Home Plan with Front Dormer and 2-Car Garage

Name: Plan 55247BR: 3-Bed Country Ranch Starter Home Plan with Front Dormer and 2-Car Garage
Brand: Architectural Designs
SKU: 55247BR
Price: 900.0 USD
Availability: InStock

Heated S.F.

1,472

Beds

Baths

2.5

Stories

Cars

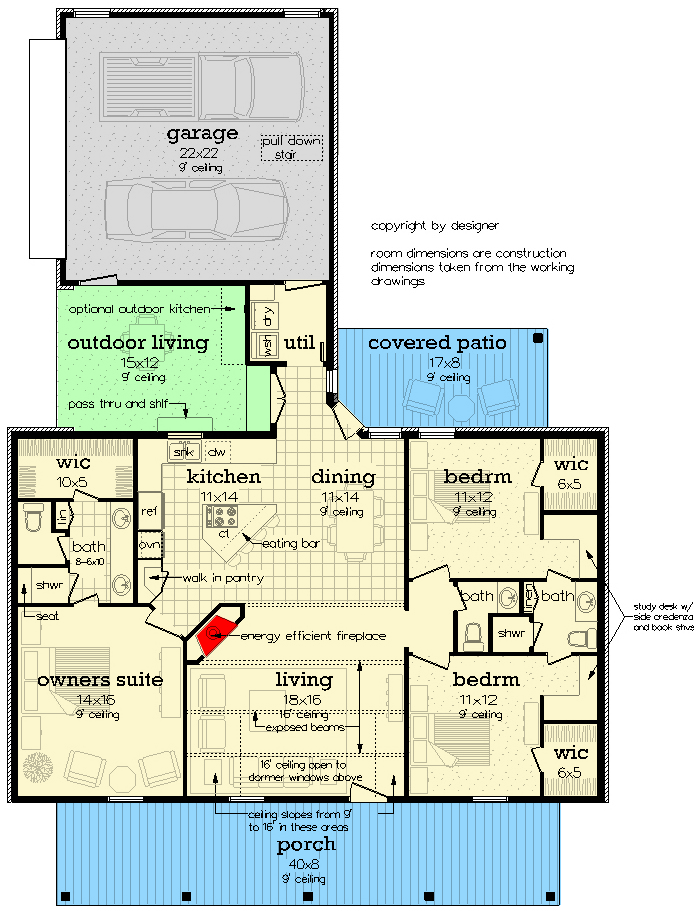

Floor Plan

Main Level

Plan Details

Intended as a lower cost starter home, the basic hip roof creates a farm home façade that is both attractive and less expensive than other roof styles.
The large receiving porch utilizes a shed roof for absolute minimum cost as does the covered patio.
All exterior window and doors are under porch roofs to provide protection from the elements and from solar gain making the home less expensive to cool.
The living room has a volume 16’ ceiling with an abundance of light from the main level windows and windows from the dormer above.
A corner fireplace conserves space and it is an energy efficient design utilizing outside air for combustion. The large country kitchen features a walk-in pantry and an island with an eating bar.
A pair of French doors provide access to a covered porch with an optional outdoor kitchen or use the pass through to serve food from the inside kitchen.
Only a step away from the kitchen is a gracious sized owner’s suite complete with an en-suite bath that features a double vanity, large walk in shower with a seat, private toilet, linen cabinet and a large walk-in closet.
Two bedrooms on the opposite side of the house have a study area for each student in the house plus a Jack and Jill bath and large walk-in closets. A half bath neatly tucked into the hall alcove is conveniently located for guest.
An oversized 2 car garage with an adjoining laundry room is tucked to the rear of the home and offset to allow for a more narrow lot.
Related Plan: Eliminate the dormer window with house plan 55246BR (1,472 sq. ft.)

What's Included

Cover Sheet - with general information
Foundation Plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
Foundation Footing - details
Fully Dimensioned Floor Plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
Elevations - which call out exterior finish materials
Building Sections, enlarged drawings of the cornice and wall construction at various area of the exterior
Interior Elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
Roof Plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
Construction Details - schedules for the interior finish, exterior finish, electrical schedule

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
