Plan 72772DA

3 Bed Country Ranch With Wraparound Porch

2,176 3 2 1 2
Pageloader

3 Bed Country Ranch With Wraparound Porch

Plan 72772DA

  • 2,176

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3 bed country ranch home plan is completely surrounded by a covered porch giving you room to enjoy the views in the shade from any side of the home.
  • The front door is understated but welcoming as you step inside you are greeted by a wood stove in the vaulted living room.
  • The generous sized kitchen transitions into the utility/mud hall where there is plenty of storage including a large walk-in pantry.
  • A long hall runs down the middle of the home and leads you to the bedrooms with the owners' suite at the end.
  • The roof is a truss design with a 5:12 pitch.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

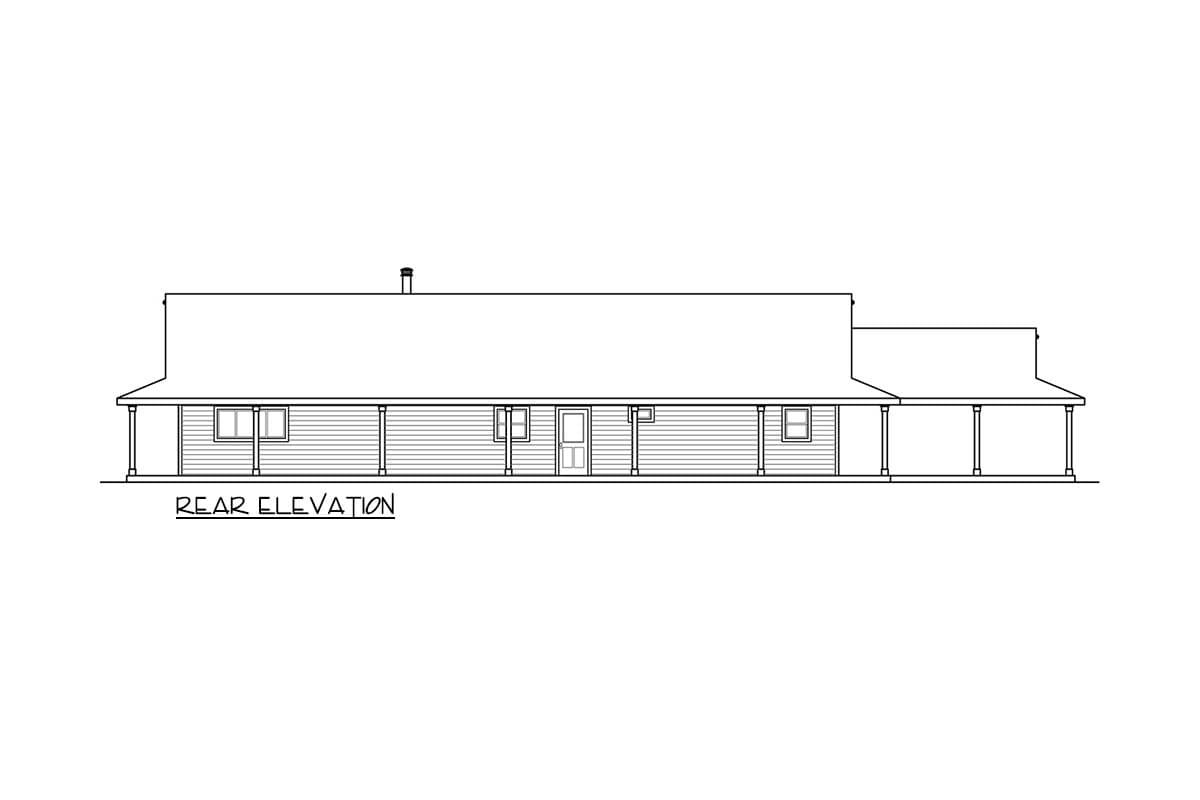

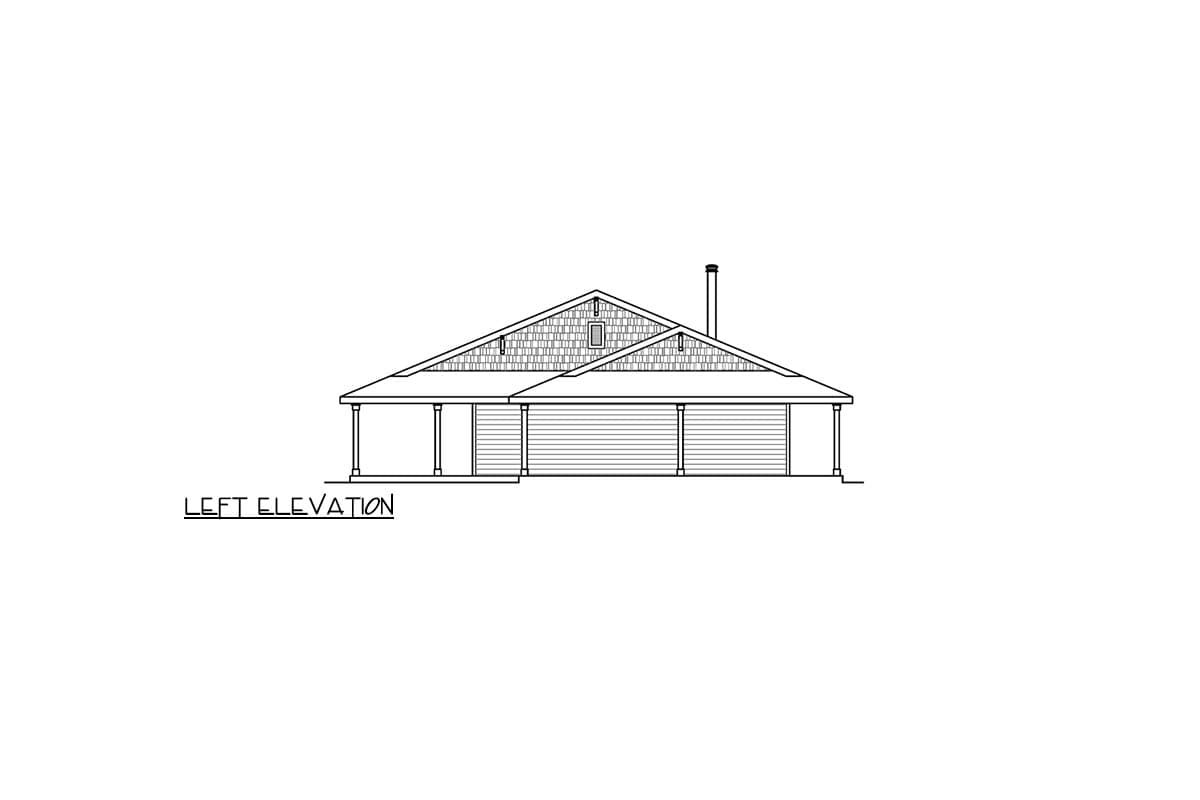

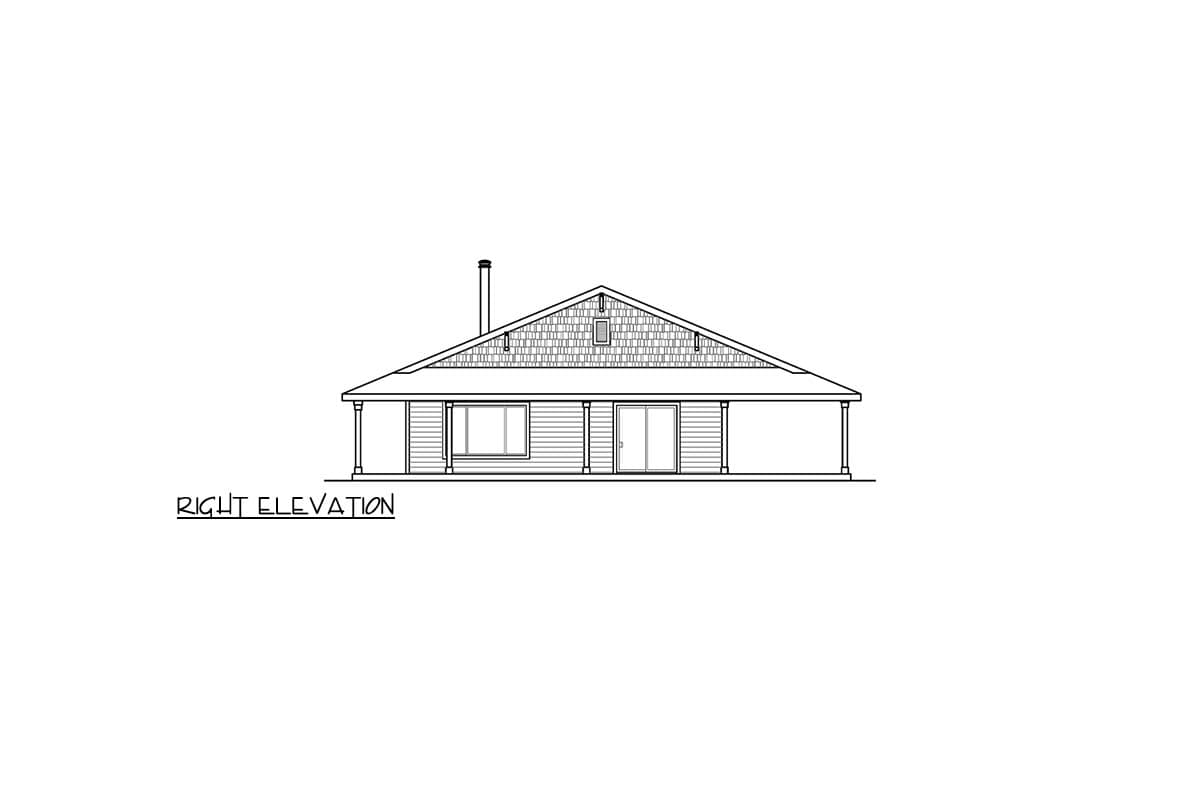

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Floor Plan

Plan details



3 Bed Country Ranch With Wraparound Porch

  • 2,176

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $745
  • PDF Light $975
  • 5 Sets $975
  • 8 Sets $1,140
  • PDF Plus $1,955
  • CAD $2,095
  • CAD - multi-use $2,345
  • View all purchase option online

About This Plan

  • This 3 bed country ranch home plan is completely surrounded by a covered porch giving you room to enjoy the views in the shade from any side of the home.
  • The front door is understated but welcoming as you step inside you are greeted by a wood stove in the vaulted living room.
  • The generous sized kitchen transitions into the utility/mud hall where there is plenty of storage including a large walk-in pantry.
  • A long hall runs down the middle of the home and leads you to the bedrooms with the owners' suite at the end.
  • The roof is a truss design with a 5:12 pitch.

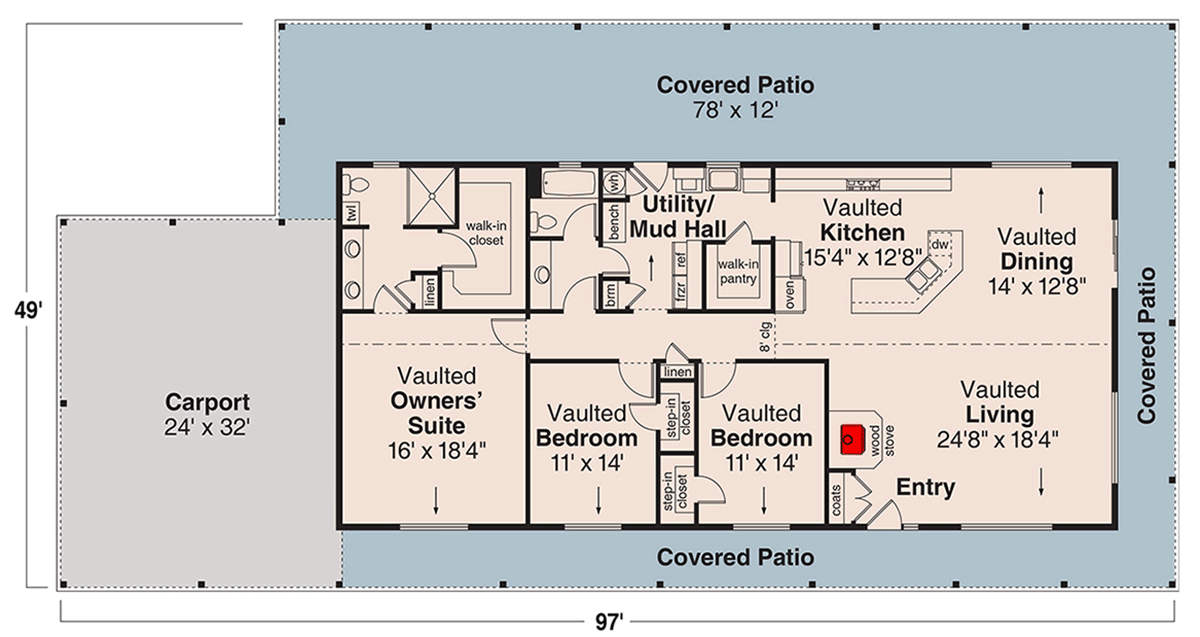

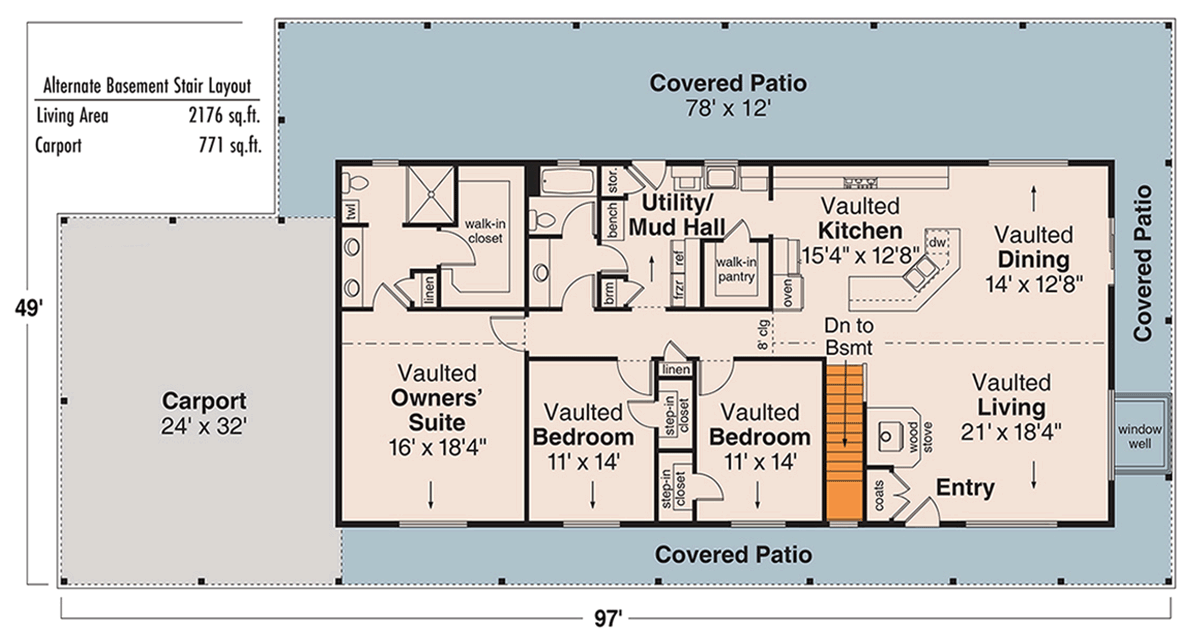

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,176 sq. ft.
  • 1st Floor: 2,176 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 97' 0"
  • Depth: 49' 0"
  • Max ridge height: 19' 2"

Garage

  • Type: Carport
  • Area: 771 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 5 on 12
