Plan 35589GH 3-Bed Craftsman Home Plan with Angled Garage

4,438 3 3.5 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Craftsman Home Plan with Angled Garage

Plan 35589GH

  • 4,438

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This 3-bedroom Craftsman home plan features over 4,400 square feet of living space throughout two stories, and a blend of vertical and horizontal siding with shake accents complete the exterior.
  • The main level presents the shared living spaces with an open living / dining / kitchen area, home office, and media room.
  • An extravagant island anchors the spacious kitchen and sliding doors off the dining area lead to a large open patio for grilling or dining outdoors.
  • Easily access the double garage through the laundry room, and discover a 627 sq ft bonus room with a half bath above the garage.
  • Upstairs, the master suite occupies the right side and includes a private balcony, walk-in closet, and freestanding tub in the ensuite.
  • Take the bridge-style hallway that overlooks the living room below to find two large family bedrooms, separated by a compartmentalized bath.

Each plan set includes the following:

  • Coversheet: This is an artist's rendering of the finished home. This is used as a visual aid, but it is not needed for construction.

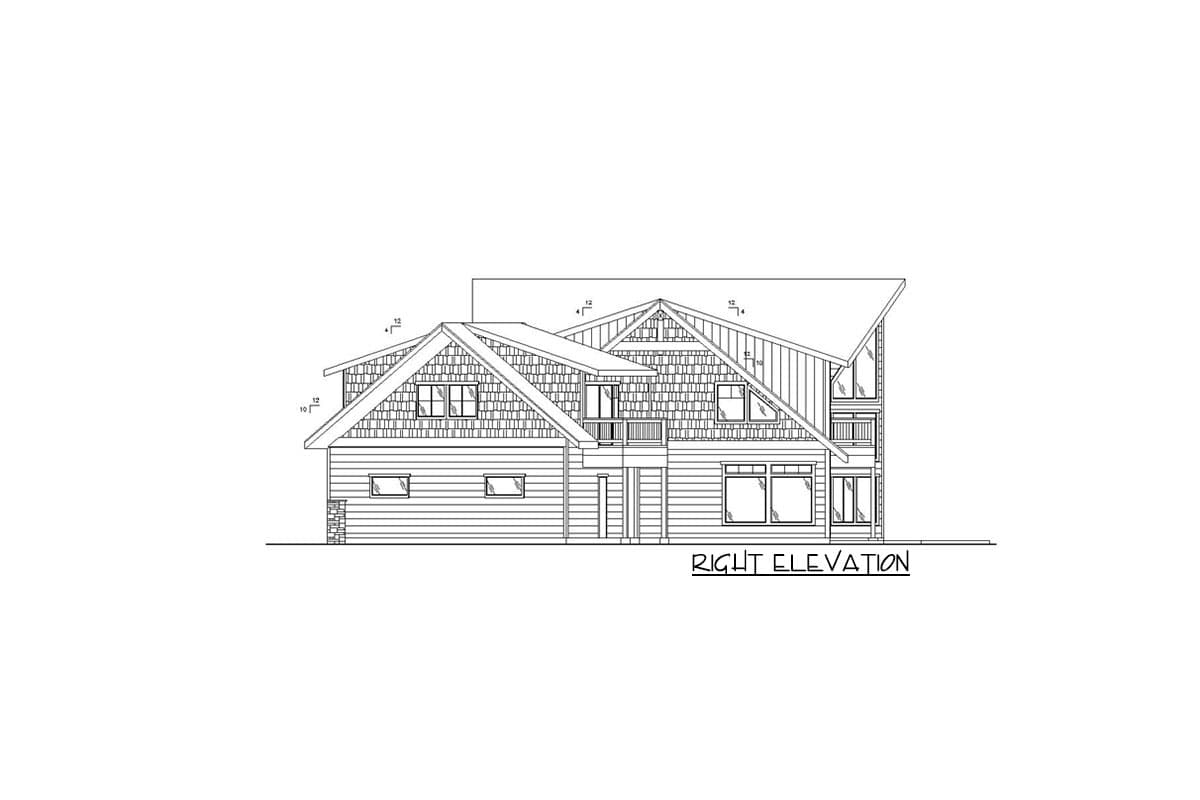

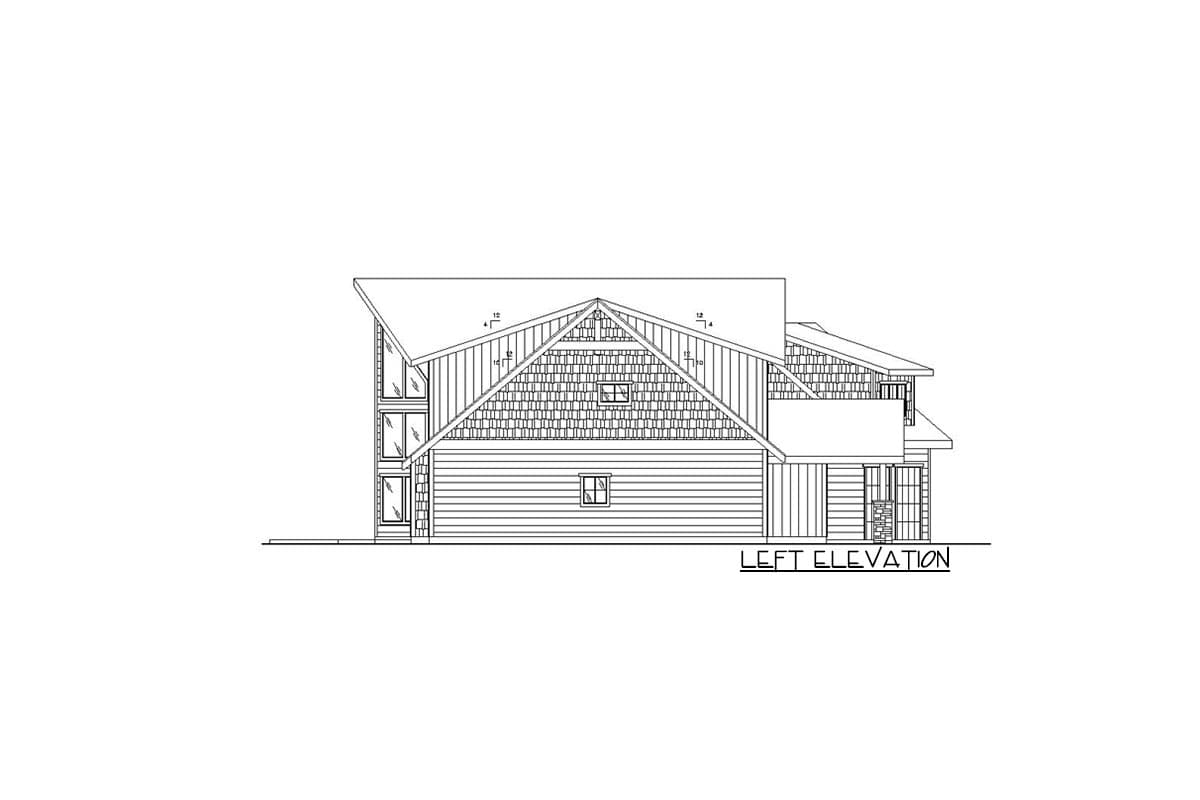

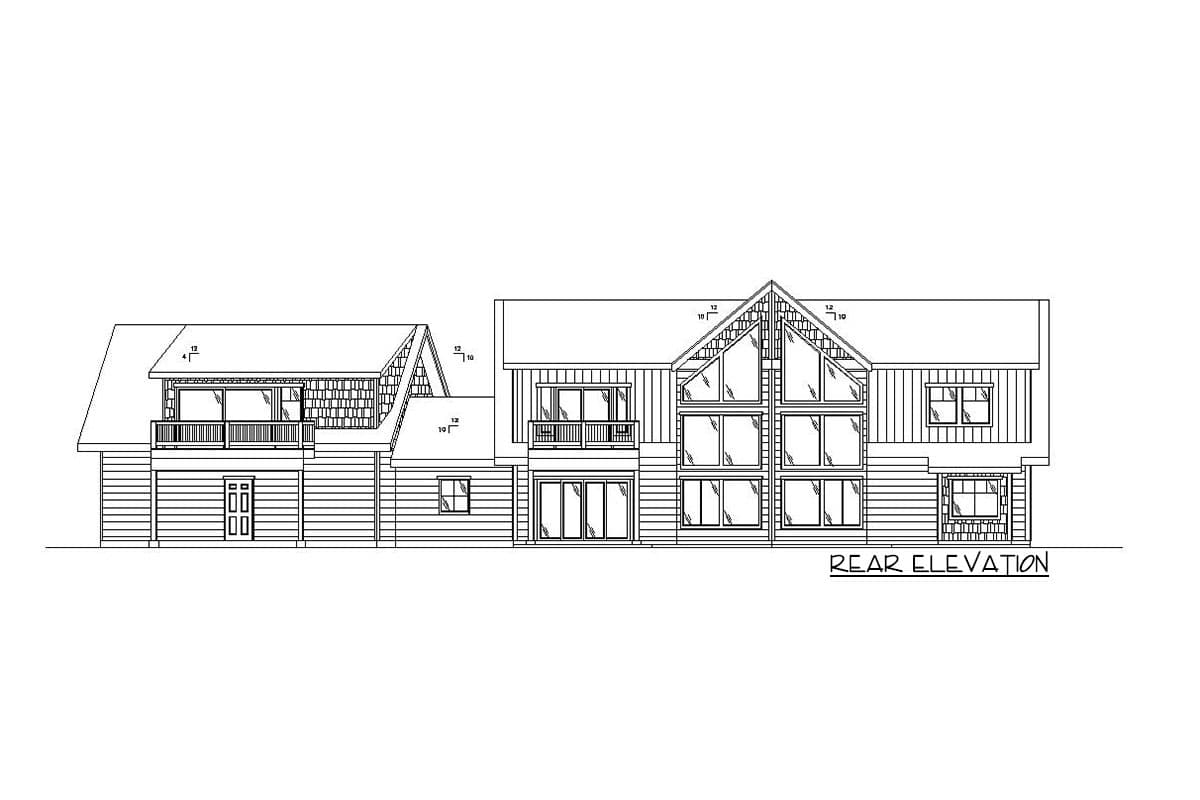

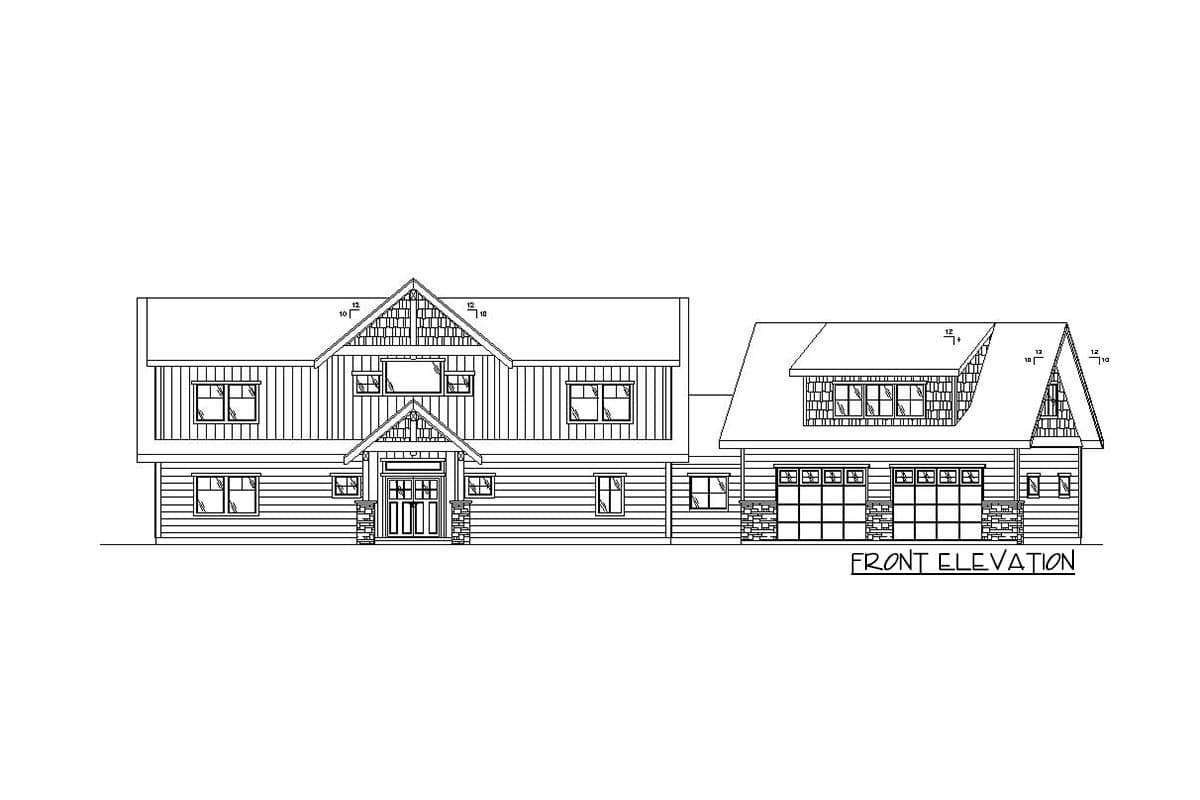

  • Exterior Elevations:  The exterior elevations provide exterior views of the house and call out the exterior finish materials, such as siding, stucco, brick, stone, etc. This page also shows roof pitches and materials, and decorative elements, such as columns and window shutters. Sometimes window and door sizes are also shown here.
  • Floor Plans:  The floor plan shows how each room is laid out on each floor of the house. In most cases, the floor plan will include wall sizes, room dimensions, notes about ceiling design, window and door locations and sizes, and other structural layout notes and details.
  • Foundation Plan:This page provides a detailed foundation drawing, including the thickness of the foundation walls, how the foundation is built, footing and wall placement, Rebar schedule, as well as other construction notes and details. This page may also include a floor framing plan.
  • Cross Sections: Cross sections are views from the top to the bottom of the house plan showing structural details related to the construction of the home. They will show the composition of the foundation, interior and exterior walls, roof, floor and stair details. They also show rooflines, ceiling heights, and the relationships between floors. Cross sections may be on a separate page or on various pages throughout the home plan.
  • Interior Elevations: The interior elevations show built-in features of a house plan, such as kitchen cabinets, fireplaces, built-in bookshelves and desks, vanities, moldings, and hand rails.
  • Basic Electric:This page shows the locations of outlets, switches, and fixtures. It may be on a separate page, or located on the floor plan page.
  • Simple Plumbing: This page shows the locations of the bathtubs, showers, toilets, and sinks. This may be found on the floor plan, or it might be on a separate page.
  • Details: This page includes the structural details for the construction of the house.
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

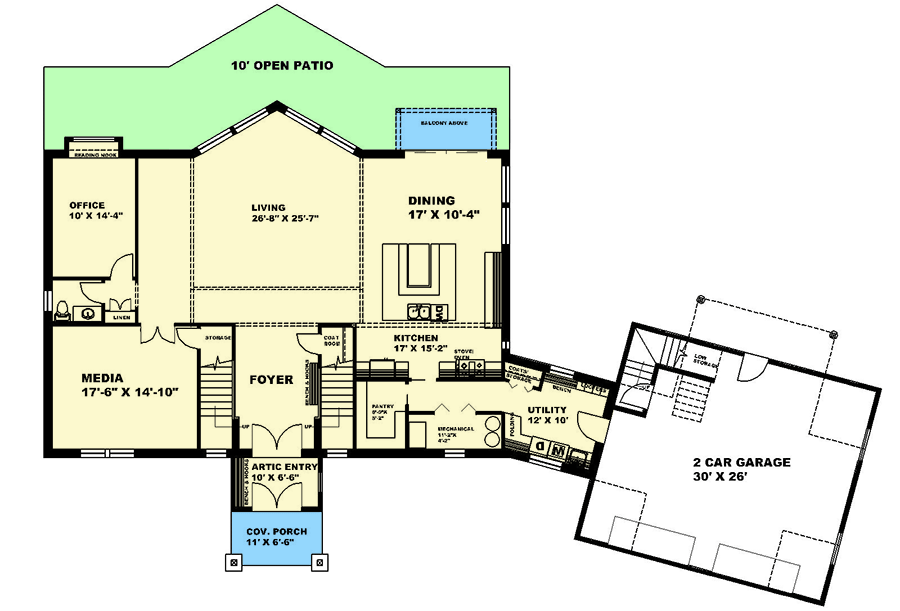

3-Bed Craftsman Home Plan with Angled Garage - 35589GH floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

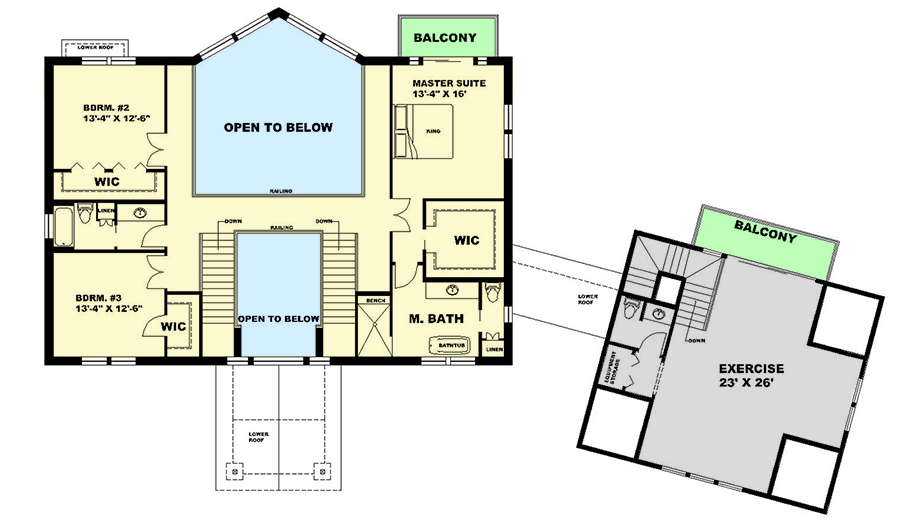

3-Bed Craftsman Home Plan with Angled Garage - 35589GH floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,438 sq. ft.
  • 1st Floor: 2,360 sq. ft.
  • 2nd Floor: 2,078 sq. ft.
  • Bonus: 627 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): ICF

Dimensions

  • Width: 100' 8"
  • Depth: 72' 4"
  • Max ridge height: 28' 11"

Garage

  • Type: Attached
  • Area: 831 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

3-Bed Craftsman Home Plan with Angled Garage

  • 4,438

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $2,195
  • PDF + CAD - Single Build $2,295
  • 5 Sets + PDF $2,445
  • CAD + PDF - Unlimited Build $2,995
  • View all purchase option online

About This Plan

  • This 3-bedroom Craftsman home plan features over 4,400 square feet of living space throughout two stories, and a blend of vertical and horizontal siding with shake accents complete the exterior.
  • The main level presents the shared living spaces with an open living / dining / kitchen area, home office, and media room.
  • An extravagant island anchors the spacious kitchen and sliding doors off the dining area lead to a large open patio for grilling or dining outdoors.
  • Easily access the double garage through the laundry room, and discover a 627 sq ft bonus room with a half bath above the garage.
  • Upstairs, the master suite occupies the right side and includes a private balcony, walk-in closet, and freestanding tub in the ensuite.
  • Take the bridge-style hallway that overlooks the living room below to find two large family bedrooms, separated by a compartmentalized bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,438 sq. ft.
  • 1st Floor: 2,360 sq. ft.
  • 2nd Floor: 2,078 sq. ft.
  • Bonus: 627 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): ICF

Dimensions

  • Width: 100' 8"
  • Depth: 72' 4"
  • Max ridge height: 28' 11"

Garage

  • Type: Attached
  • Area: 831 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
