3 Bed Craftsman House Plan with 1649 Square of Heated Living and a Vaulted Great Room
Heated S.F.
1,649
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • Two gables and a covered entry greet you to this 3-bed Craftsman cottage with 1649 square feet of single floor living. The front door has sidelights and transoms bringing natural light into the foyer with coat closet.
  • All three bedrooms are on the right side of the home with the vaulted master in back.
  • The left side of the home is open front to back with the vaulted great room with fireplace flowing into the eating nook and tot he kitchen in front.

What's Included
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed Craftsman House Plan with 1649 Square of Heated Living and a Vaulted Great Room

  • 1,649

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

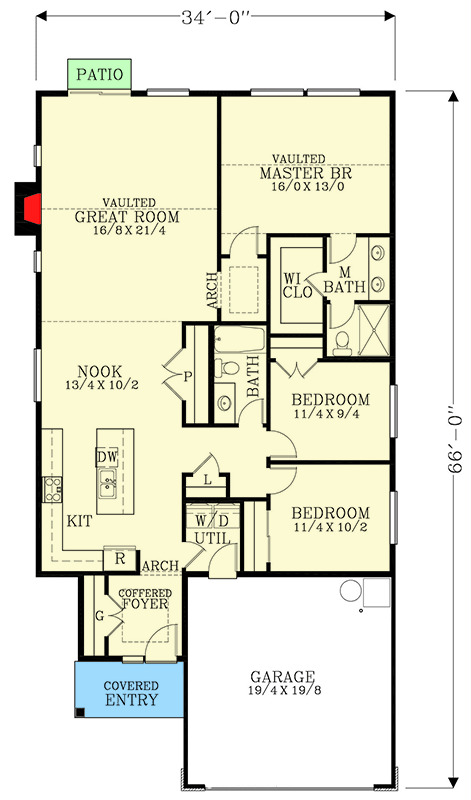

Floor Plan
