Plan 444037GDN

3-Bed Craftsman House Plan with Bonus Room

Name: Plan 444037GDN: 3-Bed Craftsman House Plan with Bonus Room
Brand: Architectural Designs
SKU: 444037GDN
Price: 1296.25 USD
Availability: InStock

Heated S.F.

1,486

Beds

Baths

Stories

Cars

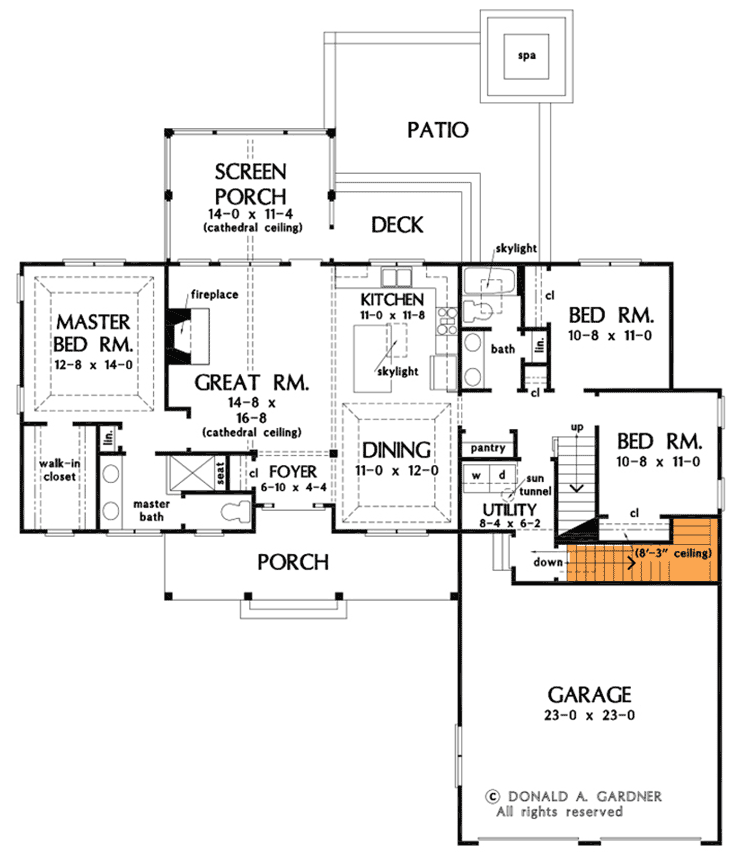

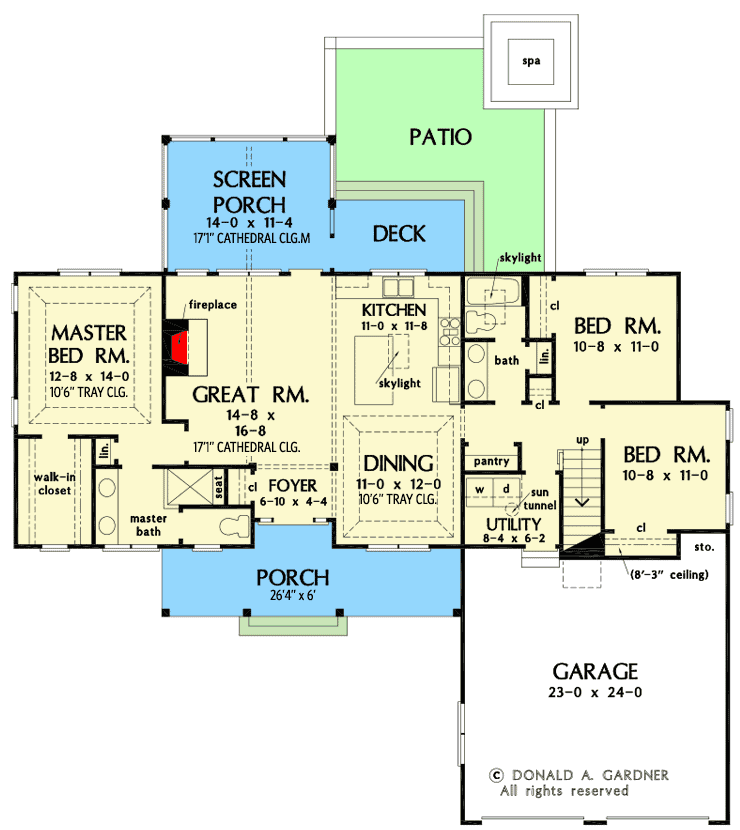

Floor Plan

Main Level

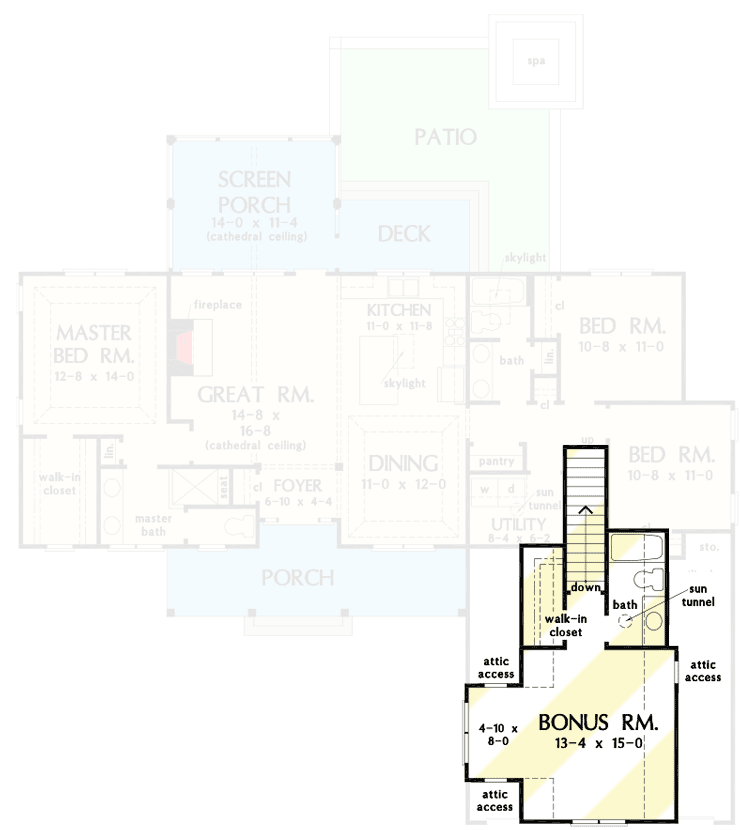

Bonus

Main Floor - Basement Version

Plan Details

This thoughtful Craftsman design presents a front-entry garage and a welcoming front porch.
A cathedral ceiling extends from the great room to the rear screened porch, while the kitchen centers around an island, with a skylight offering natural light, and a pantry and dining room nearby.
The master bedroom enjoys an elegant tray ceiling and the bathroom is designed with a dual-sink vanity and a large walk-in shower. A window brings light into the massive walk-in closet.
Two bedrooms are on the opposite side of the floor plan; a skylight tops the secondary bathroom and the utility room has a sun tunnel.
Upstairs, a bonus room with full bathroom awaits expansion.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
