3-Bed Craftsman House Plan with Split Bedroom Layout - 2280 Sq Ft

Heated S.F.
2,280
Beds
3 - 4
Baths
3.5 - 4.5
Stories
1
Cars
3

Floor Plan

Plan 48575FM

Main Level
Main Level
Optional 2nd Floor
Optional 2nd Floor

Plan 48575FM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

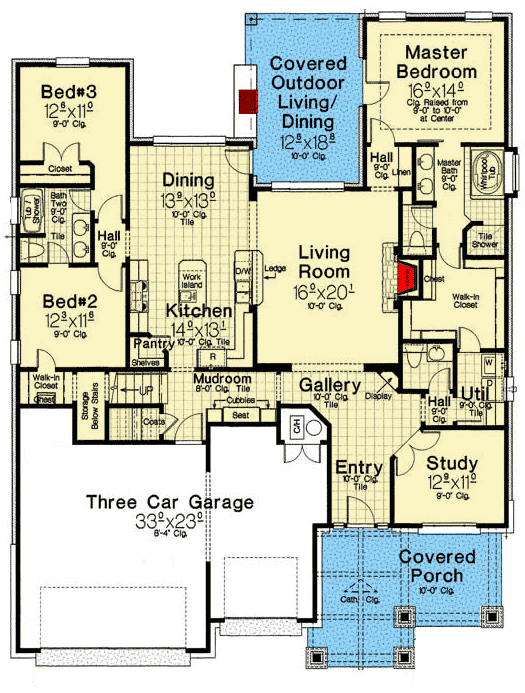

Plan 48575FM: 3-Bed Craftsman House Plan with Split Bedroom Layout - 2280 Sq Ft - Floor Plan - Main Level - Cottage, Craftsman, Northwest

Optional 2nd Floor

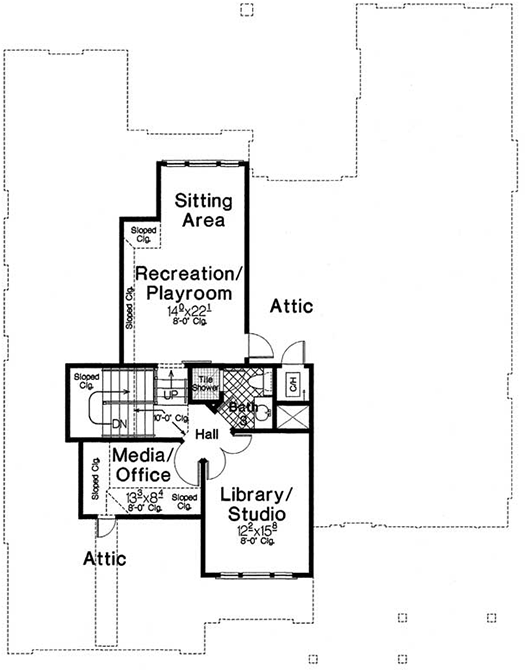

Plan 48575FM: 3-Bed Craftsman House Plan with Split Bedroom Layout - 2280 Sq Ft - Floor Plan - Optional 2nd Floor - Cottage, Craftsman, Northwest

Plan Details

  • A timbered covered entry, timber brackets and a shingled exterior greet you to this 3-bed exclusive Craftsman house plan with a split bedroom layout.
  • The kitchen has a large work island and a corner pantry. A breakfast bar setup gives you room for up to three people to have casual meals at the counter.
  • The living room with fireplace and dining room both open to the kitchen.
  • An outdoor living area in back has an outdoor grill and access to both the dining room and bedroom.
  • A corner study in front sits behind french doors for your privacy.
  • The bedrooms are in a split layout with the kids' rooms sharing a bathroom.

What's Included

  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation

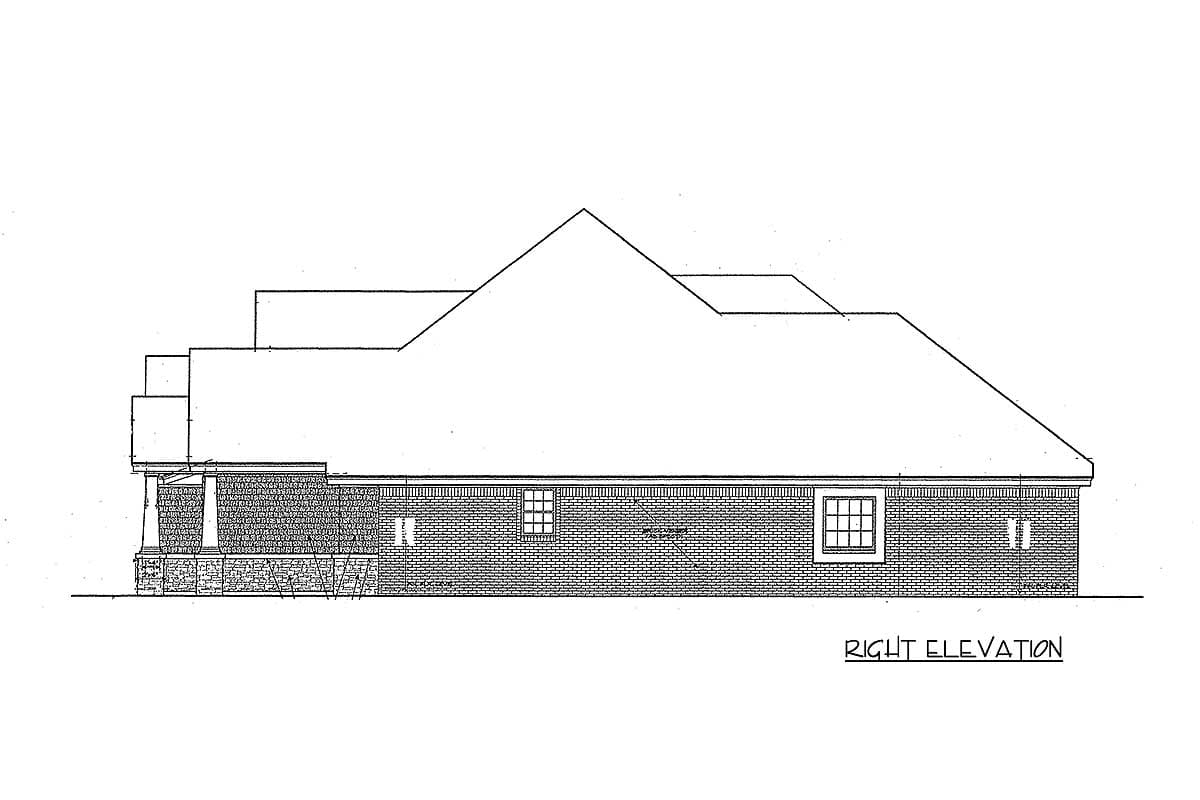

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,280 sq. ft.

1st Floor

2,280 sq. ft.

Bonus

695 sq. ft.

Porch, Front

262 sq. ft.

Covered Patio

227 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3 or 4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

55' 0"

Depth

72' 0"

Max Ridge Height

28' 9"

Garage

Type

Attached

Area

792 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cottage

Craftsman

Northwest

Special Features

Bedrooms - Split

Game/Rec Room

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Mudroom

Optionally Finished Bonus Room

Outdoor Fireplace

Walk-in Pantry
