Plan 24396TW 3-Bed Craftsman House Plan with Split Bedrooms

2,096 3 2 1 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3-Bed Craftsman House Plan with Split Bedrooms

Plan 24396TW

  • 2,096

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Timber-frame gables and shake siding contribute to the abundant character on this 3-bed, Craftsman house plan. Inside, the separated master suite provides the homeowner with the utmost privacy from the secondary bedrooms.
  • The charming, arched french doors lead directly into the open, shared living spaces, which includes the great room, dining area, and kitchen. A coat closet is conveniently located in the foyer, and a fireplace adds a sense of comfort throughout the hub of everyday living.
  • Retreat to the screened porch to enjoy the bug-free outdoors, or pass through to the deck to get some sun.
  • The master suite is located behind the angled, double garage, and boasts an elegant tray ceiling. The en suite includes a garden tub, private toilet room, and a spacious walk-in closet with access to the laundry room.
  • Bedrooms 2 and 3 share the hall bath that separates them.

The plans include the following:

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

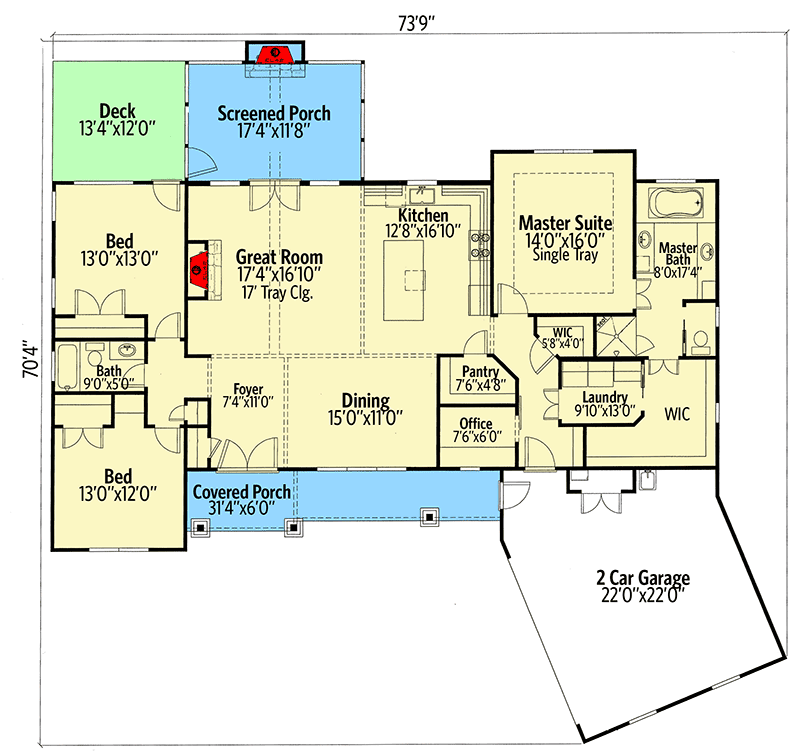

3-Bed Craftsman House Plan with Split Bedrooms - 24396TW floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,096 sq. ft.
  • 1st Floor: 2,096 sq. ft.
  • Porch, Combined: 384 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 73' 9"
  • Depth: 70' 4"
  • Max ridge height: 22' 9"

Garage

  • Type: Attached
  • Area: 542 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss

Architectural Style

Special features

3-Bed Craftsman House Plan with Split Bedrooms

  • 2,096

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,096 sq. ft.
  • 1st Floor: 2,096 sq. ft.

Dimensions

  • Width: 73' 9"
  • Depth: 70' 4"
  • Max ridge height: 22' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 542 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick And Truss
