Plan 14698RK 3-Bed Craftsman House Plan with Variety of Garage Options

3-Bed Craftsman House Plan with Variety of Garage Options

Plan 14698RK

  • 2,456

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2-3

    Cars

  • Craftsman detailing adds character to the exterior of this 3-bedroom house plan, complete with a welcoming front porch to guide you inside.
  • Choose between a 2 or 3-car garage with entry from the front or side. A combined mud / laundry room greets you from the garage, and a pocket door leads into the kitchen.
  • The great room opens to the kitchen, which hosts a cooktop island with room for four at the eating bar. The open-concept living space makes entertaining easy, along with the built-in wine bar in the great room.
  • The main-level master suite considers your future needs, and features a 5-fixture bathroom with a toilet room, freestanding tub, and walk-in closet. A home office (or den) completes the main level.
  • Upstairs, two family bedrooms with walk-in closets share a loft, and the size of a future bonus room is determined by the style of garage you choose.
  • Related Plan: Get three bedrooms upstairs and a large loft with house plan 14697RK (2,889 sq. ft.).
  • BUILDING RESTRICTION: This plan cannot be built within a 100-mile radius of Richmond, Virginia.

Each plan includes the following:


Foundation Plan: Complete with dimensions, referenced details, general notes and schedules.
Elevations: Four completed elevations with dimensions and notes.
Floor Plan(s): Complete with dimensions and notes.
Roof Plan: Complete with roof pitches overhangs and notes.
Building Sections
General Details

IMPORTANT NOTE:  NOT all plans come with a lighting layout.  Please contact us to check for availability.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

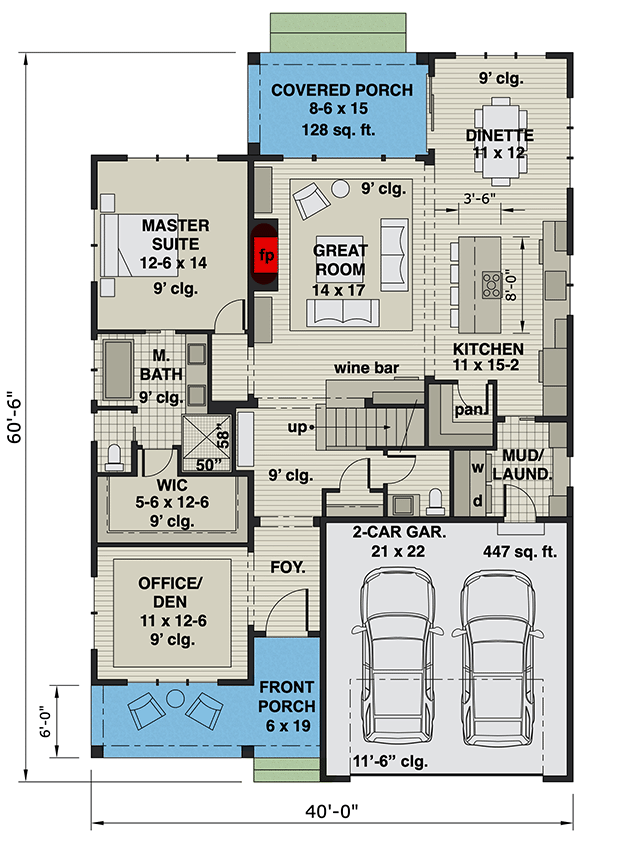

3-Bed Craftsman House Plan with Variety of Garage Options - 14698RK floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

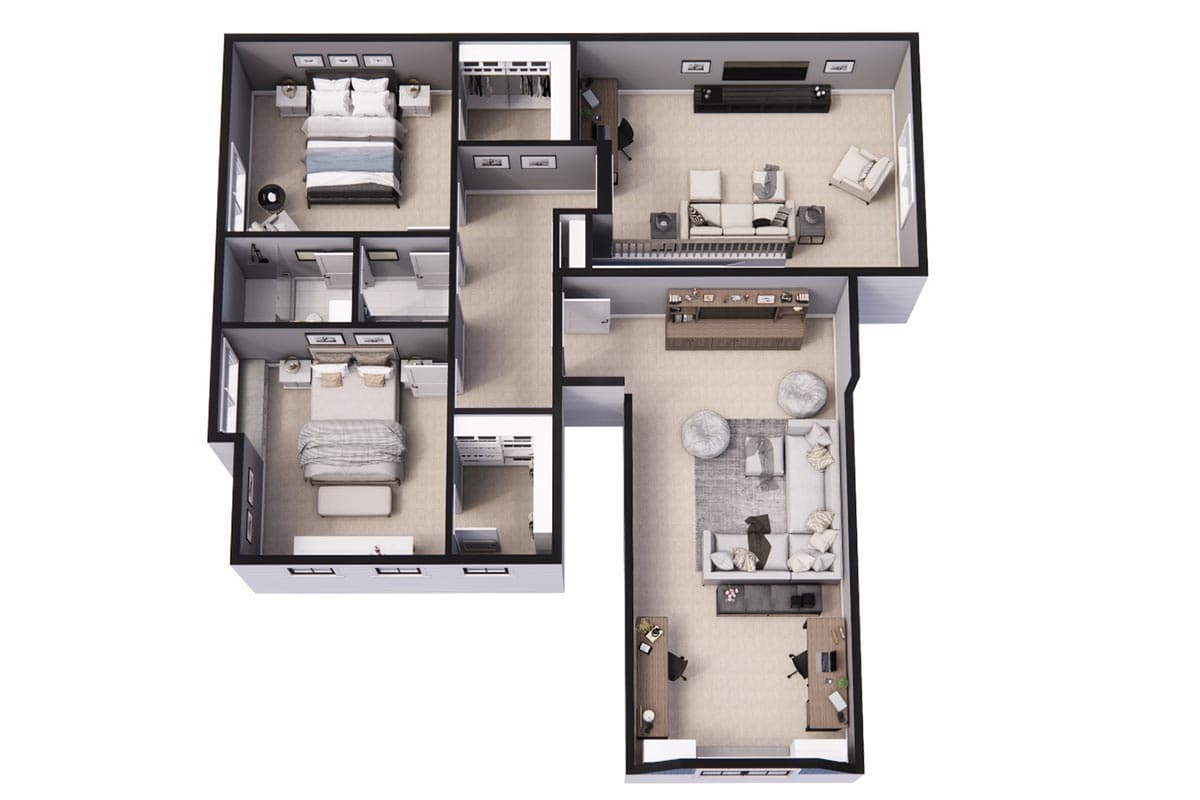

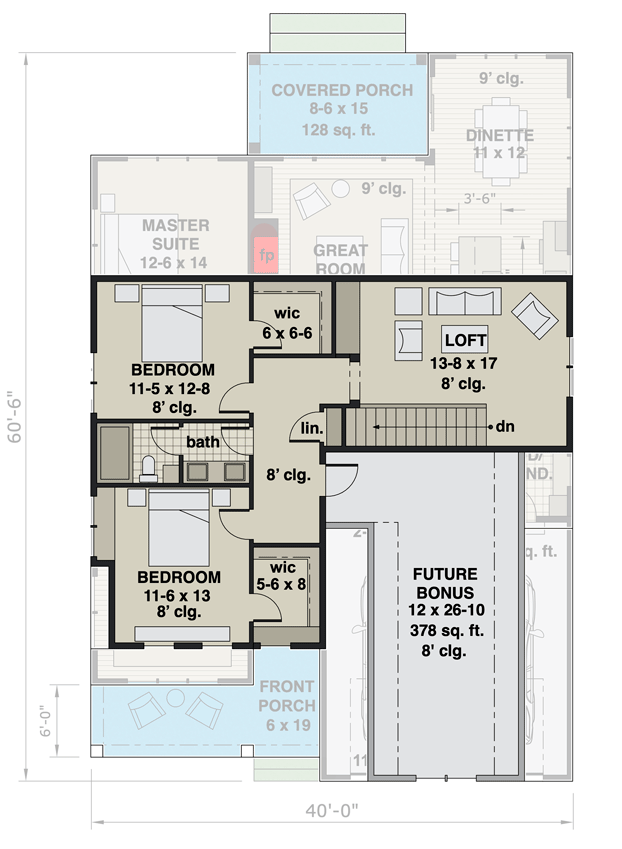

3-Bed Craftsman House Plan with Variety of Garage Options - 14698RK floor plan - 2nd Floor

2-Car Side Garage Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

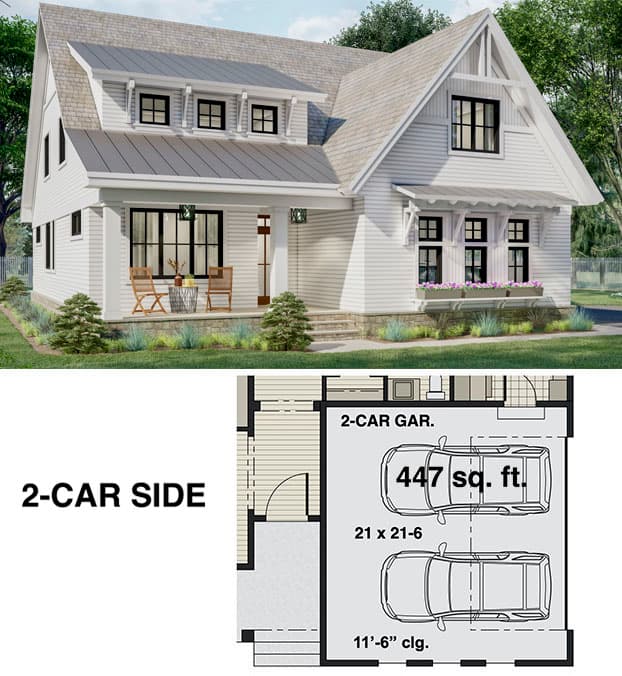

3-Bed Craftsman House Plan with Variety of Garage Options - 14698RK floor plan - 2-Car Side Garage Option

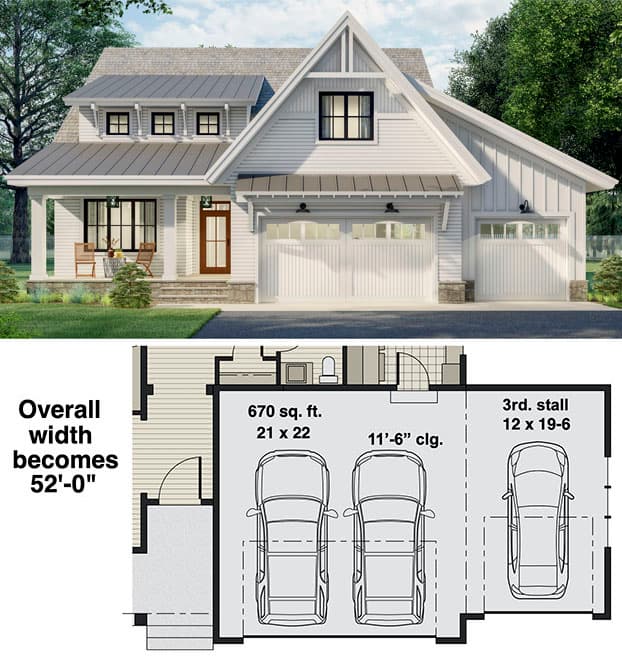

3-Car Front Garage Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Craftsman House Plan with Variety of Garage Options - 14698RK floor plan - 3-Car Front Garage Option

3-Car Side Garage Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

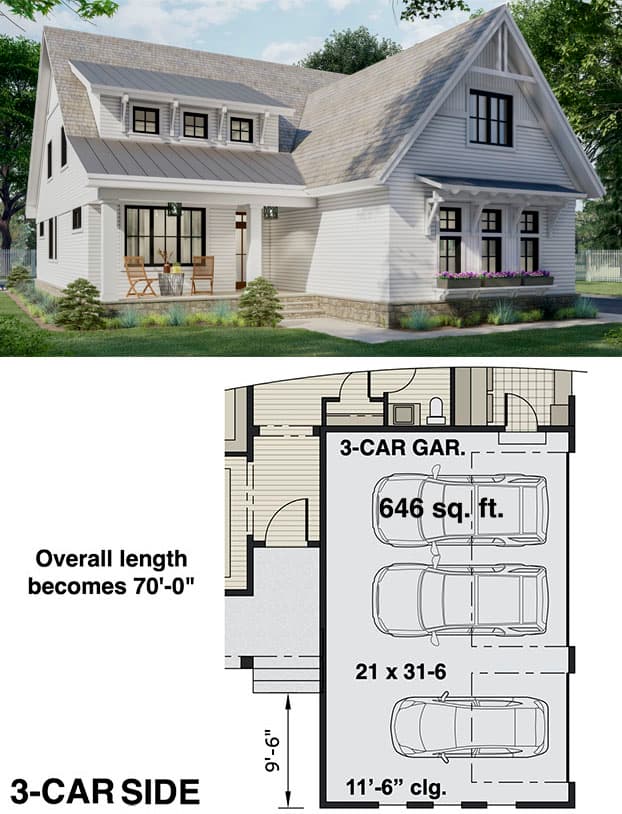

3-Bed Craftsman House Plan with Variety of Garage Options - 14698RK floor plan - 3-Car Side Garage Option

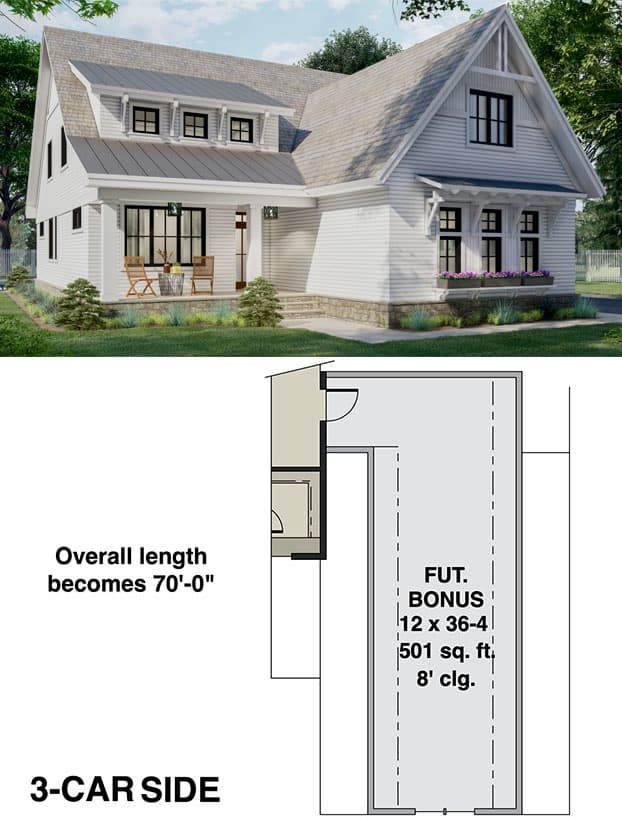

3-Car Side Garage Bonus Level Option

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3-Bed Craftsman House Plan with Variety of Garage Options - 14698RK floor plan - 3-Car Side Garage Bonus Level Option

Plan details

3-Bed Craftsman House Plan with Variety of Garage Options

  • 2,456

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2 - 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,050
  • 5 Sets $2,250
  • 8 Sets $2,350
  • 5 Sets + PDF $2,350
  • CAD + PDF - Single-Build $2,700
  • View all purchase option online

About This Plan

  • Craftsman detailing adds character to the exterior of this 3-bedroom house plan, complete with a welcoming front porch to guide you inside.
  • Choose between a 2 or 3-car garage with entry from the front or side. A combined mud / laundry room greets you from the garage, and a pocket door leads into the kitchen.
  • The great room opens to the kitchen, which hosts a cooktop island with room for four at the eating bar. The open-concept living space makes entertaining easy, along with the built-in wine bar in the great room.
  • The main-level master suite considers your future needs, and features a 5-fixture bathroom with a toilet room, freestanding tub, and walk-in closet. A home office (or den) completes the main level.
  • Upstairs, two family bedrooms with walk-in closets share a loft, and the size of a future bonus room is determined by the style of garage you choose.
  • Related Plan: Get three bedrooms upstairs and a large loft with house plan 14697RK (2,889 sq. ft.).
  • BUILDING RESTRICTION: This plan cannot be built within a 100-mile radius of Richmond, Virginia.

Floor Plans

  • Main Level

  • 2nd Floor

  • 2-Car Side Garage Option

  • 3-Car Front Garage Option

  • 3-Car Side Garage Option

  • 3-Car Side Garage Bonus Level Option

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,456 sq. ft.
  • 1st Floor: 1,561 sq. ft.
  • 2nd Floor: 895 sq. ft.
  • Bonus: 378 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 60' 6"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 447 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Side, Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
