3 Bed Craftsman House Plan with Vaulted Interior

Heated S.F.
2,123
Beds
3
Baths
2.5
Stories
1
Cars
3

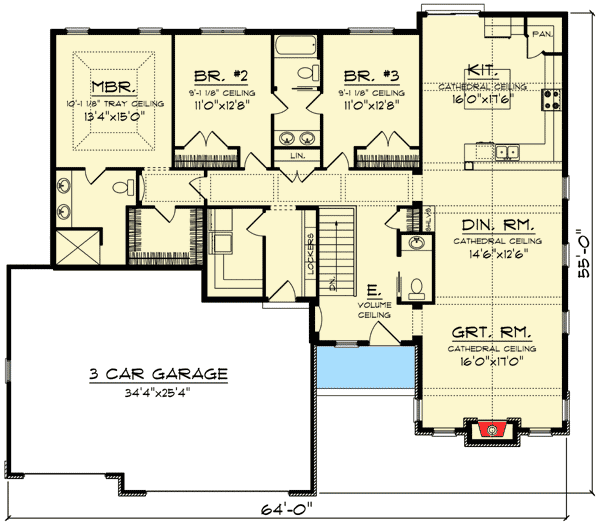

Floor Plan

Plan 89940AH

Main Level
Main Level

Plan 89940AH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 89940AH: 3 Bed Craftsman House Plan with Vaulted Interior - Floor Plan - Main Level - Craftsman, Northwest, Ranch

Plan Details

  • MOVIE: See this house plan from every angle in our YouTube video.
  • This Craftsman style house plan includes great features that set it apart from other ranch homes, most notably a beamed, cathedral ceiling that runs the entire length of the living space.
  • The open concept plan includes a kitchen with breakfast bar that overlooks the dining and great rooms.
  • All three bedrooms are located on the back of the home.
  • The master suite is tucked behind the garage and includes a tray ceiling and walk-in closet.
  • Extra space in the 3-stall garage makes this home perfect for today's family.
  • The roof has an 8:12 pitch.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,123 sq. ft.

1st Floor

2,123 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

64' 0"

Depth

55' 0"

Max Ridge Height

24' 10"

Garage

Type

Attached

Area

826 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Master Suite - 1st Floor
