Plan 62658DJ 3 Bed Craftsman Narrow Lot Duplex House Plan

2,974 2 40' 0" 51' 4" 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

3 Bed Craftsman Narrow Lot Duplex House Plan

Plan 62658DJ

  • 2,974

    Heated s.f.

  • 2

    Units

  • 40' 0"

    Width

  • 51' 4"

    Depth

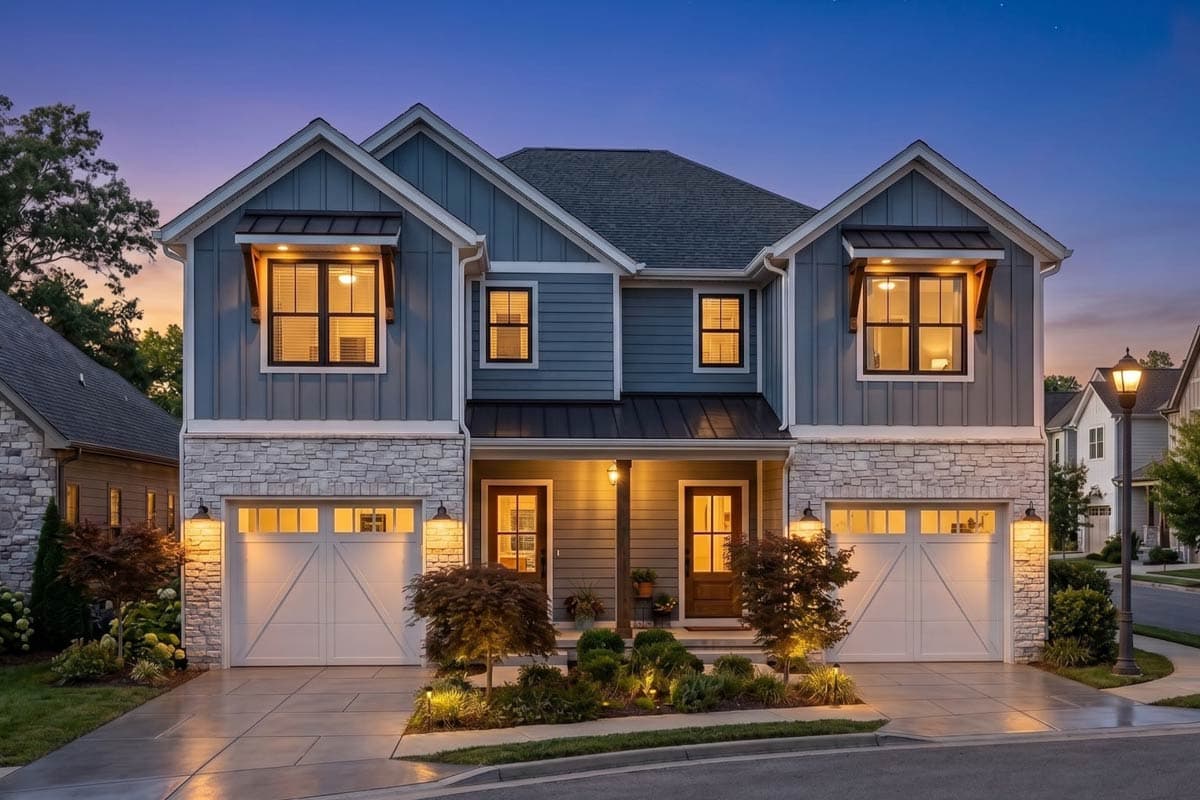

  • Craftsman styling provides an air of charming sophistication to this 2-story, narrow multi-family house plan. Each unit gives you 1,497 square feet of living (657 sq. ft. on the main floor and 832 sq. ft. on the upper floor).
  • Inside, guests are greeted by an entry area that opens to a straight staircase. A few steps further reveal the kitchen with its island work area, walk-in pantry and ample counter space. The adjacent breakfast area provides access the outside through sliding doors.
  • Open to the kitchen and breakfast area is the great room, with its fireplace and views to the rear. The mud room includes a bench, lockers, coat closet and powder bath, and also accesses the 1-car garage.
  • Upstairs, a pampering master suite features a bath area with his and her vanities, and an extensive walk-in closet. Bedrooms 2 and 3  share a jack and jill bath.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3 Bed Craftsman Narrow Lot Duplex House Plan - 62658DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3 Bed Craftsman Narrow Lot Duplex House Plan - 62658DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,974 sq. ft.
  • 1st Floor: 1,314 sq. ft.
  • 2nd Floor: 1,664 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 51' 4"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 520 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Master Bedroom Tray 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12

Architectural Style

Special features

Plan Collections

3 Bed Craftsman Narrow Lot Duplex House Plan

  • 2,974

    Heated s.f.

  • 2

    Units

  • 40' 0"

    Width

  • 51' 4"

    Depth

Buy This Plan
  • PDF - Single-Build $1,600
  • 5 Sets + PDF $1,850
  • PDF - Unlimited Build $2,100
  • CAD + PDF - Single-Build $2,100
  • CAD Unlimited + PDF $2,600
  • View all purchase option online

About This Plan

  • Craftsman styling provides an air of charming sophistication to this 2-story, narrow multi-family house plan. Each unit gives you 1,497 square feet of living (657 sq. ft. on the main floor and 832 sq. ft. on the upper floor).
  • Inside, guests are greeted by an entry area that opens to a straight staircase. A few steps further reveal the kitchen with its island work area, walk-in pantry and ample counter space. The adjacent breakfast area provides access the outside through sliding doors.
  • Open to the kitchen and breakfast area is the great room, with its fireplace and views to the rear. The mud room includes a bench, lockers, coat closet and powder bath, and also accesses the 1-car garage.
  • Upstairs, a pampering master suite features a bath area with his and her vanities, and an extensive walk-in closet. Bedrooms 2 and 3  share a jack and jill bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,974 sq. ft.
  • 1st Floor: 1,314 sq. ft.
  • 2nd Floor: 1,664 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 51' 4"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 520 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
