Plan 62646DJ

3 Bed Craftsman Ranch House Plan

Heated S.F.

2,448

Beds

3

Baths

2.5

Stories

1

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

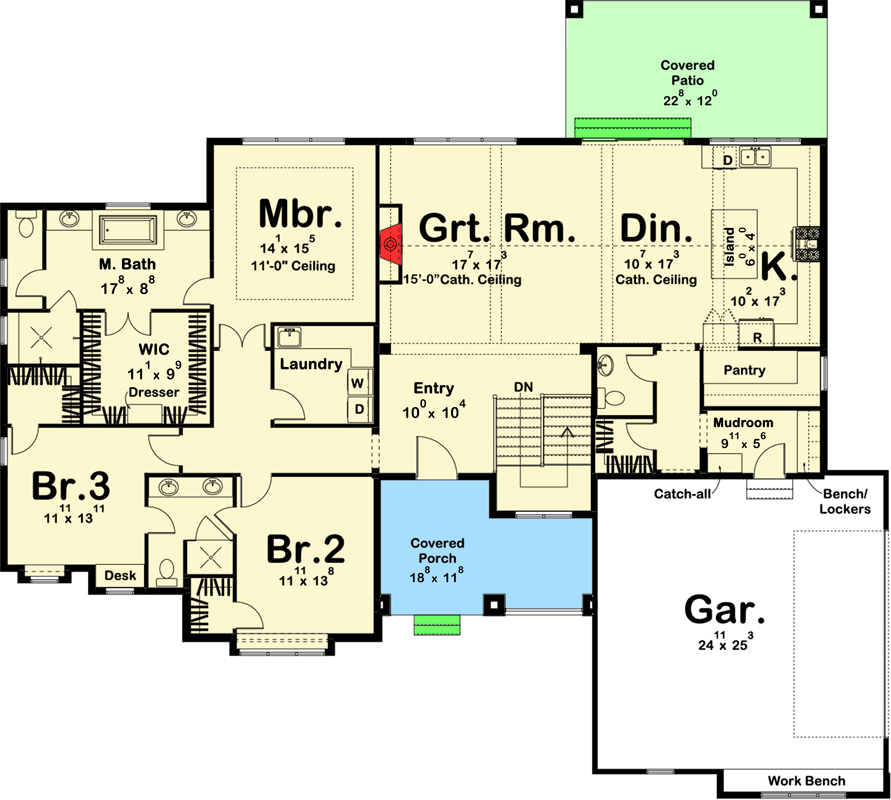

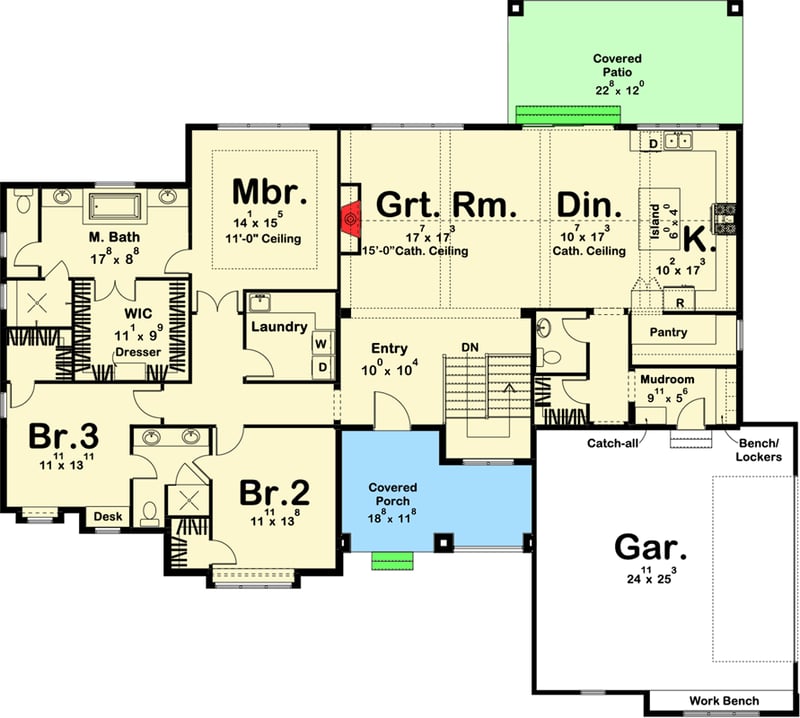

3 Bed Craftsman Ranch House Plan - 62646DJ floor plan - Main Level

Plan Details

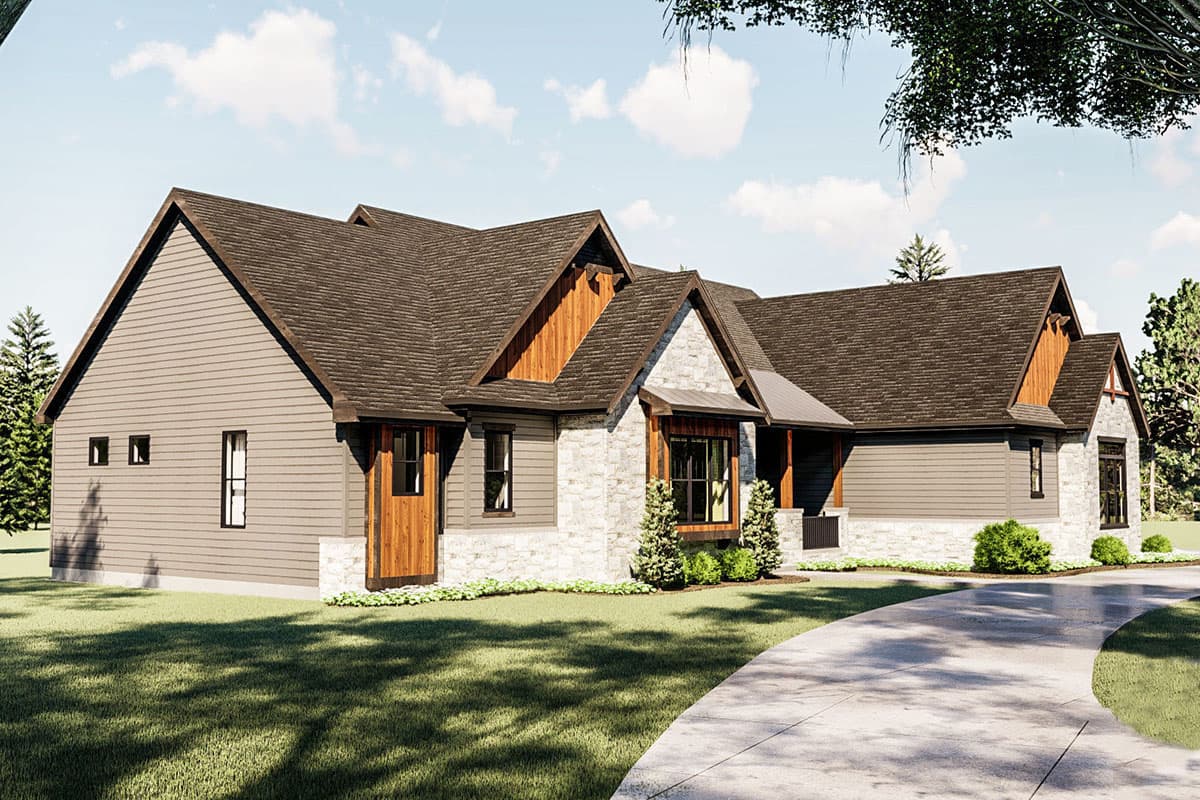

This one story house plan has an exterior with a mix of materials including stone, clapboard and board and batten siding. A metal shed roof protects the front entrance and creates a cozy 18'8" by 8'8" entry porch (188 square feet) .

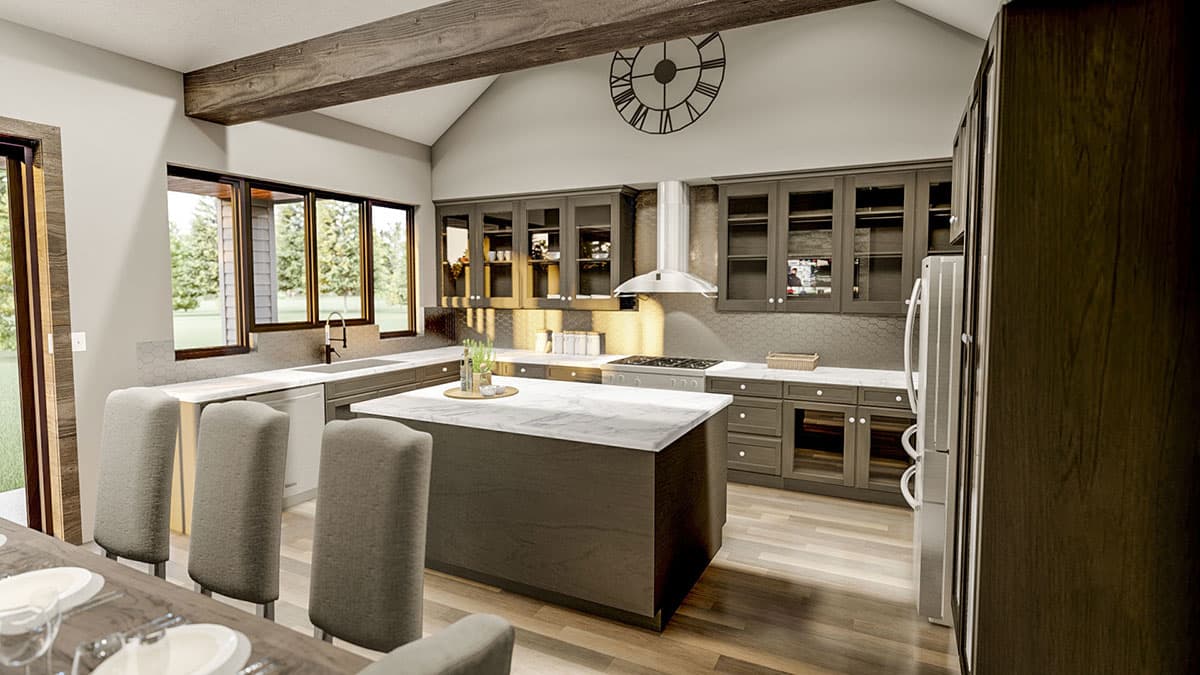

The foyer opens to soaring 15'-high wood-beamed cathedral ceilings in the great room, dinette and kitchen. The kitchen, with an expansive work island (6' by 4'), is open to the dining area and offers a large walk in pantry
Away from the living areas, the master suite features an over-sized walk-in closet, and his and her vanities in the bath. Opposite, bedroom 2 and 3 share a Jack-n-Jill bath and both have their own walk in closets.
The side load garage gives you room for two cars plus a built-in workbench.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section
Cabinets Elevations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Square Footage Breakdown

Total Heated Area:

2,448 sq. ft.

1st Floor:

2,448 sq. ft.

Covered Patio:

276 sq. ft.

Porch, Front:

188 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Basement

Optional Foundations:

Walkout, Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

78' 0"

Depth:

70' 0"

Max Ridge Height:

29' 0"

Garage

Type:

Attached

Area:

691 sq. ft.

Count:

2 Cars

Entry Location:

Side

Ceiling Heights

Lower Level

0'

First Floor

0'

Room	Ceiling Type	Width	Depth	Height
Great Room	Cathedral
Master Bedroom	Tray			11' 0"

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area:

2,448 sq. ft.

1st Floor:

2,448 sq. ft.

Covered Patio:

276 sq. ft.

Porch, Front:

188 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Half bathrooms:

1

Foundation Type

Standard Foundations:

Basement

Optional Foundations:

Walkout, Slab, Crawl

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

78' 0"

Depth:

70' 0"

Max Ridge Height:

29' 0"

Garage

Type:

Attached

Area:

691 sq. ft.

Count:

2 Cars

Entry Location:

Side

Ceiling Heights

Lower Level

0'

First Floor

0'

Room	Ceiling Type	Width	Depth	Height
Great Room	Cathedral
Master Bedroom	Tray			11' 0"

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Master Suite - 1st Floor
