Plan 54041LK

3-Bed Craftsman Ranch House Plan with Large Private Master Bedroom Suite - 2815 Sq Ft

Name: Plan 54041LK: 3-Bed Craftsman Ranch House Plan with Large Private Master Bedroom Suite - 2815 Sq Ft
Brand: Architectural Designs
SKU: 54041LK
Price: 1806.25 USD
Availability: InStock

Heated S.F.

2,815

Beds

Baths

2.5

Stories

Cars

Floor Plan

Main Level

Plan Details

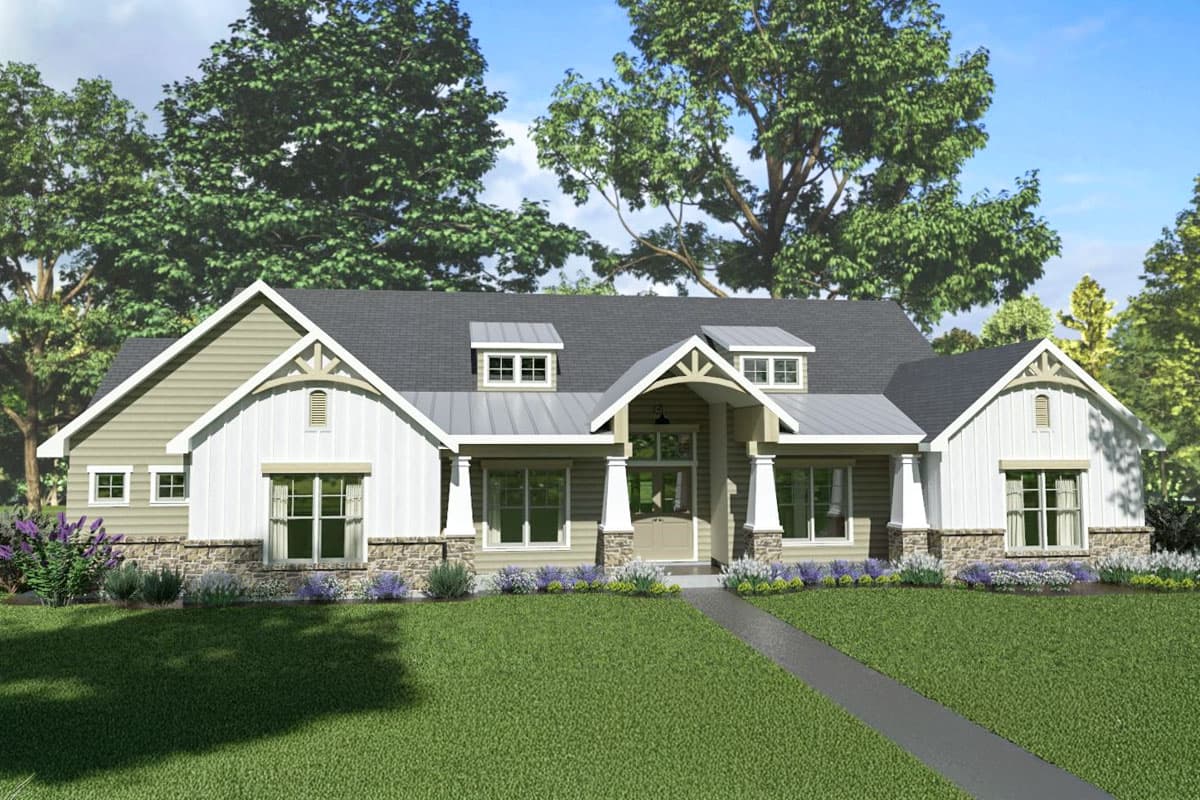

This craftsman ranch home plan provides 3-bedrooms and 2.5 bathrooms in a split bed layout with 2,815 square feet of living space. The right side of the home large private master bedroom suite has an oversized walk-in closet, and two additional bedrooms share a jack and jill bath on the left side of the home, near the laundry and mudroom. The kitchen is a chefs dream, with a generous walk in pantry with wall to wall counters, a large working island with breakfast bar. A study can be found tucked in off the main entry foyer.
Plenty of outdoor living space is provided between covered front and reach porches.
There is a 2-car side-entry garage at the rear right of the home with 644 square feet of parking and storage space.
Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
We can modify any house plan you see on our site. Learn more about modifications.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
