Plan 818141JSS

3-Bed Craftsman Ranch House Plan with Vaulted Great Room - 1638 Sq Ft

Heated S.F.
1,638
Beds
3
Baths
2
Stories
1

Floor Plan

Plan 818141JSS

Main Level
Main Level

Plan 818141JSS

M-F 9am-5pm EST |

1-203-761-8500

Main Level

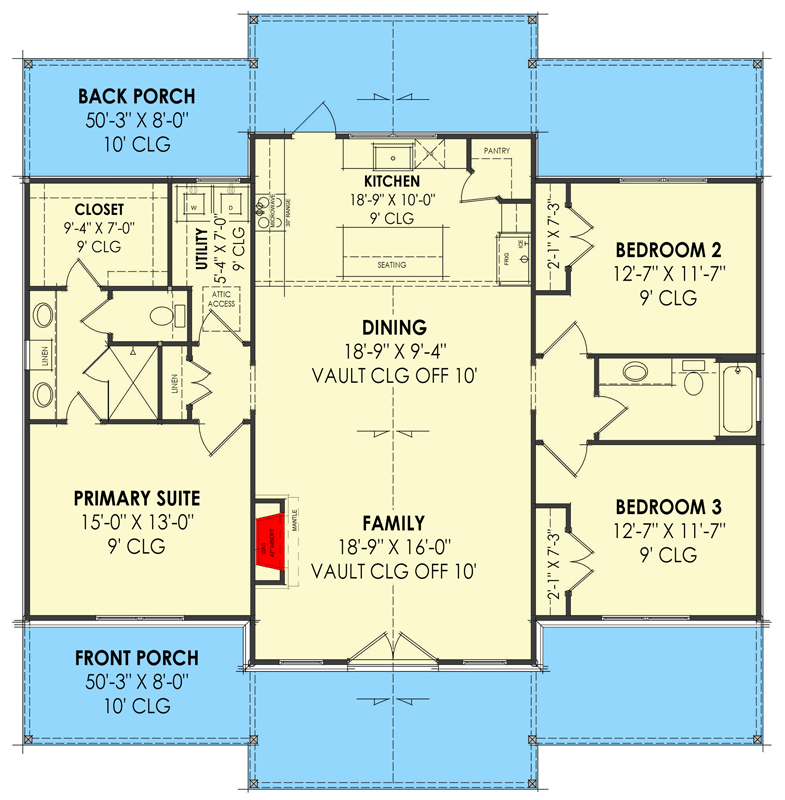

Plan 818141JSS: 3-Bed Craftsman Ranch House Plan with Vaulted Great Room - 1638 Sq Ft - Floor Plan - Main Level - Cabin, Cottage, Country, Craftsman, New American, Ranch

Plan Details

  • This simple and modern craftsman-style ranch house plan features an open concept split bedroom layout with 3-beds and 2-baths in 1,638 square feet. Large covered porches span the entire front and rear of the house, providing ample outdoor living space.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Foundation plan
  • Detailed floorplans
  • Roof plan
  • Exterior elevations
  • Electrical schematic
  • Cross section(s)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,638 sq. ft.

1st Floor

1,638 sq. ft.

Porch, Front

419 sq. ft.

Porch, Rear

402 sq. ft.

Porch, Combined

821 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

50' 3"

Depth

52' 7"

Max Ridge Height

20' 2"

Ceiling Heights

Lower Level

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

9 on 12

Architectural Style

Cabin

Cottage

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room

Square Footage Breakdown

Total Heated Area

1,638 sq. ft.

1st Floor

1,638 sq. ft.

Porch, Front

419 sq. ft.

Porch, Rear

402 sq. ft.

Porch, Combined

821 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

Metal

Optional Type(s)

2x6

Dimensions

Width

50' 3"

Depth

52' 7"

Max Ridge Height

20' 2"

Ceiling Heights

Lower Level

9'

Roof Details

Primary Pitch

5 on 12

Secondary Pitch

9 on 12

Architectural Style

Cabin

Cottage

Country

Craftsman

New American

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Two Story Great Room
