Plan 580099DFT

Exclusive

3-Bed Craftsman Ranch House Plan with Vaulted Great Room and RV Garage - 2342 Sq Ft

Heated S.F.
2,342
Beds
3
Baths
2.5
Stories
1
Cars
3

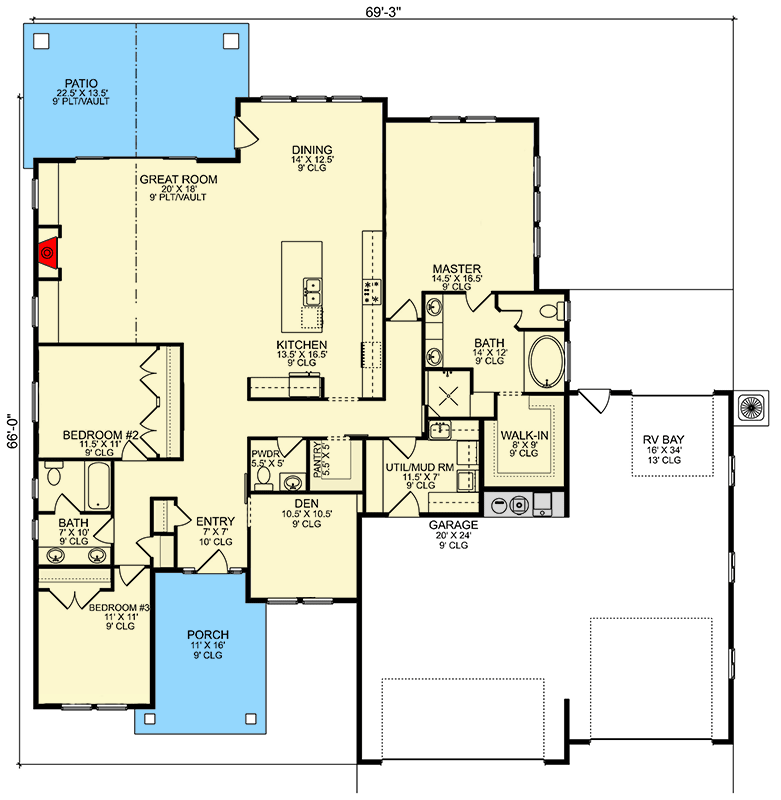

Floor Plan

Plan 580099DFT

Main Level
Main Level

Plan 580099DFT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 580099DFT: 3-Bed Craftsman Ranch House Plan with Vaulted Great Room and RV Garage - 2342 Sq Ft - Floor Plan - Main Level - Country, Craftsman, Ranch, Traditional

Plan Details

  • This 3 bed, 2.5 bath craftsman ranch house plan gives you 2,342 square feet of heated living and 3 car front load garage (1105 sq. ft.).
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Sheet: General Notes and code criteria
  • Foundation Plan: Concrete layouts including footings, slabs and stem walls, dimensions, floor joist layout, plumbing fixture locations and construction notes and details
  • Floor Plan(s): Dimensions, wall framing, room sizes, door and window location and sizes, plumbing fixtures, kitchen layout with cabinetry location and construction notes and details
  • Roof Plan: Bird's eye view and general layout, roof pitches, eave sizes, special ceiling heights, trey ceilings located and construction notes and details
  • Section View(s): A cut or cuts through the home showing wall plate heights, stair sections, special construction sections including footings and crawl space or slab details

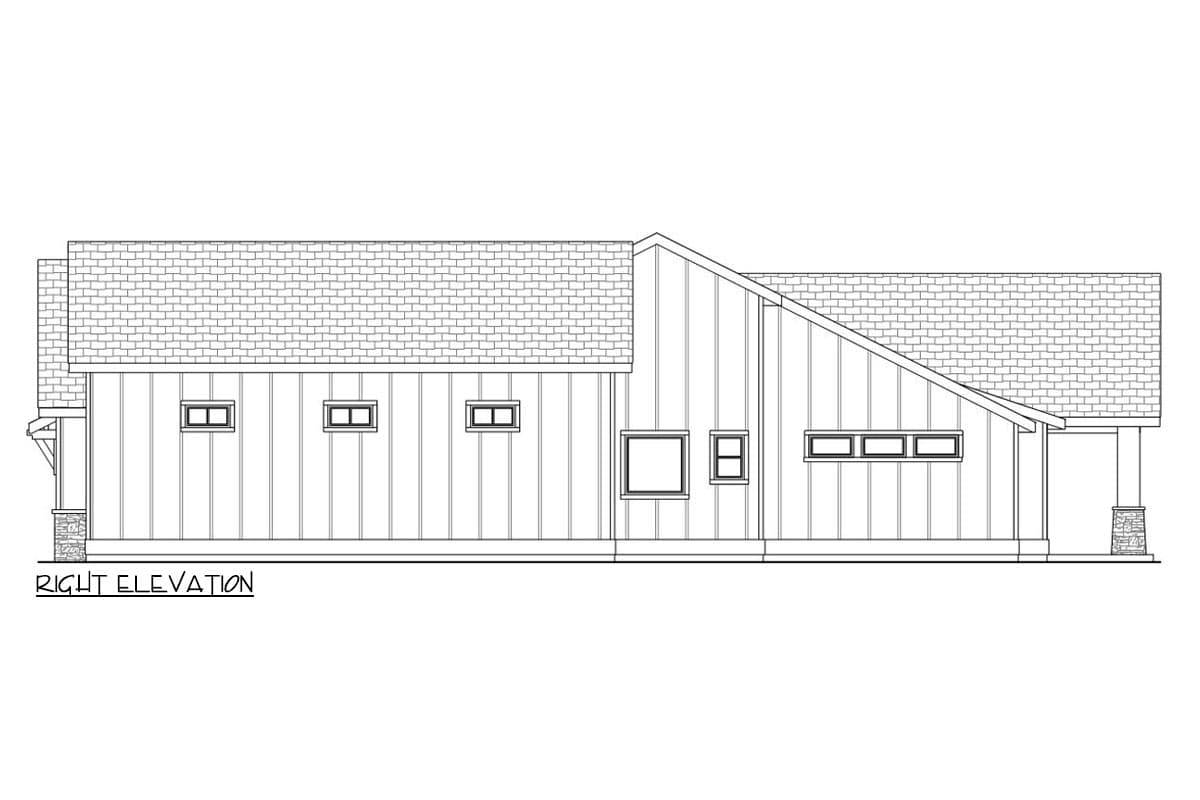

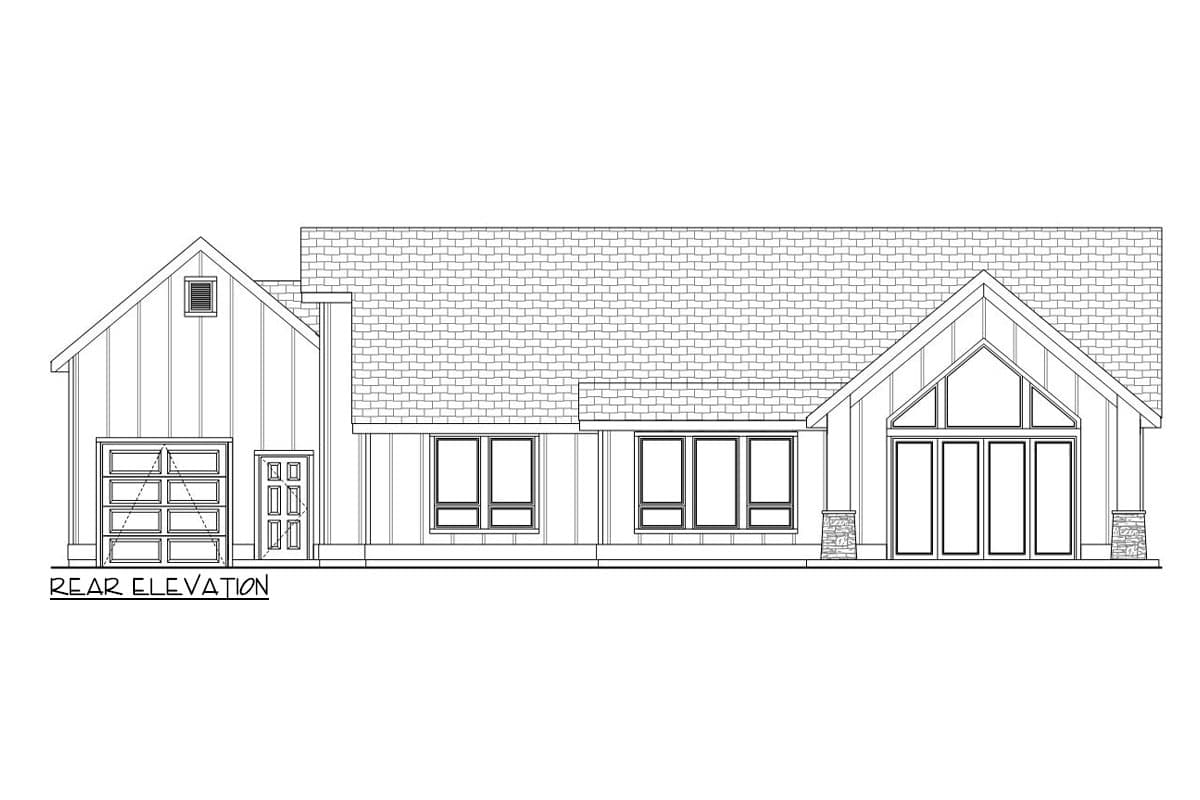

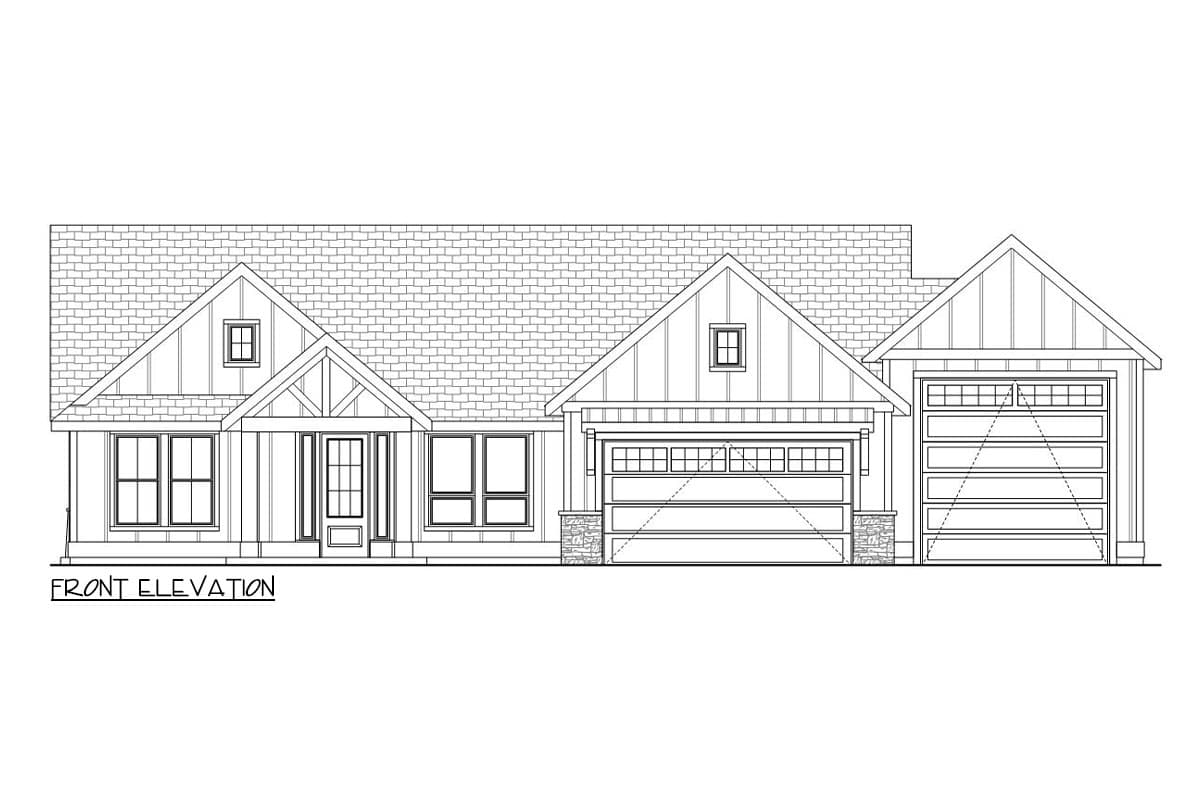

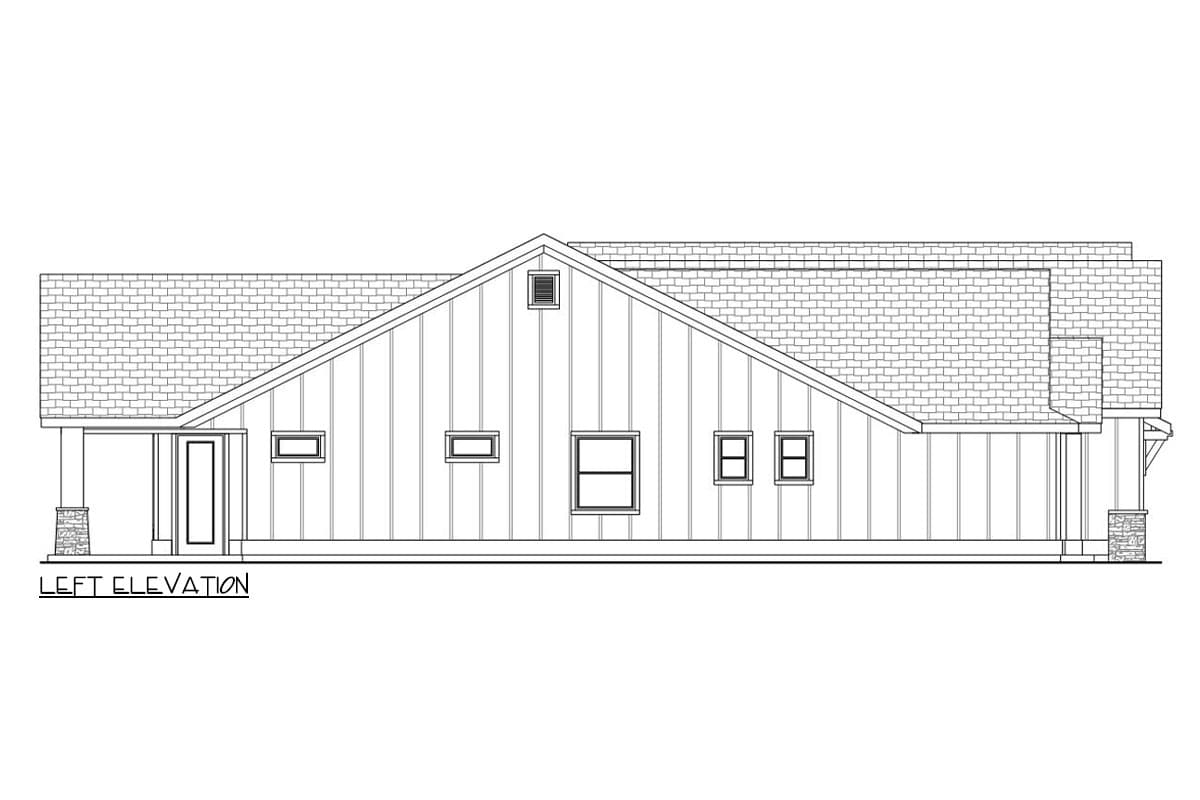

  • Exterior Elevations: Shows 2-D exterior views of all 4 sides of home locating and showing roof lines, roof pitches, material callouts, window locations, vents, trim style and plate heights
  • Electrical Plans: General layout of smoke detectors, carbon monoxide detectors, exhaust fans, lights, switches, outlets and GFI outlets

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,342 sq. ft.

1st Floor

2,342 sq. ft.

Porch, Combined

149 sq. ft.

Covered Patio

247 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 3"

Depth

72' 4"

Garage

Type

Attached, RV Garage

Area

1105 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Den

Formal Dining

Laundry - Main Level

Mudroom

Two Story Great Room

Walk-in Pantry

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,342 sq. ft.

1st Floor

2,342 sq. ft.

Porch, Combined

149 sq. ft.

Covered Patio

247 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 3"

Depth

72' 4"

Garage

Type

Attached, RV Garage

Area

1105 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

Ranch

Traditional

Special Features

Bedrooms - Split

Den

Formal Dining

Laundry - Main Level

Mudroom

Two Story Great Room

Walk-in Pantry
