3-Bed Craftsman Ranch Plan with Unfinished Basement - Architectural Designs

Heated S.F.
1,827
Beds
3
Baths
2
Stories
1
Cars
3

Floor Plan

Plan 135021GRA

Main Level
Main Level
Unfinished Walkout Basement
Unfinished Walkout Basement

Plan 135021GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

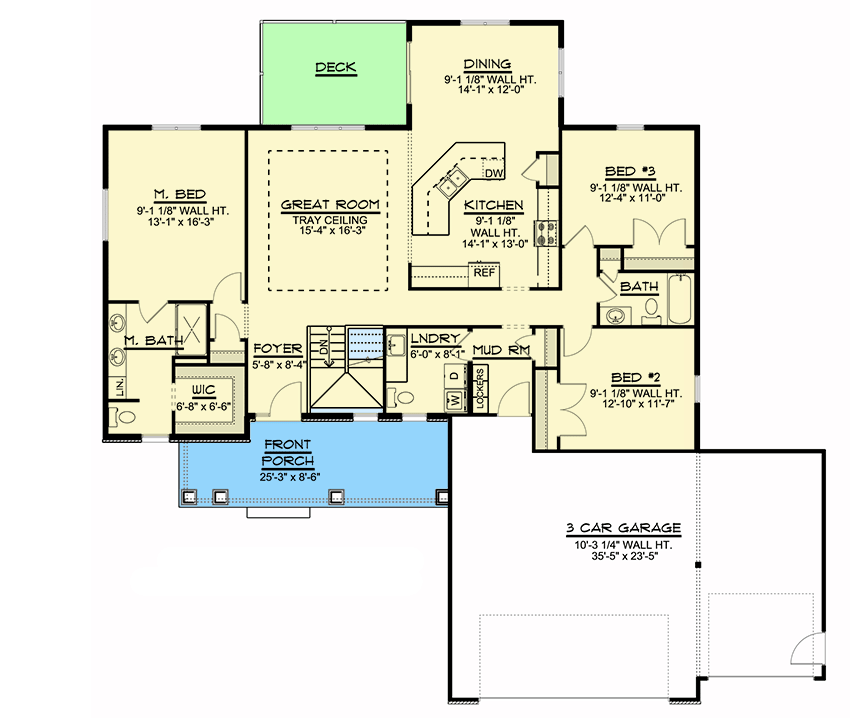

Plan 135021GRA: 3-Bed Craftsman Ranch Plan with Unfinished Basement - Architectural Designs - Floor Plan - Main Level - Craftsman, Ranch

Unfinished Walkout Basement

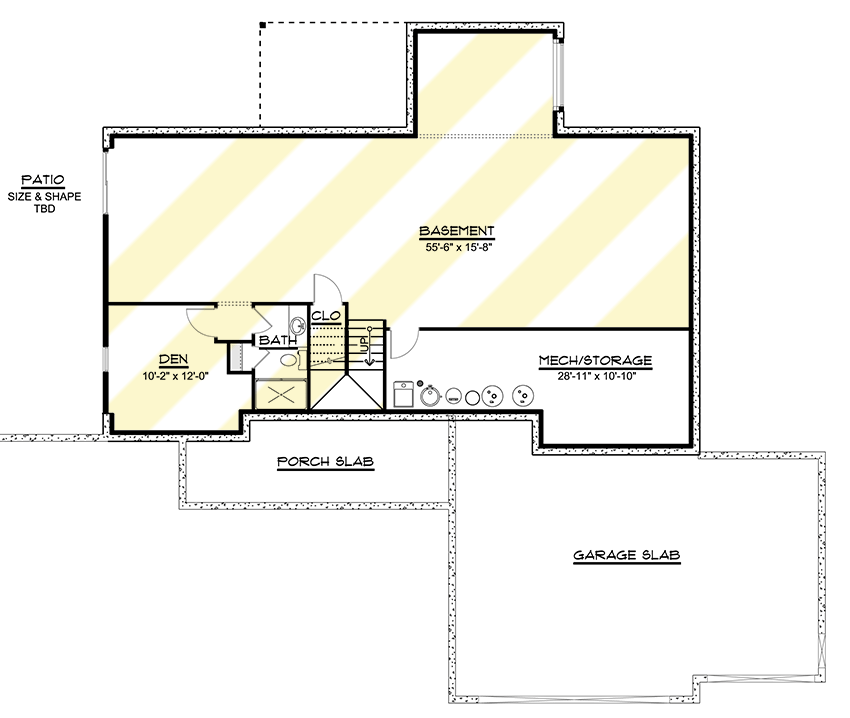

Plan 135021GRA: 3-Bed Craftsman Ranch Plan with Unfinished Basement - Architectural Designs - Floor Plan - Unfinished Walkout Basement - Craftsman, Ranch

Plan Details

  • This Craftsman Ranch home plan features just over 1,800 square feet of living space and presents a split-bedroom design, while the unfinished basement provides ample storage space.
  • Tapered pillars support the front porch, which welcomes you into the foyer. A tray ceiling is located above the great room straight ahead with a trio of windows that overlook the back deck.
  • The combined kitchen and dining area creates a comfortable space for everyday cooking and dining, with an angled island that hosts a double-bowl sink, pantry, and loads of workspace.
  • The master bedroom occupies the left side of the home, and includes a 4-fixture bath with a walk-in closet. Bedrooms 2 and 3 are tucked behind the 3-car garage, separated by a full bath, which they share.
  • Built-in lockers and a coat closet in the mudroom help keep your outdoor gear organized, and the neighboring laundry room includes a utility sink.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,827 sq. ft.

1st Floor

1,827 sq. ft.

Basement Unfinished

1,827 sq. ft.

Porch, Combined

191 sq. ft.

Deck

140 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 0"

Depth

65' 0"

Max Ridge Height

20' 3"

Garage

Type

Attached

Area

863 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Den

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,827 sq. ft.

1st Floor

1,827 sq. ft.

Basement Unfinished

1,827 sq. ft.

Porch, Combined

191 sq. ft.

Deck

140 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 0"

Depth

65' 0"

Max Ridge Height

20' 3"

Garage

Type

Attached

Area

863 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

7 on 12

Architectural Style

Craftsman

Ranch

Special Features

Bedrooms - Split

Den

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Sloping Lot
