3-Bed Craftsman Ranch Plan with Vaulted Family Room
Heated S.F.
1,708
Beds
3
Baths
2
Stories
1
Cars
2
Flyer
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

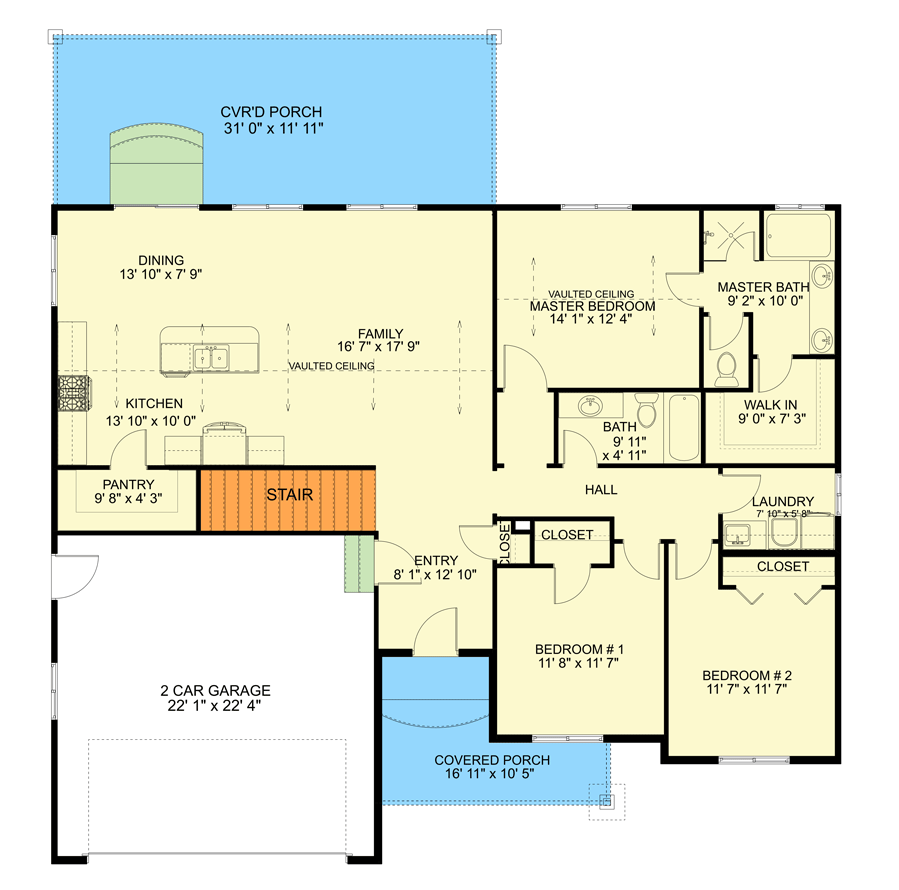

3-Bed Craftsman Ranch Plan with Vaulted Family Room - 61409UT floor plan - Main Level
Optionally Finished Lower Level
Reverse Floor Plan

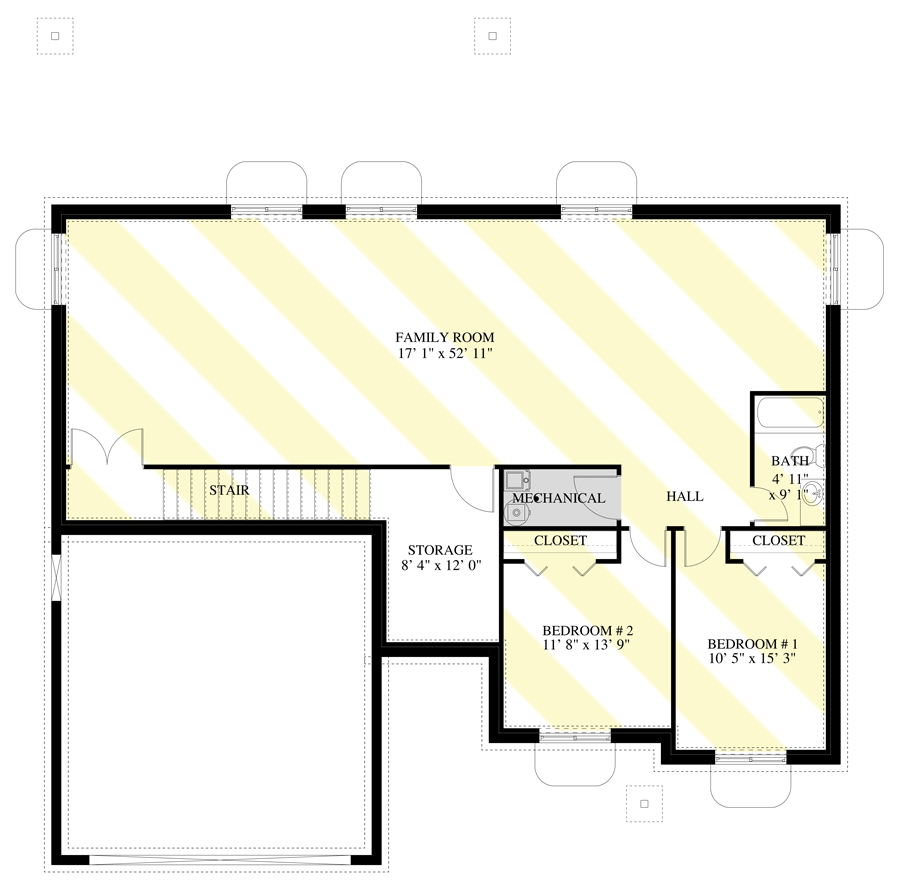

3-Bed Craftsman Ranch Plan with Vaulted Family Room - 61409UT floor plan - Optionally Finished Lower Level
2-Car Side Garage Option (+$300)
Reverse Floor Plan

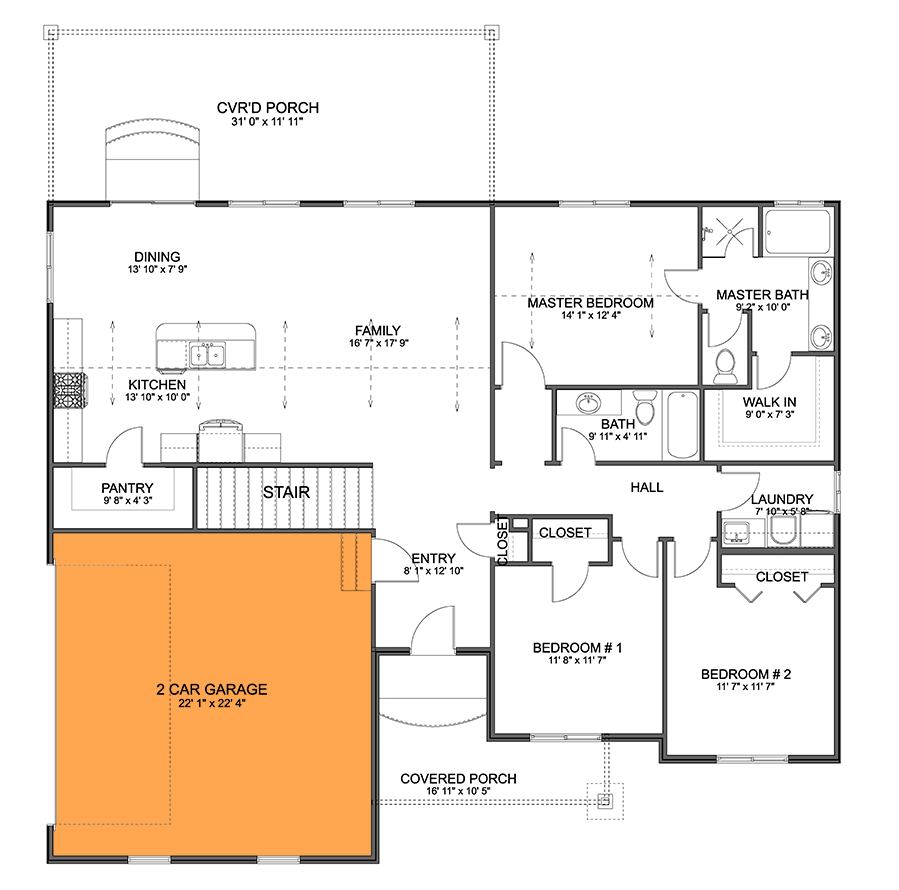

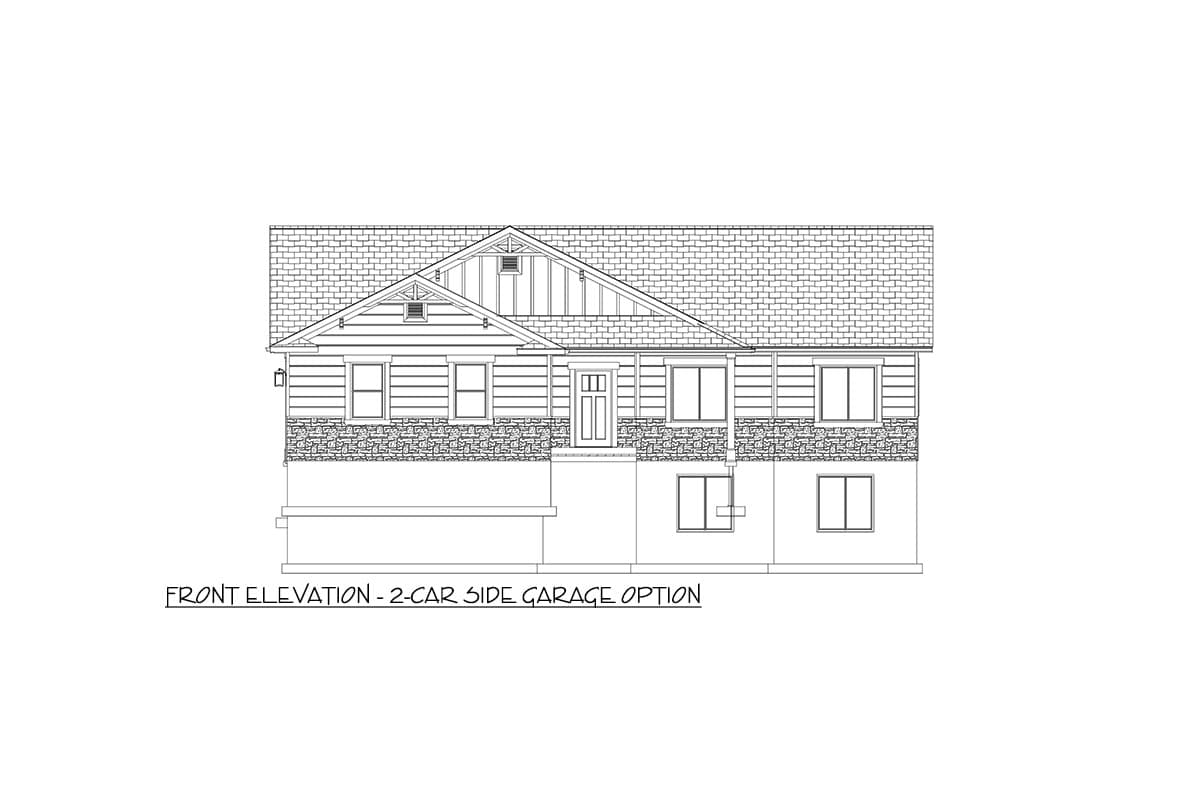

3-Bed Craftsman Ranch Plan with Vaulted Family Room - 61409UT floor plan - 2-Car Side Garage Option (+$300)
Plan Details
  • Classic details adorn the exterior of this 3-bedroom Craftsman Ranch home plan, delivering character and curb appeal.
  • The formal entry and door leading to the double garage converge in the foyer to make the coat closet the primary storage for bags, shoes, and outdoor gear.
  • A vaulted ceiling lends a cohesive element above the combined family room and eat-in kitchen, and sliding doors along the rear wall lead to a covered porch.
  • The kitchen hosts a generous island with an eating bar, a constant gathering spot for family and conversation, and a walk-in pantry sits within arm's reach.
  • The bedrooms are clustered along the right side of the home with the hallway and laundry room separating the master bedroom from the others.
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing
  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Craftsman Ranch Plan with Vaulted Family Room

  • 1,708

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optionally Finished Lower Level

  • 2-Car Side Garage Option (+$300)

Plan Details

Square Footage Breakdown

  • Total: 1,708 sq. ft.
  • 1st Floor: 1,708 sq. ft.

Dimensions

  • Width: 55' 0"
  • Depth: 46' 0"
  • Max ridge height: 20' 6"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 524 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Stem Wall, Monolithic Slab, Daylight, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
