Plan 85119MS
EXCLUSIVE
3 Bed Craftsman Ranch with 3 Beds and Bonus
Heated S.F.
1,604
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This efficient Craftsman ranch house plan gives you three beds plus a walk-up attic that gives you room for storage or expansion.
  • The main floor features a private master suite away from the secondary bedrooms located near the front.
  • The core of the home gives you an efficient kitchen that is open to th great room where windows look out over the covered patio and you'll enjoy the fireplace.
  • The roof is a truss design.
What's Included
  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed Craftsman Ranch with 3 Beds and Bonus

  • 1,604

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

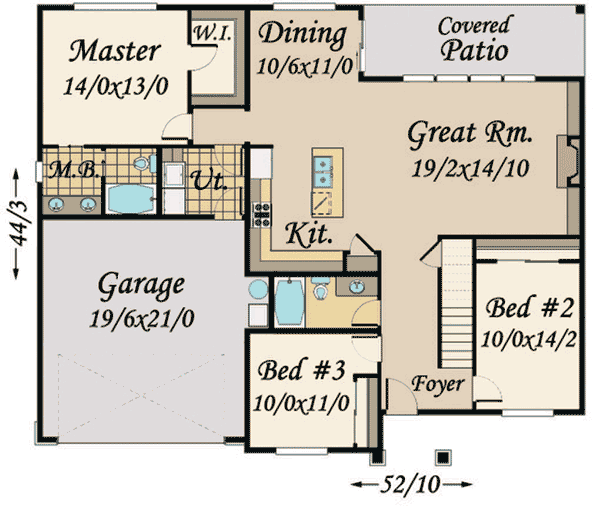

Floor Plan

  • Main Level

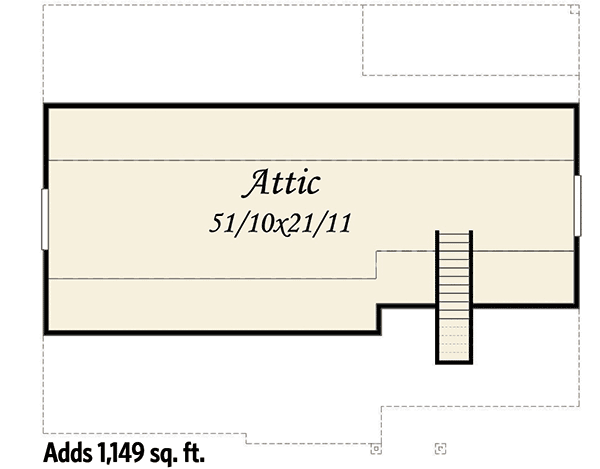

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 1,604 sq. ft.
  • 1st Floor: 1,604 sq. ft.

Dimensions

  • Width: 52' 10"
  • Depth: 44' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 410 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
