3-Bed Craftsman Ranch with 3-Car Garage

Plan 910049WHD

  • 2,345

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • The front door is sheltered in this 3-bed, one-story house plan. Step inside and you see the dining room to your left and an open layout towards the back that takes advantage of the rearward views, and extends onto a covered patio for outdoor enjoyment.
  • The master suite is nestled next to the 3-car garage, and includes a 5-fixture bath and walk-in closet. Close proximity to the laundry room is an added bonus. Bedrooms 2 and 3, on the opposite side of the home, share the hall bath.
  • Finish the lower level as designed and increase living space by 2,194 sq. ft. Discover a spacious family / game room, two bedrooms sharing a bath and a craft / laundry room.
  • Related Plans: Get an alternate exterior with house plan 910055WHD.

This house plan includes:

  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

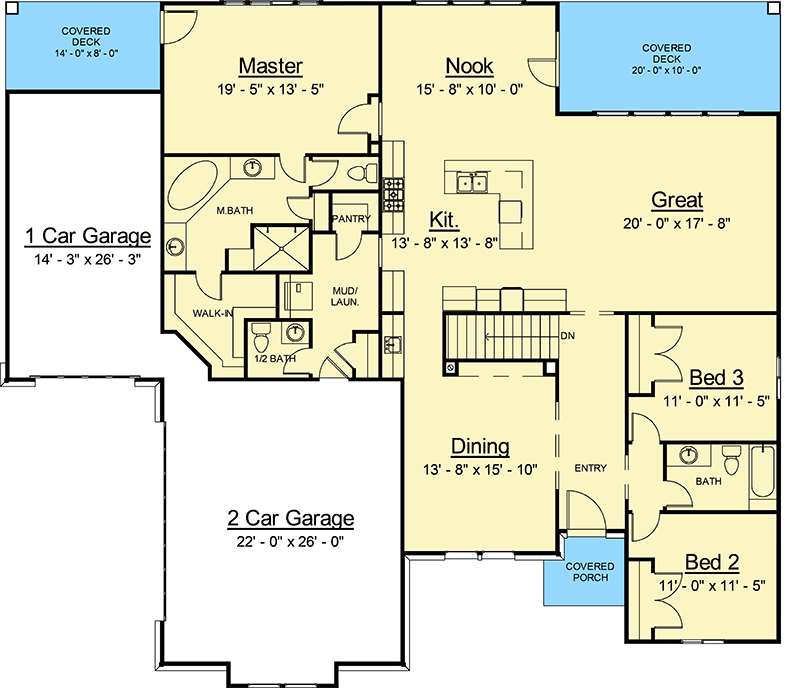

3-Bed Craftsman Ranch with 3-Car Garage - 910049WHD floor plan - Main Level

Optional Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

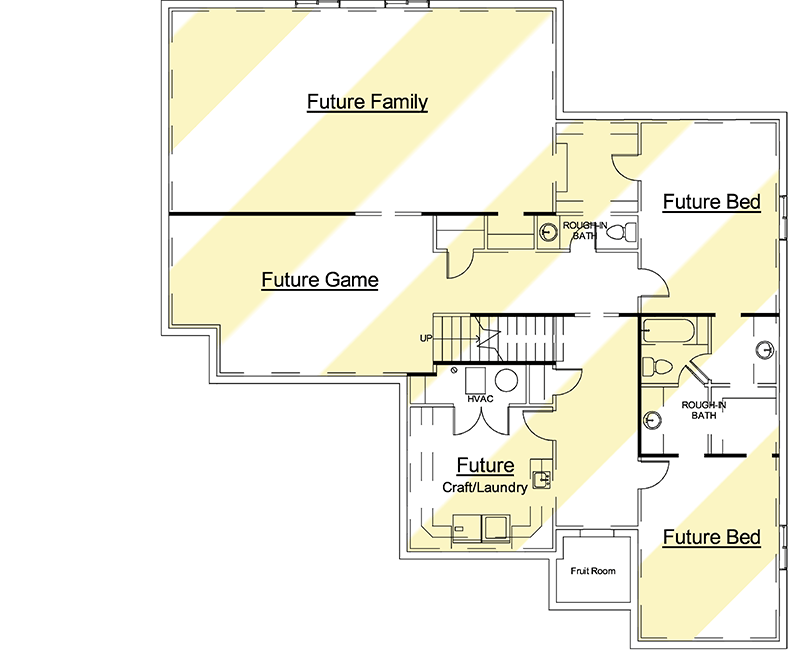

3-Bed Craftsman Ranch with 3-Car Garage - 910049WHD floor plan - Optional Lower Level

3-Bed Craftsman Ranch with 3-Car Garage

  • 2,345

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,345 sq. ft.
  • 1st Floor: 2,345 sq. ft.

Dimensions

  • Width: 70' 0"
  • Depth: 60' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 967 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Stick And Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
