Plan 85087MS

3 Bed Craftsman Ranch with Bonus

3 Bed Craftsman Ranch with Bonus

Plan 85087MS

  • 1,604

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • This efficient Craftsman ranch house plan gives you three beds plus a walk-up attic that gives you room for storage or expansion.
  • The main floor features a private master suite away from the secondary bedrooms located near the front.
  • The core of the home gives you an efficient kitchen that is open to the great room where windows look out over the covered patio and you'll enjoy the fireplace.

Each plan set is drawn to 1/4" scale and includes the following:

  • Detailed elevations
  • Foundation plan including all structural components
  • Detailed floor plans, including ceiling and floor framing information
  • Detailed roof framing plans
  • Detailed cross sections
  • All framing members called out
  • Details throughout the set of plans as appropriate for construction to current IRC code

Plan details



3 Bed Craftsman Ranch with Bonus

  • 1,604

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 6 Sets $1,200
  • PDF - single-use $1,200
  • PDF - multi-use $2,000
  • CAD $2,100
  • CAD - multi-use $2,900
  • View all purchase option online

About This Plan

  • This efficient Craftsman ranch house plan gives you three beds plus a walk-up attic that gives you room for storage or expansion.
  • The main floor features a private master suite away from the secondary bedrooms located near the front.
  • The core of the home gives you an efficient kitchen that is open to the great room where windows look out over the covered patio and you'll enjoy the fireplace.

Floor Plans

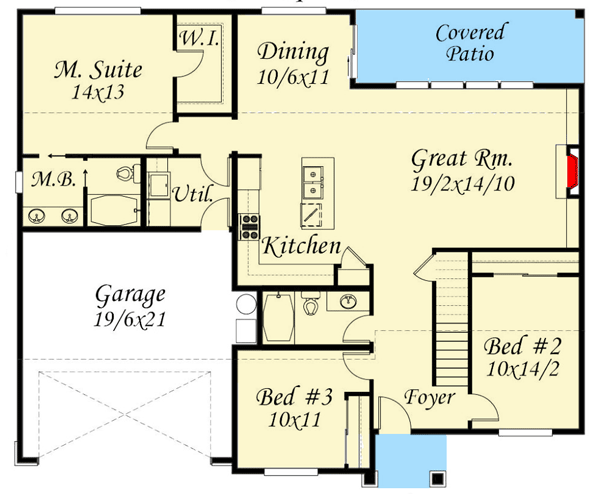

  • Main Level

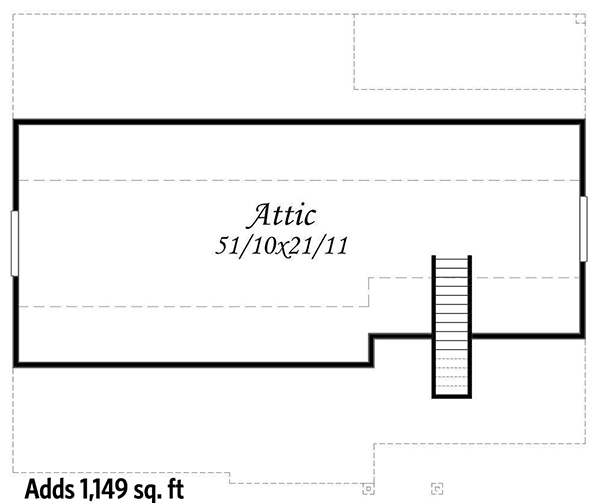

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,604 sq. ft.
  • 1st Floor: 1,604 sq. ft.
  • Attic: 1,149 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 10"
  • Depth: 44' 3"

Garage

  • Type: Attached
  • Area: 410 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Truss
