Plan 89946AH

3 Bed Craftsman Ranch with Charm

Heated S.F.
2,782
Beds
4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 89946AH

Main Level
Main Level

Plan 89946AH

M-F 9am-5pm EST |

1-203-761-8500

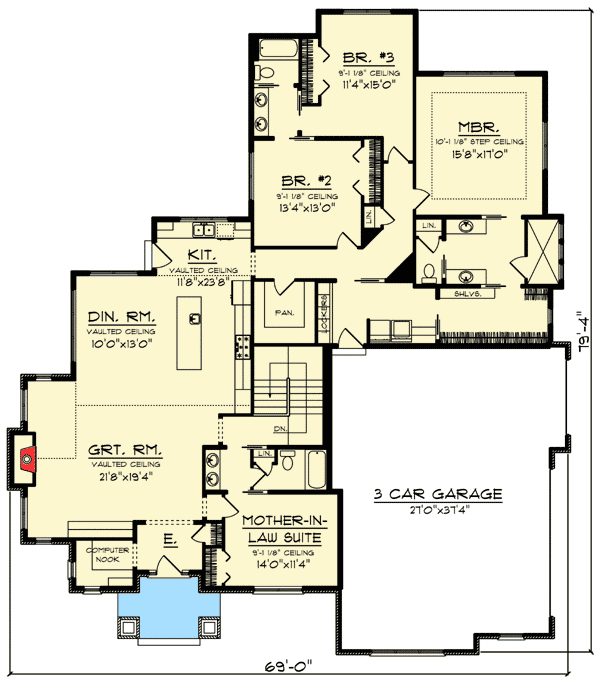

Main Level

Plan 89946AH: 3 Bed Craftsman Ranch with Charm - Floor Plan - Main Level - Craftsman, Northwest, Ranch

Plan Details

  • MOVIE: See this house plan from every angle in our YouTube video.
  • A combination of shake siding, stone and columns gives this Craftsman ranch extra charm.
  • The living area is found on the left of the home and includes a kitchen with center-island that overlooks the dining and great rooms.
  • A vaulted ceiling runs front to back over the entire living area to create volume.
  • Three bedrooms are tucked behind the garage and include a master suite with tray ceiling and large walk-in closet.
  • The remaining two bedrooms share a Jack and Jill bathroom.
  • The laundry is located just outside the bedrooms for easy access.
  • This home has a three-stall, side-load garage.
  • The roof has a main pitch of 10:12 and a secondary pitch of 8:12.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,782 sq. ft.

1st Floor

2,782 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 0"

Depth

79' 4"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

1012 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

In-Law Suite

Jack & Jill Bath

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,782 sq. ft.

1st Floor

2,782 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

69' 0"

Depth

79' 4"

Max Ridge Height

24' 0"

Garage

Type

Attached

Area

1012 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Clustered

In-Law Suite

Jack & Jill Bath

Master Suite - 1st Floor

Walk-in Pantry
