3 Bed Craftsman Ranch with Two Garages

Plan 890020AH

  • 2,328

    HEATED S.F.

  • 3

    BEDS

  • 3

    BATHS

  • 1

    FLOORS

  • 3

    CAR GARAGE

About this Plan

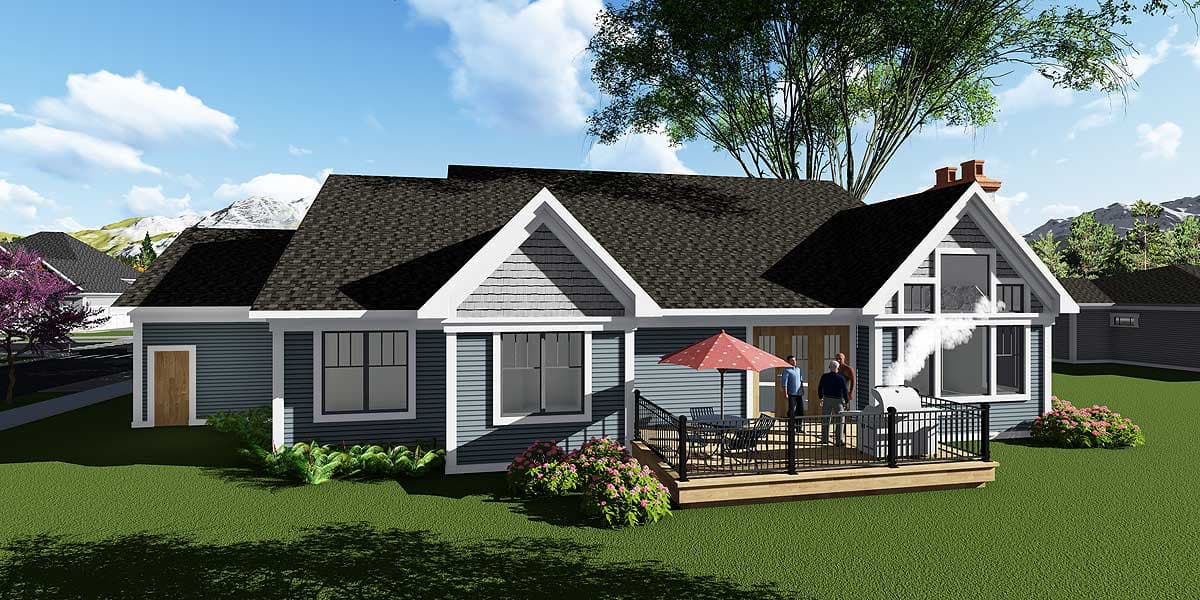

  • Craftsman details include beamed gables, a mix of shingle and horizontal siding and heavy columns on this three-bedroom ranch home.
  • 11’ ceilings greet you in the entry and draw you into the home.
  • A formal dining room with access to the kitchen through a butler’s pantry are found to the right of the entry.
  • An open concept floor plan includes a kitchen with breakfast bar, nook and great room with cathedral ceilings.
  • The master suite is located to the left of the entry away from the other two bedrooms for maximum privacy.
  • Two additional bedrooms are located behind the garage on the right of the home and share a full bath off the hallway.
  • A four-stall, split-load garage makes this the perfect family home.

See What's Included in this Plan...

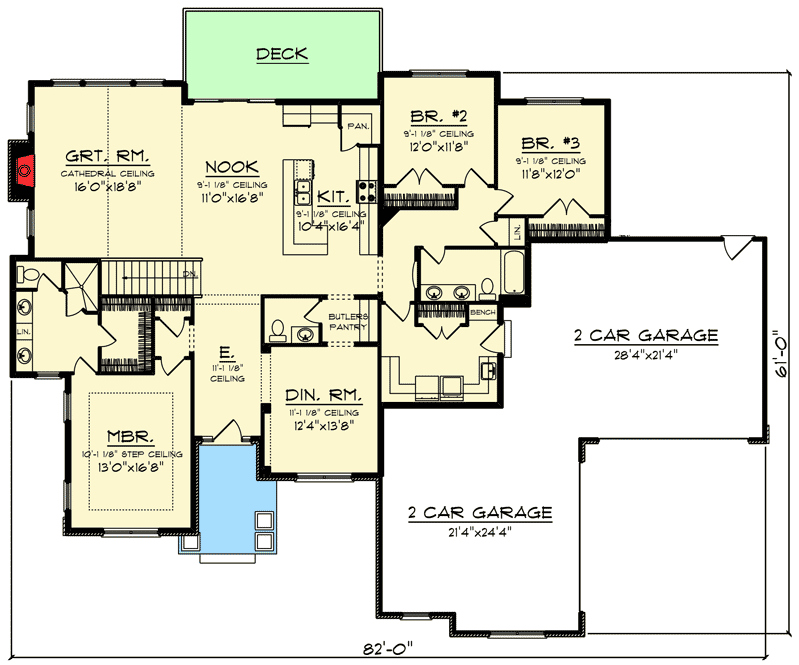

Floor Plan

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,328 sq. ft.
  • 1st Floor: 2,328 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Dimensions

  • Width: 82' 0"
  • Depth: 61' 0"
  • Max ridge height: 25' 8"

Garage

  • Type: Attached
  • Area: 1098 sq. ft.
  • Details: 3 Cars
  • Location: Front, Side

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"
Room Type Height
Entry Flat 11' 0"
Great Room Cathedral
Dining Room Flat 11' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
