3-Bed Craftsman Under 1900 Square Feet with Split Bedrooms and an Open Plan Concept

Plan 39061ST

  • 1,894

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This 3 bed, 2.5 bath house plan has an attractive Craftsman exterior, front and rear covered porches, and offers one-level living.
  • The great room, dining and kitchen areas offer an open plan concept featuring a wall of glass at the rear, a vaulted ceiling and a gas fireplace.
  • Split bedrooms offer privacy for the homeowner and the master suite features a rear view, double bowl vanity, large shower and spacious walk-in closet. A half bath and laundry room are located near the garage entry.
  • A full basement is included with this plan offering expanded living space if needed.
  • Related Plan: Get an alternate version with house plan 39281ST.

  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

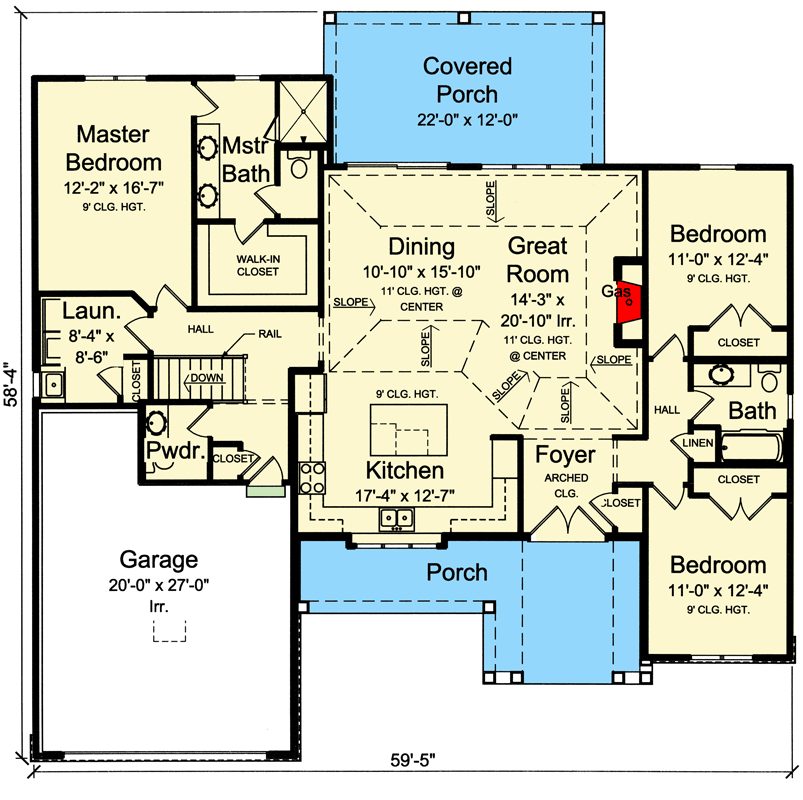

3-Bed Craftsman Under 1900 Square Feet with Split Bedrooms and an Open Plan Concept - 39061ST floor plan - Main Level

Unfinished Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

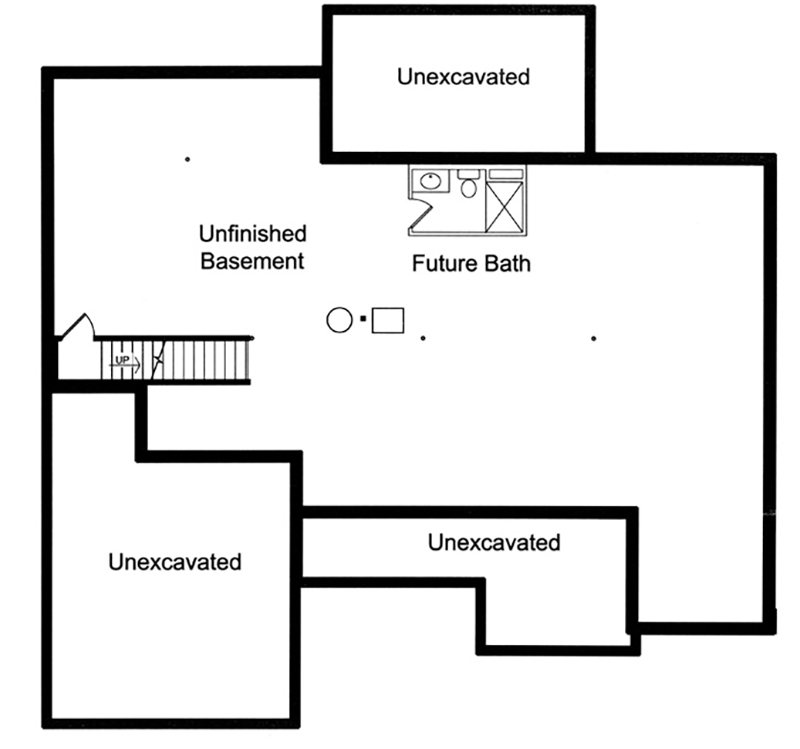

3-Bed Craftsman Under 1900 Square Feet with Split Bedrooms and an Open Plan Concept - 39061ST floor plan - Unfinished Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,894 sq. ft.
  • 1st Floor: 1,894 sq. ft.
  • Porch, Rear: 258 sq. ft.
  • Porch, Front: 220 sq. ft.
  • Basement Unfinished: 1,894 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 59' 5"
  • Depth: 58' 4"
  • Max ridge height: 25' 0"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 10" First Floor / 9' 1"
Room Details Ceiling Type Width Depth Height
Dining Room Vaulted 10' 10" 14' 3" 11' 0"
Great Room Vaulted 14' 3" 20' 10" 11' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

3-Bed Craftsman Under 1900 Square Feet with Split Bedrooms and an Open Plan Concept

  • 1,894

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total: 1,894 sq. ft.
  • 1st Floor: 1,894 sq. ft.

Dimensions

  • Width: 59' 5"
  • Depth: 58' 4"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 10" First Floor / 9' 1"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
