3-Bed Craftsman with Angled Garage for a Rear-Sloping Lot

Pageloader

3-Bed Craftsman with Angled Garage for a Rear-Sloping Lot

Plan 24382TW

  • 3,526

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

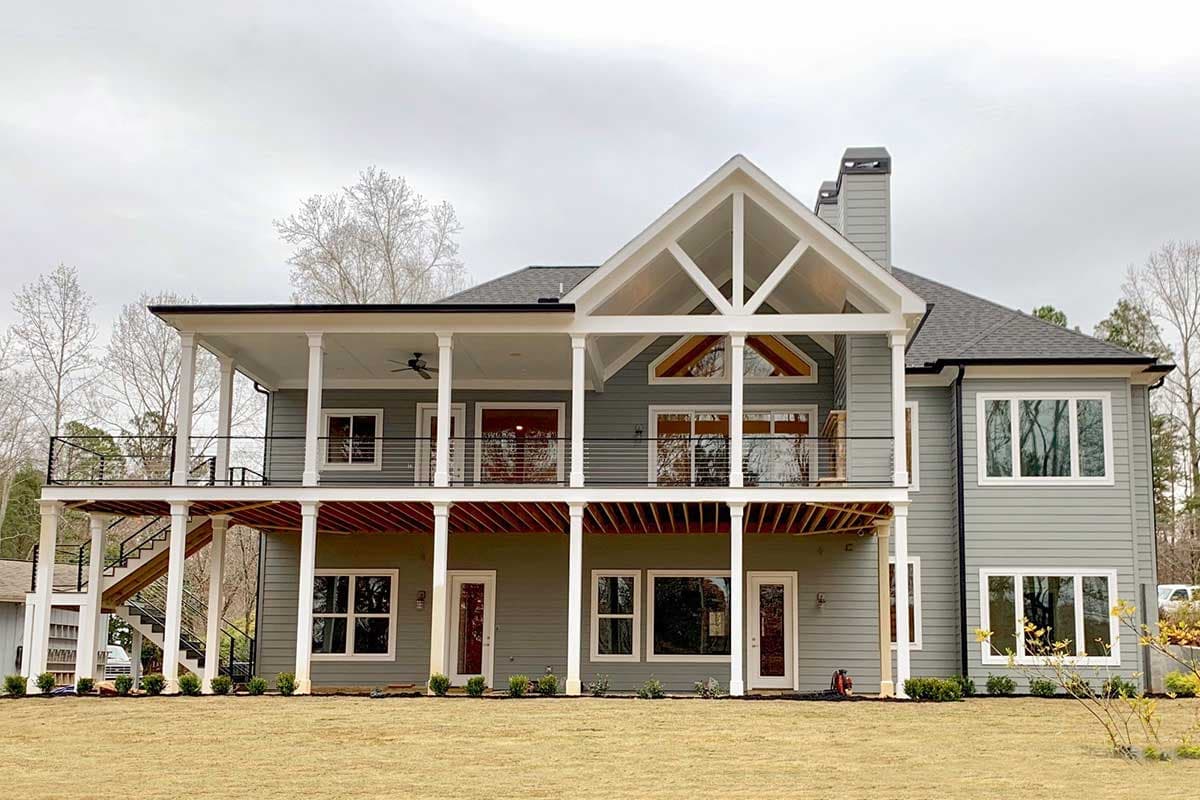

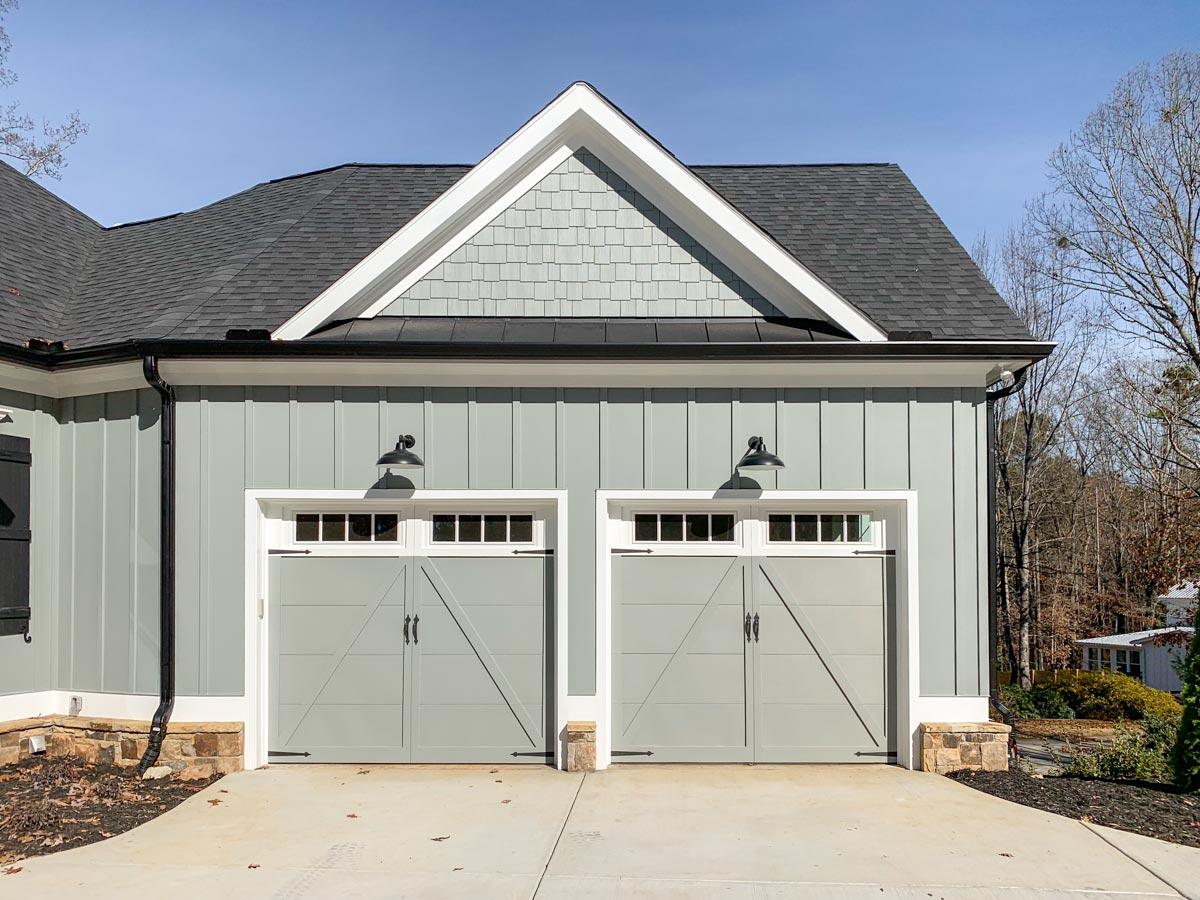

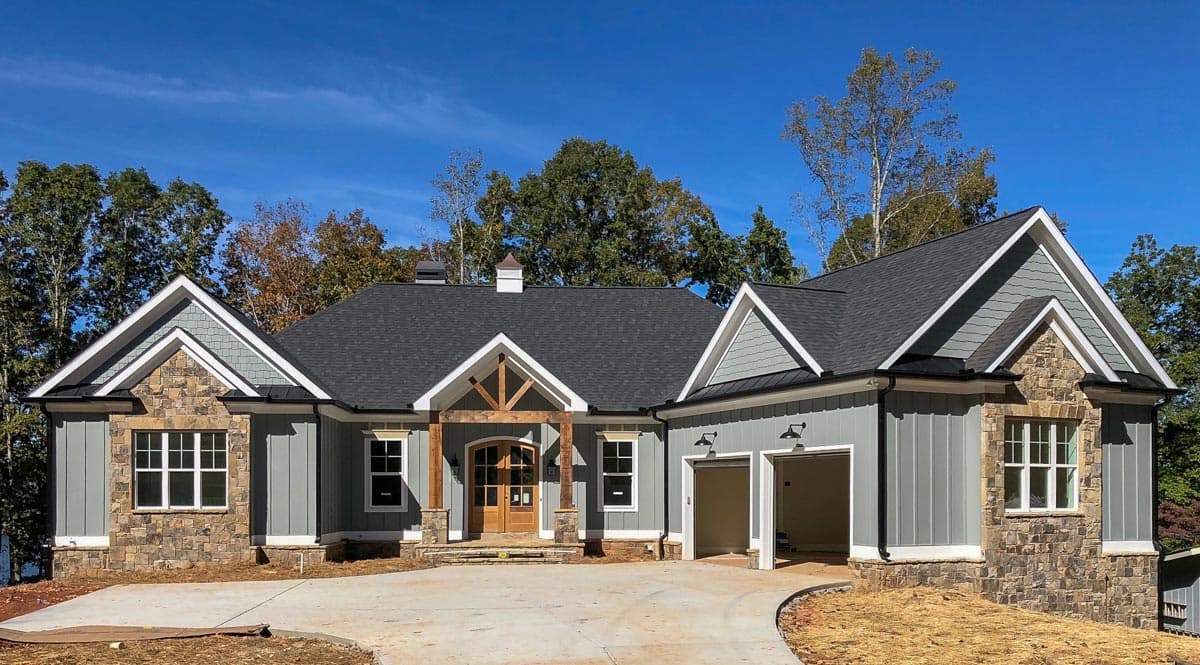

  • A 2-car garage angles off the front of this 3-bed Craftsman house plan with massive rear porch. The exterior gives you a blend of stone, vertical siding and shingles creating a beautiful home.

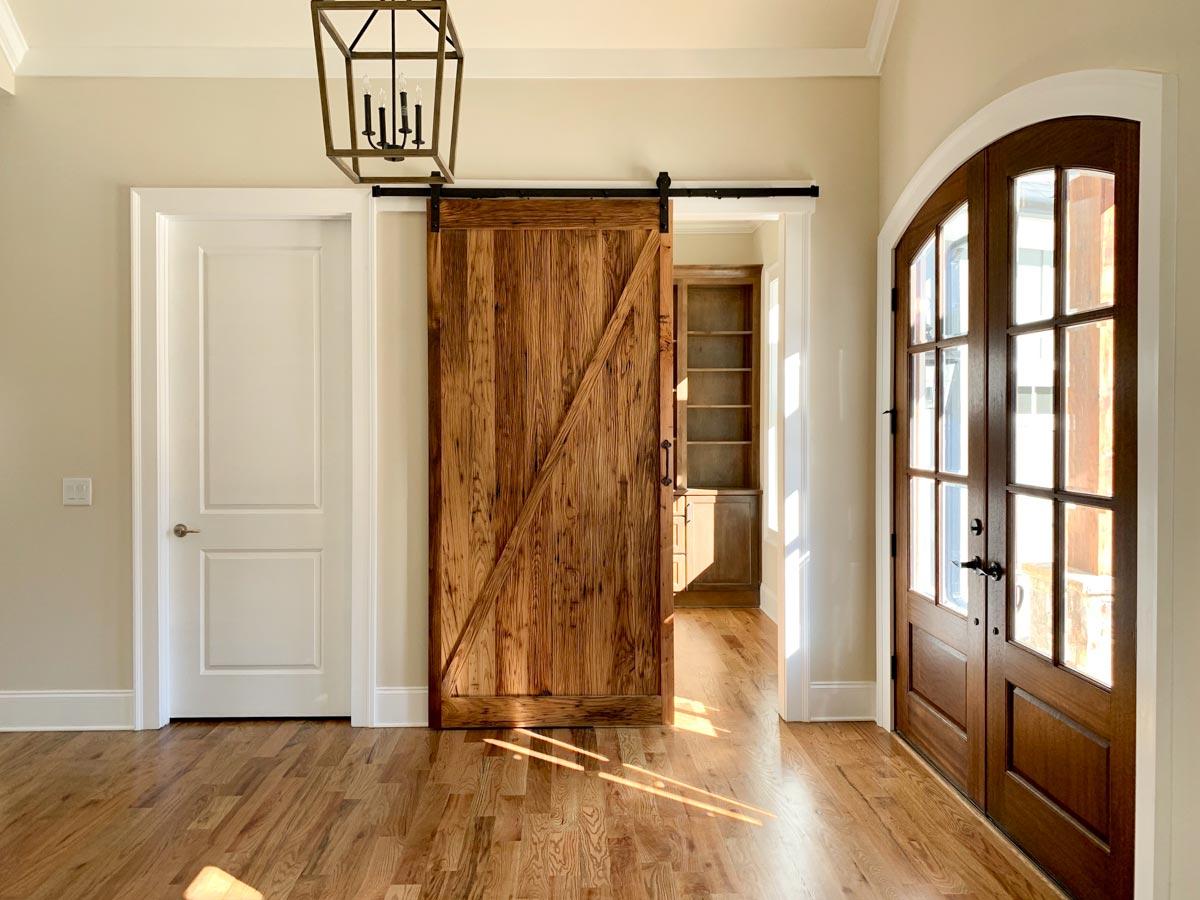

  • French doors open to the vaulted foyer flanked by an office and a flex room.

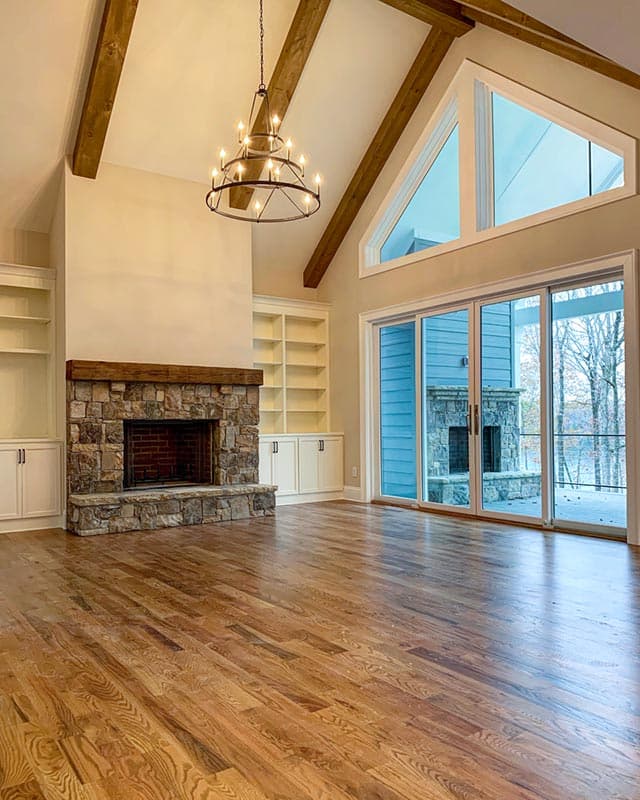

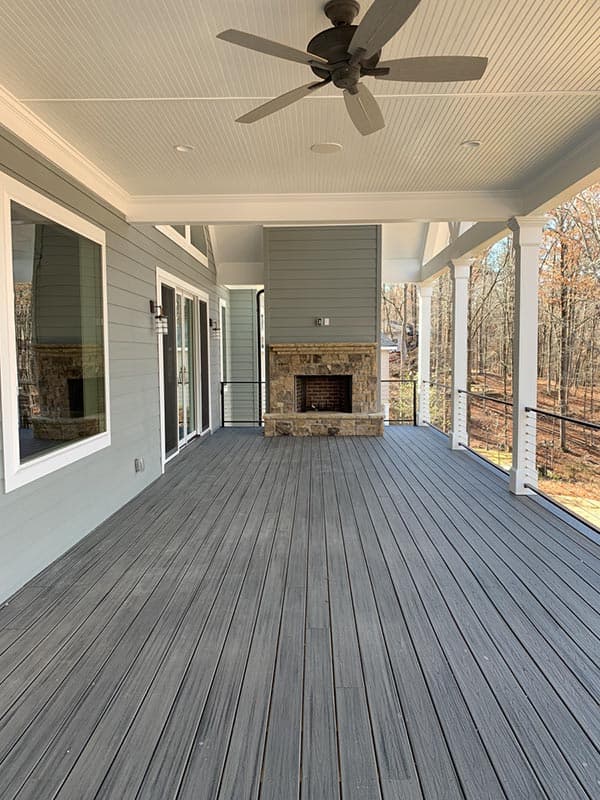

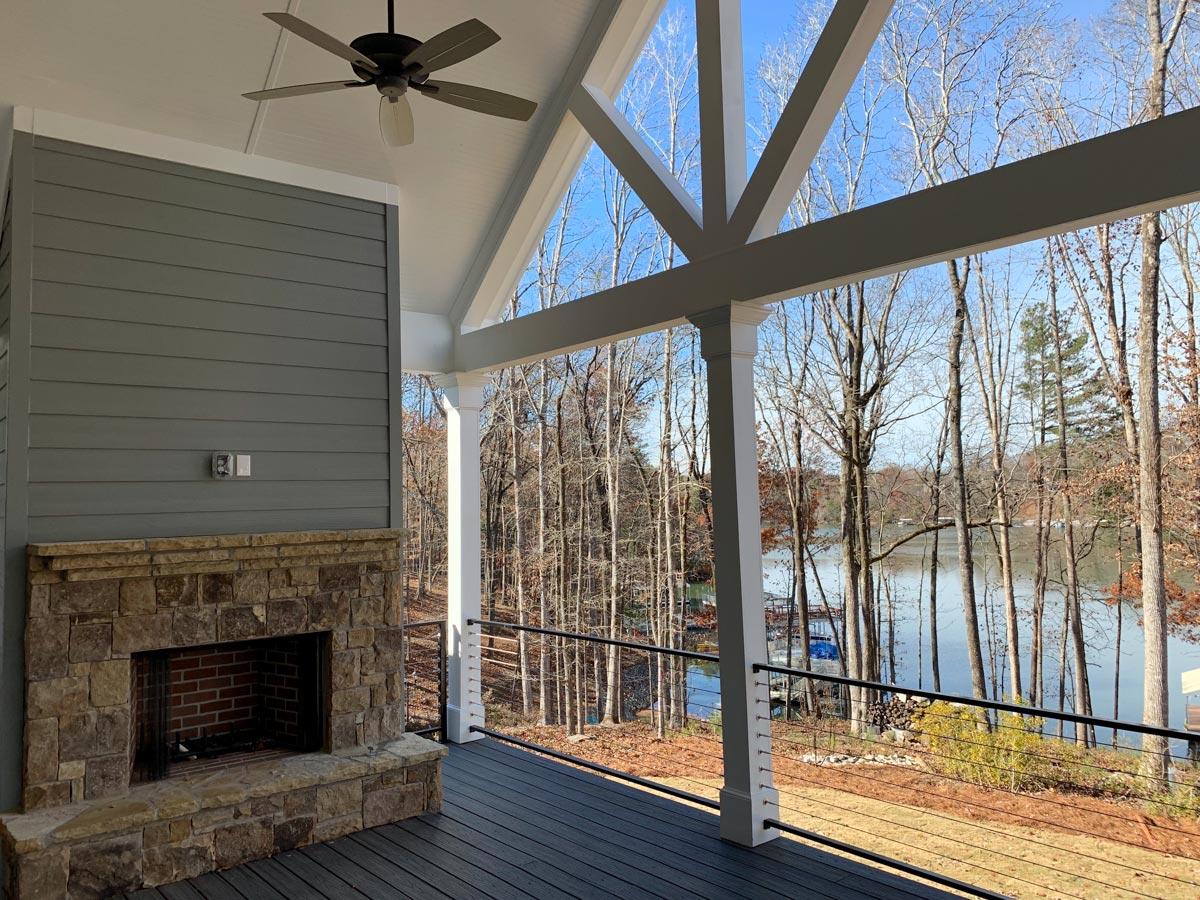

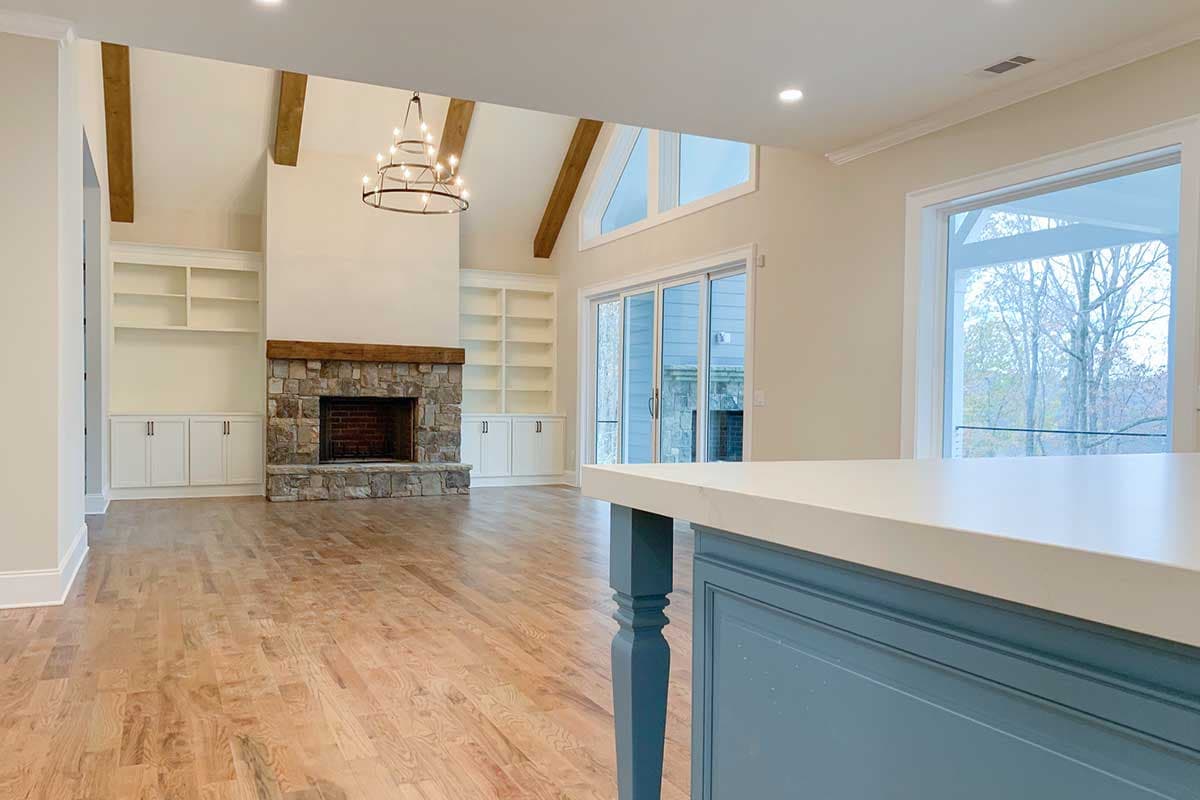

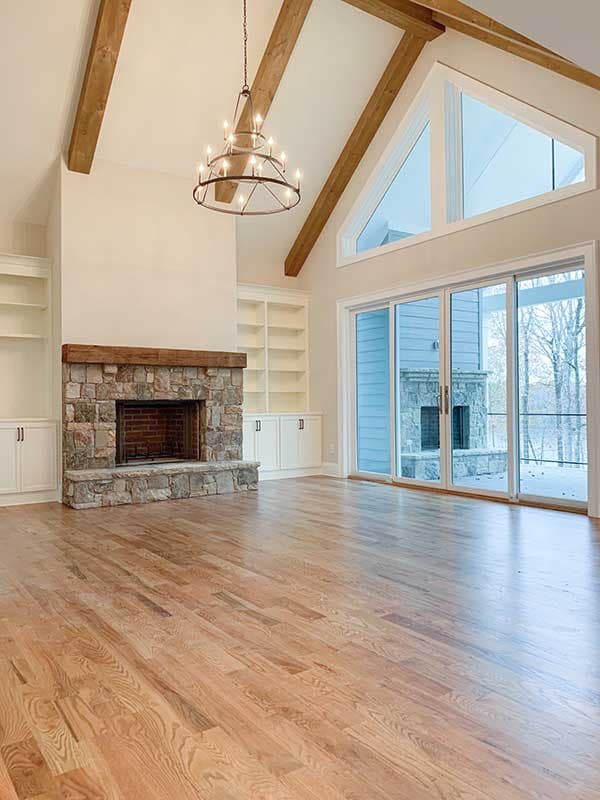

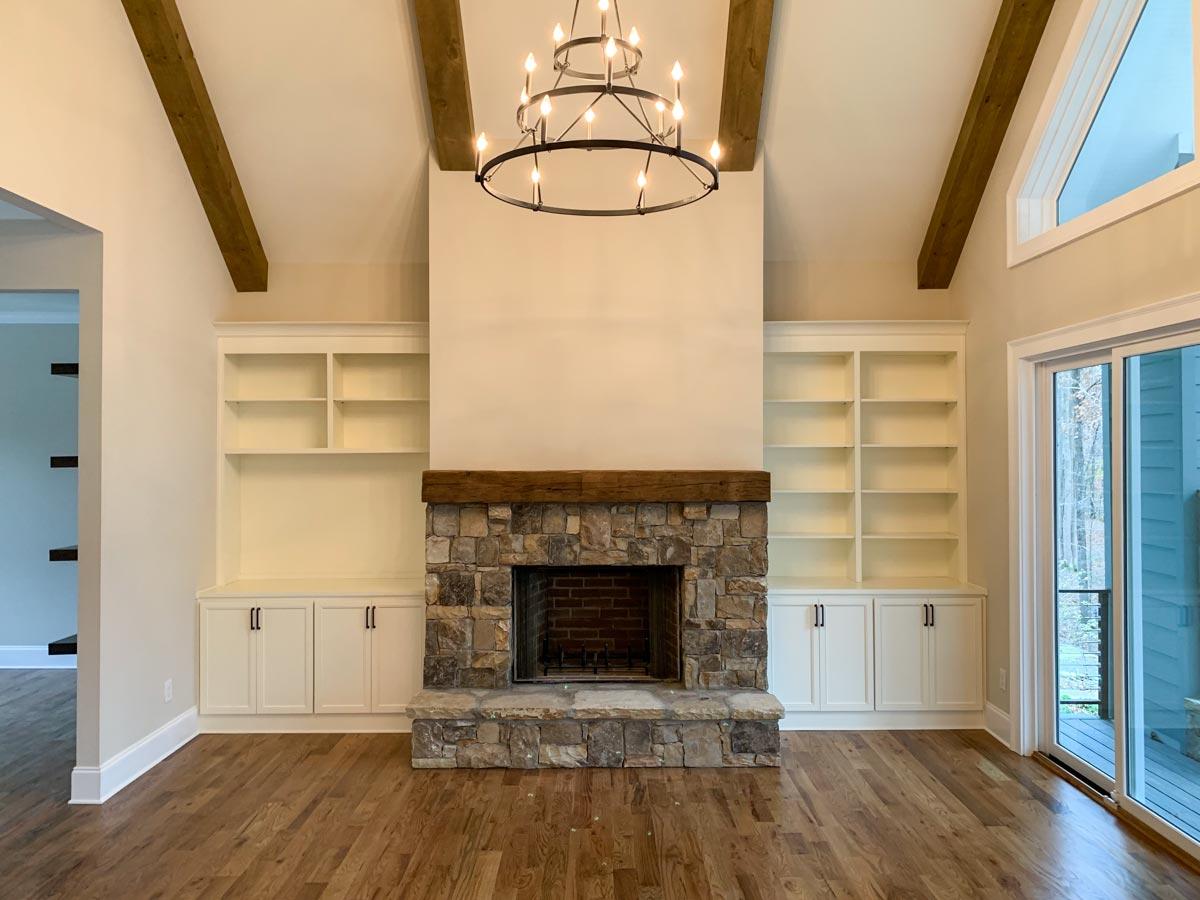

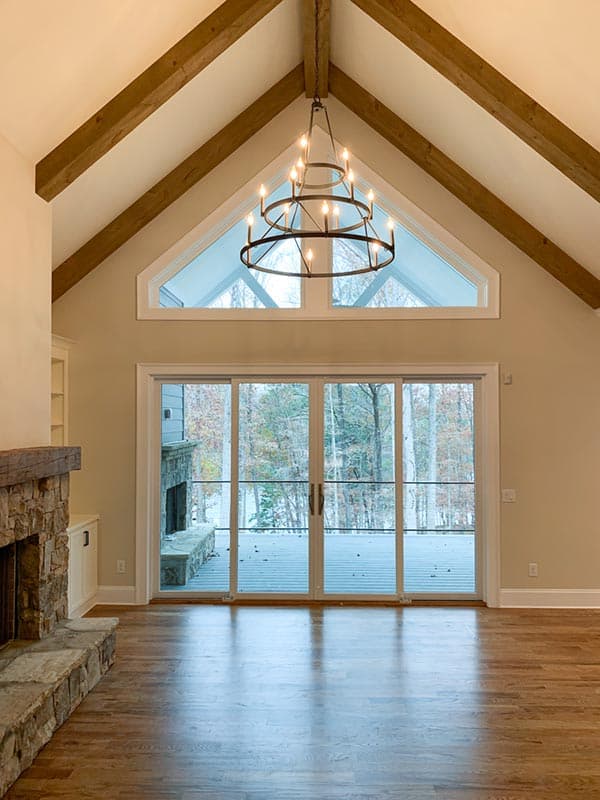

  • Ahead, the vaulted great room with fireplace opens to the dining room and kitchen. The screened porch in back, at 14'-deep, can serve as an outdoor living room.

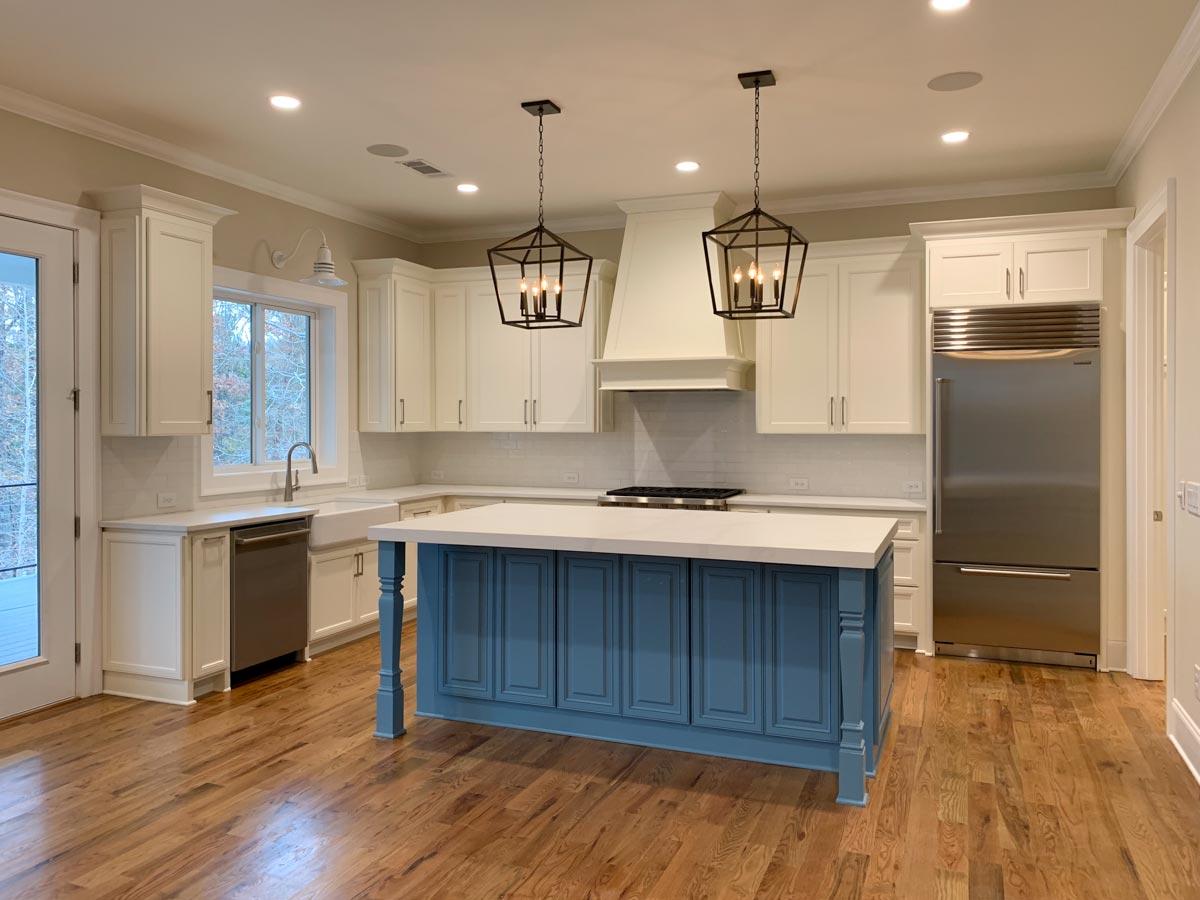

  • The kitchen has a large pantry located just around the corner from the garage entry making unloading groceries a breeze. The island gives you great work space and room for casual seating.

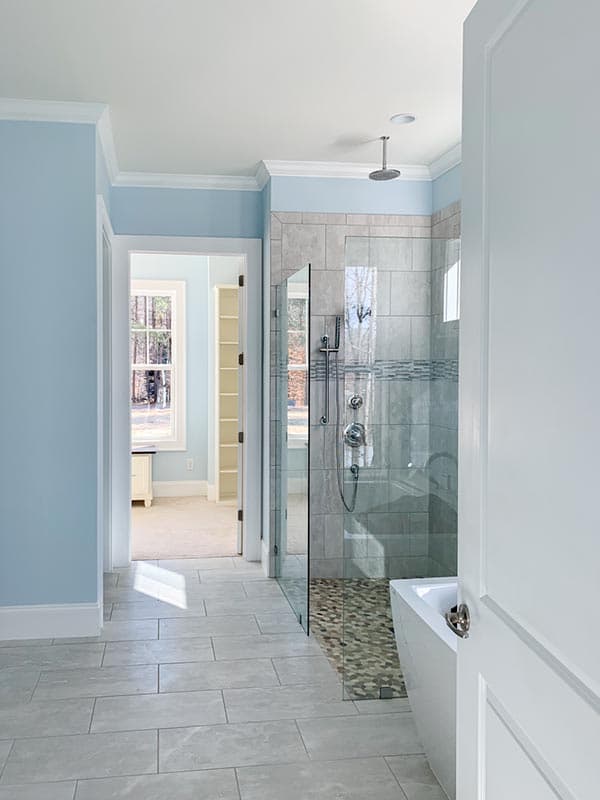

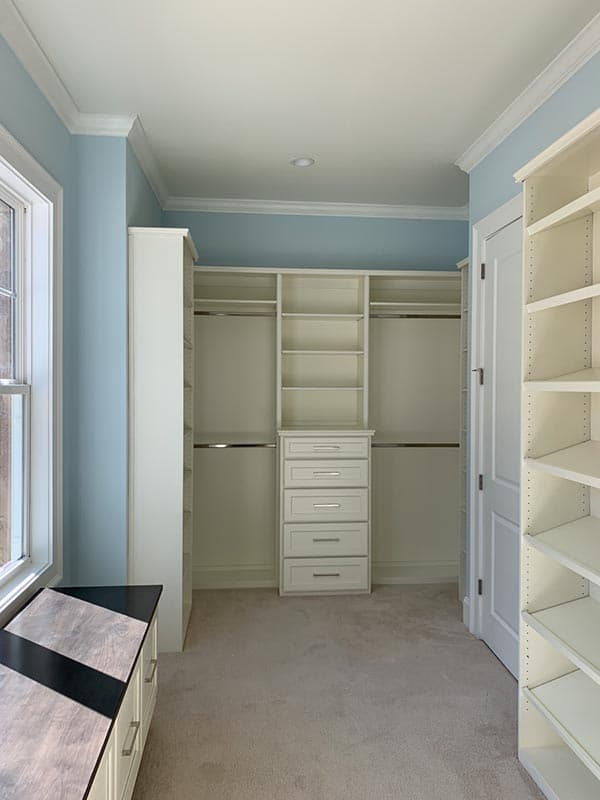

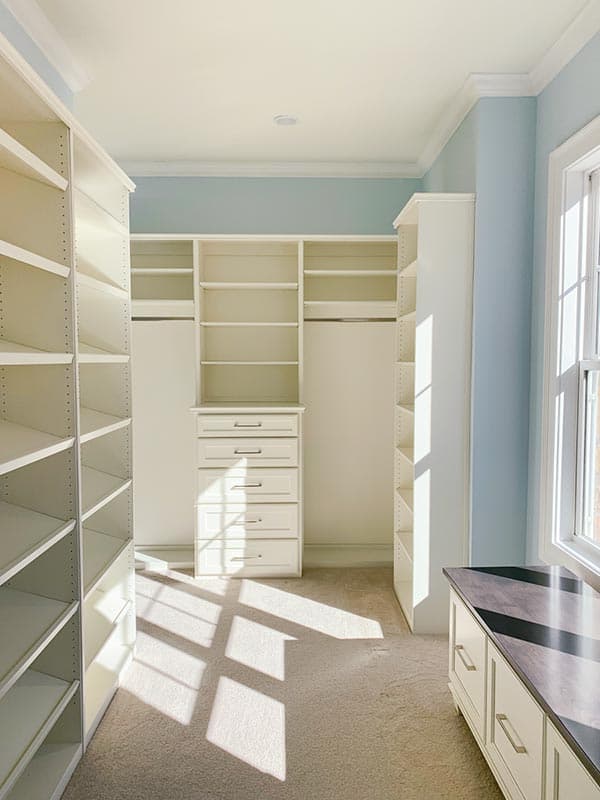

  • The master suite has a massive walk-in closet and a master bath with spa tub and walk-in shower.

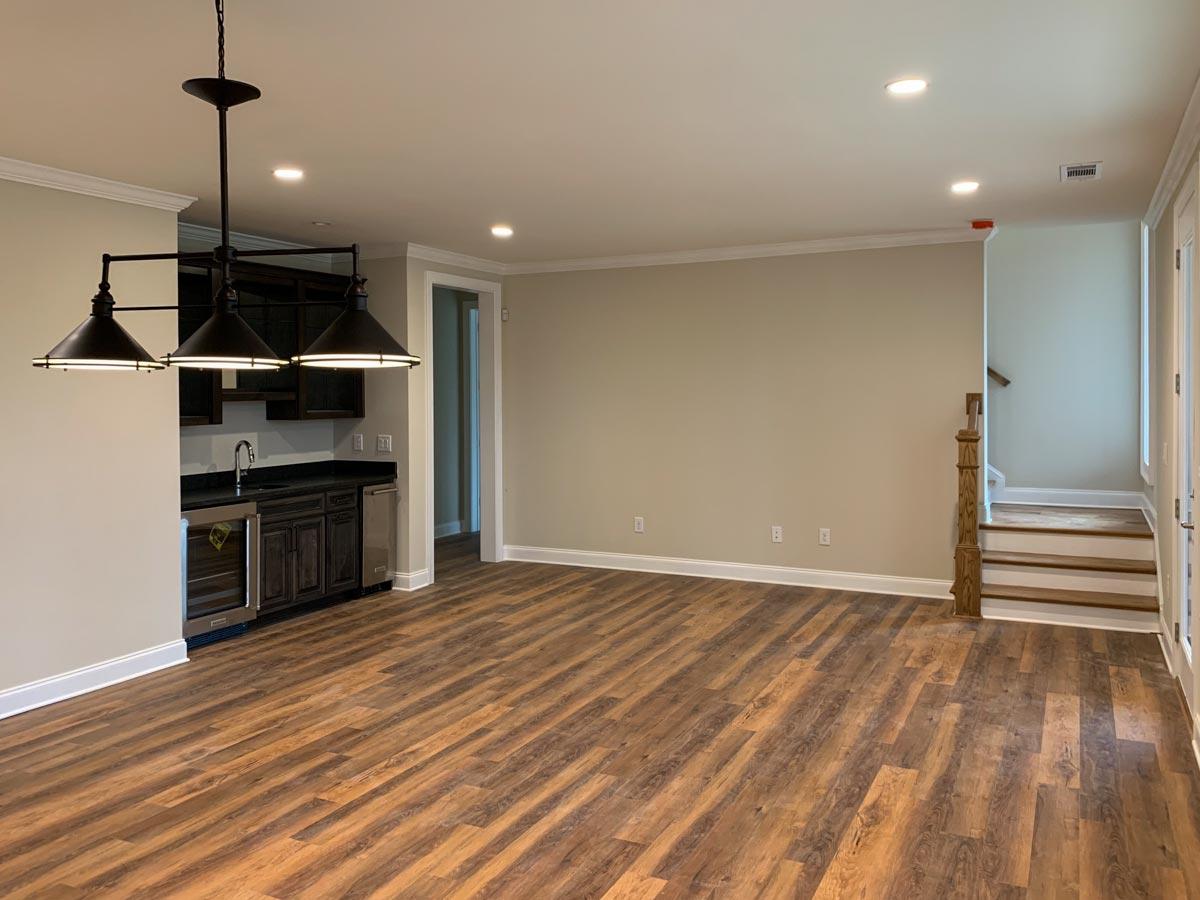

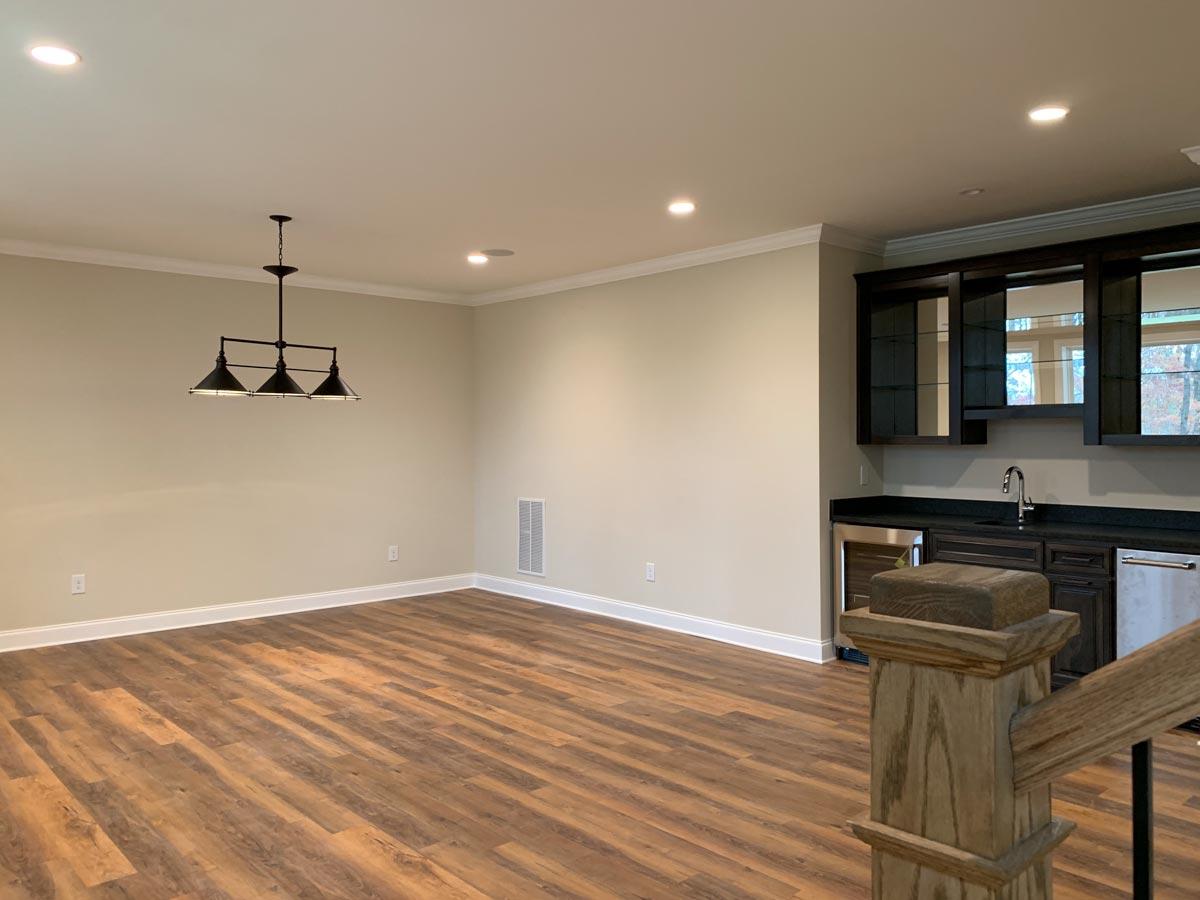

  • The lower level gives you two more bedrooms with baths flanking the rec room with web bar.

The plans include the following:

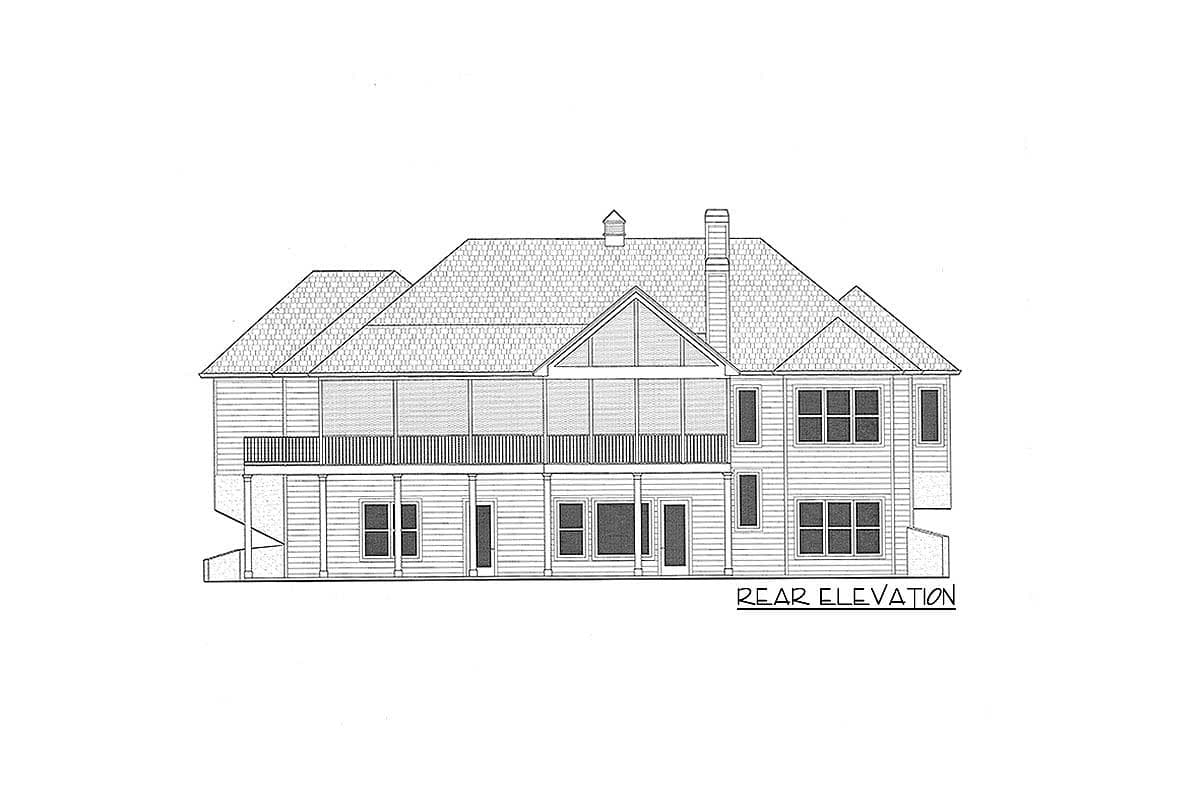

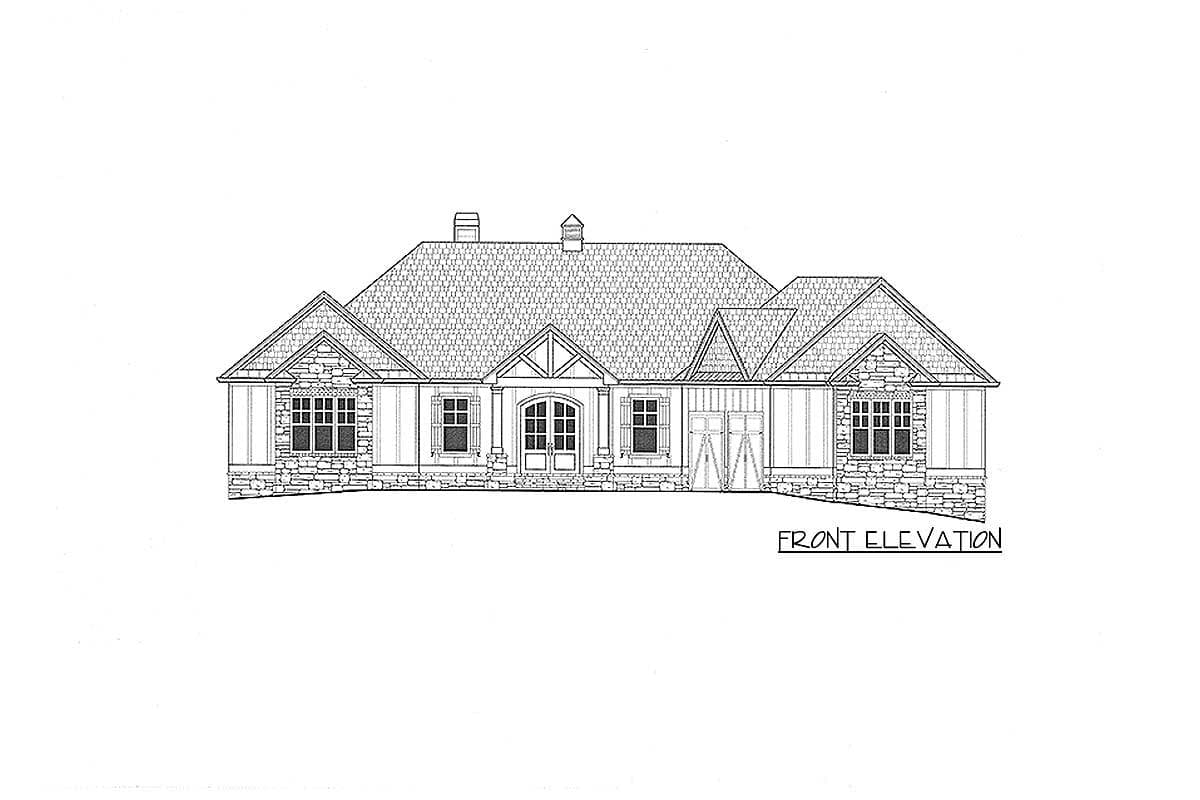

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

Floor Plan

Plan details



3-Bed Craftsman with Angled Garage for a Rear-Sloping Lot

  • 3,526

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,250
  • CAD $1,450
  • View all purchase option online

About This Plan

  • A 2-car garage angles off the front of this 3-bed Craftsman house plan with massive rear porch. The exterior gives you a blend of stone, vertical siding and shingles creating a beautiful home.
  • French doors open to the vaulted foyer flanked by an office and a flex room.
  • Ahead, the vaulted great room with fireplace opens to the dining room and kitchen. The screened porch in back, at 14'-deep, can serve as an outdoor living room.
  • The kitchen has a large pantry located just around the corner from the garage entry making unloading groceries a breeze. The island gives you great work space and room for casual seating.
  • The master suite has a massive walk-in closet and a master bath with spa tub and walk-in shower.
  • The lower level gives you two more bedrooms with baths flanking the rec room with web bar.

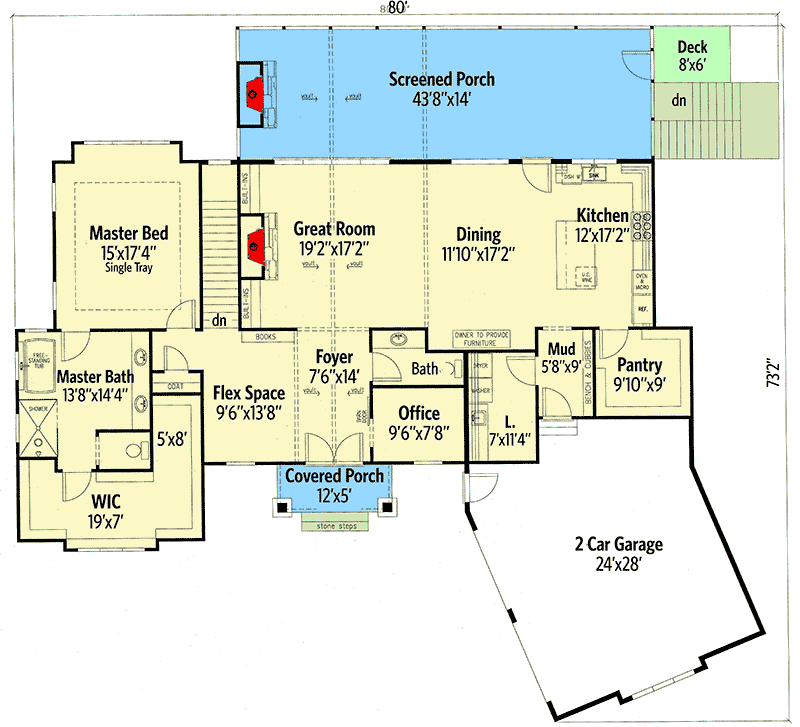

Floor Plans

  • Main Level

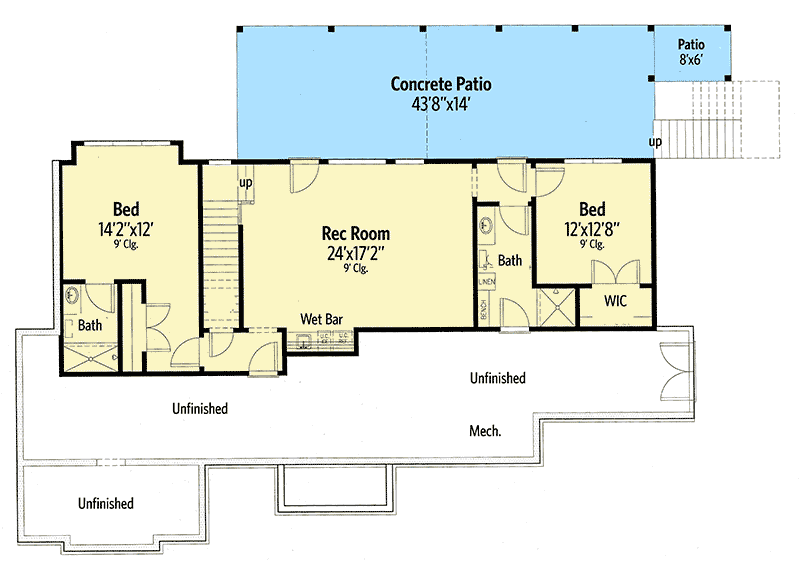

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,526 sq. ft.
  • Lower Level: 1,282 sq. ft.
  • 1st Floor: 2,244 sq. ft.
  • Porch, Rear: 611 sq. ft.
  • Porch, Front: 60 sq. ft.
  • Basement Unfinished: 962 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 80' 0"
  • Depth: 73' 2"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 521 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
