Plan 790010GLV

3-Bed Craftsman with Bonus Room Over Garage

Heated S.F.
1,672
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 790010GLV

Main Level
Main Level
2nd Floor
2nd Floor

Plan 790010GLV

M-F 9am-5pm EST |

1-203-761-8500

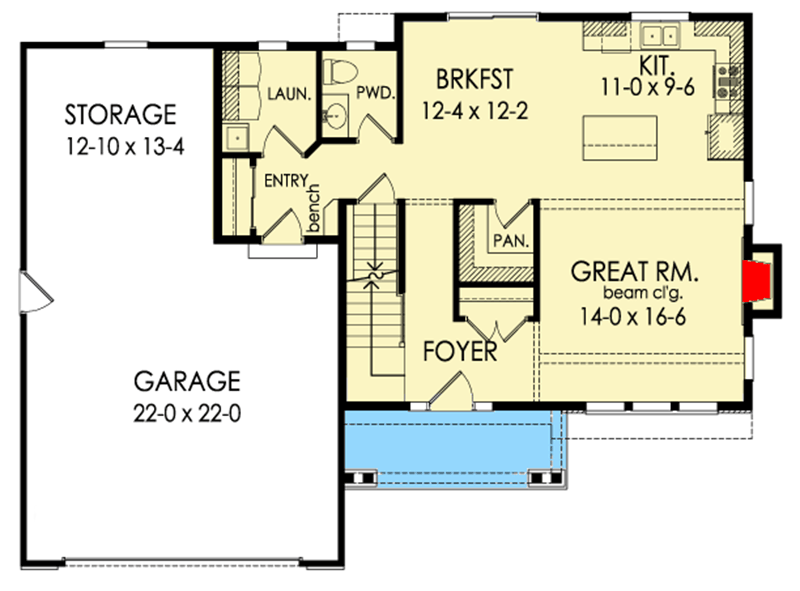

Main Level

Plan 790010GLV: 3-Bed Craftsman with Bonus Room Over Garage - Floor Plan - Main Level - Craftsman, Northwest, Traditional

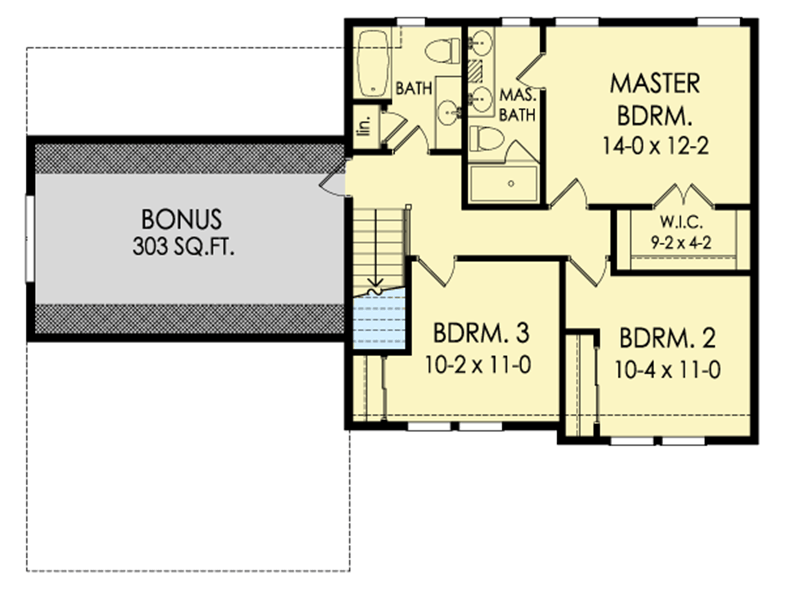

2nd Floor

Plan 790010GLV: 3-Bed Craftsman with Bonus Room Over Garage - Floor Plan - 2nd Floor - Craftsman, Northwest, Traditional

Plan Details

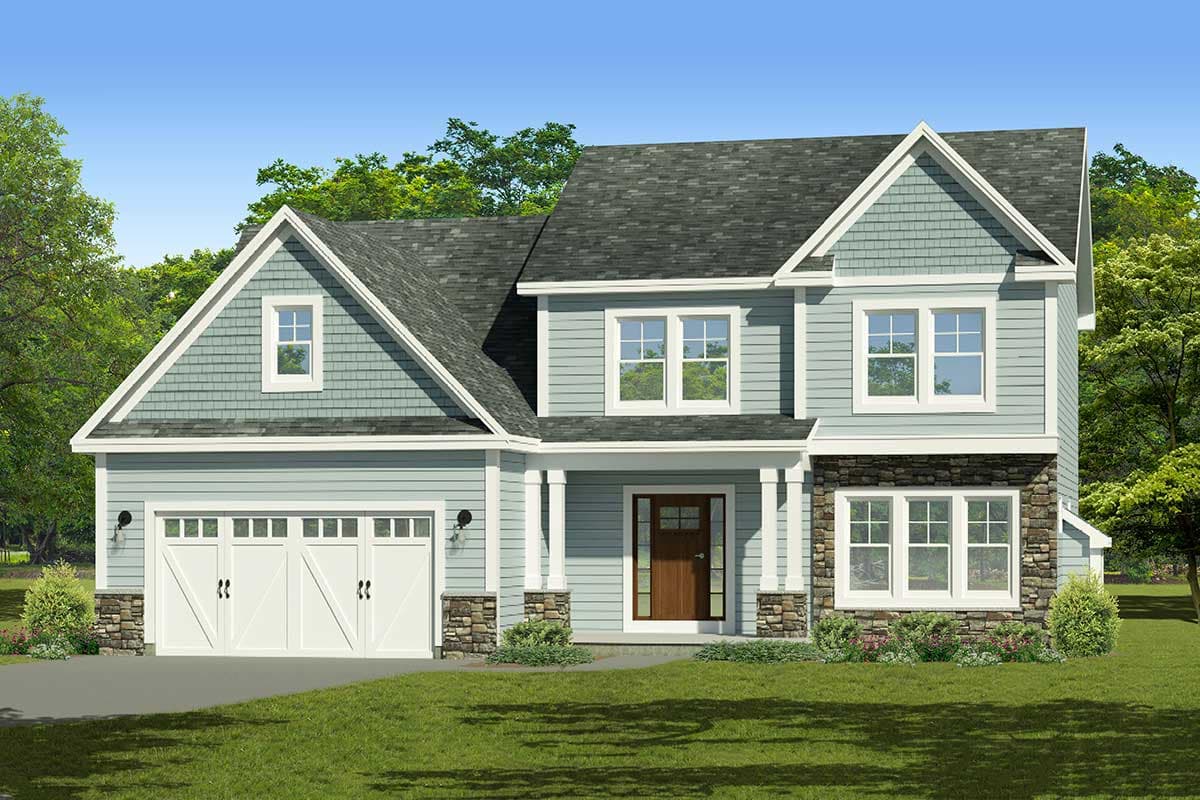

  • This 3-bed Craftsman house plan has a clapboard, shingle and stone exterior with a cozy front-entry covered porch.
  • The foyer gives you access to the back of the home straight ahead and to the great room giving the home a circular flow.
  • An open concept design makes the main floor great for entertaining. The kitchen is the hub of the home and has an island with casual seating on one side. The pantry gives you great storage.
  • The beds are all upstairs and a bonus room gives you expansion space if built.

What's Included

  • Cover sheet with notes
  • Elevations
  • Basement and foundation plan and typical wall section
  • Detailed floor plans
  • Sections
  • Roof plan
  • Details
  • Reinforcing notes

What's Not Included

  • Electrical Plans
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,672 sq. ft.

1st Floor

870 sq. ft.

2nd Floor

802 sq. ft.

Optional Lower Level

880 sq. ft.

Bonus

303 sq. ft.

Porch, Combined

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 10"

Depth

37' 8"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

660 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

1,672 sq. ft.

1st Floor

870 sq. ft.

2nd Floor

802 sq. ft.

Optional Lower Level

880 sq. ft.

Bonus

303 sq. ft.

Porch, Combined

80 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

49' 10"

Depth

37' 8"

Max Ridge Height

30' 2"

Garage

Type

Attached

Area

660 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Optionally Finished Bonus Room
