3 Bed Craftsman with Expansion Upstairs and Down

Plan 20137GA

  • 1,800

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

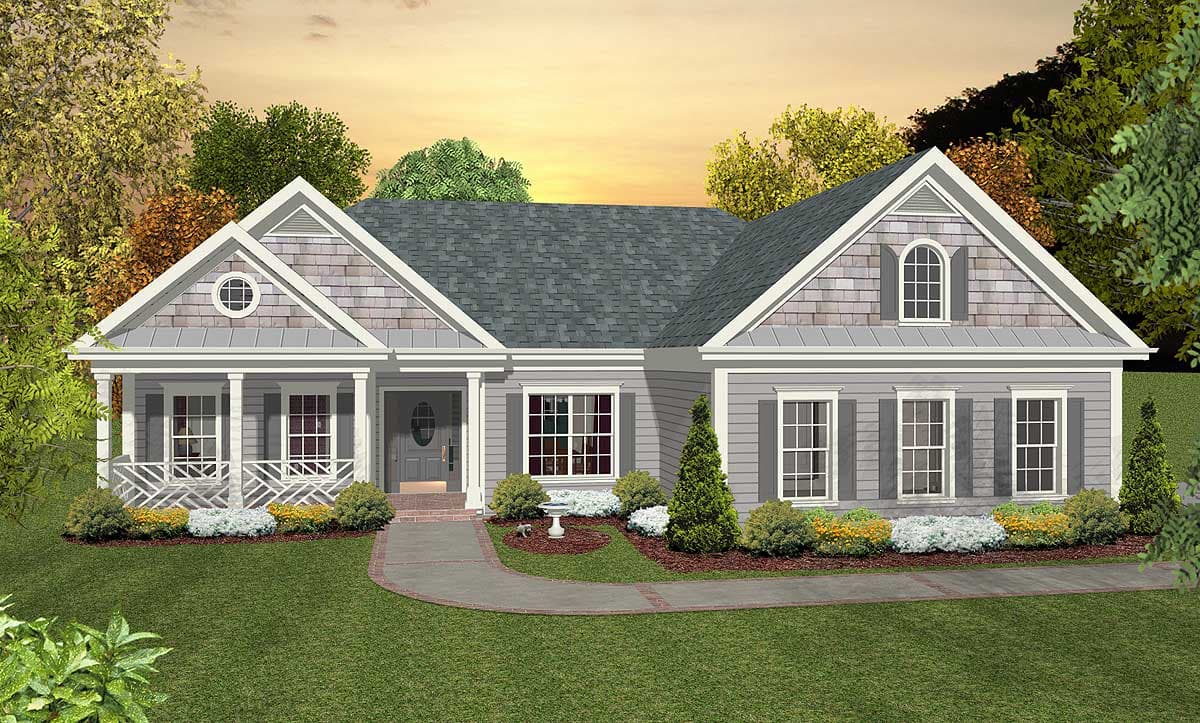

  • This expandable Craftsman ranch home plan features siding with stone accents and includes all the frills.

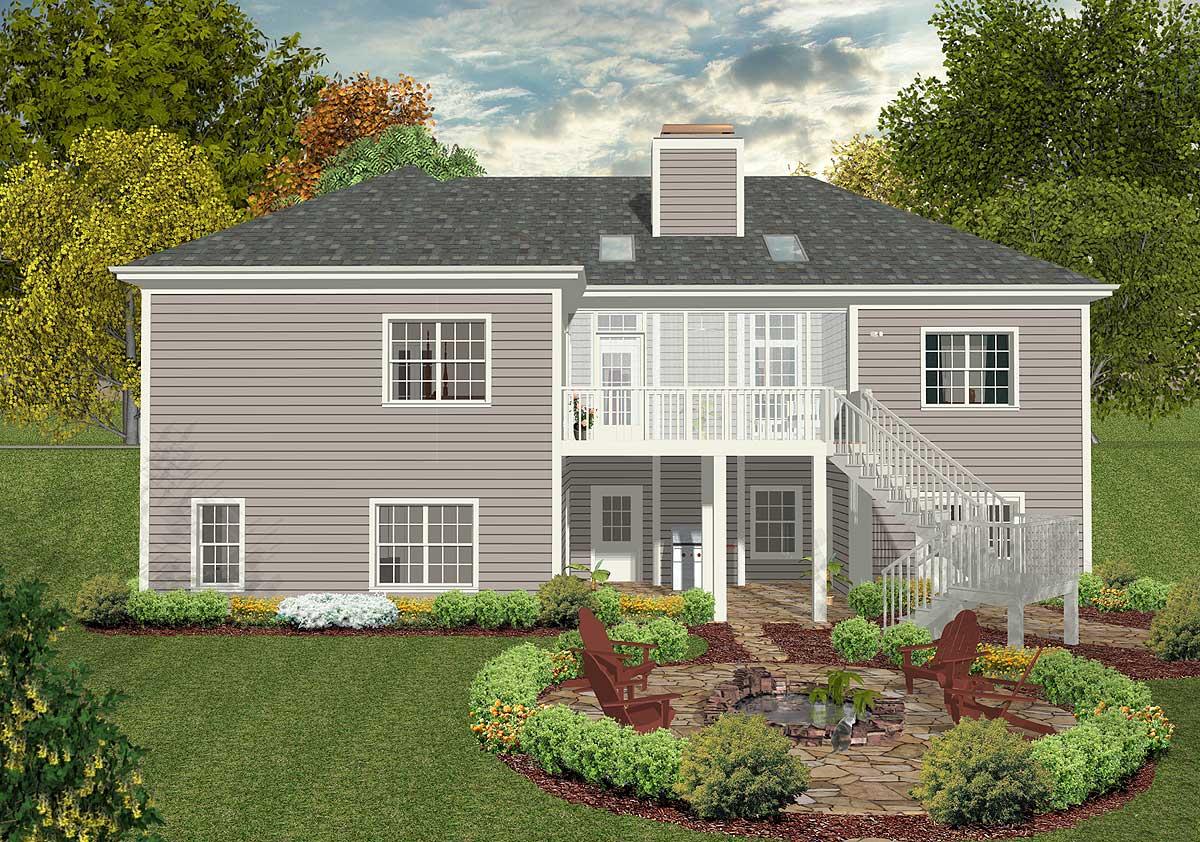

  • From the welcoming front porch to the screen porch, with skylights, and deck, this home provides dramatic spaces, luxurious appointments, and spacious living areas.
  • Its carefully designed 1,800 square feet provide the feel and features of a much larger home.
  • Homeowners will appreciate the large master suite with an optional tray ceiling, huge walk-in closet and a sitting area.
  • Expand upstairs (323 square feet) and in the basement (1,900 square feet).
  • Related Plans: Get alternate versions with house plans 20138GA and 20136GA.

Each plan set includes the following:

  •  Digital exterior rendering cover page
  •  Exterior elevation page
  •  Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  •  Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  •  Cross sections and interior elevation page
  •  Roof framing plan with 3-D roof framing schematic
  •  IRC code specifications and methodologies
  •  General construction details

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

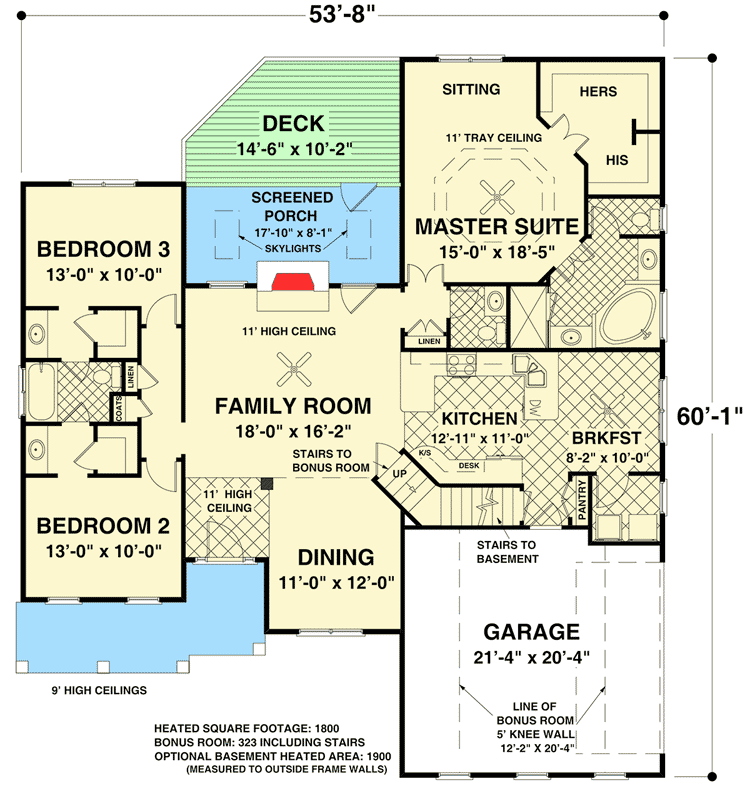

3 Bed Craftsman with Expansion Upstairs and Down - 20137GA floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

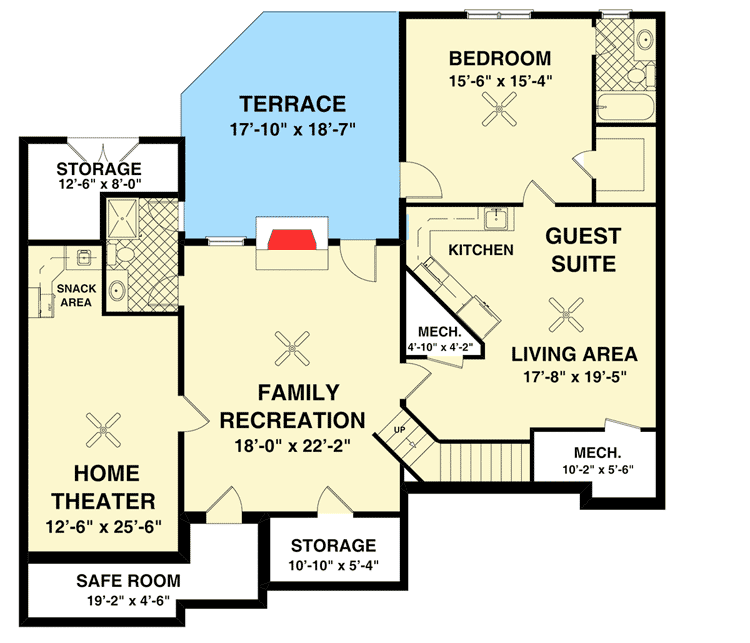

3 Bed Craftsman with Expansion Upstairs and Down - 20137GA floor plan - Lower Level

Bonus Room - 323 sf

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
3 Bed Craftsman with Expansion Upstairs and Down - 20137GA floor plan - Bonus Room - 323 sf

3 Bed Craftsman with Expansion Upstairs and Down

  • 1,800

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 4.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

  • Bonus Room - 323 sf

Plan Details

Square Footage Breakdown

  • Total: 1,800 sq. ft.
  • 1st Floor: 1,800 sq. ft.

Dimensions

  • Width: 53' 8"
  • Depth: 60' 1"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2, 3, or 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 434 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site
