Plan 86209HH
3 Bed Craftsman with Shed Dormer
Heated S.F.
1,787
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details

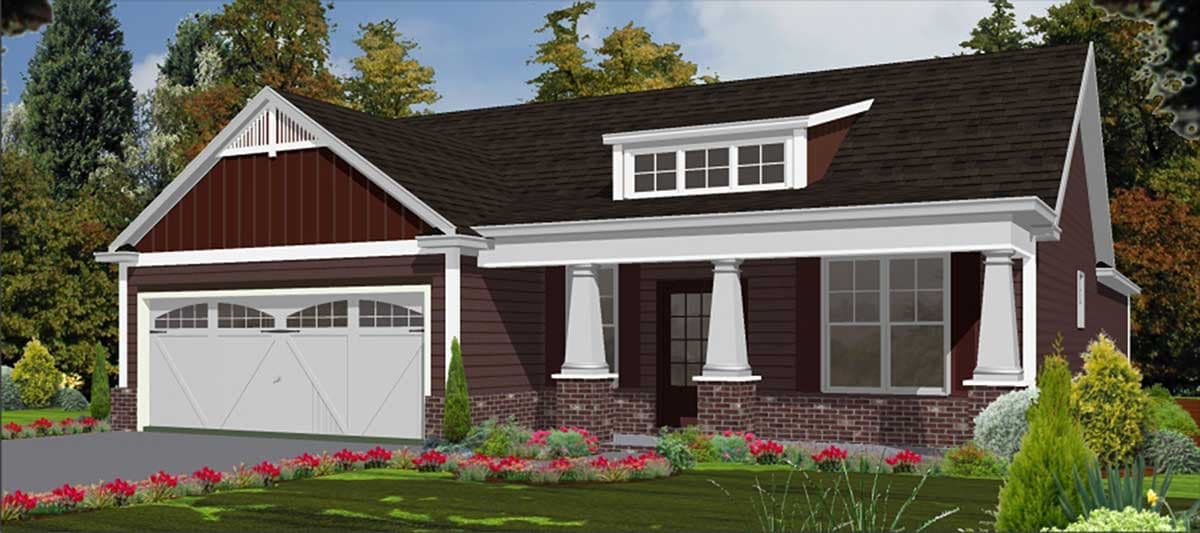

  • A shed dormer and a broad porch supported by three tapered columns greet you to this three bedroom Craftsman ranch home plan.
  • The foyer takes you past the dining room and a coat closet to the open floor plan beyond with the family room and kitchen creating one large open space.
  • A door takes you to the covered porch which at 9'6" deep has room for furniture and can be used as an outdoor living room.
  • The master also has porch access. You pass his and her large walk-in closets on the way to your five fixture bath. Two more bedrooms share a bath across the home.
  • Laundry is tucked away from the activity near the two car garage.
  • The stick-framed roof has a 8:12 pitch.
  • Related Plan: Get an alternate exterior with house plan 86208HH.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3 Bed Craftsman with Shed Dormer

  • 1,787

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

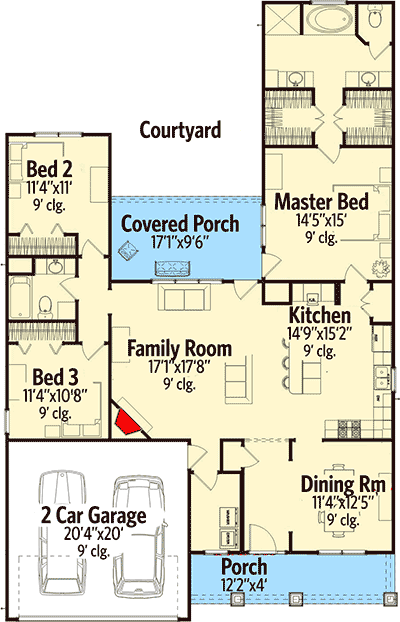

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,787 sq. ft.
  • 1st Floor: 1,787 sq. ft.

Dimensions

  • Width: 44' 2"
  • Depth: 70' 4"
  • Max ridge height: 20' 3"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 423 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
