Plan 970045VC

3-Bed Craftsman with Walkout Family Room

Heated S.F.
3,001
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 970045VC

Main Level
Main Level
Lower Level
Lower Level

Plan 970045VC

M-F 9am-5pm EST |

1-203-761-8500

Main Level

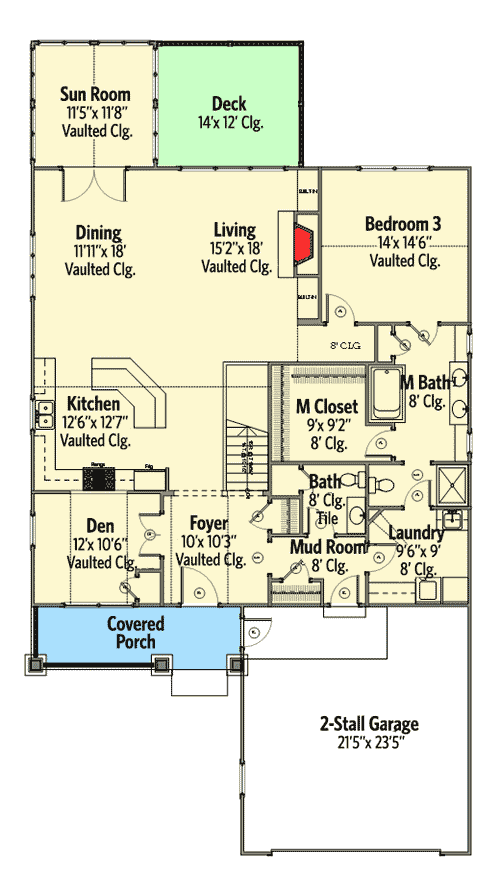

Plan 970045VC: 3-Bed Craftsman with Walkout Family Room - Floor Plan - Main Level - Craftsman, Northwest

Lower Level

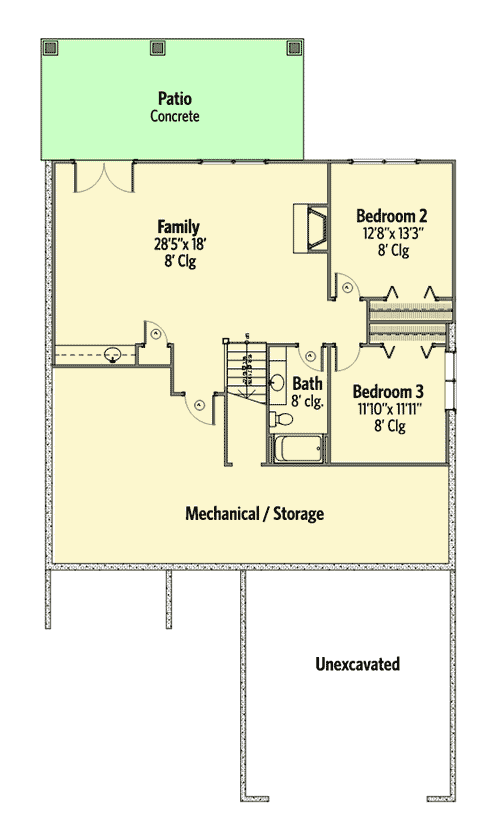

Plan 970045VC: 3-Bed Craftsman with Walkout Family Room - Floor Plan - Lower Level - Craftsman, Northwest

Plan Details

  • This 3-bed Craftsman house plan is designed for a rear-sloping lot and has a lower-level with a family room that opens to the outside.
  • The main floor kitchen, dining and living room with vaulted ceilings are open to the rear screen porch and deck for outdoor living and entertaining.
  • A small home office is conveniently accessed from the foyer.  The main floor master suite has all amenities, including a soaking tub, large shower, and access directly to the laundry room.
  • The lower level boasts two additional bedrooms with shared bath, exercise room, wet bar, and living space.

What's Included

  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

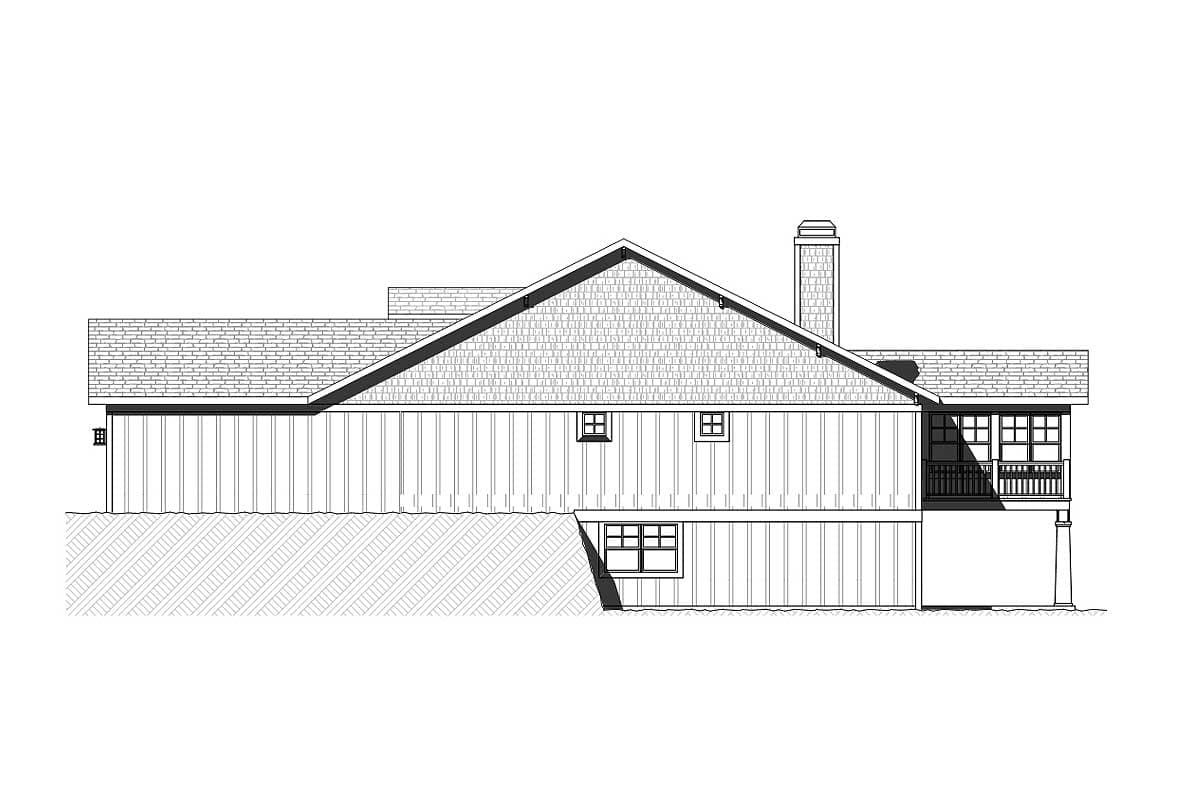

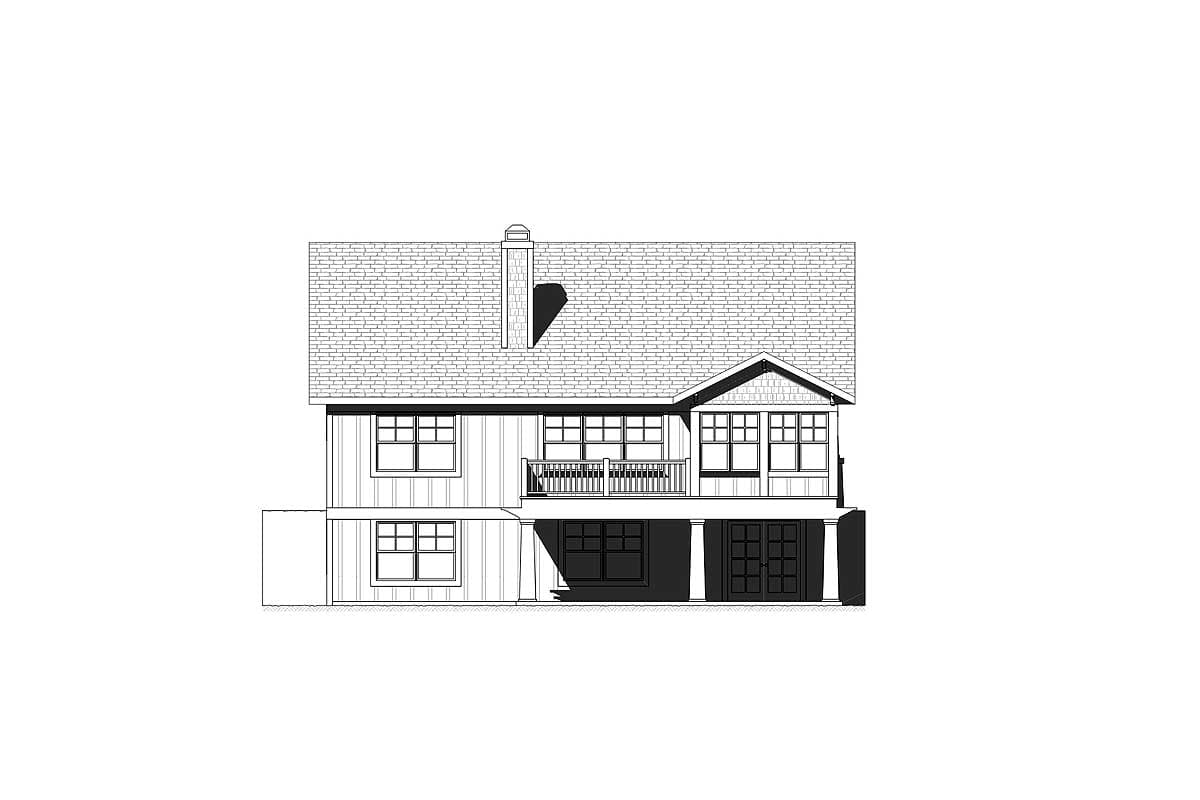

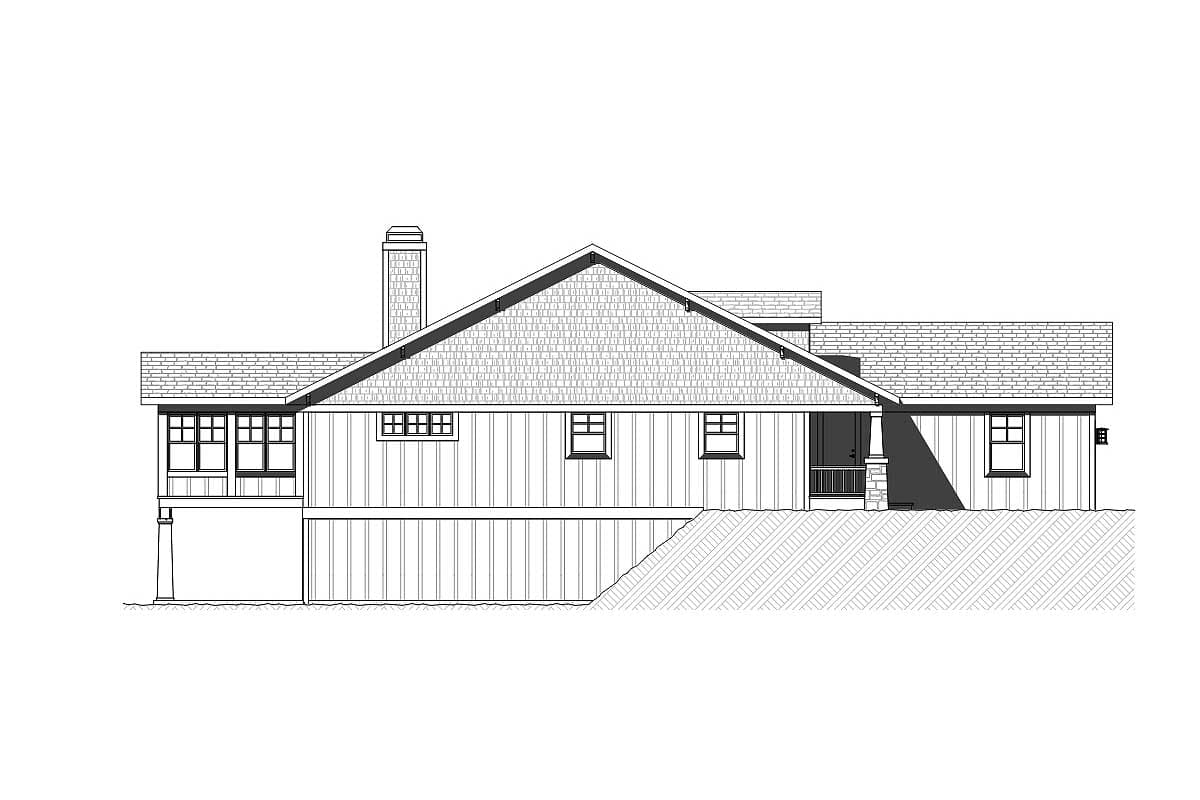

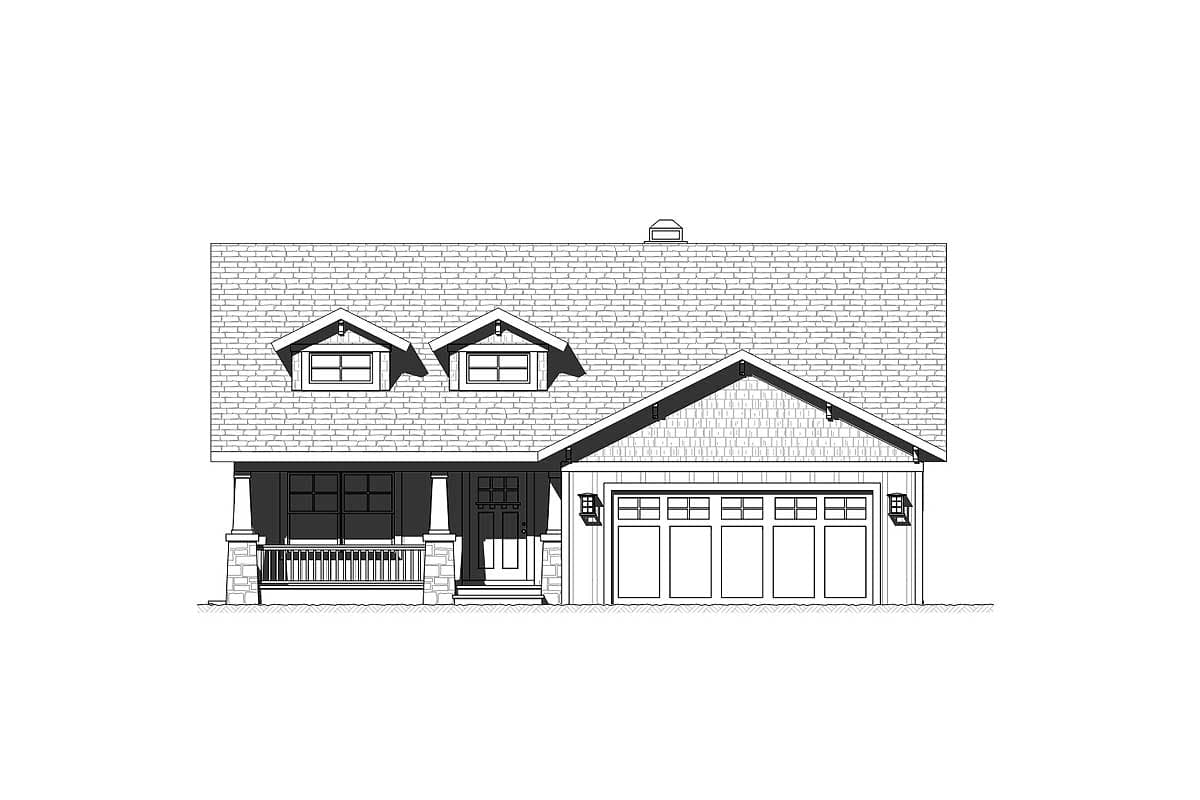

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,001 sq. ft.

Lower Level

1,093 sq. ft.

1st Floor

1,908 sq. ft.

Deck

168 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

42' 0"

Depth

77' 8"

Max Ridge Height

22' 2"

Garage

Type

Attached

Area

502 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Wet Bar

Square Footage Breakdown

Total Heated Area

3,001 sq. ft.

Lower Level

1,093 sq. ft.

1st Floor

1,908 sq. ft.

Deck

168 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

42' 0"

Depth

77' 8"

Max Ridge Height

22' 2"

Garage

Type

Attached

Area

502 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Master Suite - 1st Floor

Wet Bar
