Plan 48627FM

Exclusive

3-Bed Duplex Home Plan with Flex Room and 2-Car Garage - 1311 Per Unit

Heated S.F.
2,622
Units
2
Width
Depth

Floor Plan

Plan 48627FM

Main Level
Main Level

Plan 48627FM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

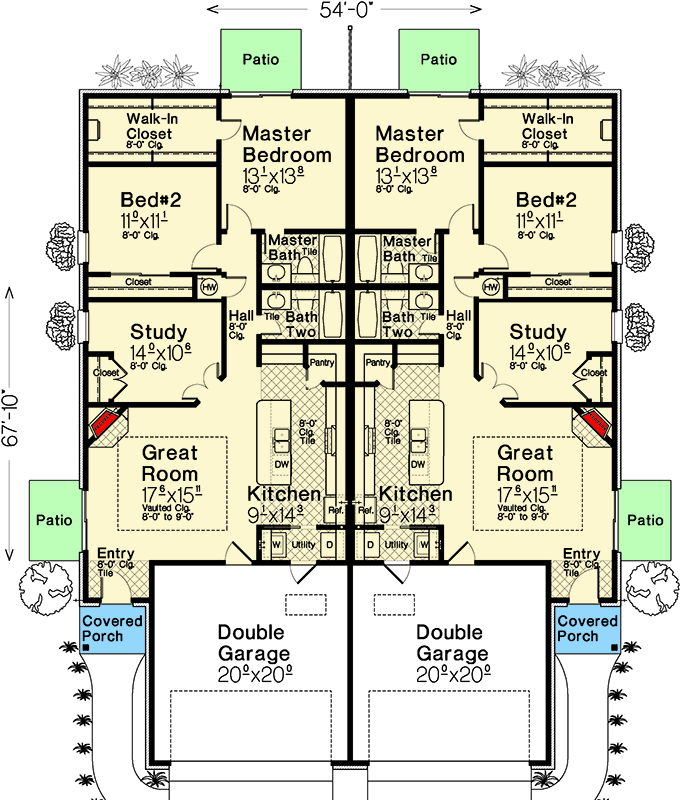

Plan 48627FM: 3-Bed Duplex Home Plan with Flex Room and 2-Car Garage - 1311 Per Unit - Floor Plan - Main Level - Ranch, Traditional

Plan Details

  • This duplex-family house plan gives you 2 units each with 1,311 square feet of heated living space, 3 beds, 2 baths and a 394 sq. ft. 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
Unit A
Heated Area
1,311Sq. Ft.
1311 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
394 Sq. Ft.
Dimensions
27'width
67' 10"depth
Unfinished Areas
394 Sq. Ft. Garage
31 Sq. Ft. Porch, Front
88 Sq. Ft. Covered Patio
Unit B
Heated Area
1,311Sq. Ft.
2622 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
394 Sq. Ft.
Dimensions
27'width
67' 10"depth
Unfinished Areas
394 Sq. Ft. Garage
31 Sq. Ft. Porch, Front
88 Sq. Ft. Covered Patio

What's Included

  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation
  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,622 sq. ft.

1st Floor

2,622 sq. ft.

Porch, Front

62 sq. ft.

Covered Patio

176 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

67' 10"

Garage

Type

Attached

Area

788 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive

Square Footage Breakdown

Total Heated Area

2,622 sq. ft.

1st Floor

2,622 sq. ft.

Porch, Front

62 sq. ft.

Covered Patio

176 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

67' 10"

Garage

Type

Attached

Area

788 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

6 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Plan Collections

Exclusive
