Plan 61460UT

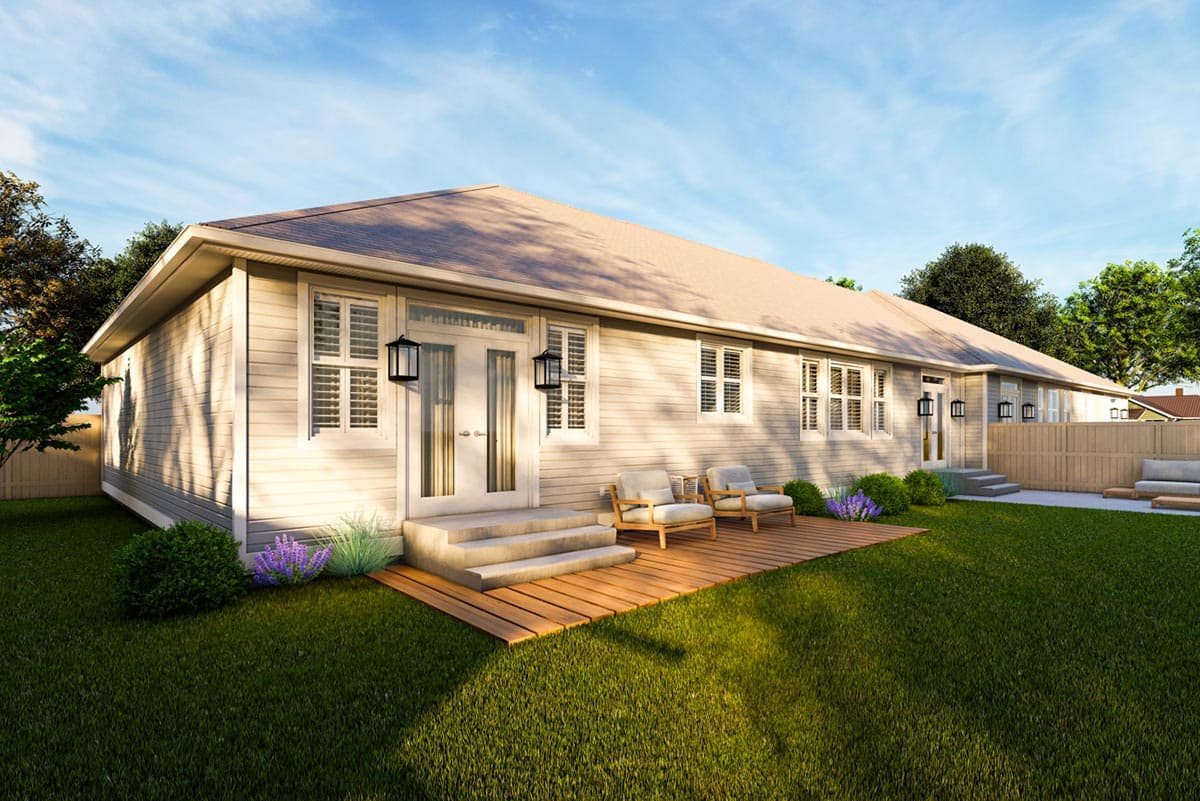

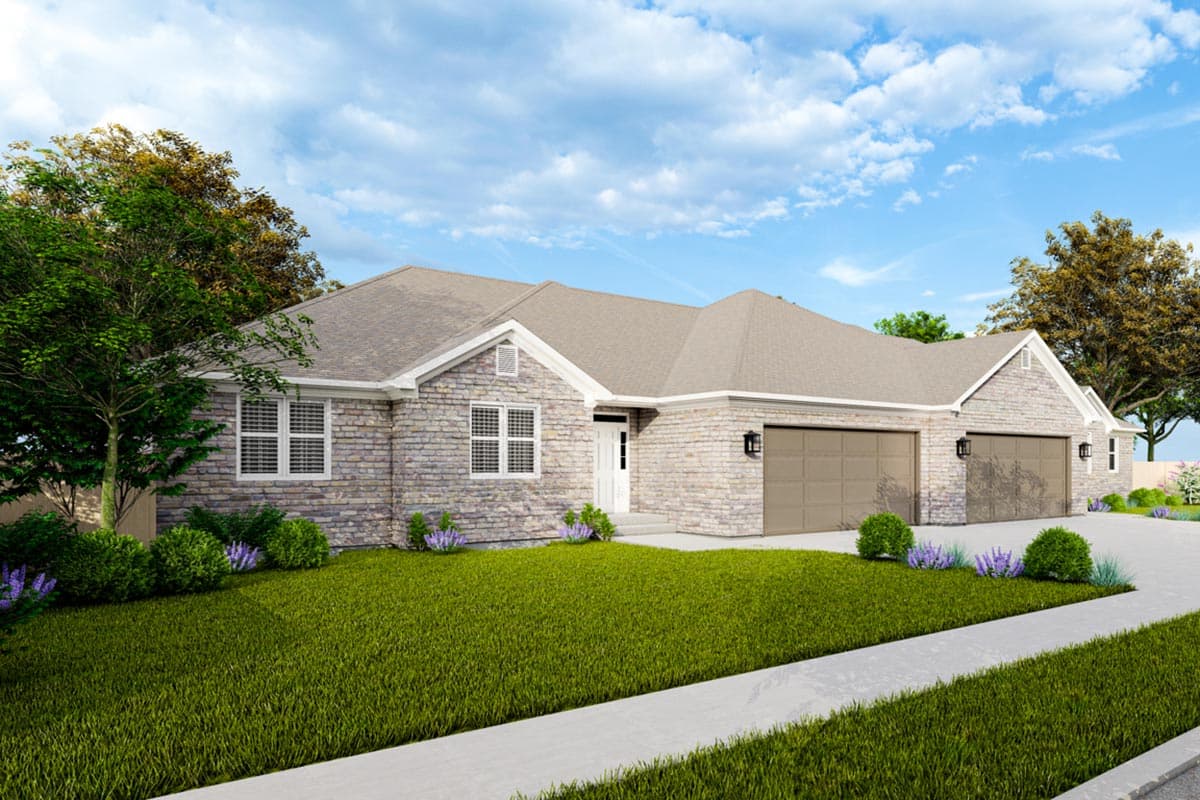

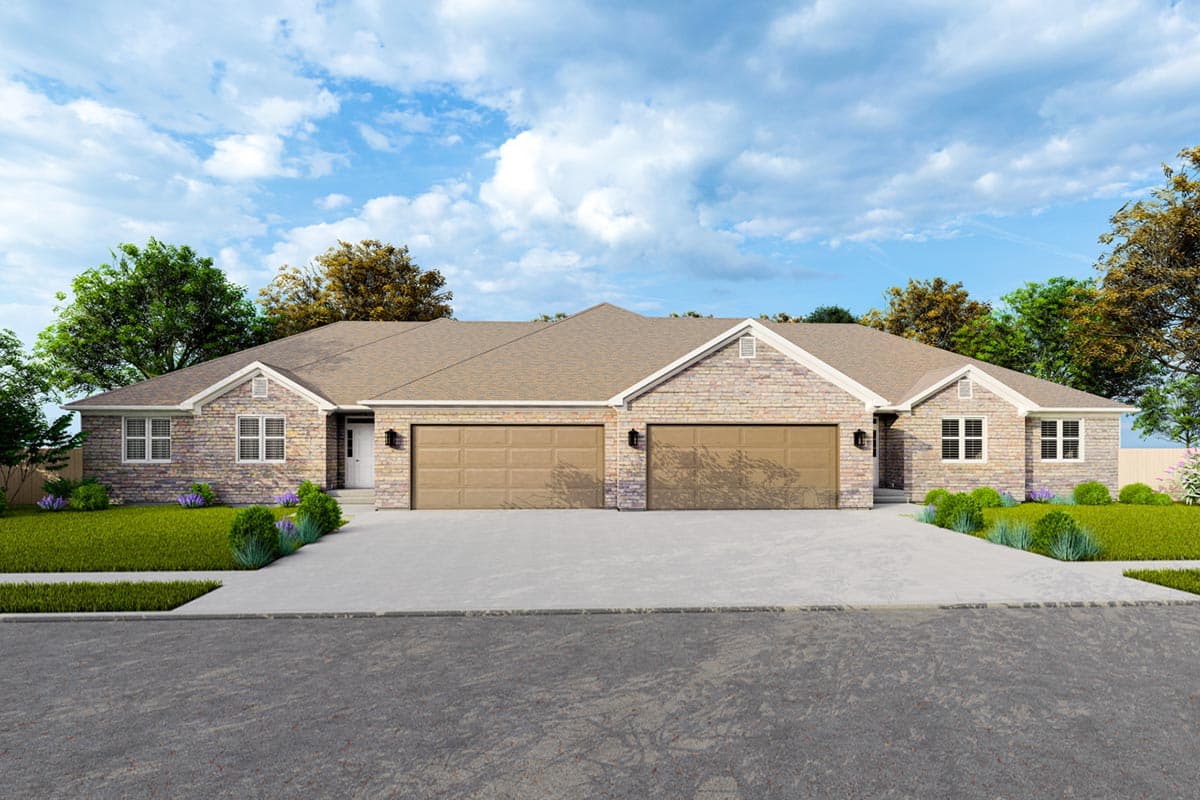

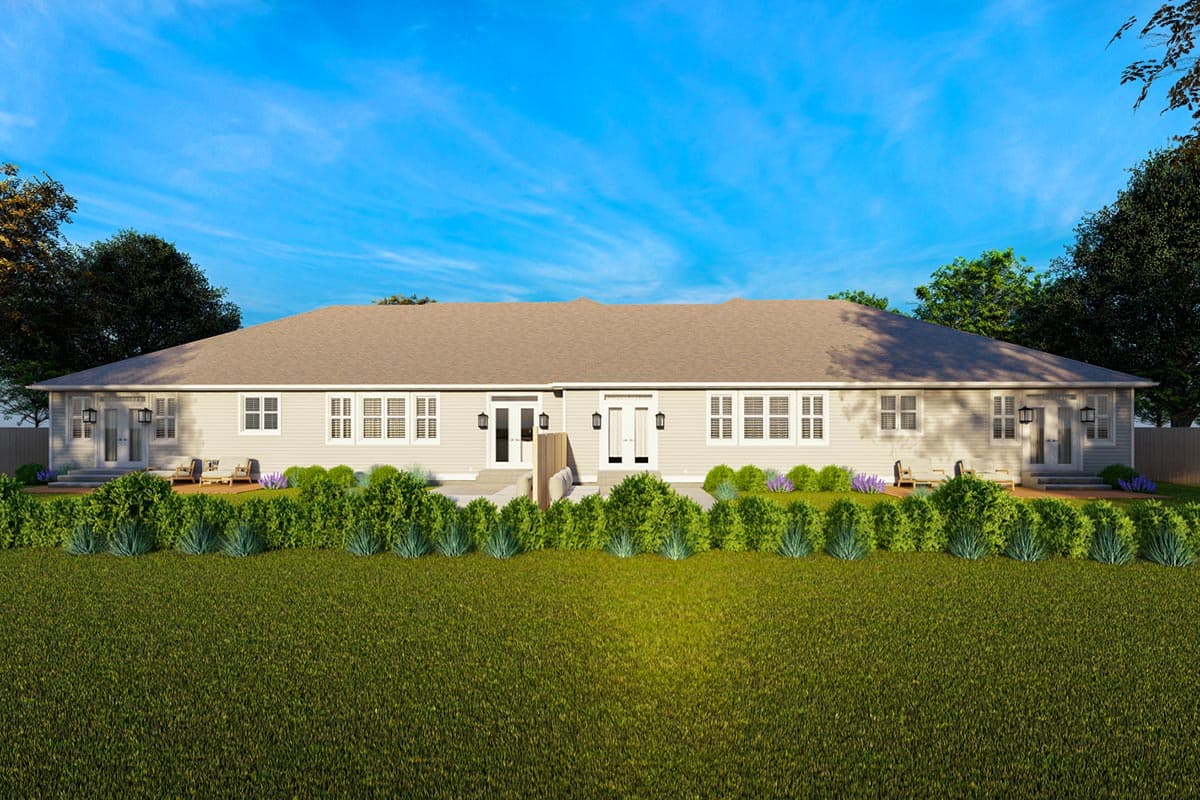

3-Bed Duplex House Plan with Matching 1900 Sq Ft Units
Heated S.F.
3,868
Units
2
Width
109' 9"
Depth
52' 3"
Cars
4
What's Included
Plan Details
  • This duplex house plan gives you the best of one-level living with matching 1,934 square foot 3 bed, 2 bath units.

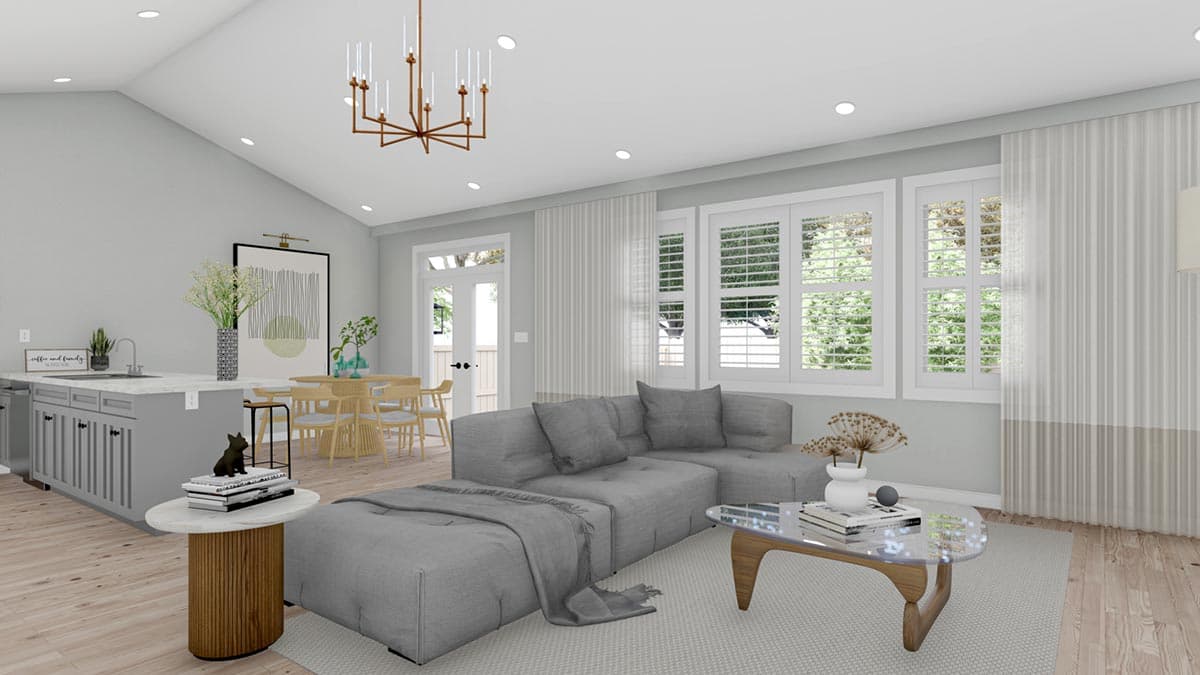

  • Bedrooms are clustered to the outside, leaving the inside space open concept.
  • Each unit has a 2-card front-facing garage with 529 square feet of parking space.
Unit A
1,934 Sq. Ft.
1934 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
2 Vehicle
Attached
529 Sq. Ft.
54' w 52' d 24' h
Unit B
1,934 Sq. Ft.
3868 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
2 Vehicle
Attached
529 Sq. Ft.
54' w 52' d 24' h
What's Included
  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

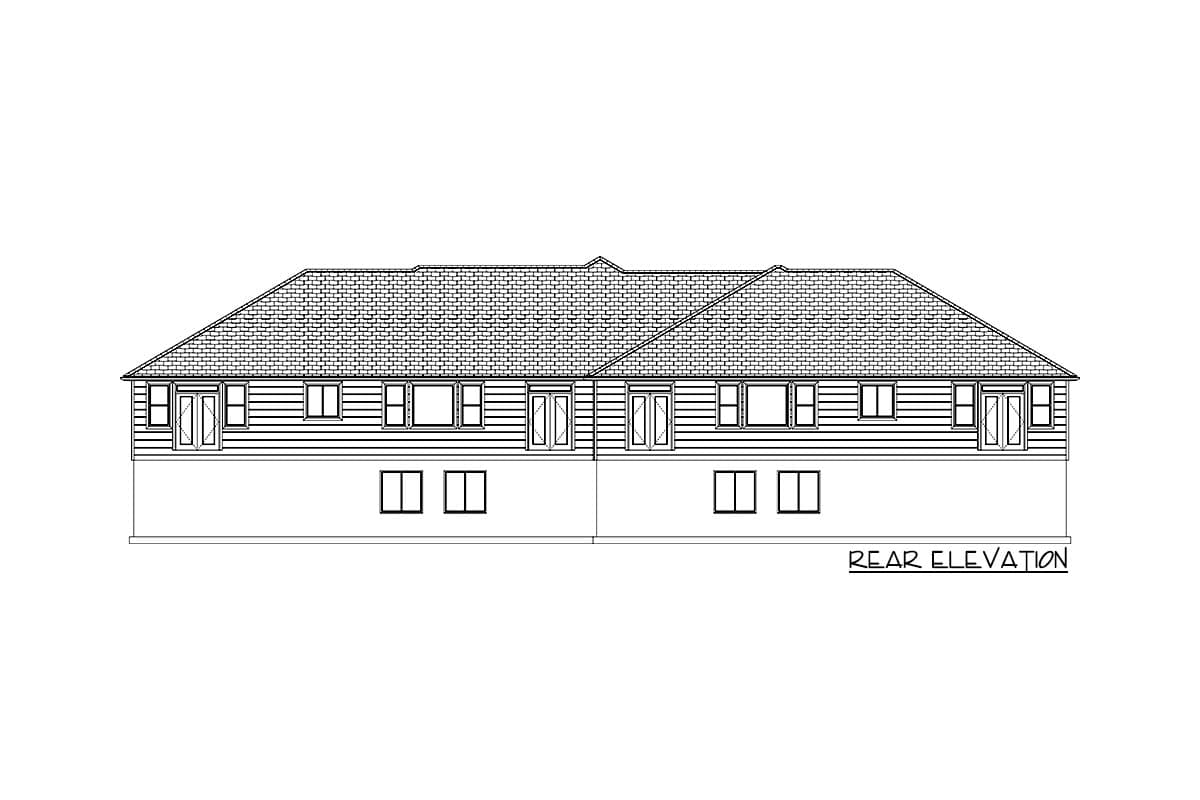

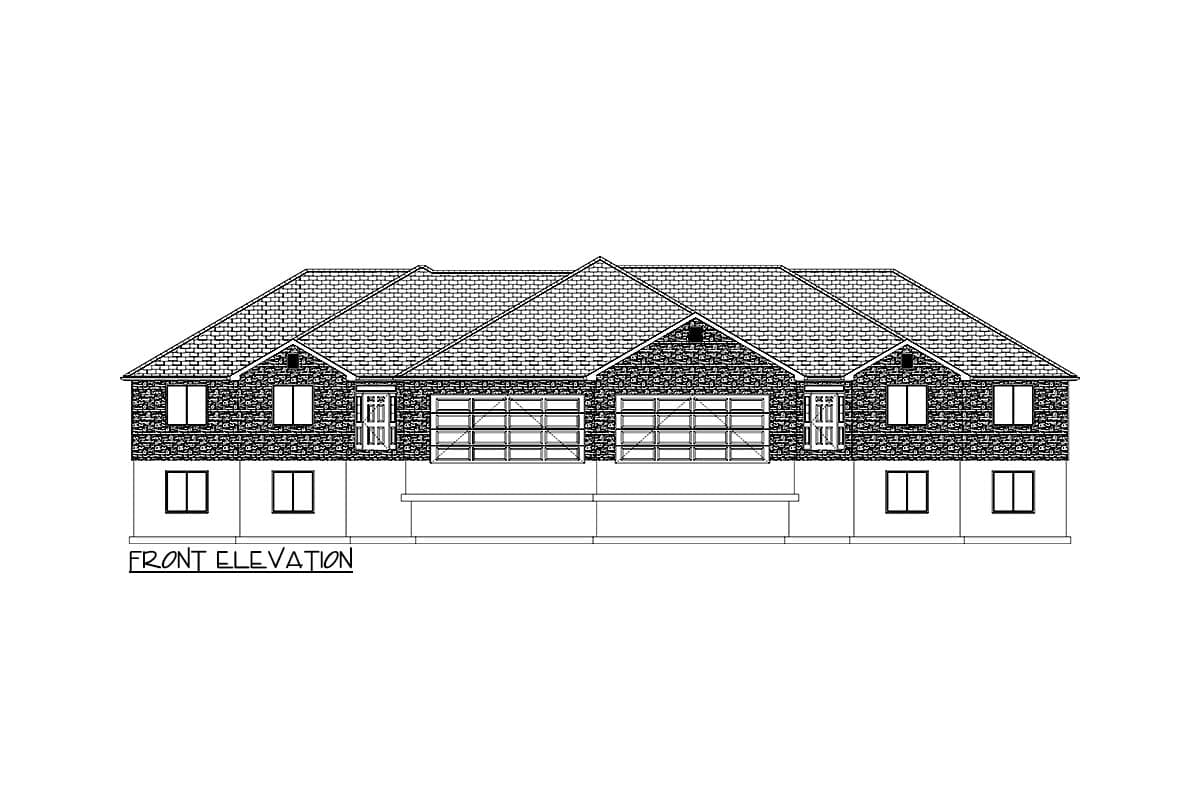

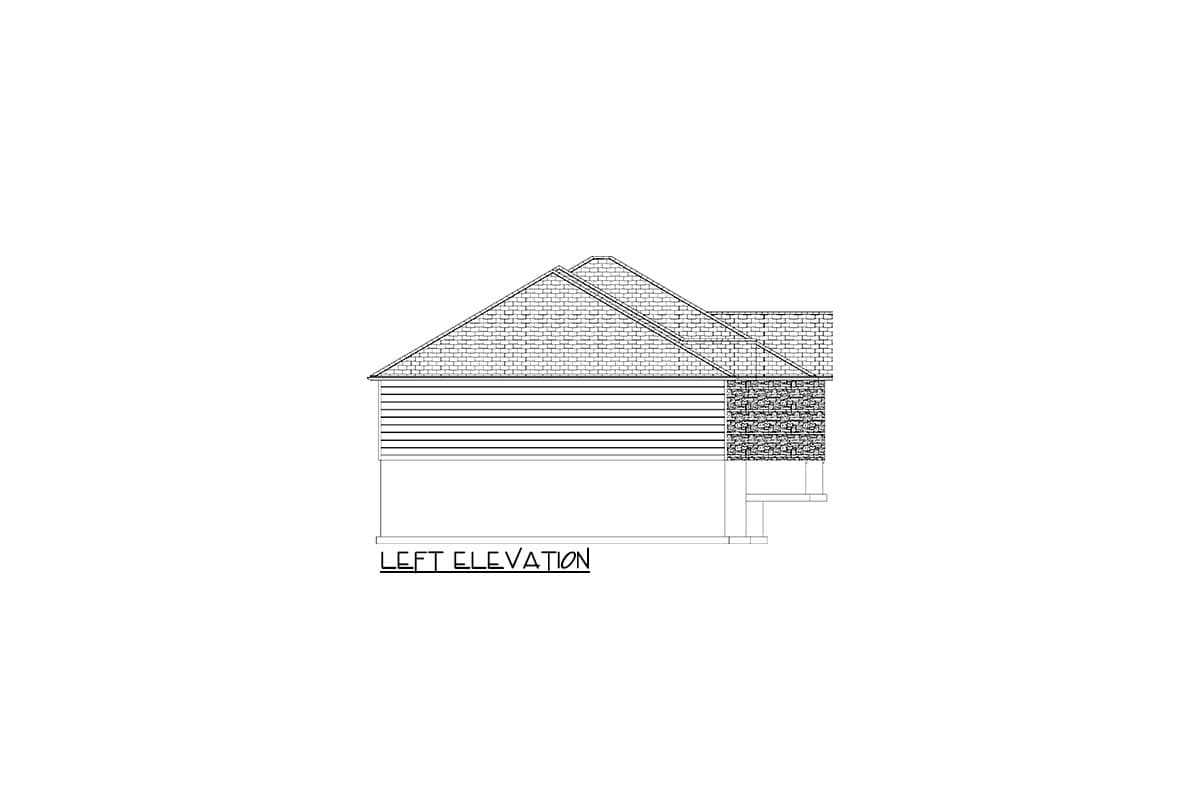

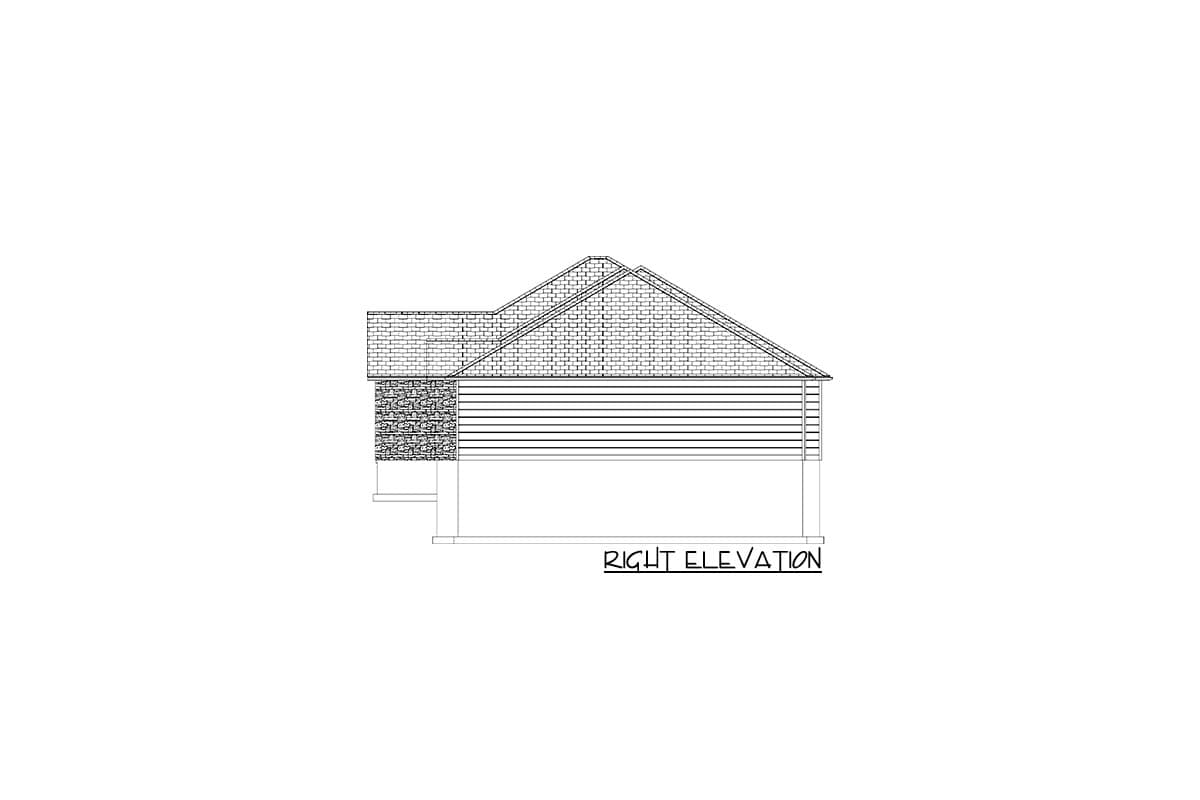

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Duplex House Plan with Matching 1900 Sq Ft Units

  • 3,868

    Heated s.f.

  • 2

    Units

  • 109' 9"

    Width

  • 52' 3"

    Depth

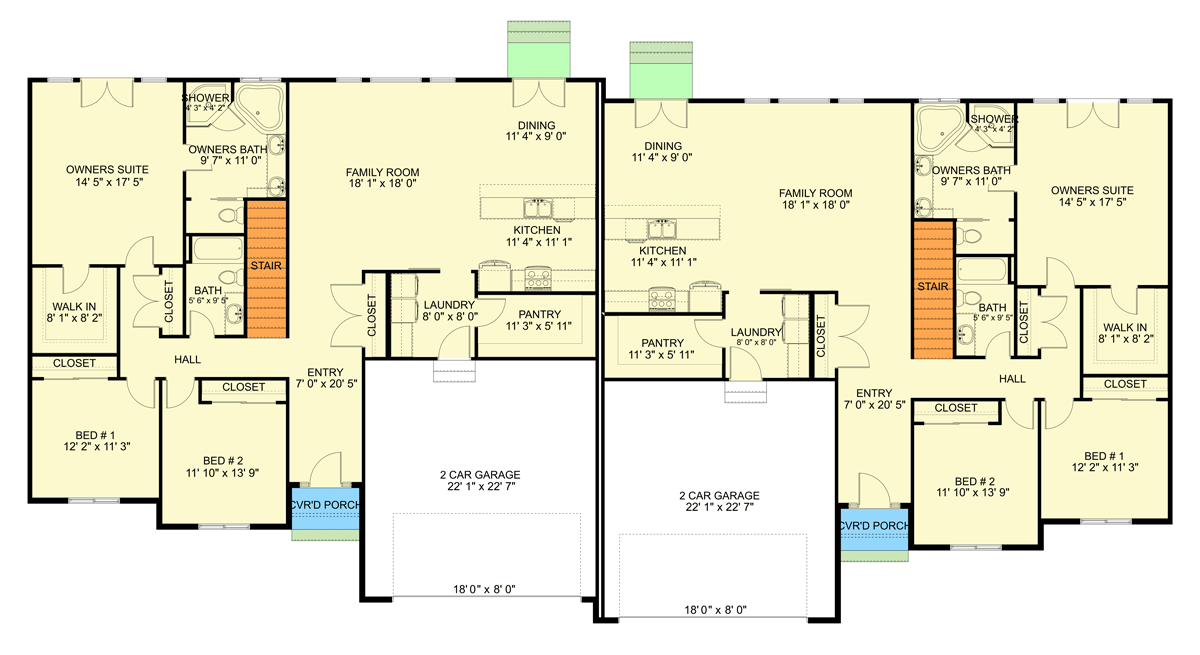

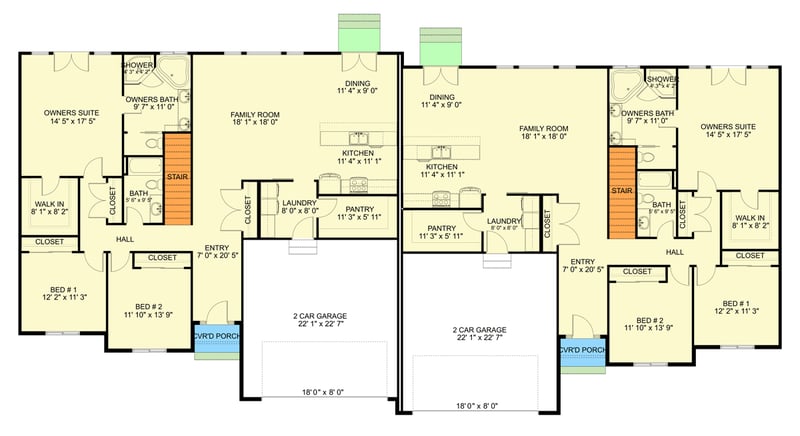

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,868 sq. ft.
  • 1st Floor: 3,868 sq. ft.

Dimensions

  • Width: 109' 9"
  • Depth: 52' 3"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 1058 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Stem Wall, Monolithic Slab, Daylight, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
