3 Bed Duplex House Plan with Matching Units Under 1700 Square Feet

Plan 61455UT

  • 3,392

    Heated s.f.

  • 2

    Units

  • 80' 0"

    Width

  • 63' 6"

    Depth

  • This duplex house plan gives you side-by-side 3 bed, 2 bath units each giving you 1,696 square feet of heated living with a 2-car garage (502 sq. ft.).

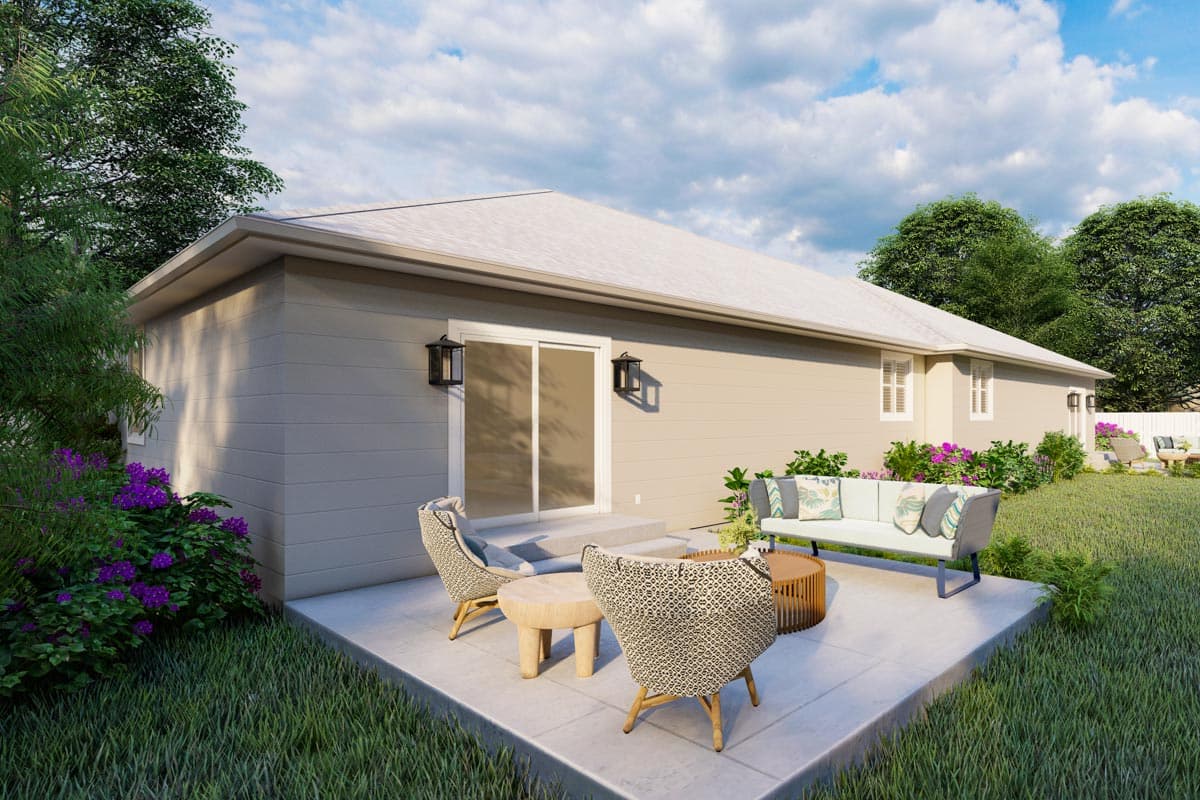

  • Bedrooms line the outer walls of the units with the master suite in back enjoying outdoor access. This leaves the inner portion open for entertaining.
  • A large mudroom has laundry and serves as a buffer as you enter the home from the garage.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

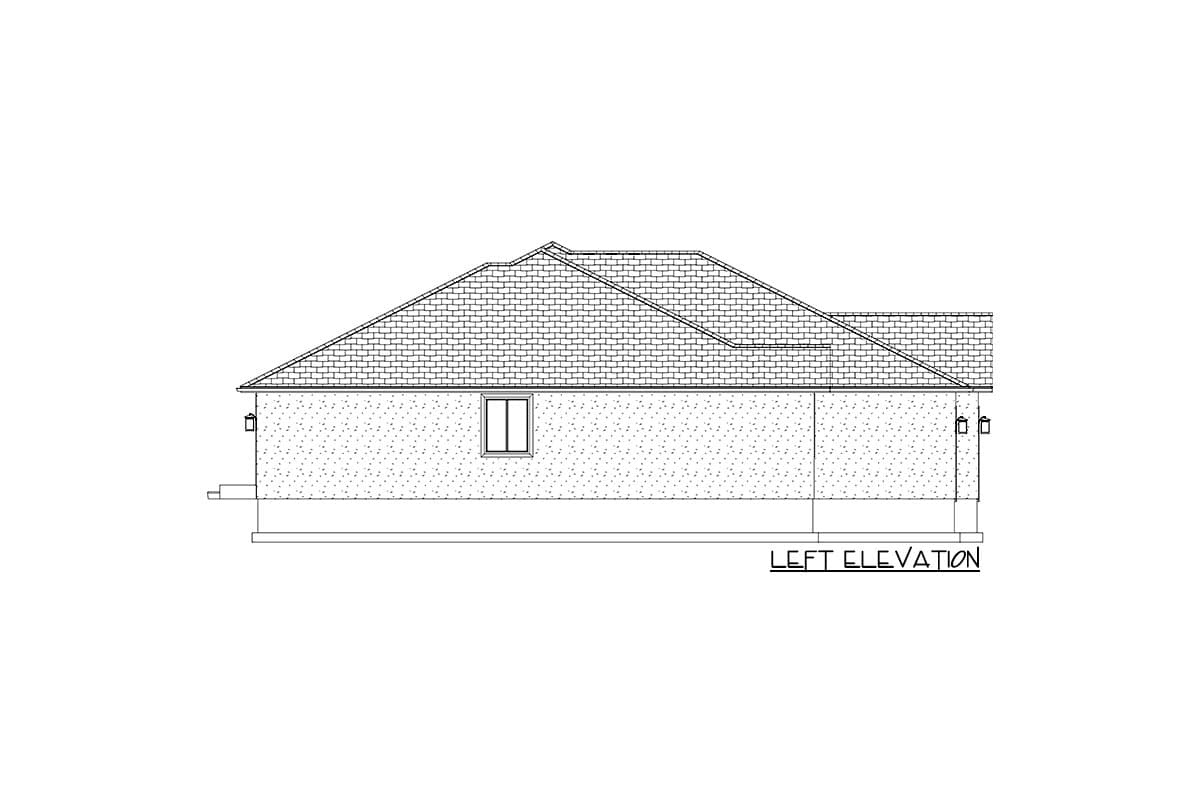

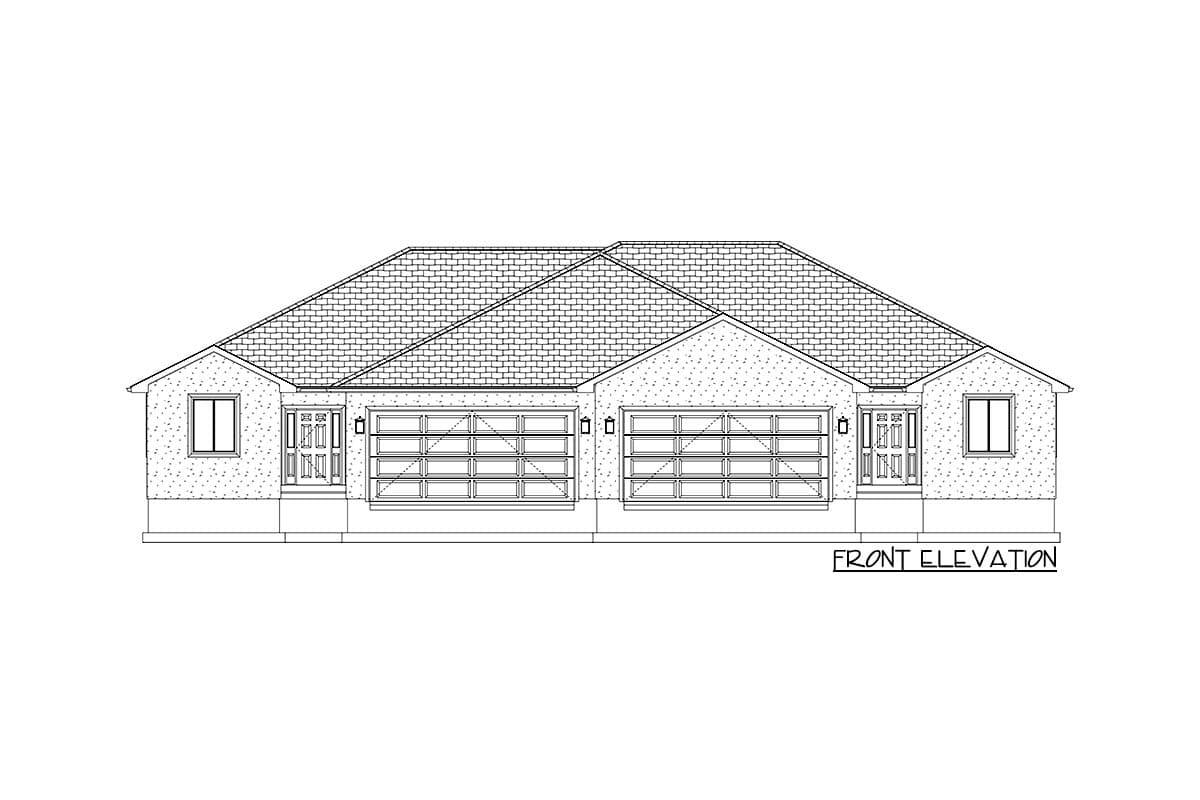

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

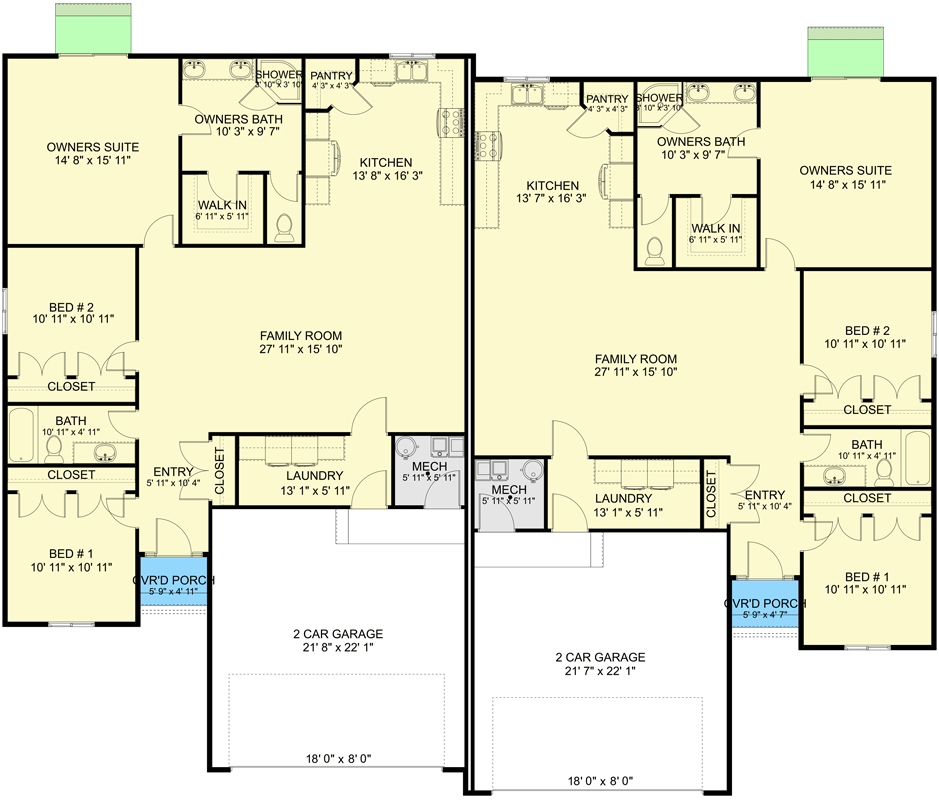

3 Bed Duplex House Plan with Matching Units Under 1700 Square Feet - 61455UT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,392 sq. ft.
  • 1st Floor: 3,392 sq. ft.
  • Porch, Front: 60 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Stem Wall
  • Optional Foundations: Walkout, Monolithic Slab, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 63' 6"
  • Max ridge height: 22' 8"

Garage

  • Type: Attached
  • Area: 1004 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

3 Bed Duplex House Plan with Matching Units Under 1700 Square Feet

  • 3,392

    Heated s.f.

  • 2

    Units

  • 80' 0"

    Width

  • 63' 6"

    Depth

Buy This Plan
  • PDF - Single-Build $1,450
  • 5 Sets $1,595
  • 5 Sets + PDF $1,750
  • PDF - Unlimited Build $1,995
  • CAD - Unlimited Build $2,150
  • CAD Unlimited + PDF $2,295
  • View all purchase option online

About This Plan

  • This duplex house plan gives you side-by-side 3 bed, 2 bath units each giving you 1,696 square feet of heated living with a 2-car garage (502 sq. ft.).
  • Bedrooms line the outer walls of the units with the master suite in back enjoying outdoor access. This leaves the inner portion open for entertaining.
  • A large mudroom has laundry and serves as a buffer as you enter the home from the garage.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,392 sq. ft.
  • 1st Floor: 3,392 sq. ft.
  • Porch, Front: 60 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Stem Wall
    • Optional Foundations: Walkout, Monolithic Slab, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 63' 6"
  • Max ridge height: 22' 8"

Garage

  • Type: Attached
  • Area: 1004 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
