Plan 33006ZR

3 Bed Energy Super-Saving House Plan

1,872 3 3 1 2
Pageloader

3 Bed Energy Super-Saving House Plan

Plan 33006ZR

  • 1,872

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

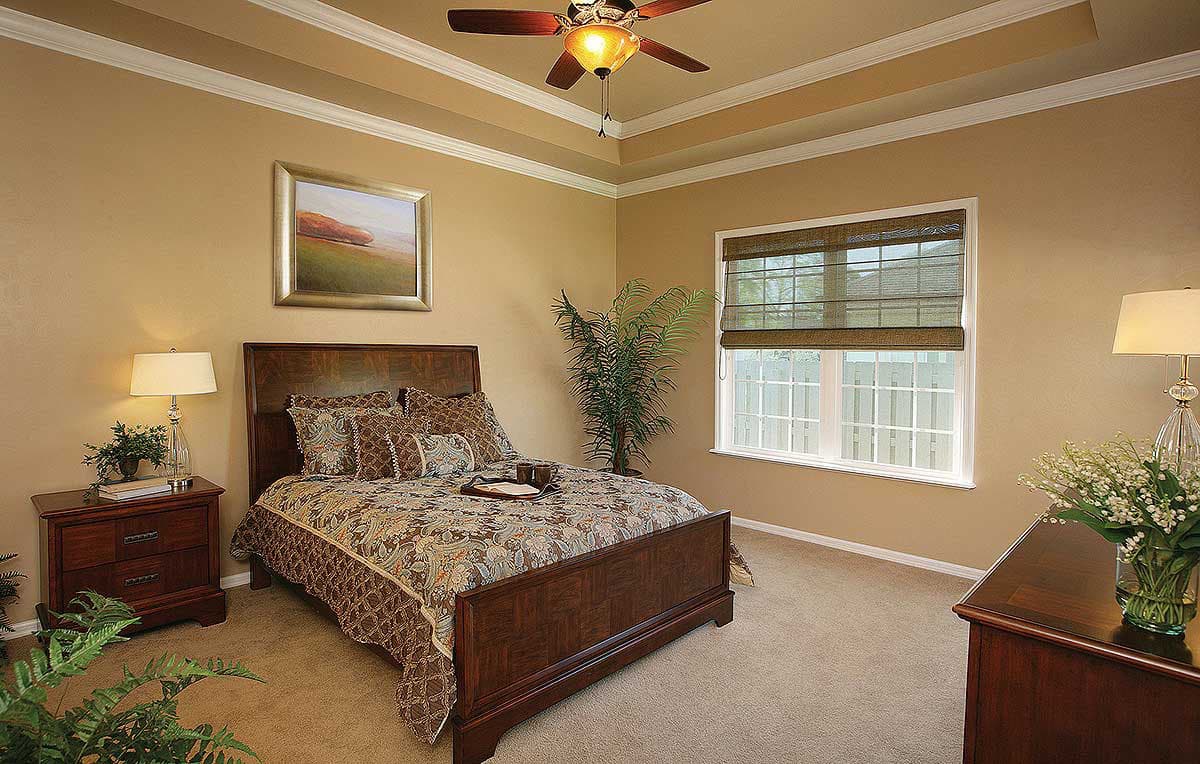

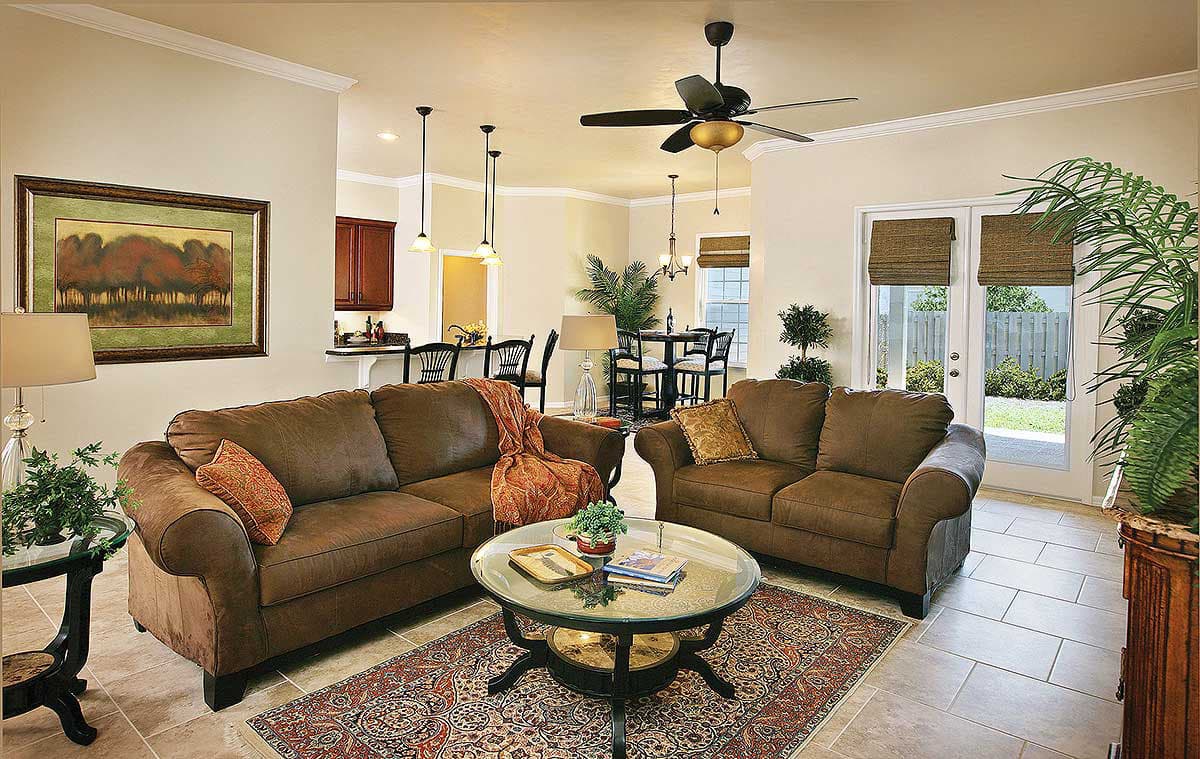

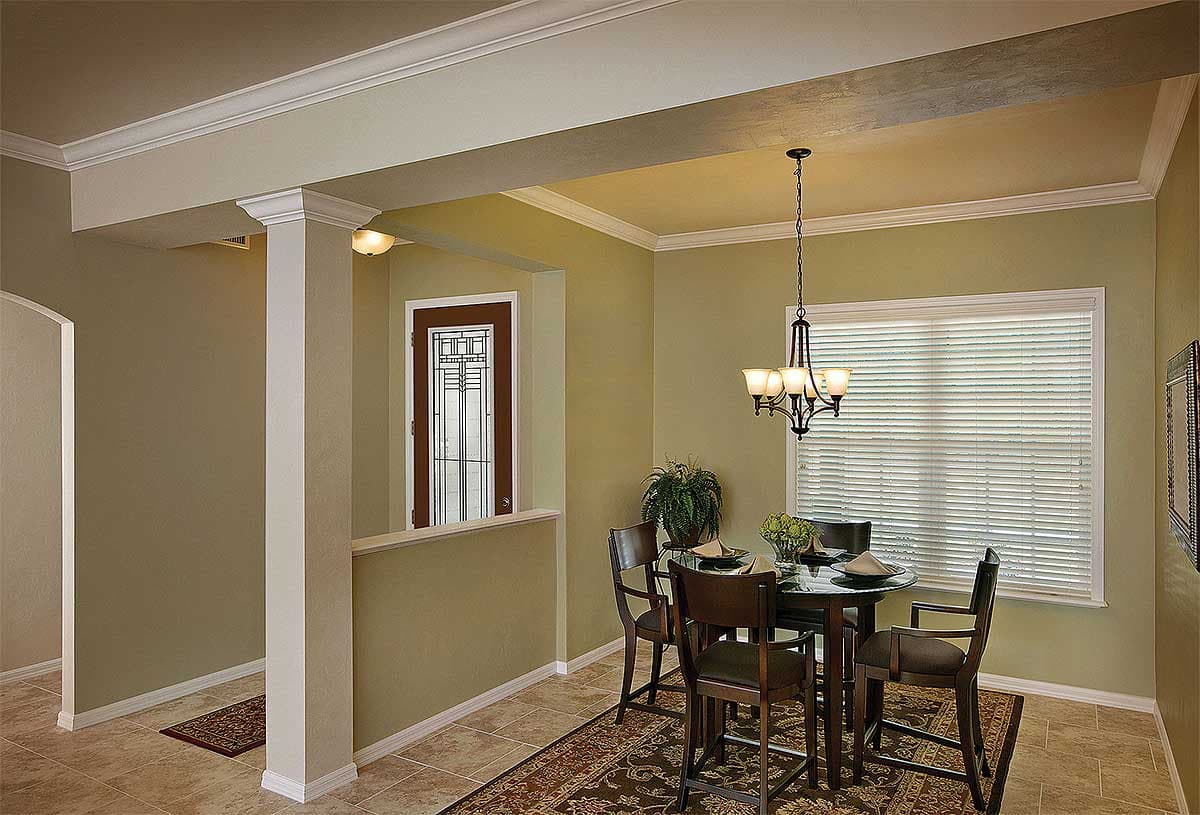

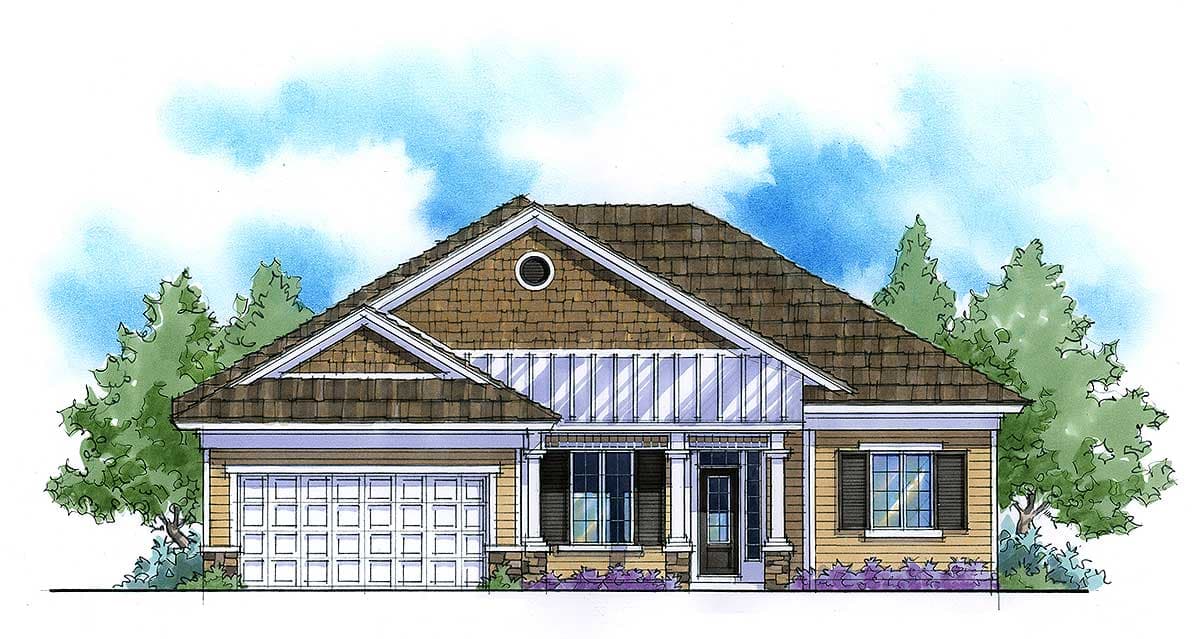

  • This house plan is available in three elevations. All feature 10' foot ceilings with trays and coffers, open great room floor plans, front and rear porches, luxurious master suites and a transition buffer from public to private spaces.
  • For super energy-efficiency, all of the mechanical equipment (AC & Heating) is placed within the home's conditioned space. Easy-to-build chases are designed strategically below a vented attic. Perceived as architectural upgrades, the ducts in conditioned space offer luxurious ceilings. This planning alone can save you 25% in energy costs since you are no longer paying to push cooled or heated air through a hot or cold attic.
  • The roof is a truss design with a main pitch of 8:12 and a secondary pitch of 6:12.
  • Related Plans: Get European styling with house plan 33007ZR and Mediterranean styling with house plan 33008ZR.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

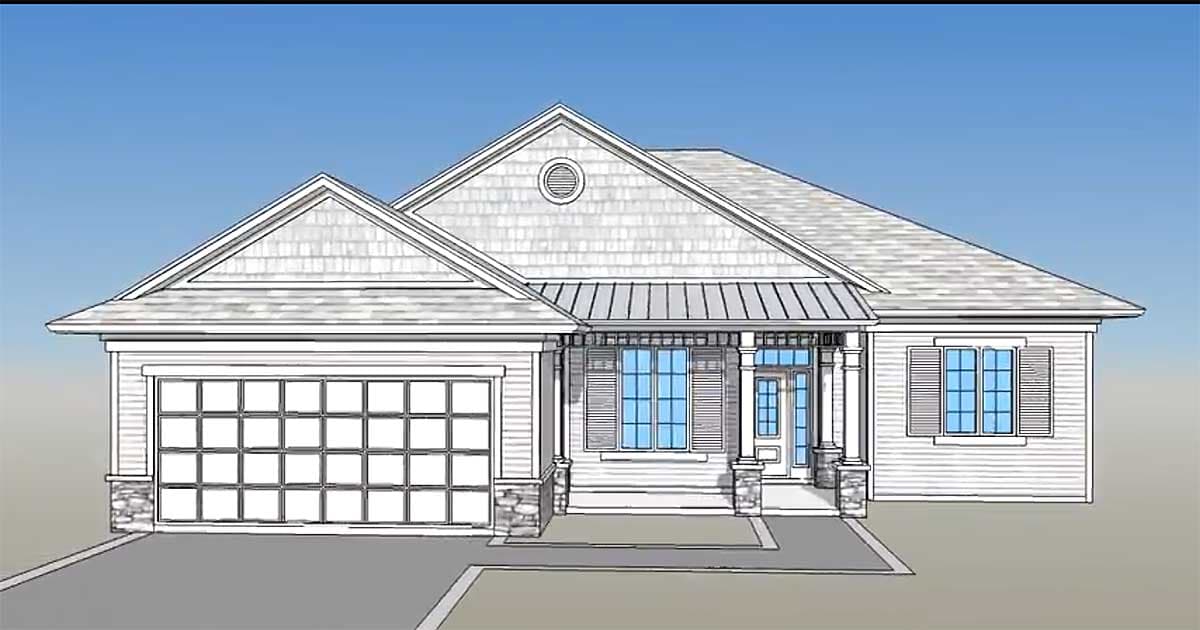

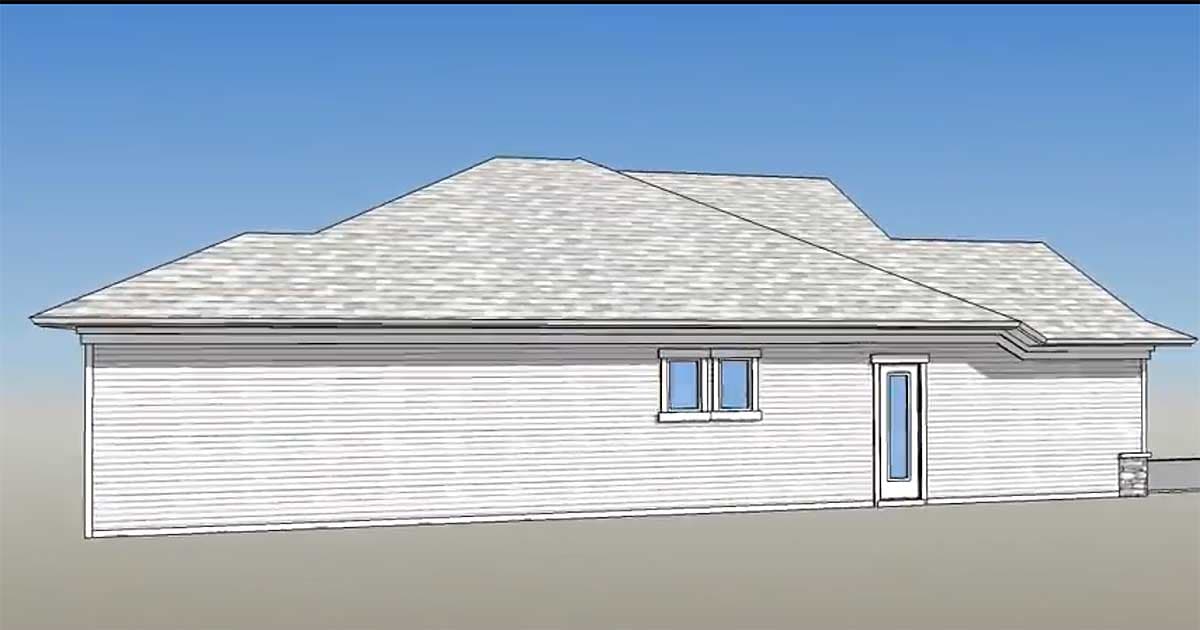

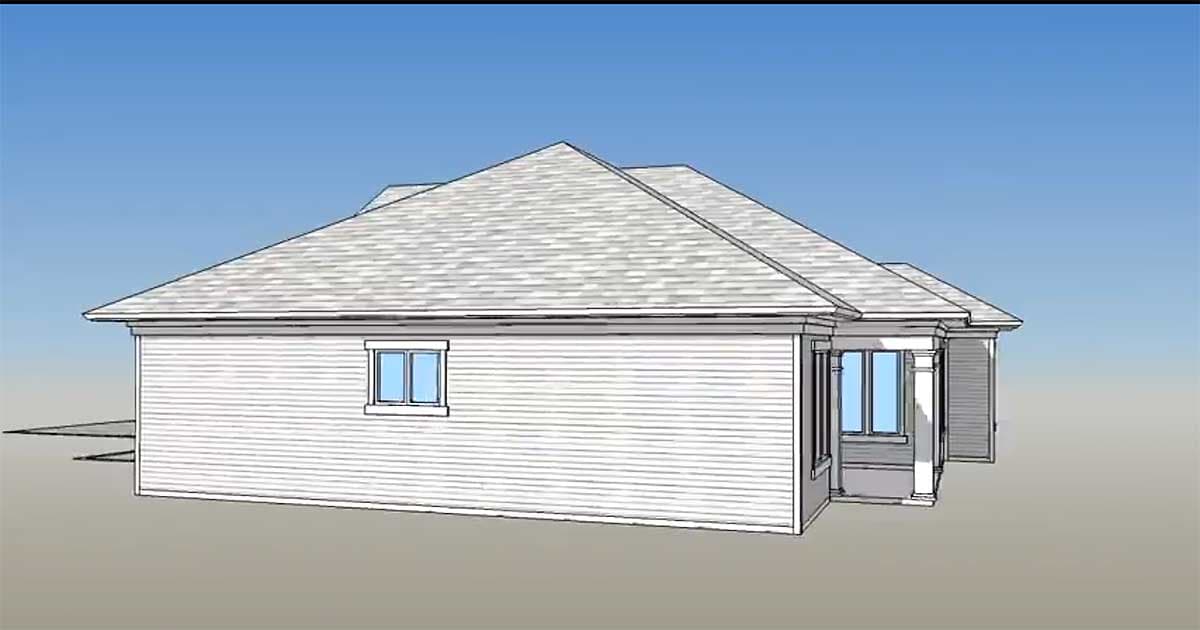

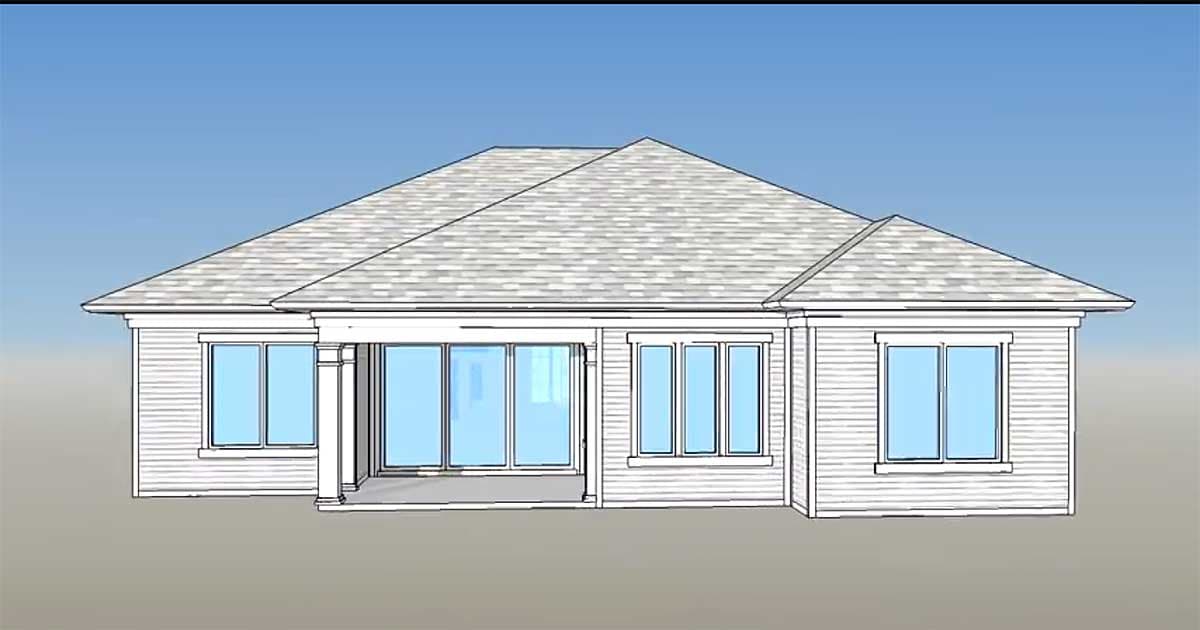

EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details

Floor Plan

Plan details



3 Bed Energy Super-Saving House Plan

  • 1,872

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,275
  • 5 Sets $1,375
  • CAD $1,650
  • View all purchase option online

About This Plan

  • This house plan is available in three elevations. All feature 10' foot ceilings with trays and coffers, open great room floor plans, front and rear porches, luxurious master suites and a transition buffer from public to private spaces.
  • For super energy-efficiency, all of the mechanical equipment (AC & Heating) is placed within the home's conditioned space. Easy-to-build chases are designed strategically below a vented attic. Perceived as architectural upgrades, the ducts in conditioned space offer luxurious ceilings. This planning alone can save you 25% in energy costs since you are no longer paying to push cooled or heated air through a hot or cold attic.
  • The roof is a truss design with a main pitch of 8:12 and a secondary pitch of 6:12.
  • Related Plans: Get European styling with house plan 33007ZR and Mediterranean styling with house plan 33008ZR.

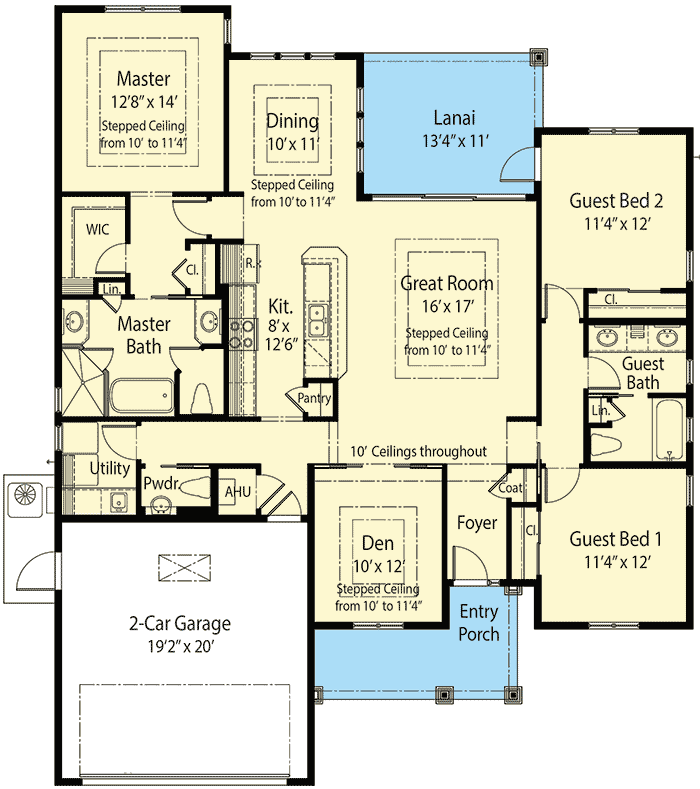

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,872 sq. ft.
  • 1st Floor: 1,872 sq. ft.
  • Porch, Front: 105 sq. ft.
  • Lanai: 151 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 49' 8"
  • Depth: 60' 8"
  • Max ridge height: 23' 5"

Garage

  • Type: Attached
  • Area: 409 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

  • Ranch
  • Southern
  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • PDF
