Plan 36567TX

3-Bed European House Plan with Split Beds

Name: Plan 36567TX: 3-Bed European House Plan with Split Beds
Brand: Architectural Designs
SKU: 36567TX
Price: 1200.0 USD
Availability: InStock

Heated S.F.

3,118

Beds

Baths

Stories

Cars

Floor Plan

Main Level

2nd Floor

Plan Details

Deep overhangs on the gables are supported by beams, adding a craftsman touch to this beautiful brick and stone exterior. The angled front porch makes this home perfect for a corner lot, while intricate ceilings throughout the interior add elegance to the design.
The spacious foyer offers views into the heart of the home, but first, a quiet study and full bath reside to the left. Past the dining room, the family room extends outward through french doors onto a covered patio.
The sizable square kitchen opens to the family room and includes a prep island and corner pantry.
The master suite is quietly situated on the left side of the home, and features a lavish bathroom with dual closets. Just down the hall, a pocket door reveals a laundry room, which includes a freezer for additional cold storage.
Bedrooms 2 is on the opposite side of the home and has its own full bath.
Upstairs, third bedroom and an optional bonus room complete the home.
Related Plan: Get another bedroom on the main floor with house plan 36565TX.

What's Included

Cover sheet
Foundation Plan - schematic only

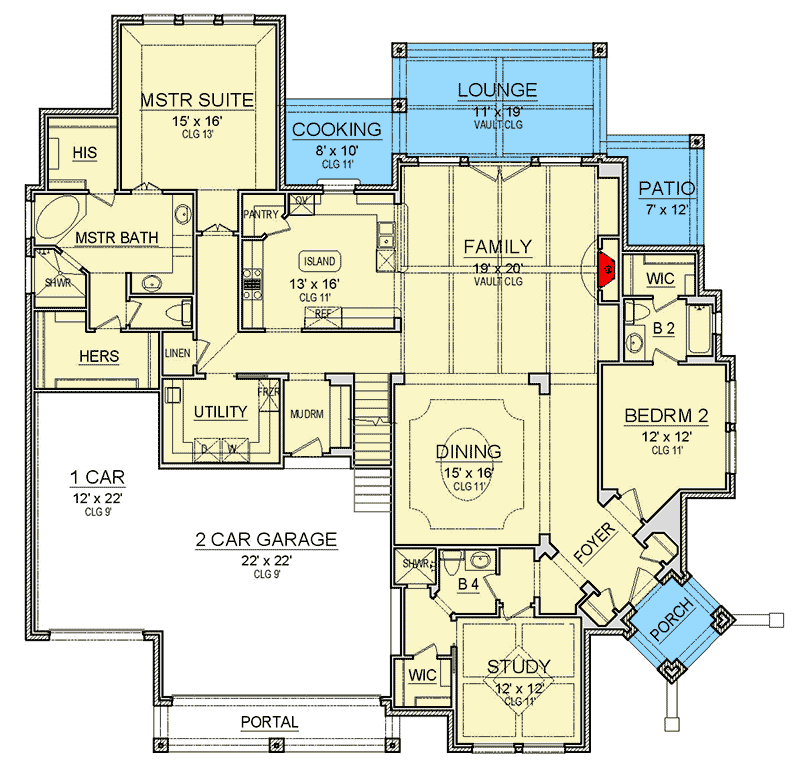

First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

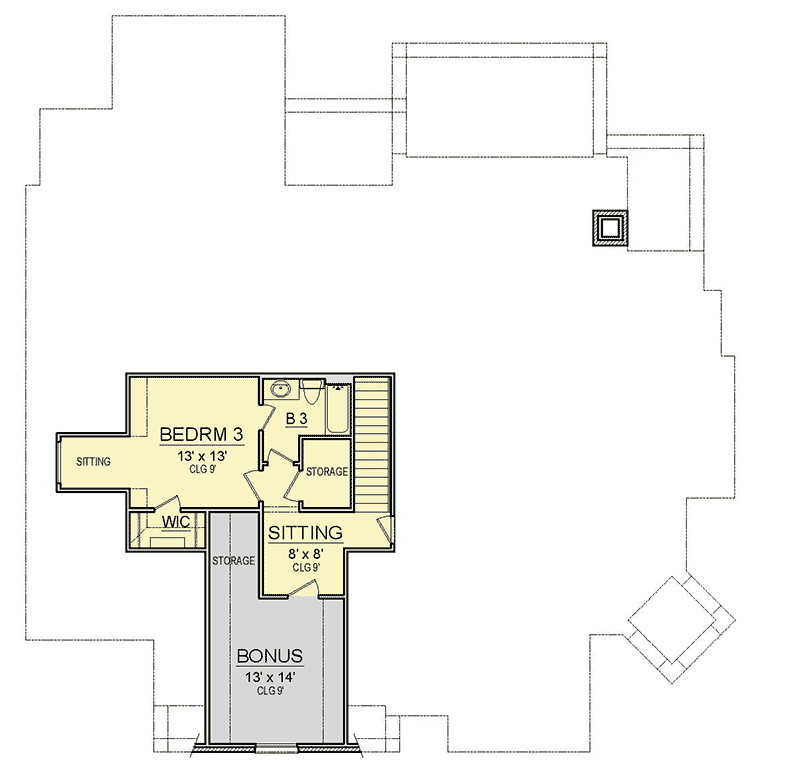

Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

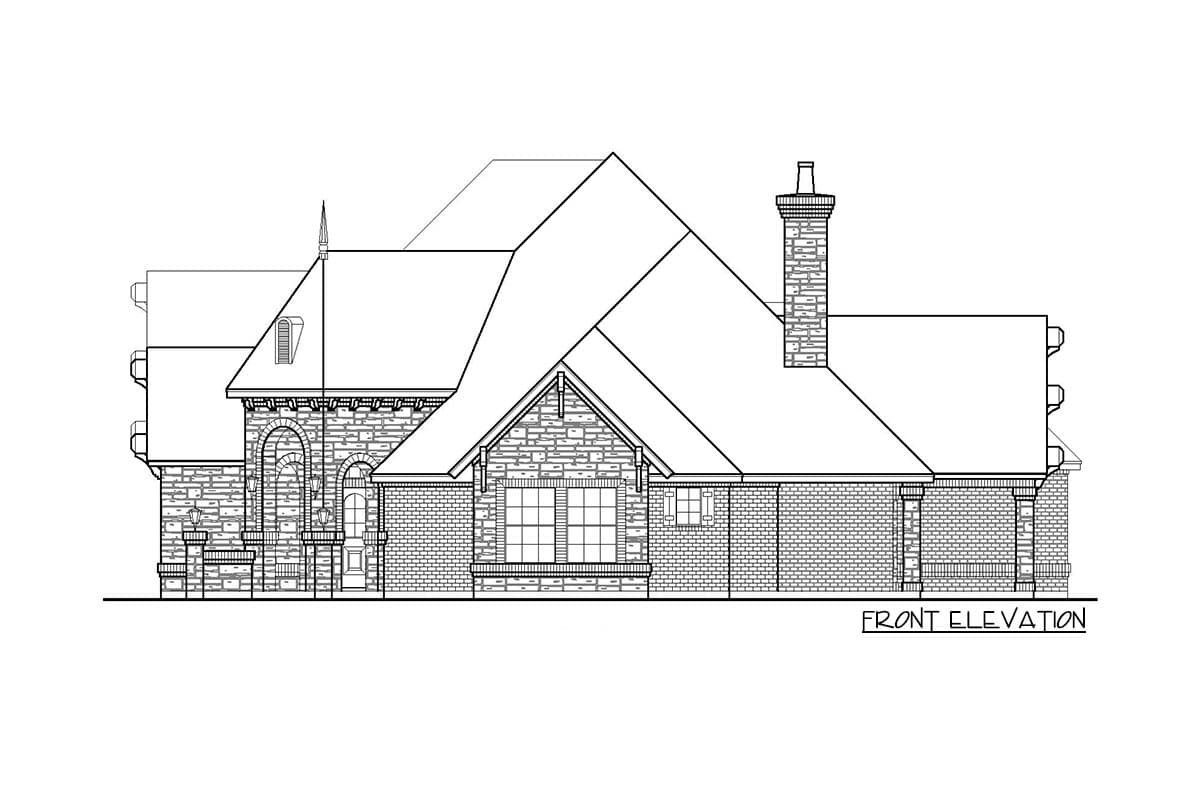

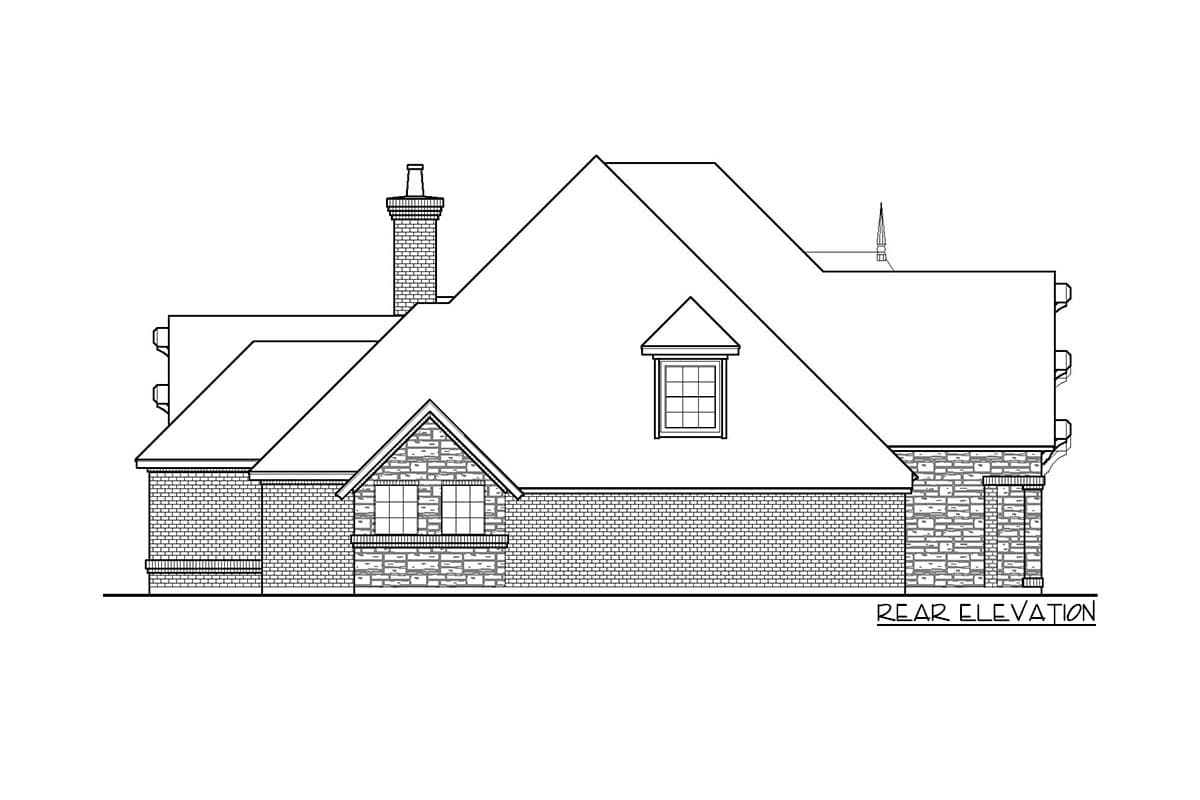

Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

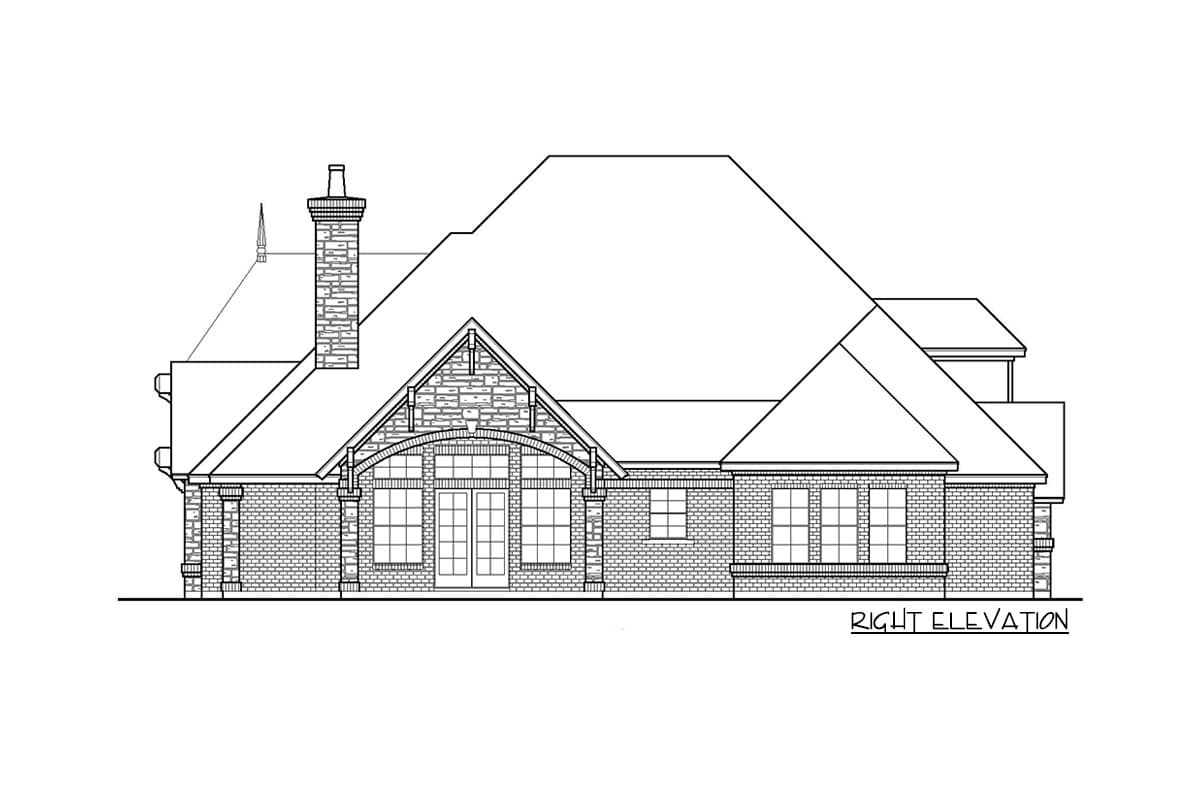

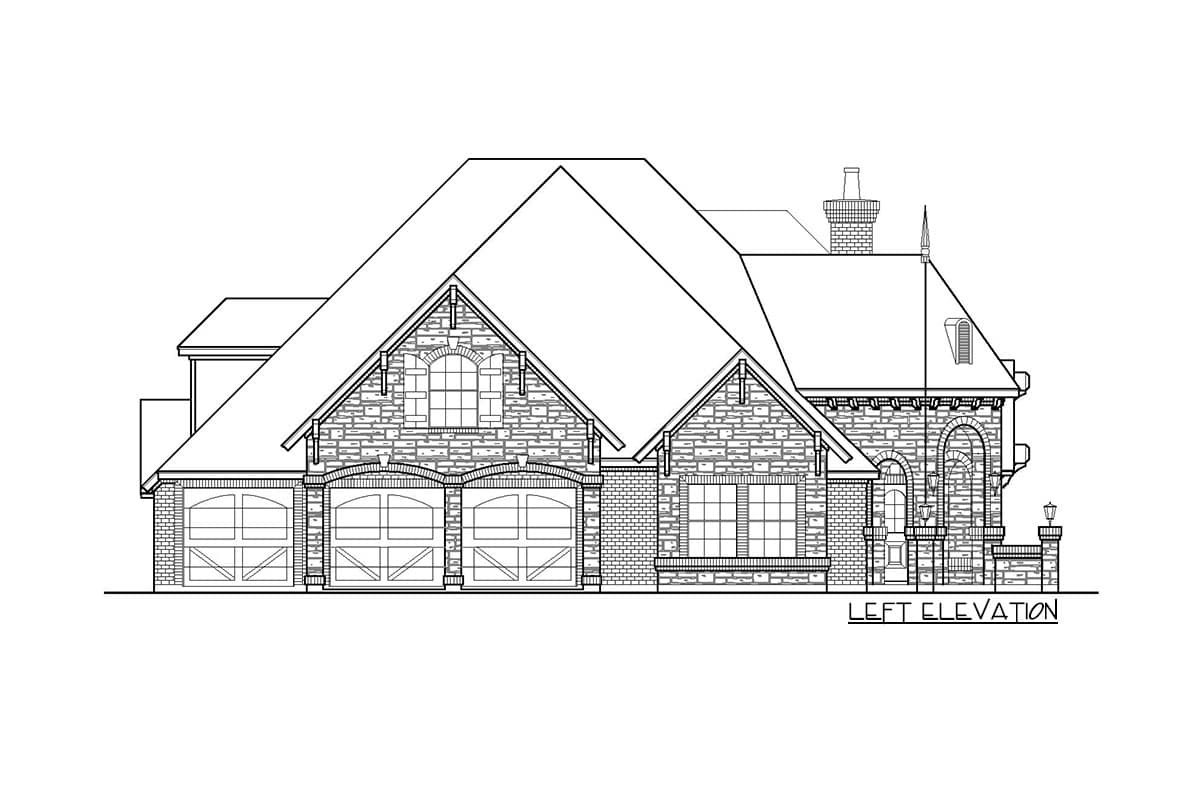

Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
