Plan 36565TX

4-Bed European House Plan with Split Beds

4-Bed European House Plan with Split Beds

Plan 36565TX

  • 3,705

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Deep overhangs on the gables are supported by beams, adding a craftsman touch to this beautiful brick and stone exterior. The angled front porch makes this home perfect for a corner lot, while intricate ceilings throughout the interior add elegance to the design.
  • The spacious foyer offers views into the heart of the home, but first, a quiet study and full bath reside to the left. Past the dining room, the family room extends outward through french doors onto a covered patio.
  • The sizable square kitchen opens to the family room and includes a prep island and corner pantry.
  • The master suite is quietly situated on the left side of the home, and features a lavish bathroom with dual closets. Just down the hall, a pocket door reveals a laundry room, which includes a freezer for additional cold storage.
  • Bedrooms 2 and 3 reside on the opposite side of the home; each with their own full bath.
  • Upstairs, a game room rests above the 3-car garage, along with a fourth bedroom and full bath.
  • Related Plan: Eliminate a bedroom with house plan 36567TX.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

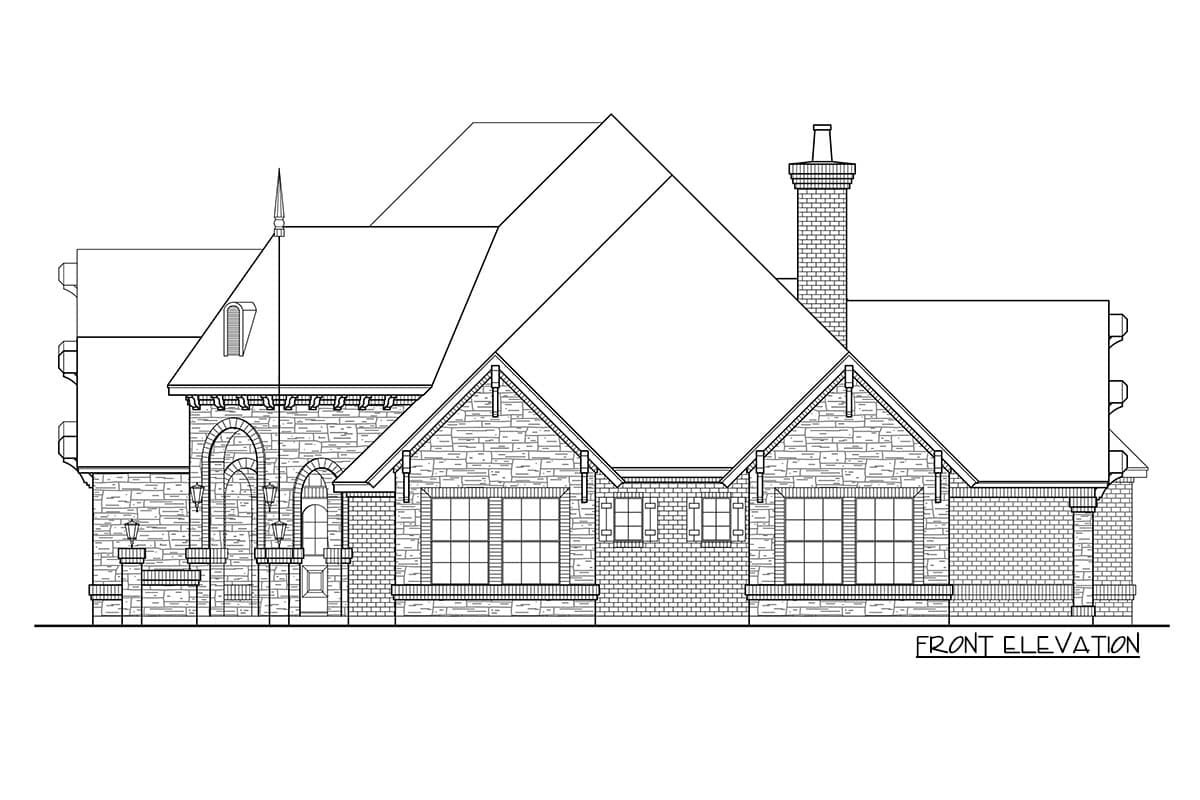

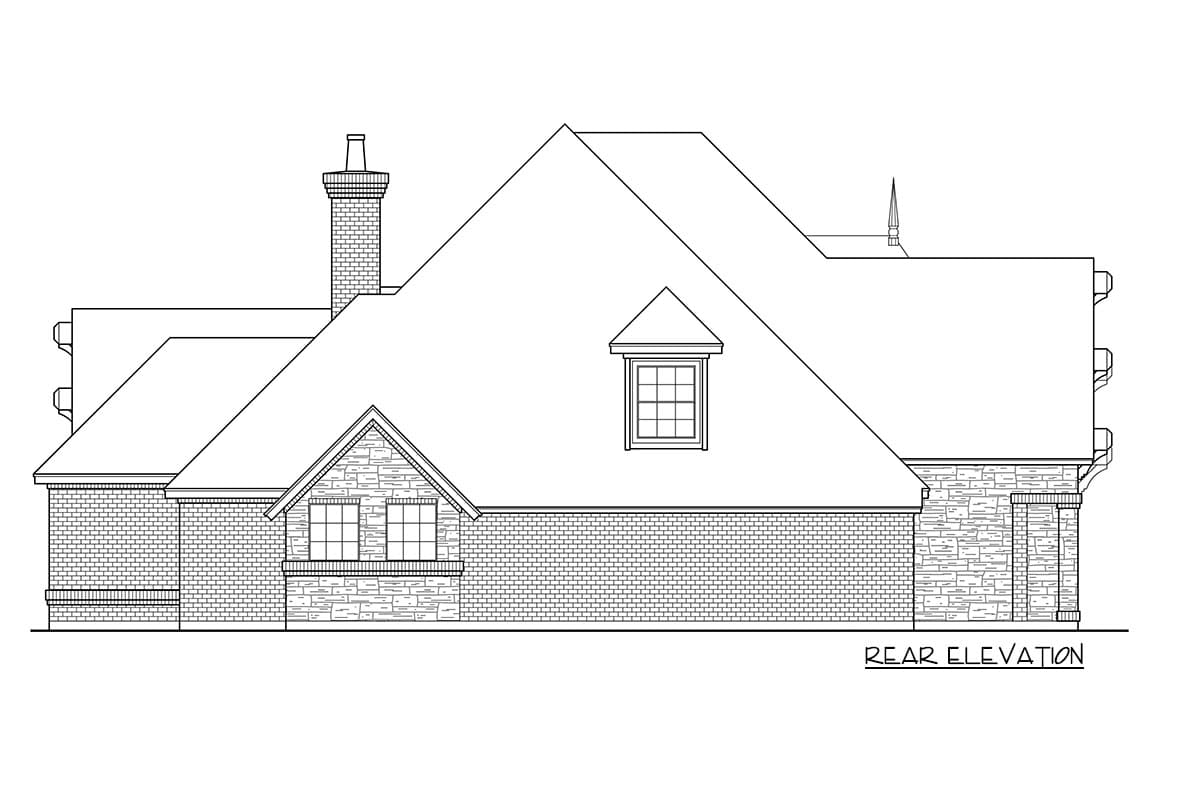

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

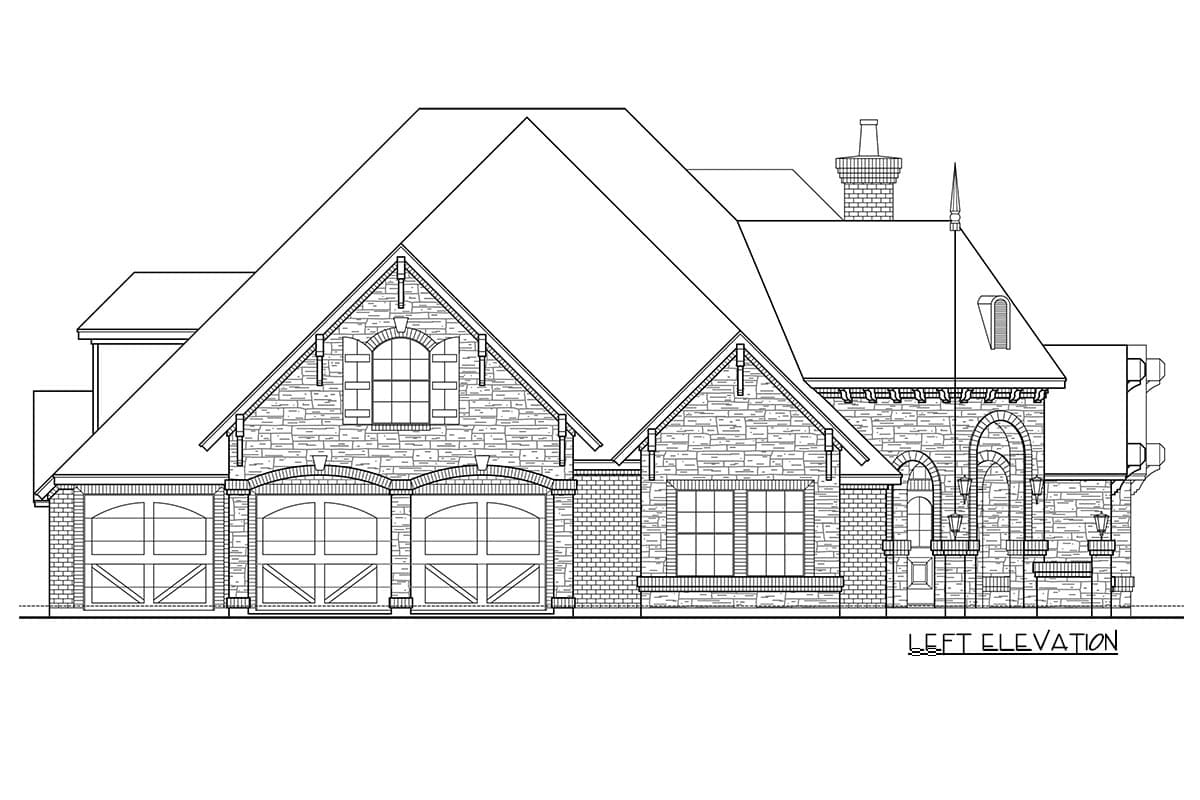

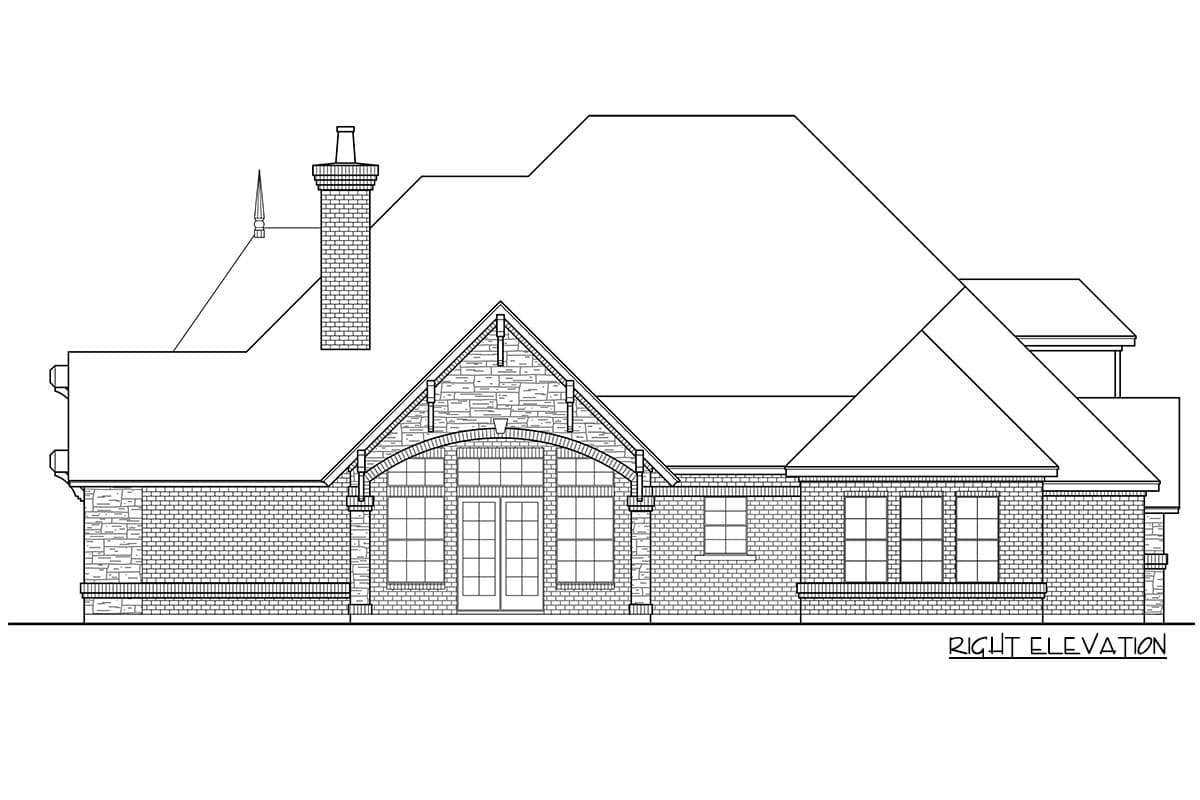

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



4-Bed European House Plan with Split Beds

  • 3,705

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,250
  • 5 Sets $1,450
  • CAD $1,875
  • View all purchase option online

About This Plan

  • Deep overhangs on the gables are supported by beams, adding a craftsman touch to this beautiful brick and stone exterior. The angled front porch makes this home perfect for a corner lot, while intricate ceilings throughout the interior add elegance to the design.
  • The spacious foyer offers views into the heart of the home, but first, a quiet study and full bath reside to the left. Past the dining room, the family room extends outward through french doors onto a covered patio.
  • The sizable square kitchen opens to the family room and includes a prep island and corner pantry.
  • The master suite is quietly situated on the left side of the home, and features a lavish bathroom with dual closets. Just down the hall, a pocket door reveals a laundry room, which includes a freezer for additional cold storage.
  • Bedrooms 2 and 3 reside on the opposite side of the home; each with their own full bath.
  • Upstairs, a game room rests above the 3-car garage, along with a fourth bedroom and full bath.
  • Related Plan: Eliminate a bedroom with house plan 36567TX.

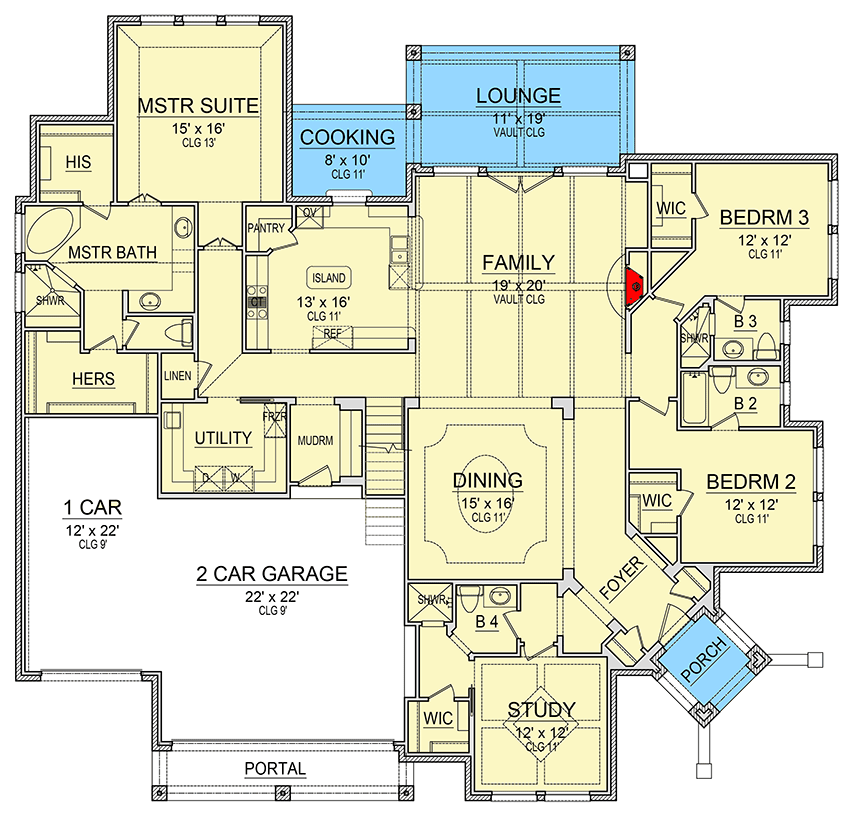

Floor Plans

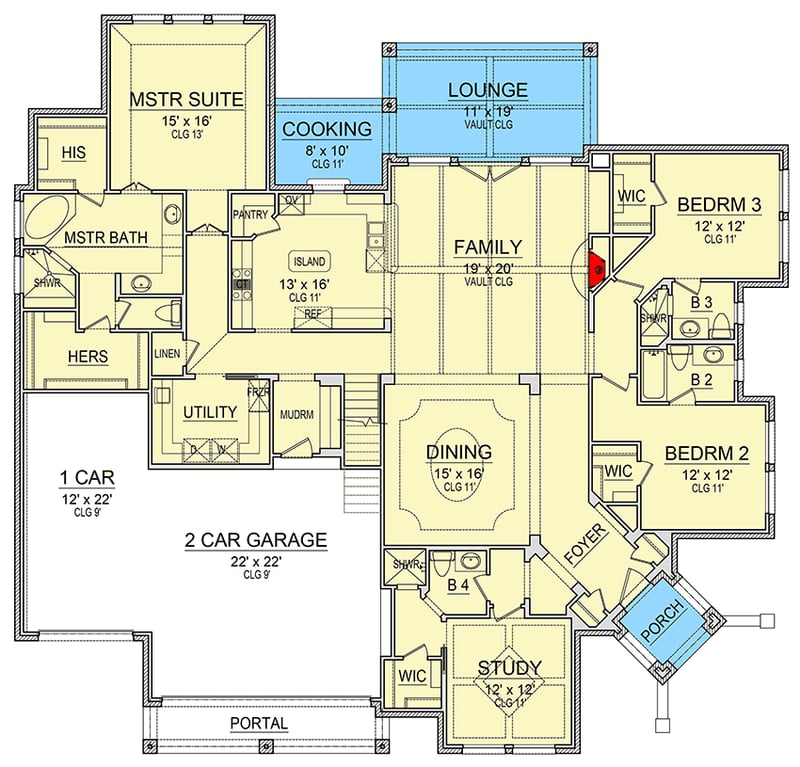

  • Main Level

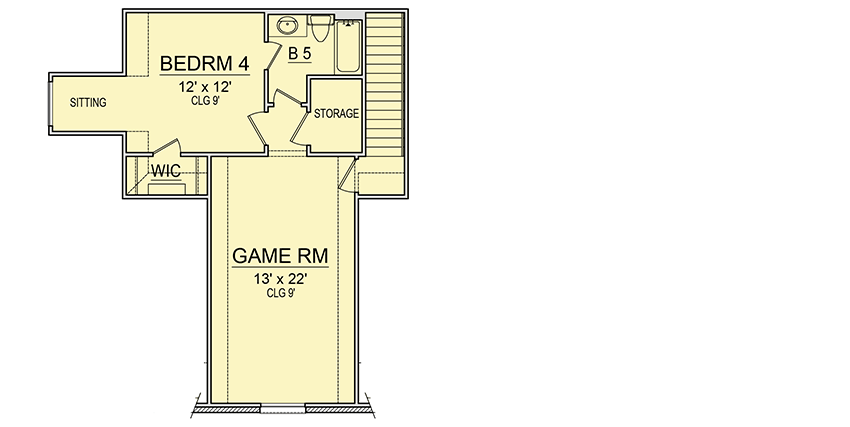

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,705 sq. ft.
  • 1st Floor: 3,011 sq. ft.
  • 2nd Floor: 694 sq. ft.
  • Basement Unfinished: 3,011 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 71' 0"
  • Depth: 75' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 833 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 11' 0" First Floor / 11' 0" Second Floor / 9' 0"
