Plan 62165V
3-Bed European House with Outdoor Kitchen and Outdoor Fireplace - 2477 Sq Ft
Heated S.F.
2,477
Beds
3
Baths
2.5
Stories
1
Cars
2
Floor Plan

Plan 62165V

Main Level
slide image 0

Plan 62165V

1-800-854-7852

1-262-521-4596

Main Level

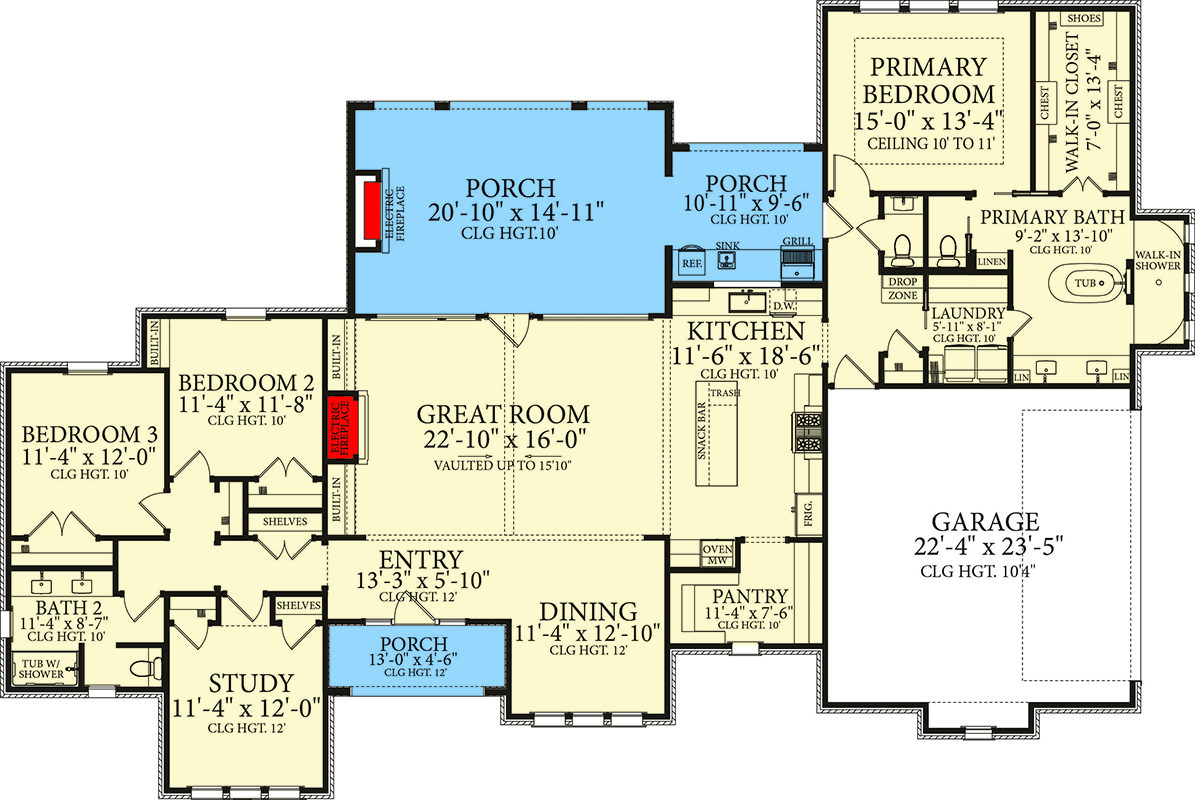

floor plan image Main Level
Plan Details
  • This offers you 2,477 square feet of heated living space with 3 beds, 2.5 baths and a 578 square foot 2-car garage.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
What's Included
  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,477 sq. ft.

1st Floor

2,477 sq. ft.

Porch, Front

68 sq. ft.

Porch, Rear

4,872 sq. ft.

Porch, Combined

555 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

88' 4"

Depth

59' 0"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

578 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Foyer

Flat

12' 0''

Study

Flat

12' 0''

Dining Room

Flat

12' 0''

Guest Room

Vaulted

15' 10''

Master Bedroom

Step

10' 0''

Roof Details

Primary Pitch

11 on 12

Secondary Pitch

16 on 12

Framing Type

Stick

Architectural Style

European

Tudor

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Outdoor Fireplace

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

2,477 sq. ft.

1st Floor

2,477 sq. ft.

Porch, Front

68 sq. ft.

Porch, Rear

4,872 sq. ft.

Porch, Combined

555 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

88' 4"

Depth

59' 0"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

578 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Foyer

Flat

12' 0''

Study

Flat

12' 0''

Dining Room

Flat

12' 0''

Guest Room

Vaulted

15' 10''

Master Bedroom

Step

10' 0''

Roof Details

Primary Pitch

11 on 12

Secondary Pitch

16 on 12

Framing Type

Stick

Architectural Style

European

Tudor

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Flex Room

Formal Dining

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Outdoor Fireplace

Outdoor Kitchen
