Plan 36277TX

3-Bed European-Style Home Plan with Vaulted Ceilings

Name: Plan 36277TX: 3-Bed European-Style Home Plan with Vaulted Ceilings
Brand: Architectural Designs
SKU: 36277TX
Price: 1200.0 USD
Availability: InStock

Heated S.F.

3,428

Beds

Baths

3.5+

Stories

Cars

Floor Plan

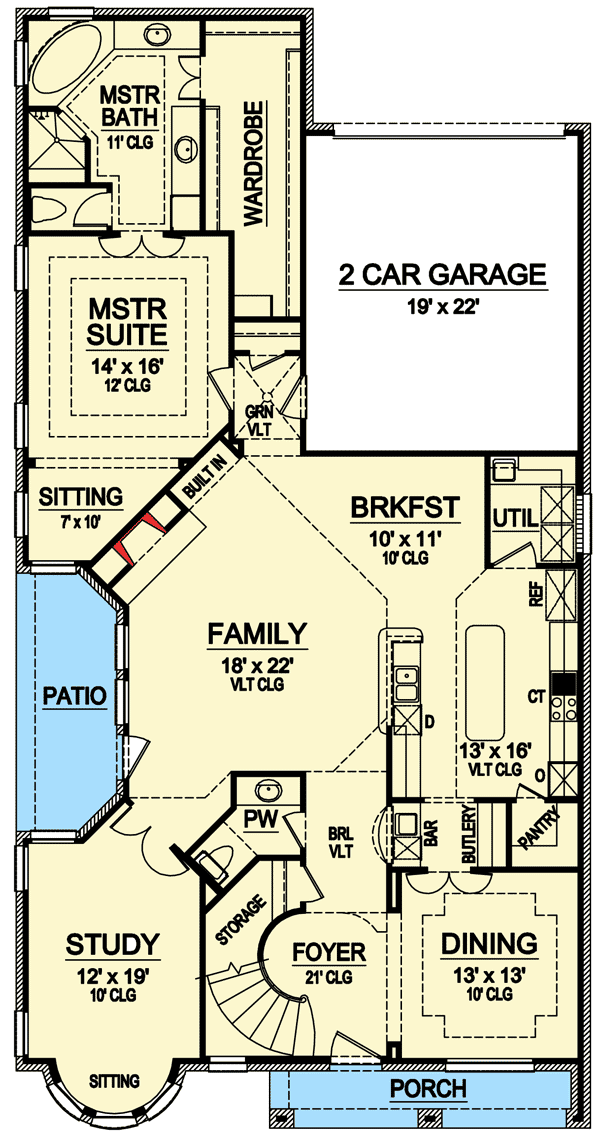

Main Level

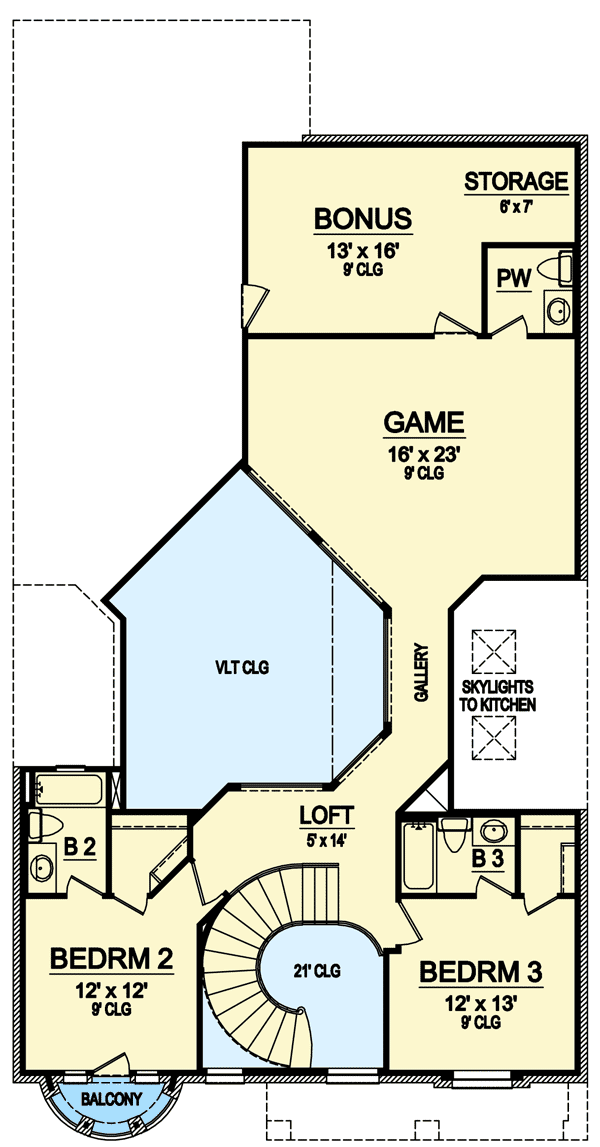

2nd Floor

Plan Details

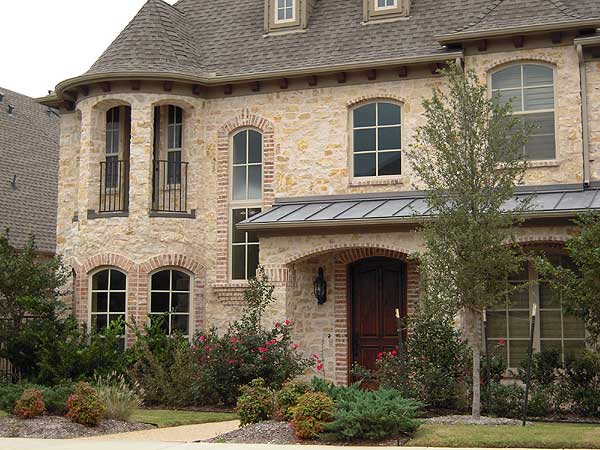

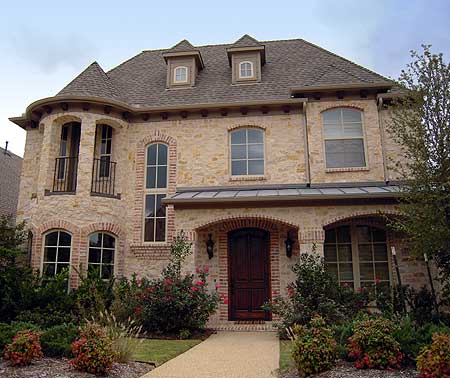

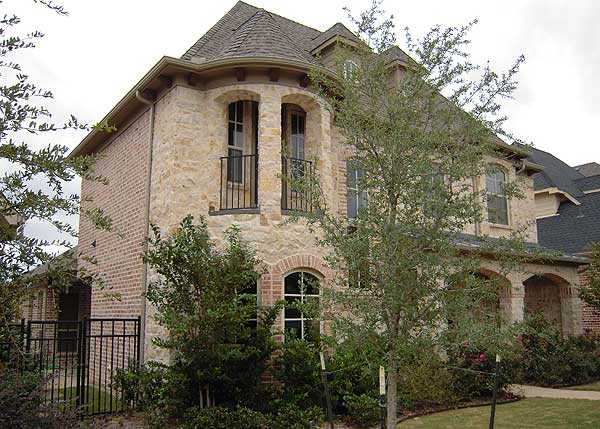

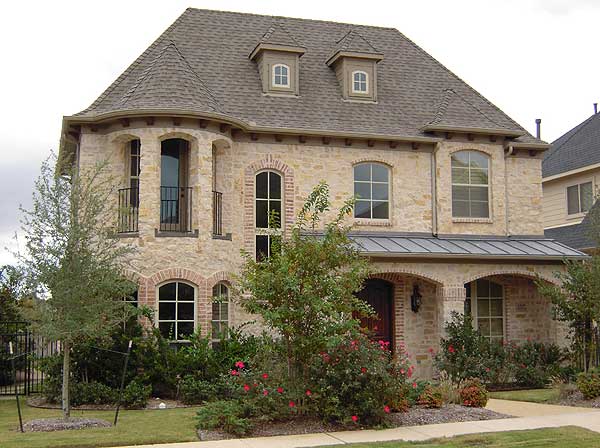

Vaulted ceilings crown the main rooms of this European manor home plan designed for a narrow lot.

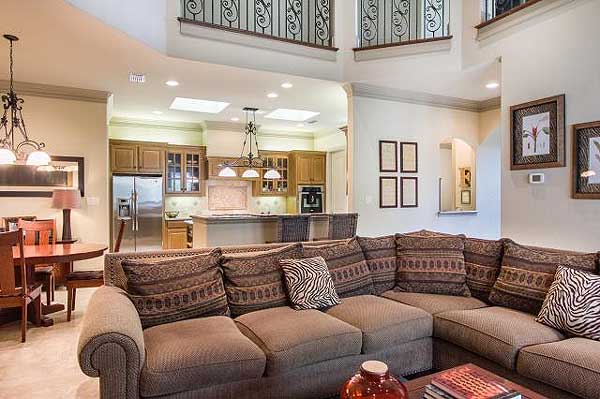

The 2-story foyer leads to a barrel vaulted hall right by the powder room. This opens up to the large informal family area in the back, complete with fireplace and built-ins.

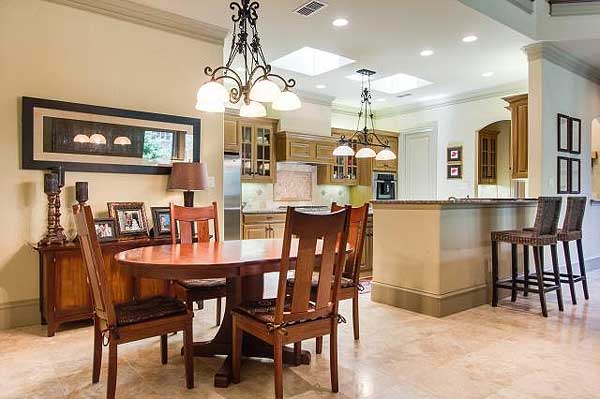

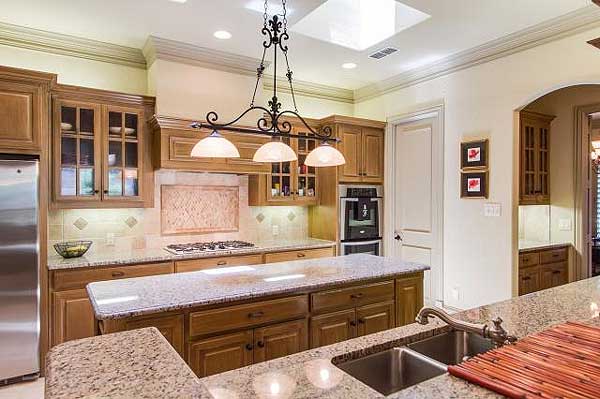

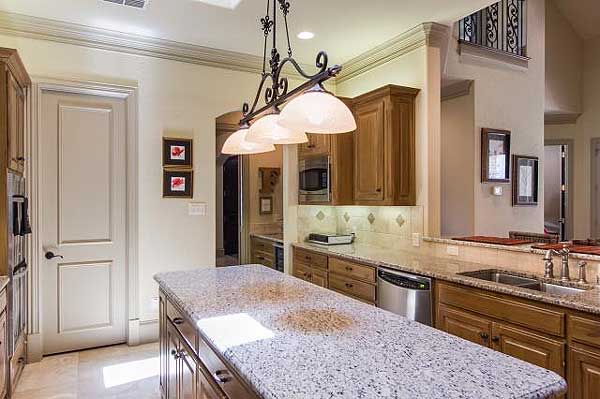

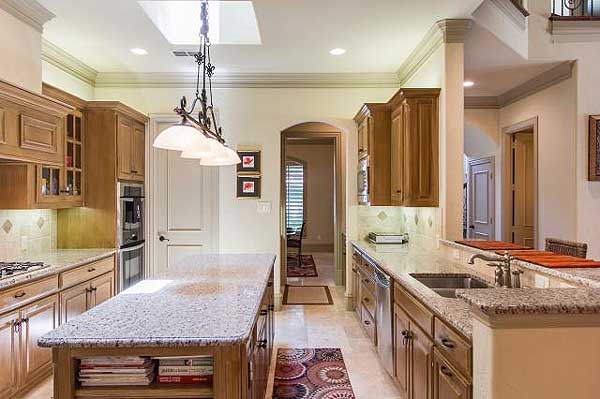

Two skylights brighten the vaulted kitchen with a large work island.

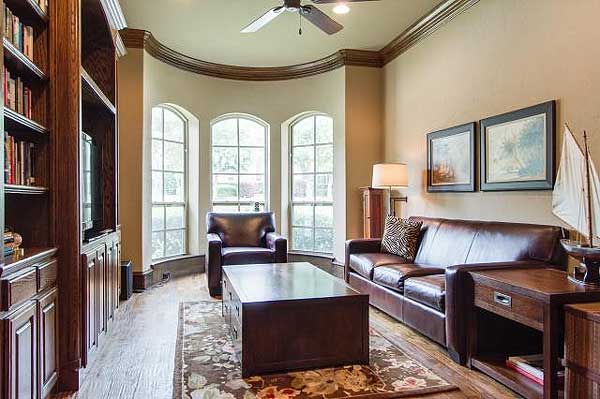

When you need to get away from it all, step into the spacious study with a bayed sitting area that faces the front of the home.
Two bedrooms on the second floor each have their own bath and walk-in closet.
The nearby game room has a convenient powder room and bonus space can be finished to suit your needs.

What's Included

Cover sheet
Foundation Plan - schematic only
First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.
Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.
First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.
Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.
Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.
Sections page
Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
