Plan 83633CRW
EXCLUSIVE
3-Bed Exclusive Cottage with Single Garage Bay
Heated S.F.
1,656
Beds
3
Baths
2
Stories
1
Cars
1
What's Included
Plan Details
  • Gambrel roof lines combine with a charming front porch on the exterior of this 3-bedroom Cottage that is exclusive to Architectural Designs.
  • The vaulted family room flows into the eat-in kitchen where an island provides a casual eating bar and a walk-in pantry lends plenty of storage.
  • Three bedrooms line the left side of the design with the largest reserved for the homeowner and paired with a walk-in closet and attached bath.
  • The laundry room is centrally located and conveniently next door to the owner's bedroom.
  • Enter from the single garage bay to find a mudroom with an exterior door that leads to the back yard.
  • Related Plan: Get an alternate exterior with house plan 83653CRW and 83652CRW.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)
  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Exclusive Cottage with Single Garage Bay

  • 1,656

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 1

    Car garage

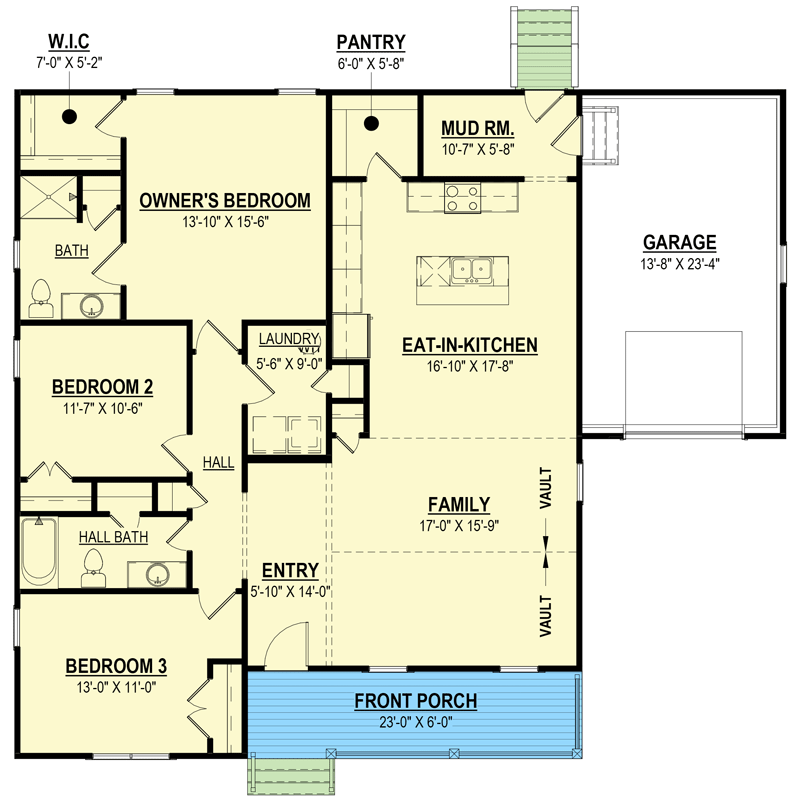

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,656 sq. ft.
  • 1st Floor: 1,656 sq. ft.

Dimensions

  • Width: 53' 0"
  • Depth: 46' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 336 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
