3-Bed French Country Ranch Plan with Split Bedrooms
Heated S.F.
1,628
Beds
3
Baths
2
Stories
1
Cars
2
Flyer
What's Included
Plan Details
  • The hip and valley roof above this 3-bedroom, French Country Ranch home plan allows for an 11' ceiling above the centrally-located living room.
  • From the foyer, a dining room can be found to the left, while the living room sits straight ahead. A corner fireplace can be enjoyed throughout the gathering space and adjoining kitchen.
  • A rear porch on the back of this Acadian house plan is accessible from the breakfast nook and provides a cozy outdoor space protected from the elements.
  • Discover the master bedroom set apart from the secondary bedrooms, and paired with a 5-fixture ensuite and walk-in closet. The laundry room is conveniently located next door.
  • Bedrooms 2 and 3 occupy the right side of the home and share the hall bath.
  • A dedicated storage room in the double garage helps to keep your garage free of clutter.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed French Country Ranch Plan with Split Bedrooms

  • 1,628

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

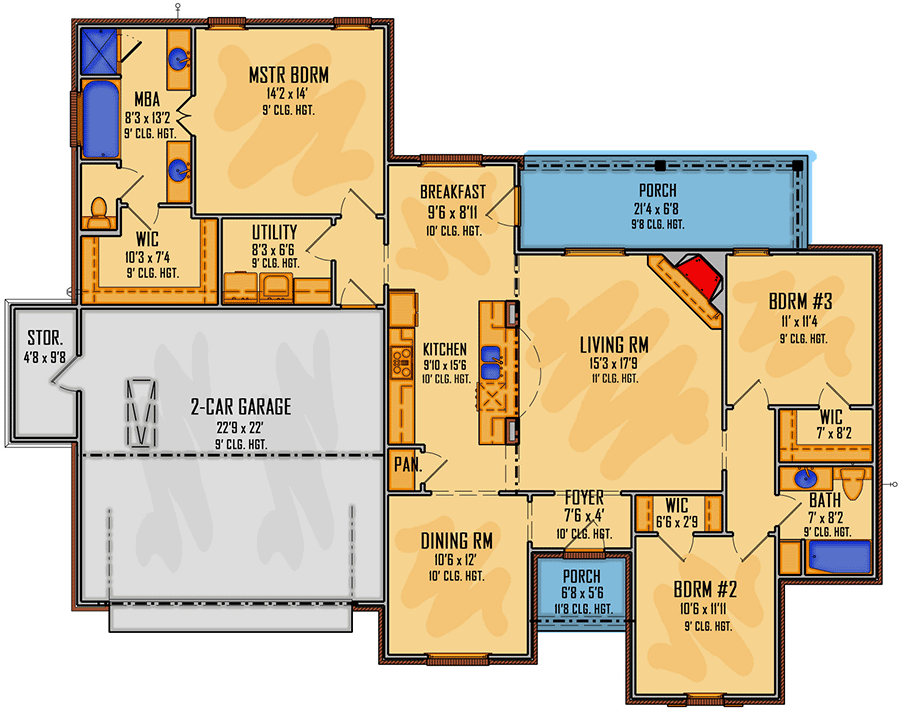

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,628 sq. ft.
  • 1st Floor: 1,628 sq. ft.

Dimensions

  • Width: 65' 11"
  • Depth: 51' 6"
  • Max ridge height: 25' 11"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 566 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
