3-Bed Gothic Farmhouse with 2-Car Garage and Split Bedroom Layout
Heated S.F.
1,794
Beds
3
Baths
2
Stories
1
Cars
2
Flyer
What's Included
Plan Details
  • A covered entry porch, three gables peaked with decorative brackets and two garages with barn-like doors great you to this 3-bed Gothic farmhouse plan. Board and batten and an attractive touch of brick at the base complete the pretty picture.
  • Welcome inside to the open floor plan with views extending across the great room to the rear porch. 10' ceilings and the open flow to the kitchen and dining room make this home feel bigger than its almost 1,800 square feet suggest.
  • The walk-in pantry measures 9'8" by 4' and gives you all kinds of storage. Located around the corner from the garage entry by the mudroom, unloading groceries is a breeze.
  • The master suite occupies the entire left side of the home and has direct laundry room access from the walk-in closet via a pocket door. Across the home, two bedrooms share a bath with dual vanities.
  • The rear porch - at 23' by 12'3" - is large enough to have outdoor furniture and comes with an optional outdoor kitchen layout.
What's Included
  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.

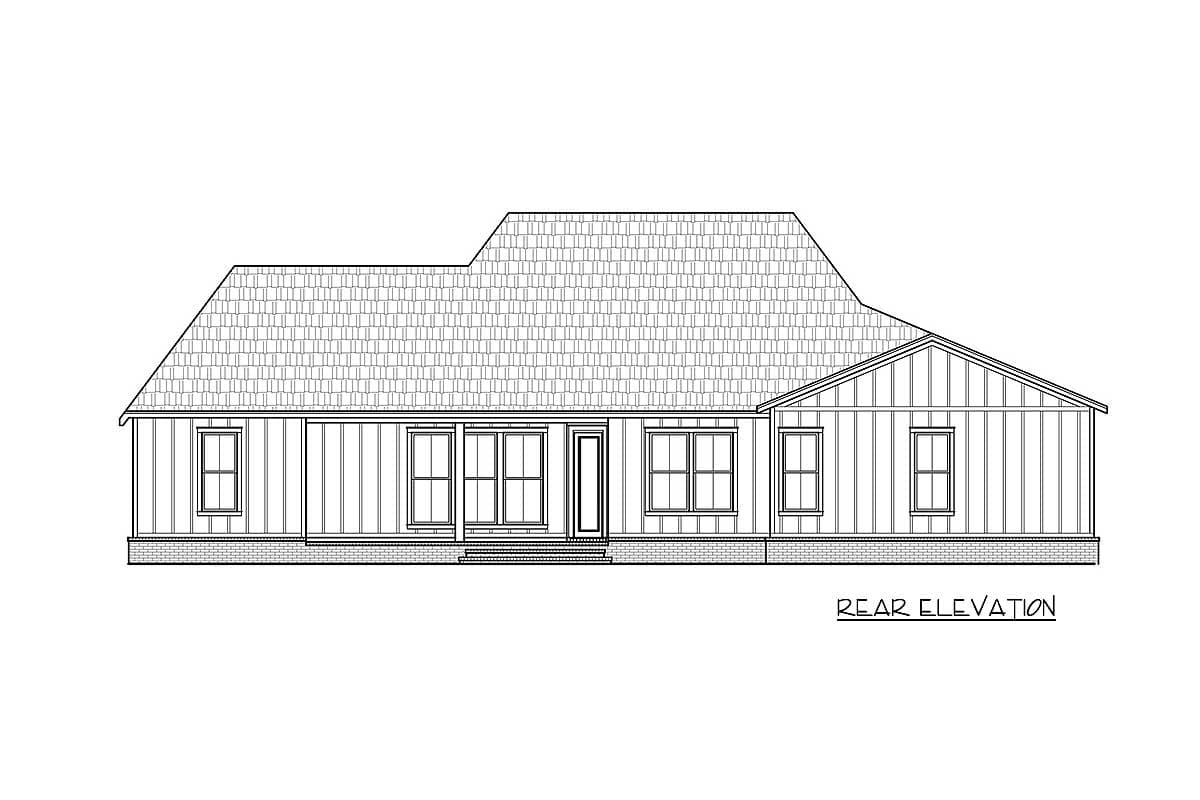

  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details. Also included are wall sections, and any other necessary details for your framer or other subcontractors.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

3-Bed Gothic Farmhouse with 2-Car Garage and Split Bedroom Layout

  • 1,794

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

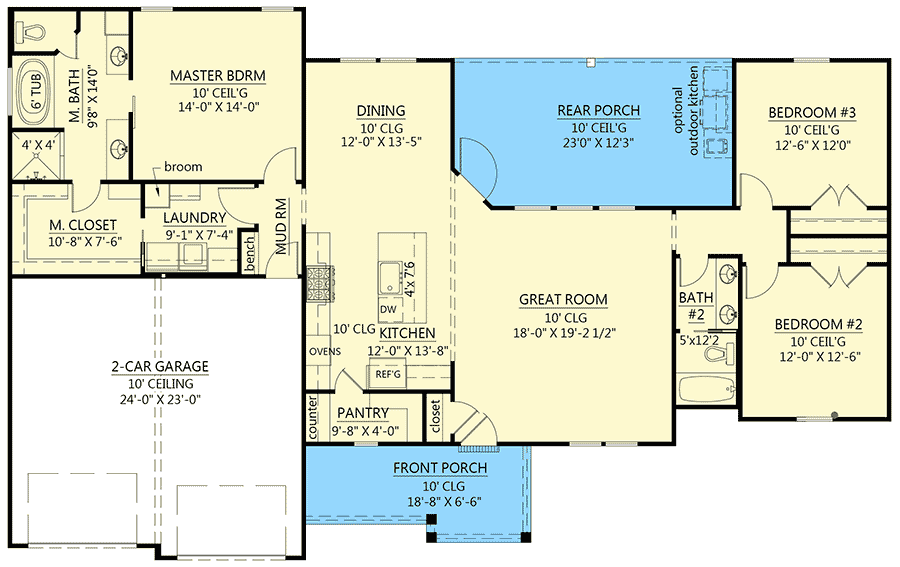

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,794 sq. ft.
  • 1st Floor: 1,794 sq. ft.

Dimensions

  • Width: 73' 2"
  • Depth: 45' 10"
  • Max ridge height: 24' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 563 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 16 on 12
  • Framing Type: Stick
