3-Bed Hill Country House Plan with Bonus Room above Garage

Plan 36582TX

  • 2,688

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • The enormous front porch of this Hill Country house plan includes an outdoor dining space and area for the porch swing of your dreams, while the functional floor plan is ideal for family living.
  • A vaulted ceiling rests above the family room, and extends outside onto the covered, lounge area. U-shaped counters surround a prep island in the attached kitchen to maximize workspace, and the walk-in pantry makes great use of the space beneath the stairs.
  • Retreat to the master suite, which features access to the rear patio, and a lavish, 5-fixture en suite. Dual closets provide ample space for the homeowner's wardrobe, and one of them doubles as a safe room.
  • Bedrooms 2 and 3 are identical in size, and share a Jack-and-Jill bath.
  • Upstairs, a bonus room sits above the 3-car garage, and could be utilized as a playroom or media room.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

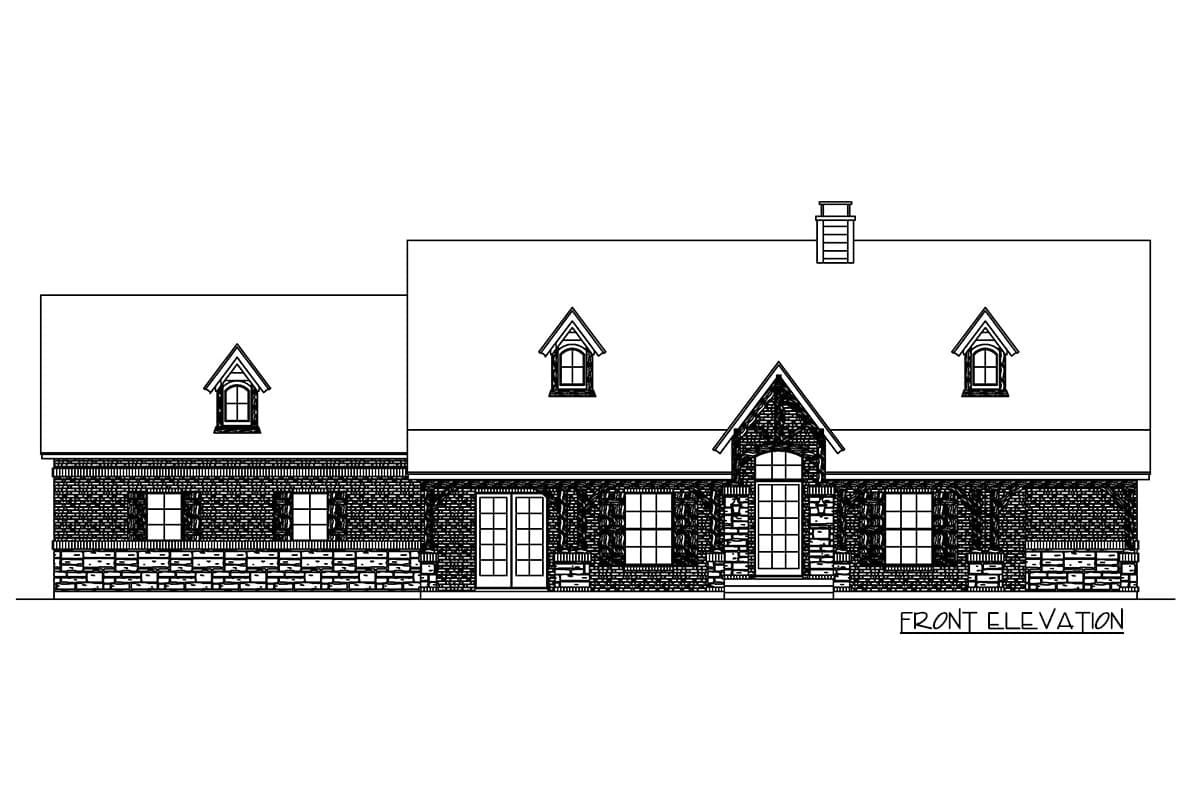

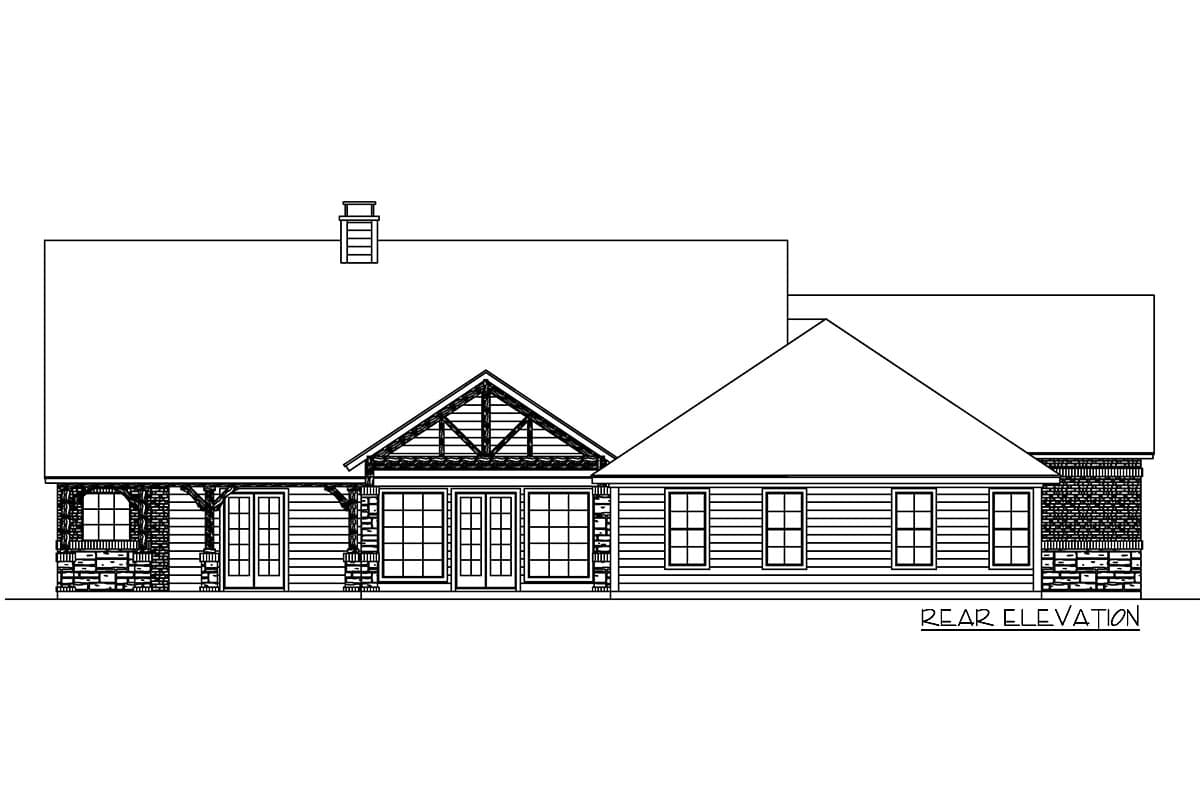

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

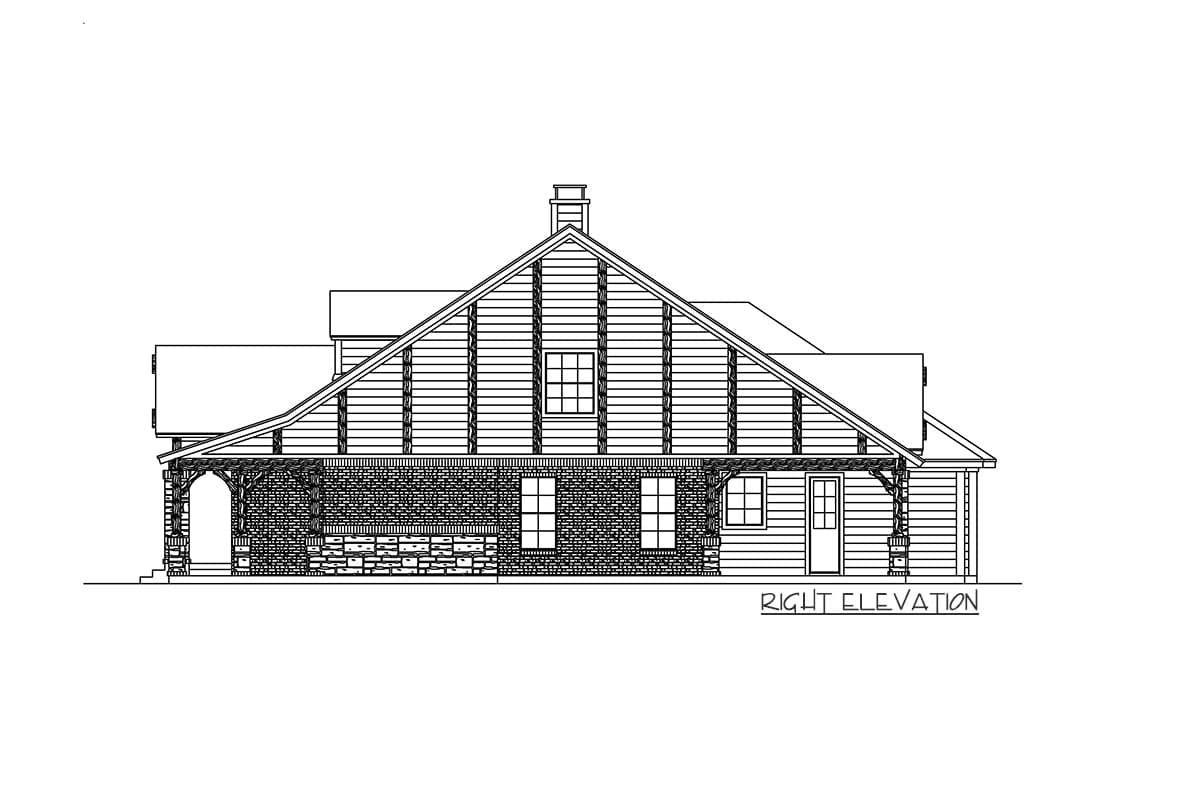

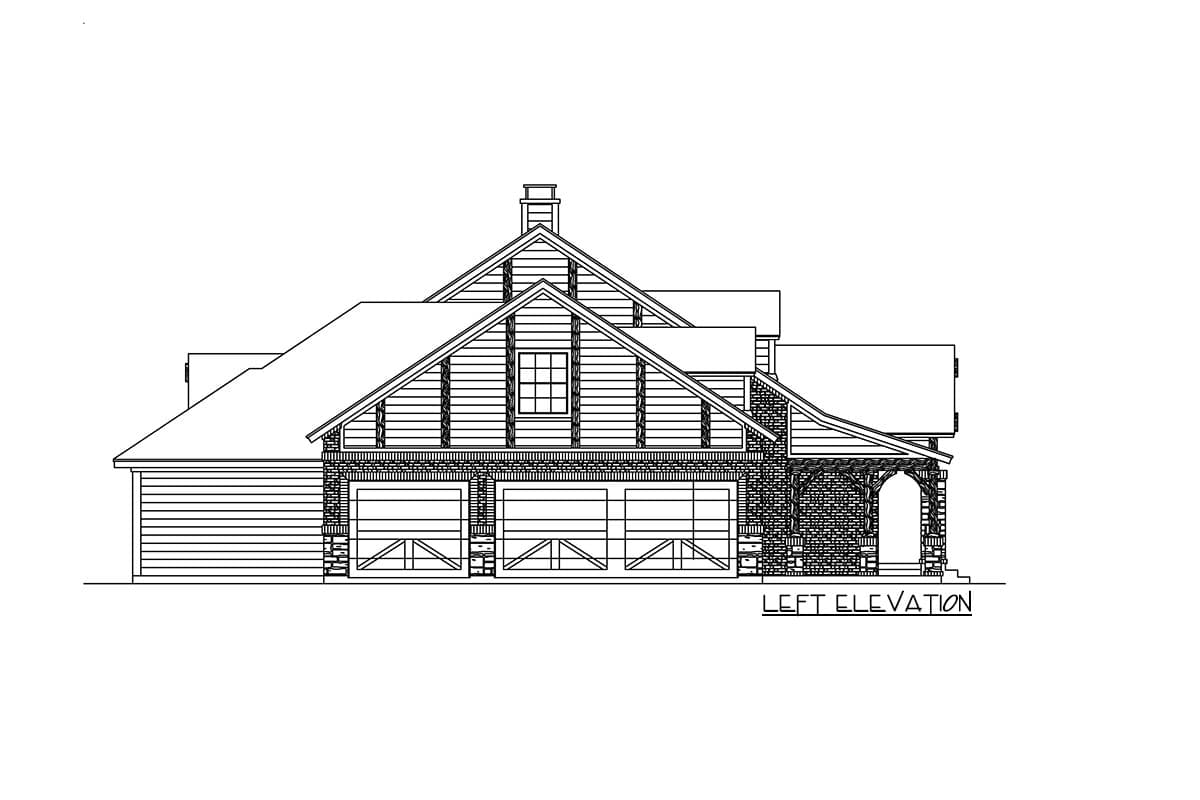

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

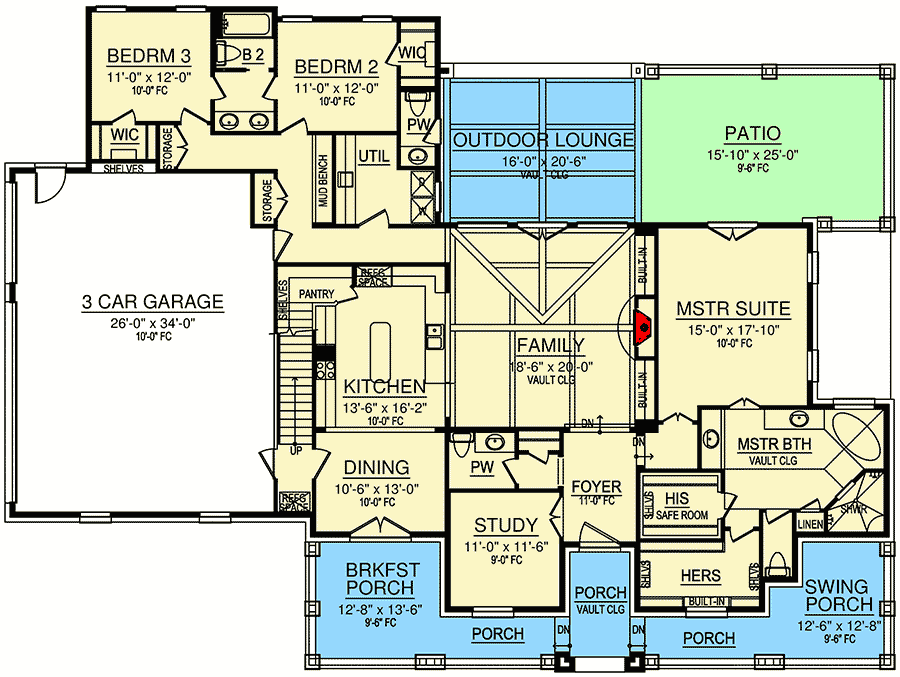

3-Bed Hill Country House Plan with Bonus Room above Garage - 36582TX floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

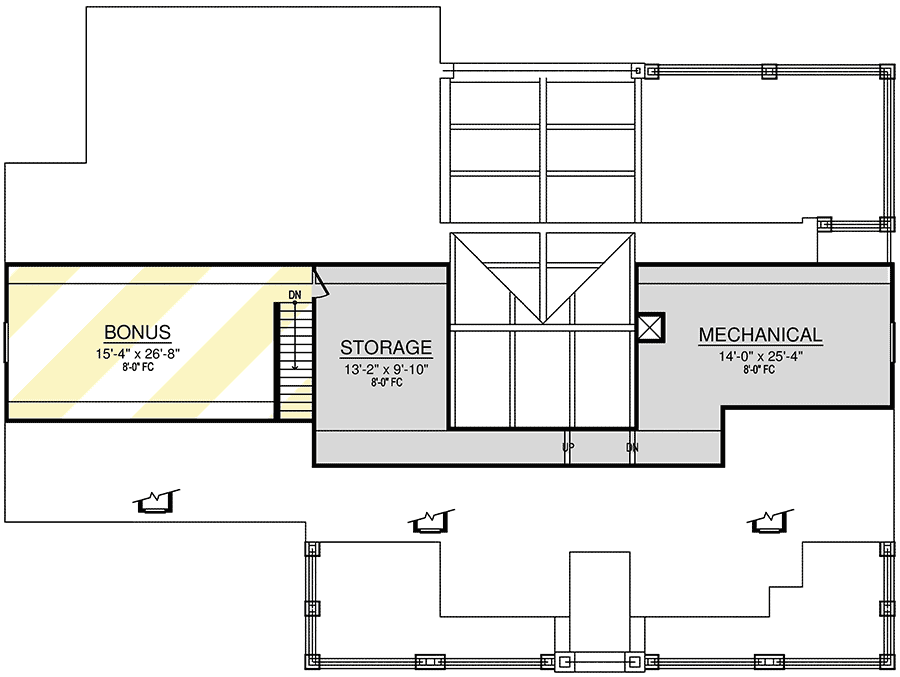

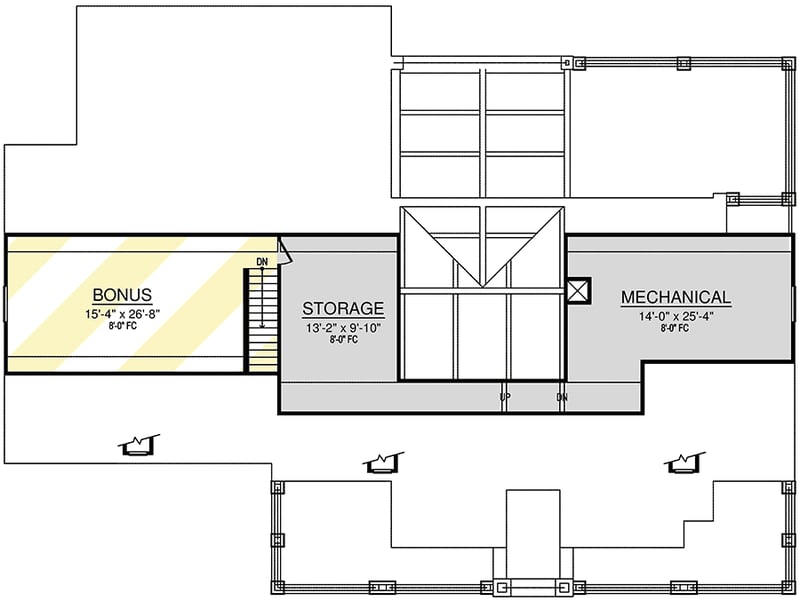

3-Bed Hill Country House Plan with Bonus Room above Garage - 36582TX floor plan - 2nd Floor

3-Bed Hill Country House Plan with Bonus Room above Garage

  • 2,688

    Heated s.f.

  • 3

    Beds

  • 2.5+

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,688 sq. ft.
  • 1st Floor: 2,688 sq. ft.

Dimensions

  • Width: 90' 0"
  • Depth: 67' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1 or 2

Garage

  • Type: Attached
  • Area: 1016 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
